Packaging 1U-wide VME unit
-
Number of sections 1 or 2 (toggle switch selectable)
-
Attenuation: dual 0÷44.5 dB; single 0÷89 dB
-
Resolution: 0.5 dB
-
Input impedance: 50 Ω
-
I/O delay: < 5 ns
-
Accuracy: 1%
-
Max frequency > 300 MHz
-
Max dissipated power (per section): 100 mW
-
Insertion loss: 0.1 dB

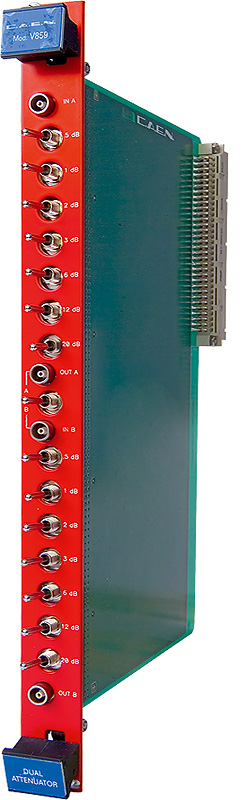

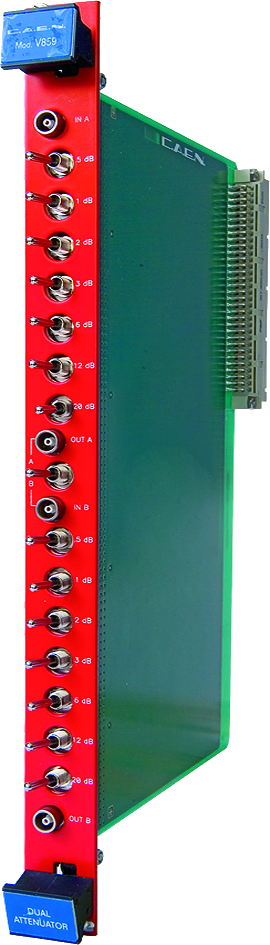

The CAEN Mod. V859 is a passive dual section attenuator housed in a 1-unit VME module; the module does not require any power supply since it is made up of resistive cells. Attenuation ranges from 0 to 44.5 dB for each section (0.5 dB steps). The two section can be “cascaded” in order to obtain a single section featuring a 0÷89 dB (step: 0.5 dB) attenuation.
Each section is provided with two LEMO-00 connectors, one for the input (50 Ω impedance) and one for the output, and seven toggle switch for attenuation setting; an additional switch allows to cascade the two sections.
|
LEMO connector 1U-wide LEMO connector for Mod.V859 |
Consult our connectors reference page for technical information.
You also may be interested in…
VME8001
VME8008B
µ-crate
NV8020A
VME8100
VME8011
VME8200
VME8004B
VME8004X
VME8008X
Request a Quote
Compare
Technical Specifications
|
Packaging |
1U-wide NIM unit |
|
Number of sections |
2 |
|
Attenuation |
0÷44.5 dB |
|
Resolution |
0.5 dB |
|
Input impedance |
50 Ω |
|
I/O delay |
< 5 ns (all stages inserted) |
|
Accuracy |
1% |
|
Max frequency |
> 300 MHz |
|
Max dissipated power (per section) |
100 mW |
|
Insertion loss |
0.1 dB |
