Single Channel High Reliability, High Voltage Power Supply Boxes

Up to 12 kV Power Supply Boxes

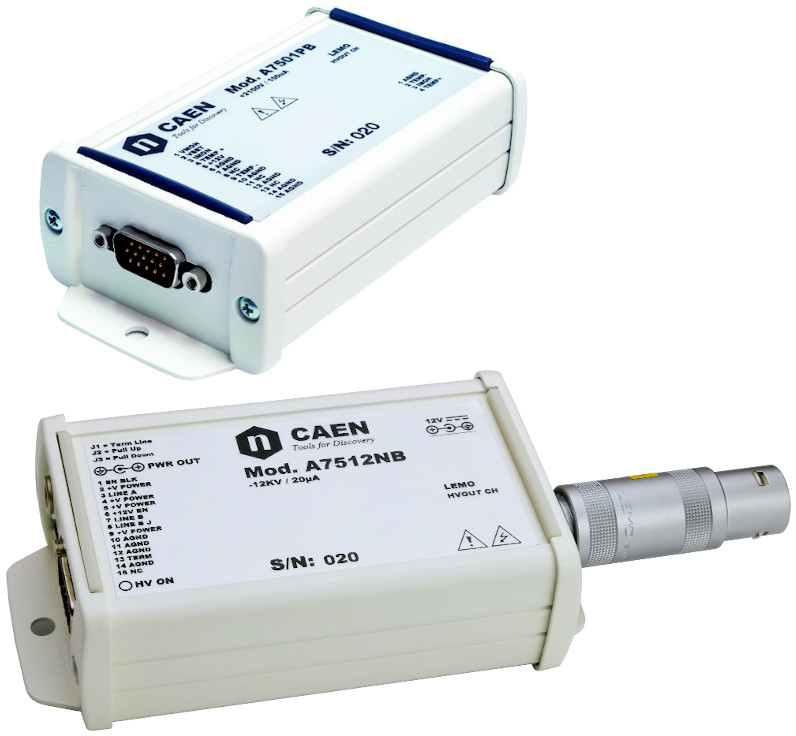

Photo of Single Channel High Reliability, High Voltage Power Supply Boxes

This family is a line of low noise, single channel High Voltage DC/DC converters (up to 12 kV)  in a compact and easily mountable form factor. In the astroparticle research field, in which large area experiment composed by detectors spread over a very large area are involved, the traditional multichannel approach become unfeasible and the necessity of a distributed solution become unavoidable.

This familiy provides a solution to these kind of needs without giving up to high performances and to the reliability of a remote control (analog or digital). With their high efficiency in a compact form factor these modules are suitable for large area experiments or embedded application.

Four models are currently available: A7505B, A7501B, A7512DB, A7526DB, supplying up to 1600V/500µA, 2100V/100µA,  12000V/20µA, 2600V/500µA respectively. Each module can be provided with either positive or negative polarity.

  • Single channel HV DC/DC converter in a compact box

  • Up to 12 kV output Voltage

  • Available with positive or negative polarity

  • SHV or LEMO HV output connectors

  • Remote control (Analog or Digital)

  • High efficiency

Single Channel High Reliability, High Voltage Power Supply Boxes Models

Grid Compare

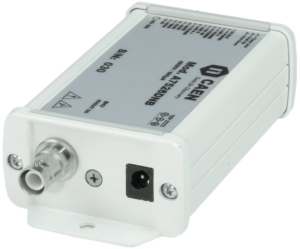

A7526DB

A7526DB

  • Single Desktop HV channel

  • 0 ÷ 2.6 kV output voltage

  • 500 μA maximum output current

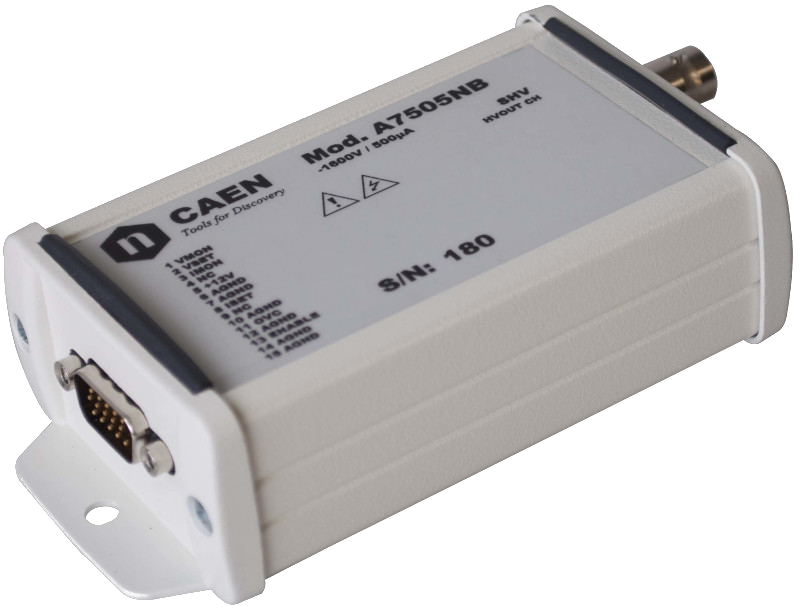

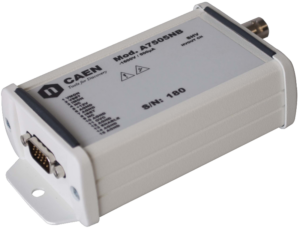

A7505B

A7505B

  • Based on A7505 PCB mount HV DC-DC converter

  • Temperature working range: -10°C ÷ 70°C

  • Designed for long working life in harsh environment

    • Architectural materials chosen to minimize issues due to thermal expansion

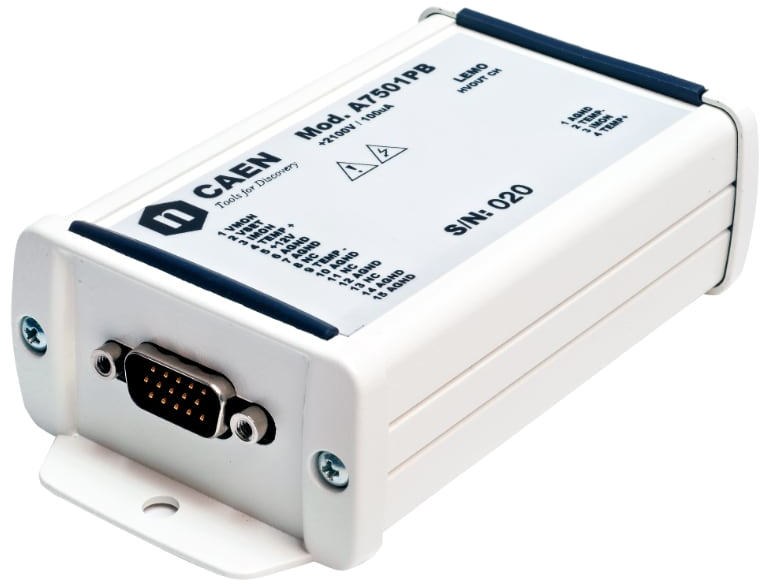

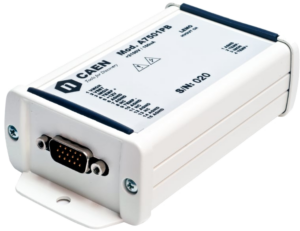

A7501B

A7501B

  • Based on A7501 PCB mount HV DC-DC converter

  • Temperature working range: -10°C ÷ 70°C

  • Designed for long working life in harsh environment

    • Architectural materials chosen to minimize issues due to thermal expansion
Name
field_1
field_2
field_3
field_4
field_5
field_6
field_7
field_8
A7526DB

A7526DB

1

2600 V

500 µA

Digital control / permanent calibration storage

-35° C ÷ +75° C

5 mVpp

SHV

RS485 interface
A7505B

A7505B

1

1600 V

500 µA

Regulated providing external Low voltage

-10°C ÷ 70°C

5 mVpp

SHV
A7501B

A7501B

1

2100 V

100 µA

Regulated providing external low voltage

-10°C ÷ 70°C

5 mVpp

LEMO HV
(ERA.0S.250.CTL)

Imon /Temperature
remote inputs

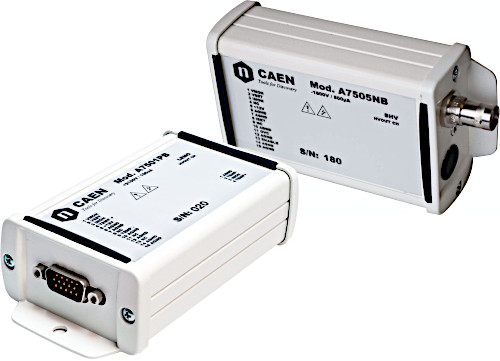

A7501B / A7505B

A7501B and A7505B are solution designed for operating in challenging environmental conditions and high thermal excursions. They rely on the high efficiency PCB High Voltage power supply A7501 / A7505  embedded in a custom carrier, providing up to 1600V/500µA (A7501B) or 2100V/100µA (A7505B).

In order to assure its functionality for long working periods under severe environmental conditions, several dedicated technical and electrical precautions have been implemented such as stress relief techniques on cabling and soldering points, electrical redundancies, PCB layout design, and use of specific materials to minimize the thermal expansion on PCB and housing mechanics.

These features make A7501B / A7505B  boxes ideal for Large Area experiments where the possibility of a prompt maintenance intervention is reduced.

  • Temperature working range: -10°C ÷ 70°C

  • Designed for long working life in harsh environment

  • Assembly optimized for easy maintenance operation

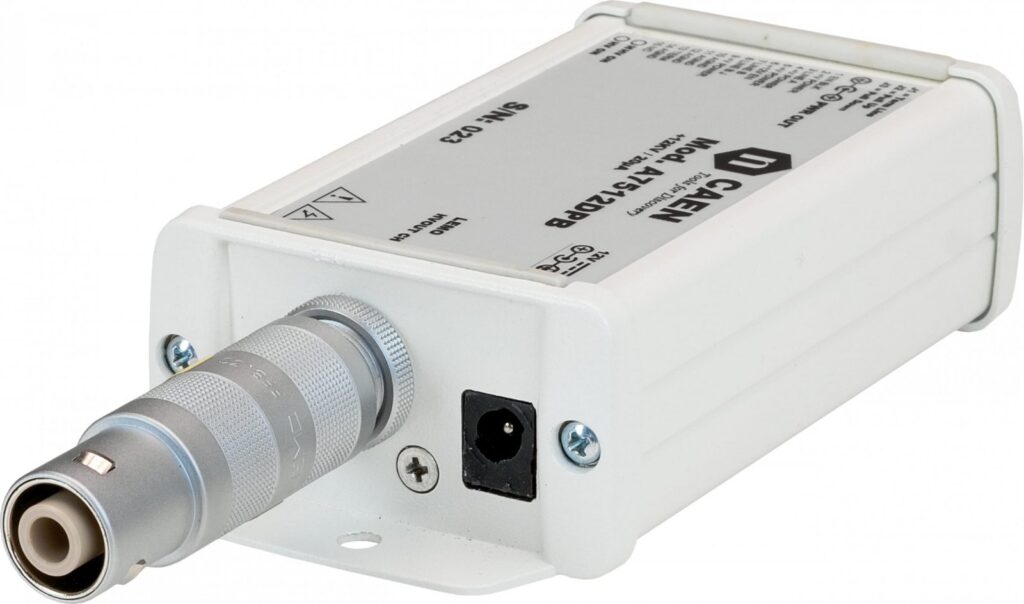

A7512DB

The A7512DB Power Supply Module is a compact solution to provide stable and noiseless power supply for single and multi-gap Resistive Plate Chamber (RPC) detectors.

The module houses a digital controlled high voltage channel that provides  a 12 kV maximum voltage and  20 μA maximum current. It is available with either positive or negative output voltage. HV output is delivered through LEMO HV connector.

Power supply control can be performed remotely, via RS485, that allows to build a daisy chain network of A75xxDB modules.

A7512DB houses also bias output through LEMO 00 connector for preamplifiers power supply. Three different options are available: 2.8 V / 3.3 V / 5 V (maximum output power: 3 W).

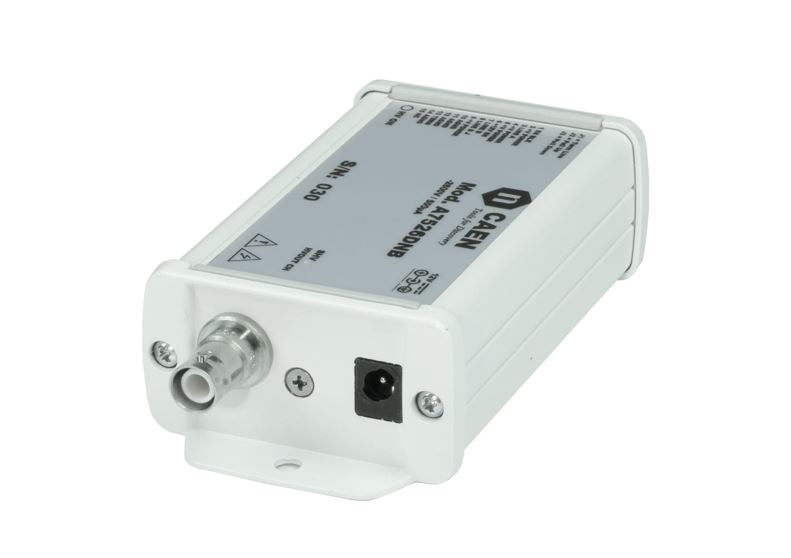

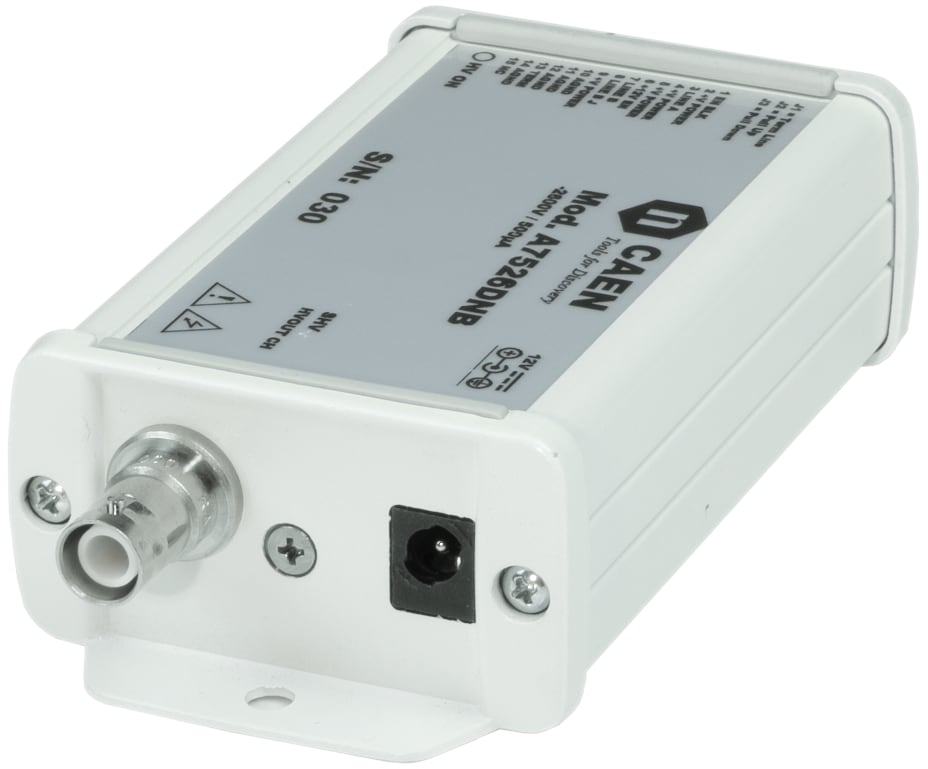

A7526DB

The A7526DB Power Supply Module is a compact desktop solution to provide stable and noiseless power supply for several kinds of detectors.

The module houses a digital controlled high voltage channel that provides a 2.6 kV maximum voltage with 100 mV monitor resolution The maximum output current is 500 μA, with 10 nA monitor resolution. It is available with either positive or negative output voltage. HV output is delivered through SHV connector.
