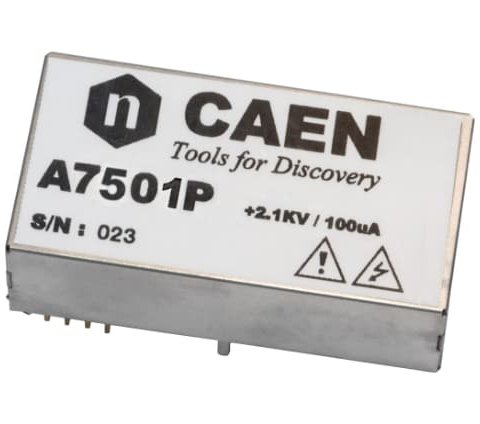

Based on A7501 PCB mount HV DC-DC converter
Temperature working range: -10°C ÷ 70°C
Designed for long working life in harsh environment
Architectural materials chosen to minimize issues due to thermal expansion
Layout optimized for the worst foreseen environmental condition
Redundancy of internal connections
Connection and cabling with stress relief on solder points
Stress absorption with silicon resin
Several solutions from Aerospace electronics design
Assembly optimized for easy maintenance operation

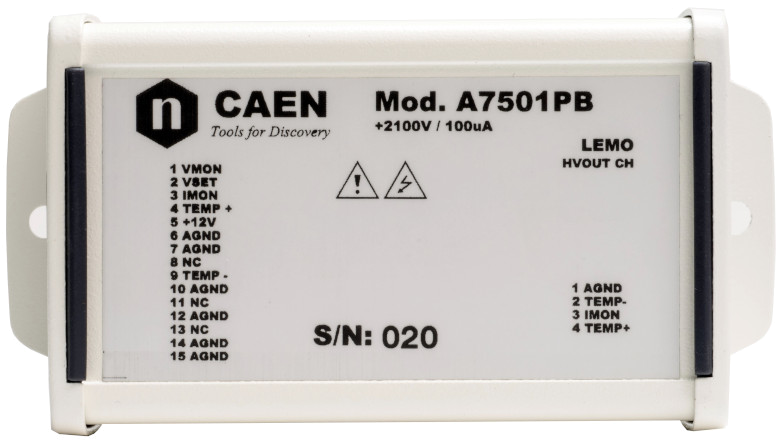

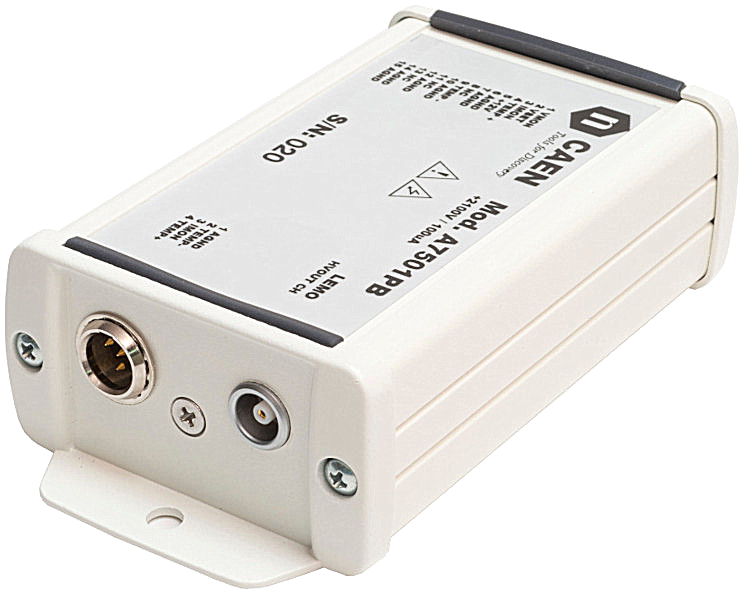

The A7501B is designed to operate in challenging environmental conditions and under wide temperature variations. It is based on the high-efficiency PCB-mount high voltage power supply A7501, housed in a custom carrier.
To ensure reliable operation over long periods in harsh environments, several dedicated technical and electrical measures have been implemented. These include stress relief on cabling and solder points, electrical redundancy, an optimized PCB layout, and specific materials selected to minimize thermal expansion of both the PCB and the housing mechanics.
These features make the A7501B box ideal for large-area experiments, where prompt maintenance interventions are often difficult.
The module also includes dedicated safety features. If the channel attempts to draw a current higher than Iset, the output voltage is automatically adjusted to keep the current below the Iset limit, and the channel operates as a current generator. The module is also protected against short circuits, sparks and humidity.
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vout Control
|
Operating temperature
|
Ripple Typ.
|
Connectors
|
Features
|
|
|
A7526DB |
1 |
2600 V |
500 µA |
Digital control / permanent calibration storage |
-35° C ÷ +75° C |
5 mVpp |
SHV |
RS485 interface |
|
|
A7505B |
1 |
1600 V |
500 µA |
Regulated providing external Low voltage |
-10°C ÷ 70°C |
5 mVpp |
SHV |
|
|
|
A7501B |
1 |
2100 V |
100 µA |
Regulated providing external low voltage |
-10°C ÷ 70°C |
5 mVpp |
LEMO HV (ERA.0S.250.CTL) |
Imon /Temperature remote inputs |
|
|
A7512DB |
1 |
12000 V |
20 µA |
Digital control / permanent calibration storage |
-20° C ÷ +45° C |
30 mVpp @ 10 kV<br>50 mVpp @ 12 kV |
LEMO HV <br>(FFB.3S.415.CPAC10W) |
RS485 interface<br>bias output for preamplifiers |
|
Packaging |

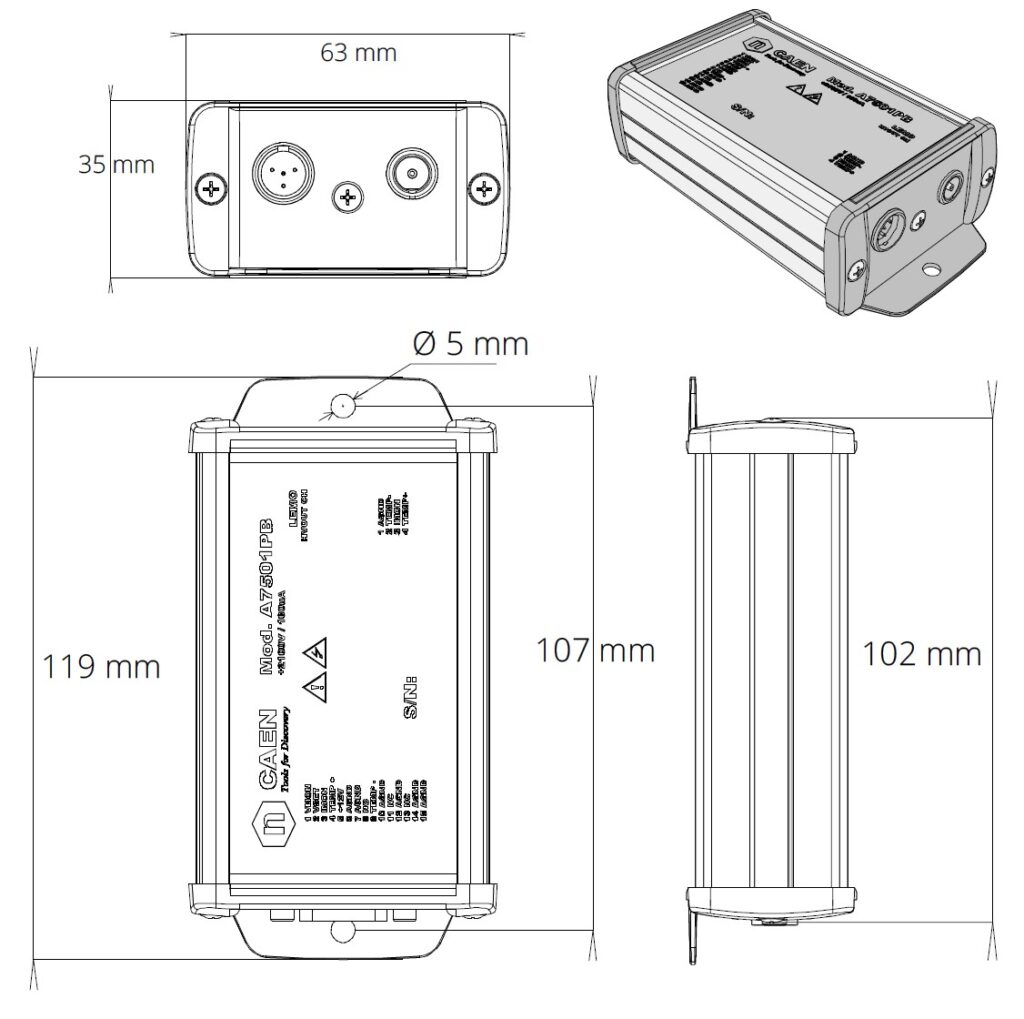

Alloy Box, Dimension: 63 W x 35 H x 119 L mm3 |
|
Output connector |
4200 VDC High Voltage connector |
|
Imon & Temperature Connector |
4-pin G-Type Mini XLR |
|
Control Connector |
15-pin Sub-Miniature D Connector |
|
Operating temperature |
-40° C ÷ +70° C |
|
Storage temperature |
-55° C ÷ +85° C |
|
Voltage Supply (Vin) |
+12 V ± 5% |
|
Output Voltage (Vout) |
0 ÷ ±2100 V |
|
Output polarity |
Available positive or negative |
|
Vmon Output (positive analog monitor) |
0 ÷ +5 V |
|
Vset Input (positive analog command) |
0 ÷ +2.5 V |
|
Imon Output |
0 ÷ +2.5 V |
|
DVout/Vout (for ±5% Vin variations) |
<1.5 X 10-3 @ full scale |
|
Maximum Output Current (Iout) |
100 µA @ ±2100 V |
|
Power requirement |
<400 mW; |
|
Efficiency |
∼ 60% @ Vout = 2100 V (-20° C ÷ +70° C) |
|
Output Ripple (Full Load) |
Typical: 5mVpp; |
|
Vout / Temperature coefficient |
< 60 ppm/ °C |
|
Vset vs. Vout Integral Non Linearity |
< ±0.3% (-40° C ÷ +70° C) |
|
Vmon vs. Vout Integral Non Linearity |
< ±0.3% (-40° C ÷ +70° C) |
|
Protection |
Over current short circuit, sparks and humidity |
