Single Desktop HV channel
0 ÷ 2.6 kV output voltage
500 μA maximum output current
Available with positive or negative polarity
SHV output connector
Compact package: 63x36x170 mm3 (WxHxL)
100 mV voltage monitor resolution
10 nA current monitor resolution
Digital output voltage control
Internal memory for permanent storage of calibration and configuration
RS485 digital control (allows to build daisy chain network of A75xxDB modules)
Interlock logic for Module enable
SMART HV command interface

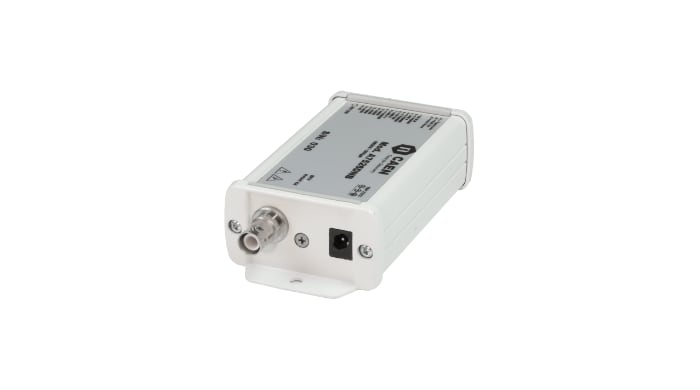

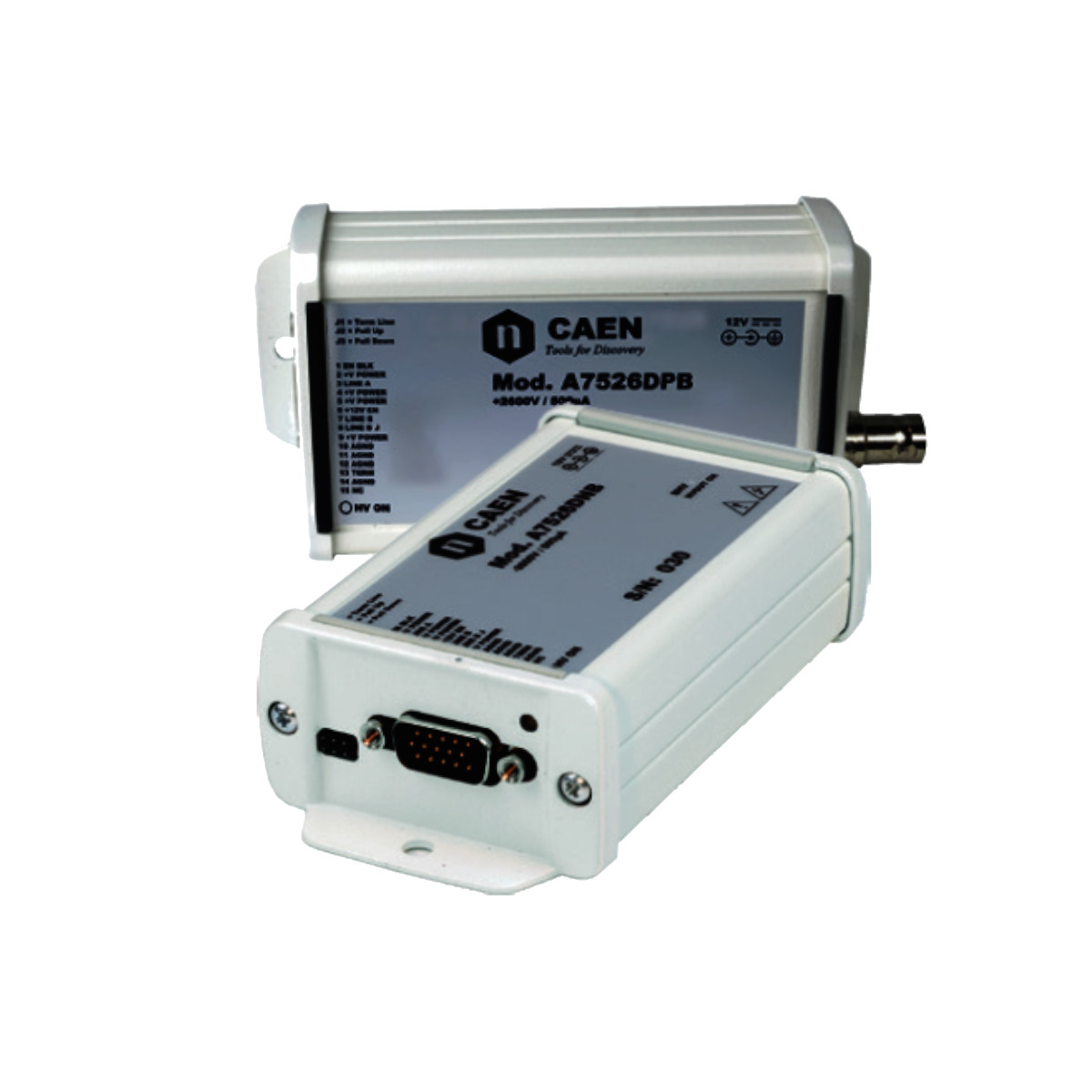

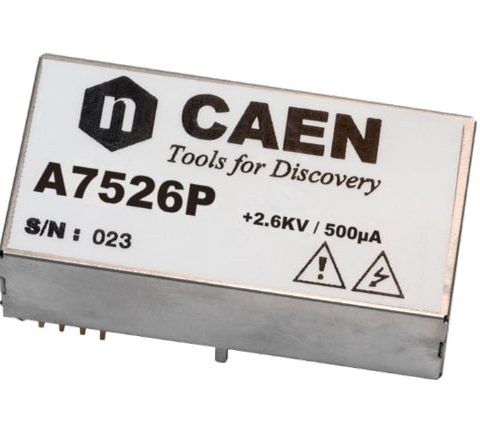

The CAEN Mod. A7526DB is a compact desktop power supply module designed to deliver stable, low-noise high voltage to a wide range of detectors.
The module features one digitally controlled high voltage channel providing up to 2.6 kV, with 100 mV voltage monitor resolution, and a maximum output current of 500 μA, with 10 nA current monitor resolution. It is available with either positive or negative output polarity, and the HV output is delivered through an SHV connector.
All main channel parameters are programmable: the output voltage can be set from 0 to 2.6 kV in 100 mV steps, the current limit from 0 to 500 μA in 100 nA steps, and the voltage ramp-up and ramp-down rates from 1 to 500 V/s in 1 V/s steps; the TRIP parameter can also be configured.
The power supply can be controlled remotely via RS485, which also allows multiple A75xxDB modules to be connected in a daisy-chain network.
The module also includes dedicated safety features. If the channel attempts to draw a current higher than Iset, the output voltage is automatically adjusted to keep the current below the Iset limit, and the channel operates as a current generator. The module can also be enabled or disabled through the interlock logic.
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vout Control
|
Operating temperature
|
Ripple Typ.
|
Connectors
|
Features
|
|
|
A7526DB |
1 |
2600 V |
500 µA |
Digital control / permanent calibration storage |
-35° C ÷ +75° C |
5 mVpp |
SHV |
RS485 interface |
|
|

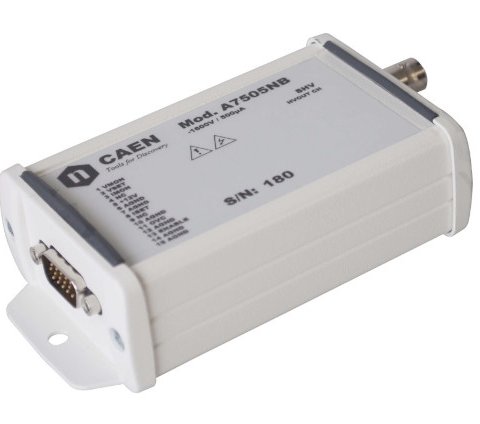

A7505B |
1 |
1600 V |
500 µA |
Regulated providing external Low voltage |
-10°C ÷ 70°C |
5 mVpp |
SHV |
|
|
|

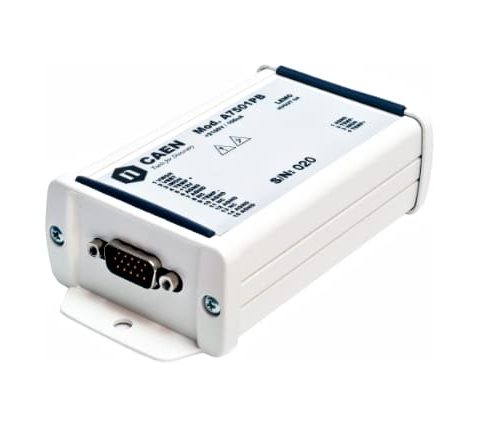

A7501B |
1 |
2100 V |
100 µA |
Regulated providing external low voltage |
-10°C ÷ 70°C |
5 mVpp |
LEMO HV (ERA.0S.250.CTL) |
Imon /Temperature remote inputs |
|
|

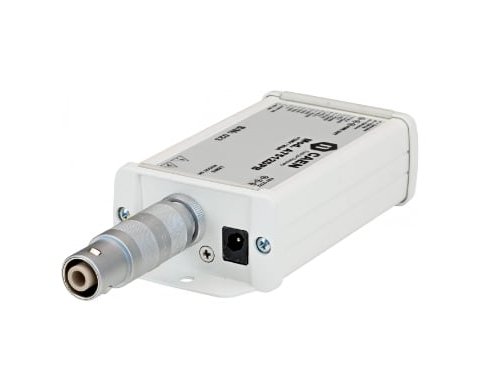

A7512DB |
1 |
12000 V |
20 µA |
Digital control / permanent calibration storage |
-20° C ÷ +45° C |
30 mVpp @ 10 kV<br>50 mVpp @ 12 kV |
LEMO HV <br>(FFB.3S.415.CPAC10W) |
RS485 interface<br>bias output for preamplifiers |
|
Packaging |
Custom Carrier 63 x 36 x 170 mm (W x H x L) |
|
Output Connector |
SHV RADIALL R317580 |
|
COMM connector |
15 Pin Male HD-Sub Connector VGA 5749768-1 |
|
Operating temperature |
-35° C ÷ +75° C |
|
Storage temperature |
-55° C ÷ +85° C |
|
Voltage Supply (Vin) |
+12 V ± 10% |
|
Output Voltage (Vout) |
0 ÷ 2600 V |
|
Output polarity |
Positive/Negative |
|
Maximum Output Current (Iout) |
500μA @ ± 2600 V |
|
VSet Resolution |
100 mV |
|
VMon Resolution |
100 mV |
|
Current Set Resolution |
100 nA |
|
Current Monitor Resolution |
10 nA |
|
Power requirement |
1.5W @ 2000 V (Rload ≈ 6 MΩ) |
|
Output Ripple |
Typical 5mVpp; Maximum 10mVpp |
|
VMon vs. VOut Accuracy |
typical: ± 0.3% ± 0.2 V max: ± 0.3% ± 1 V |
|
VSet vs. VMon Accuracy |
typical: ± 0.3% ± 0.2 V max: ± 0.3% ± 1 V |
|
IMon vs. IOut Accuracy |
2% ±5 µA ±50ppm/°C with output current from 10% to 100% f.s. |
|
Vout vs. Vset Integral Non Linearity |
<±0.03% (-35° C ÷ +75° C) |
|
Electromagnetic compatibility |
Weak emission of electromagnetic impulse and RF; one- piece metal shielding with several ground connections |
|
Uniformity of a lot |
< 0.5 % |
|
Protection |
Over current short circuit, sparks and humidity |
