Up to 15 kV Reversible Polarity – Rack

Up to 15 kV Reversible Polarity - Rack

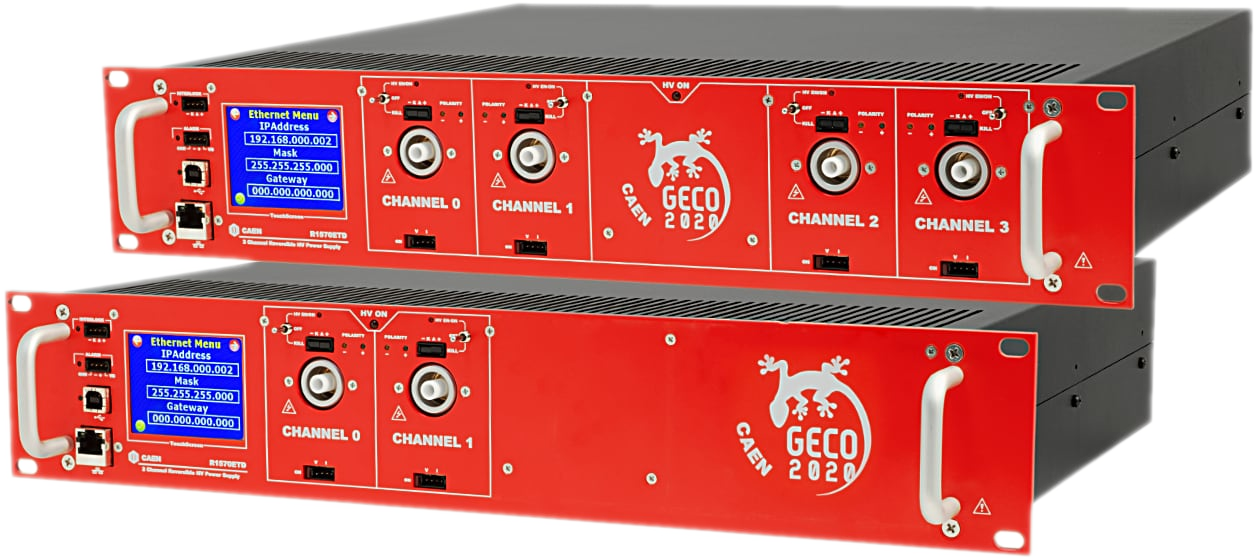

Photo of Up to 15 kV Reversible Polarity – Rack

R14xxET and R1570 are CAEN Power Supplies providing 2/4 or 8 independent High Voltage channels in a 2U, 19” Rack-mount unit. Each channel features an independently selectable polarity and common floating return (common return insulated from the chassis ground). High Voltage outputs are delivered through SHV connectors on R14xxET models and through LEMO HV on R1570. All units can be controlled either locally, thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software. EPICS and LabVIEW are supported.Different versions are available spanning from 500 V to 15 kV and from 20 µA to 3 mA, meeting the needs of a wide range of applications.Each unit is provided with Imon Zoom. This feature enhances the current monitoring, increasing the resolution of a x10 or x20 factor according to the specific model.The HV output Ramp-Up and Ramp-Down rates can be set independently for each channel in the range 1 ÷ 500 V/s in 1 V/s steps (1 ÷ 50 V/s for R1419ET / R1419ETD).

  • 2/4 or 8 independent HV channels in a 2U, 19″ rackmount unit

  • Selectable polarity per channel with common floating return

  • SHV or LEMO HV coaxial connectors

  • Very low ripple with full protections and interlock logic

  • Touchscreen local control and USB/Ethernet remote control

Up to 15 kV Reversible Polarity – Rack Models

Grid Compare
R1470ET

R1470ET

8/4 Ch Reversible 8 kV/3 mA (8 W) Desktop 19' Power Supply Module (USB/Ethernet/T.screen)

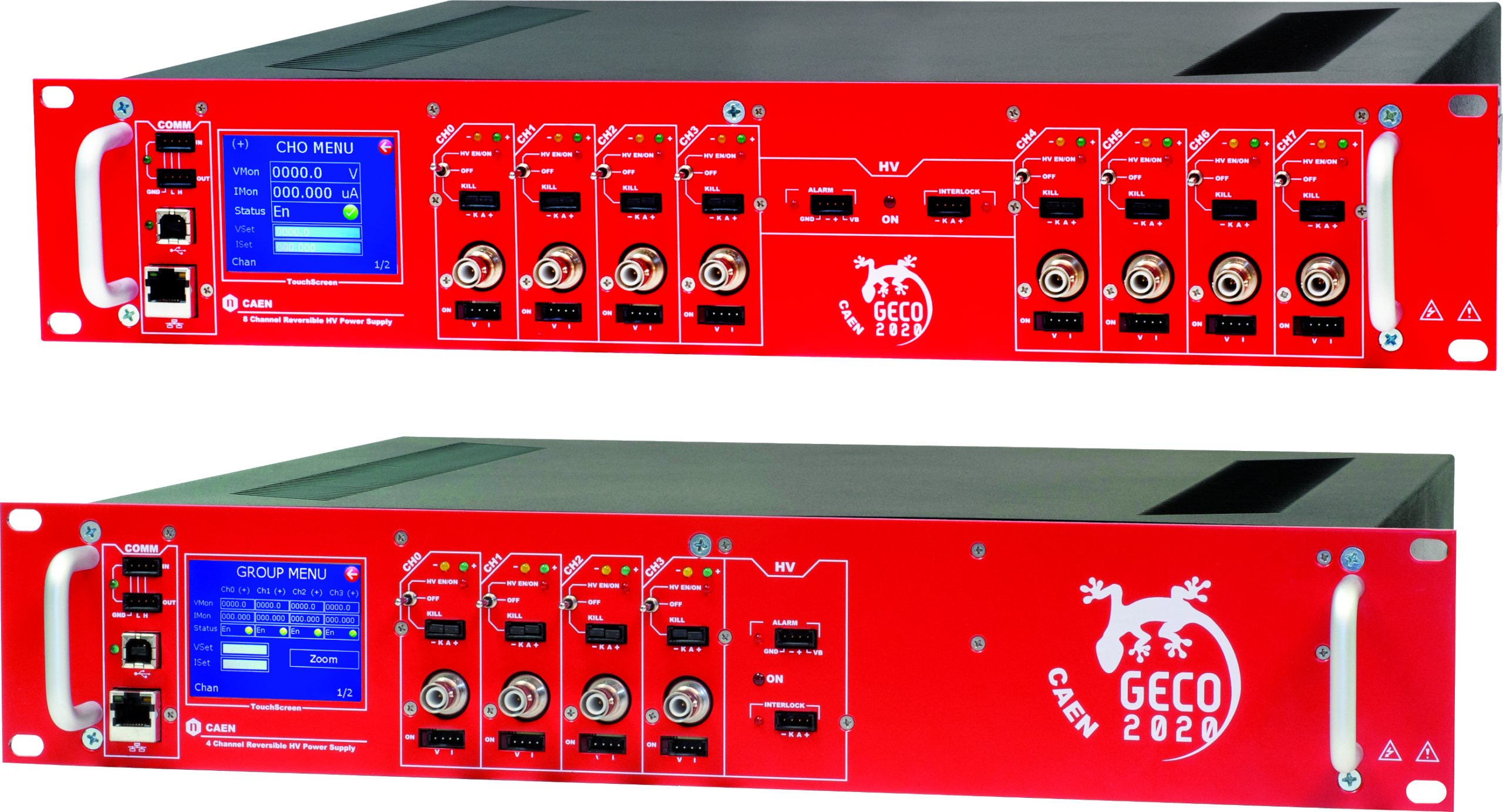

R1471ET

R1471ET

8/4 Ch Reversible 5.5 kV/300 µA Desktop 19' Power Supply Module (USB/Ethernet/T.screen)
R1419ET

R1419ET

8/4 Ch Reversible 500 V/200 µA 19' HV Power Supply Module (USB/Ethernet/T.screen)

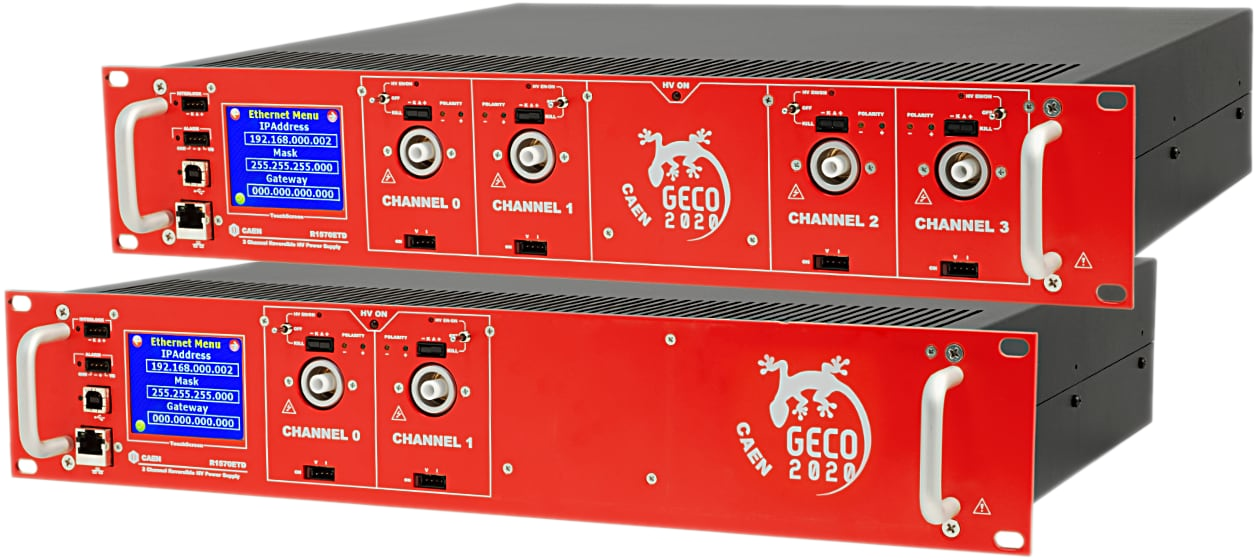

R1570ET

R1570ET

4/2 Channel 15 kV/1 mA (10 W) Rack 19' HV Power Supply
R1471HET

R1471HET

8/4 Ch Reversible 5.5 kV/20 µA 19' HV Power Supply High Accuracy Module (USB/Ethernet/T.screen)
R1472ETS

R1472ETS

1 Ch 3 kV/2 mA Desktop 19'' Power Supply Module (USB/Ethernet/T.screen)
Name
field_1
field_2
field_3
field_4
field_5
field_6
field_7
field_10
field_8
field_9
R1470ET

R1470ET

4-8

±8000 V

3 mA

200 mV

Iset: 50 nA
Imon: 50 / 5 nA

500 V/s

<5-10 mVpp

SHV

9 W (< 3 kV) 8 W (> 3 kV)

Remote control via USB or Ethernet
R1471ET

R1471ET

4-8

±5500 V

300 µA

100 mV

Iset: 5 nA
Imon: 5 / 0.5 nA

500 V/s

<3 mVpp

SHV

1.65 W

Remote control via USB or Ethernet
R1419ET

R1419ET

4-8

±500 V

200 µA

10 mV

Iset: 5 nA
Imon: 5 / 0.5 nA

100 V/s

<5 mVpp

SHV

0.1 W

Remote control via USB or Ethernet
R1570ET

R1570ET

2/4

±15000 V

1 mA

400 mV

Iset: 20 nA
Imon: 20 / 2 nA

500 V/s

<4-20 mVpp

LEMO HV

10 W

Remote control via USB or Ethernet
R1471HET

R1471HET

4-8

±5500 V

20 µA

100 mV

Iset: 1 nA
Imon: 1 / 0.05 nA

500 V/s

<2 mVpp

SHV

0.11 W

Remote control via USB or Ethernet

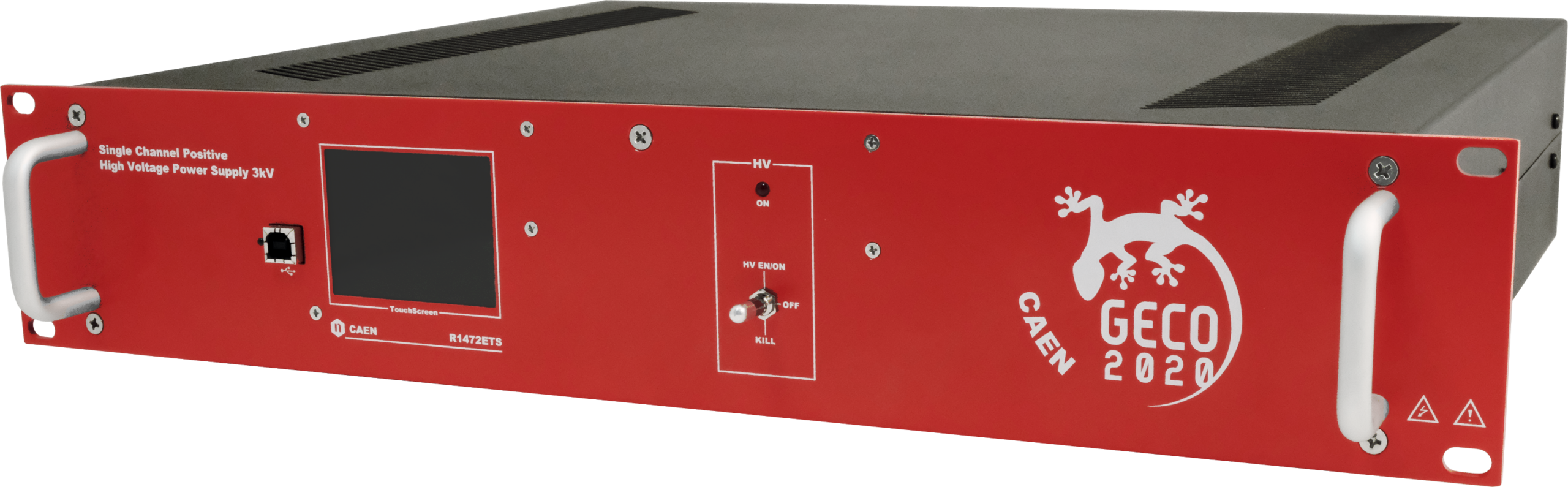

R1472ETS

R1472ETS

1

± 3000 V

2 mA

100 mV

Iset: 50 nA, Imon: 5 nA

1÷500 Volt/s, 1 Volt/s step

Typ: < 5mVpp; Max: <15mVpp

SHV

6 W

Remote control via USB, Ethernet, T. Screen

Software

Software Tools available (free download) to control the Up to 15 kV Reversible Polarity Family:

  • CAEN LabVIEW: It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.

  • EPICS IOC: mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.

  • CAEN HV Wrapper Library: it is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products.

  • GECO2020: CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
