Overview
CAEN Modular Electronics Accessories supply the interconnect, signal conditioning, and expansion components required to complete NIM, VME, and FERS-5200 based experimental setups. The range covers signal cables, attenuators, patch panels, adapters, and piggyback boards for programmable logic expansion.
Highlights
-
Clock distribution cables, optical fiber assemblies, and LEMO cable kits for system-level wiring
-
Fixed attenuators (1 to 20 dB) and BNC MCA filters for signal quality management
-
Piggyback boards for V1495/V2495/DT5495 FPGA channel expansion and patch panels for large-channel systems
Modular Electronics Accessories Families

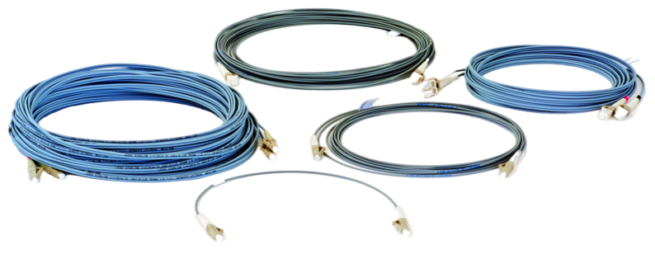

Cables
CAEN offers cable assembly for Clock distribution, Simplex or Duplex Optical Fiber and for Module remotization.

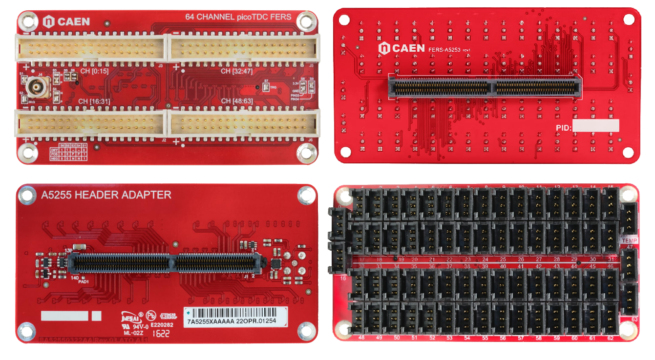

FERS-5200 Adapters
The Mod. A5250, A5251, A5253, A5254, A5255 and A5256 are a complete collection of adapters for FERS-5200.

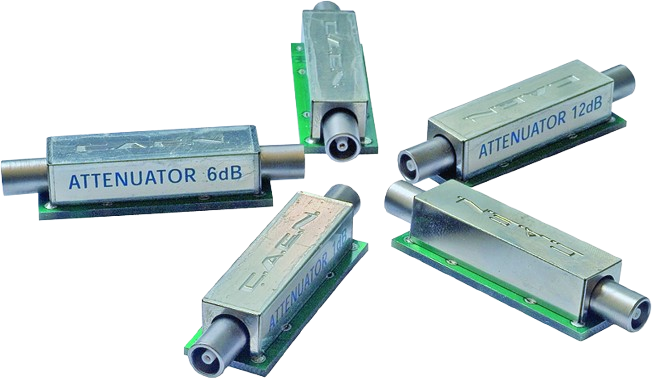

Fixed Attenuators
The Mod. A309, A312, A311, A312 and A313 are simple devices that provides a fixed attenuation (1, 3, 6, 12 and 20 dB respectively).

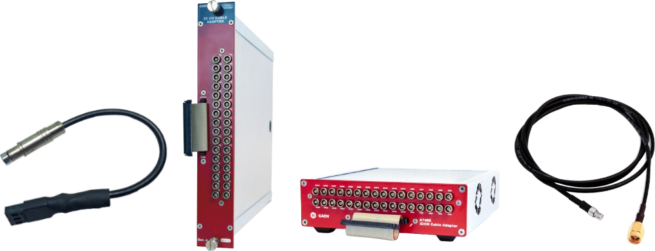

General Adapters
A complete CAEN collection of adapters for Clock signal, Cable assembly LEMO and Patch panels.

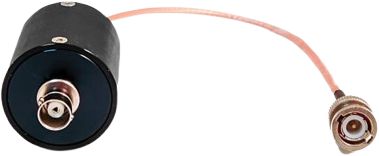

MCA Filter
The Mod. A386 and A387 are BNC-to-BNC cable for the high-frequency noise reduction and signal quality improvement feeding the inputs of CAEN MCAs.

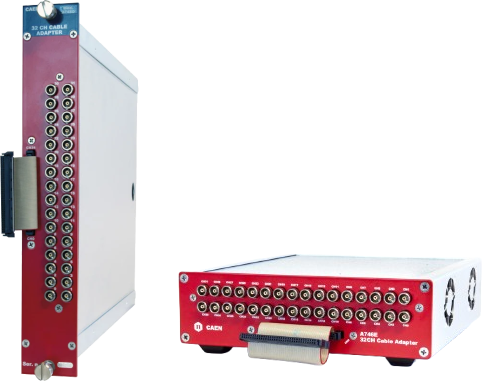

Patch Panels
A complete CAEN collection of patch panels adapt 32/64 LEMO connectors to ERNI connector.

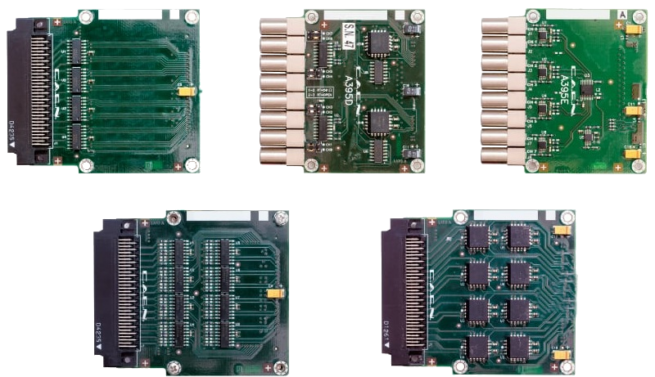

Piggy Back Boards
The channel interface of V2495 (V1495) and DT5495 can be freely expanded by adding up to three independent piggyback boards.

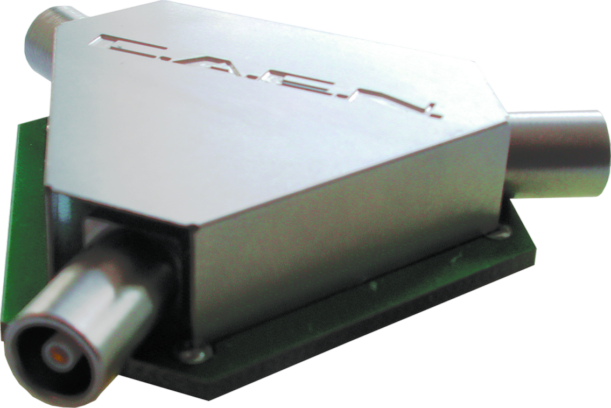

Splitter
The Mod. A315 splits one input on two output signals. All the connectors are LEMO female type.
