The Modular Electronics Accessories – Cables family includes high-performance signal, clock, and optical link cable assemblies designed to ensure reliable interconnection, synchronization, and remote detector readout across CAEN modular electronics platforms.

These cables are engineered for low signal distortion, controlled impedance, and high-integrity transmission in demanding nuclear physics and instrumentation environments. The portfolio covers optical CONET networking cables, SiPM remotization harnesses, clock distribution links for multi-digitizer synchronization, flat micro-coax extensions for FERS front-end systems, and specialized interconnects for LVDS and timing distribution. Together, they enable scalable multi-board architectures, remote detector placement, and deterministic timing alignment in complex acquisition systems.

High-Integrity Optical & Timing Distribution

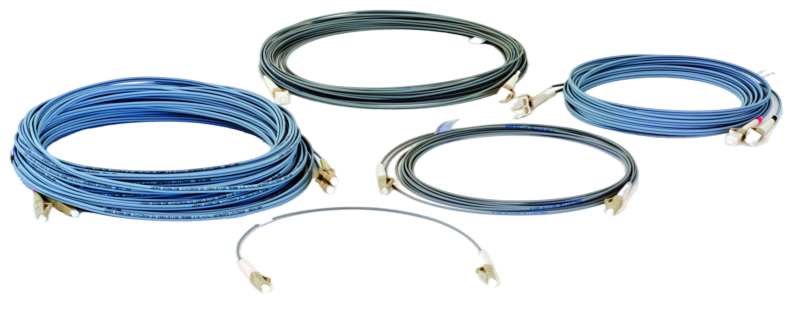

Multimode LC-LC optical cables (AI2700 series) for CONET1/CONET2 networks and dedicated clock/sync cables (A319A/B, A316) for deterministic multi-digitizer synchronization.
Detector Remoting & Low-Noise Signal Transport
SiPM remotization and FERS flat micro-coax cables (A5261, A5260) enabling detector relocation up to 1 m with controlled impedance, minimal attenuation, and stable bias/readout lines.
System Synchronization & Inter-Board Connectivity
SATA and LVDS cable assemblies for multi-module timing alignment, event synchronization, and distributed acquisition architectures across heterogeneous digitizer families.
Optimized for Modular DAQ Infrastructures
Precision-terminated assemblies (50 Ω impedance, low capacitance, controlled delay) supporting scalable nuclear instrumentation systems and high-speed data acquisition networks.

Cables Models

Grid Compare

A32x

A1421 power cords

A317

Cable assembly for Clock distribution 3-pin AMPMODU IV female terminations – 18 cm / 25cm

A319A

Clock & Sync cable assembly for Digitizer Series 2.0 - 20 cm

A319B

Clock cable assembly from Digitizer Series 1.0 to Digitizer Series 2.0 - 20cm

A316

Cable assembly 2.54mm 2-pin header female - 5 cm

A5260

Remotization cable for FERS-5200 boards

A5261

SiPM remotization cable (0.7 m) for A5253

A998

SATA cable for Hexagon synchronization

AI2700

Optical Fiber Series

Image	Name	Description	Related Modules	Features
	A32x	A1421 power cords	A1421, A325	Power cords used to supply the CAEN Preamplifier and Discriminator models A1421 / 20cm, 1m
	A317	Clock cable assembly	CAEN Digitizer Series 1.0, V1741 Peak Sensing ADCs	"CLK-OUT / CLK-IN daisy chain front panel / 18 cm
	A319A	Clock & Sync cable assembly	CAEN Digitizer Series 2.0	CLK-OUT / CLK-IN daisy chain front panel / 20 cm
	A319B	Clock cable assembly Digitizer 1.0/2.0	CAEN Digitizer Series 1.0, CAEN Digitizer Series 2.0	CLK-OUT / CLK-IN daisy chain front panel between non homogenous digitizer series / 20 cm
	A316	LVDS I/Os Cable assembly	CAEN Digitizer Series 1, V1741 Peak Sensing ADCs	Cable assembly for the front panel LVDS I/Os interconnection / 5 cm
	A5260	Remotization cable for FERS-5200 boards	A5250, A5251, A5253, A5254, A5202	Detectors can be moved up to one meter (A5260B) away from the readout electronics without experiencing a significant signal degradation. / 50cm, 1m
	A5261	SiPM remotization cable	A5202, DT5202, A5253	Each A5261 cable allowing to both read out and bias a single remotized SiPM
	A998	SATA cable for Hexagon synchronization	Hexagon	"SYNC-OUT / SYNC-IN daisy chain back panel / 50 cm"
	AI2700	Optical Fiber Series for CONET1/CONET2 Opt. Link	"Digitizer (Series 1.0 - 2.0)	Controllers
