A5260

Remotization cable for FERS-5200 boards

Datasheet

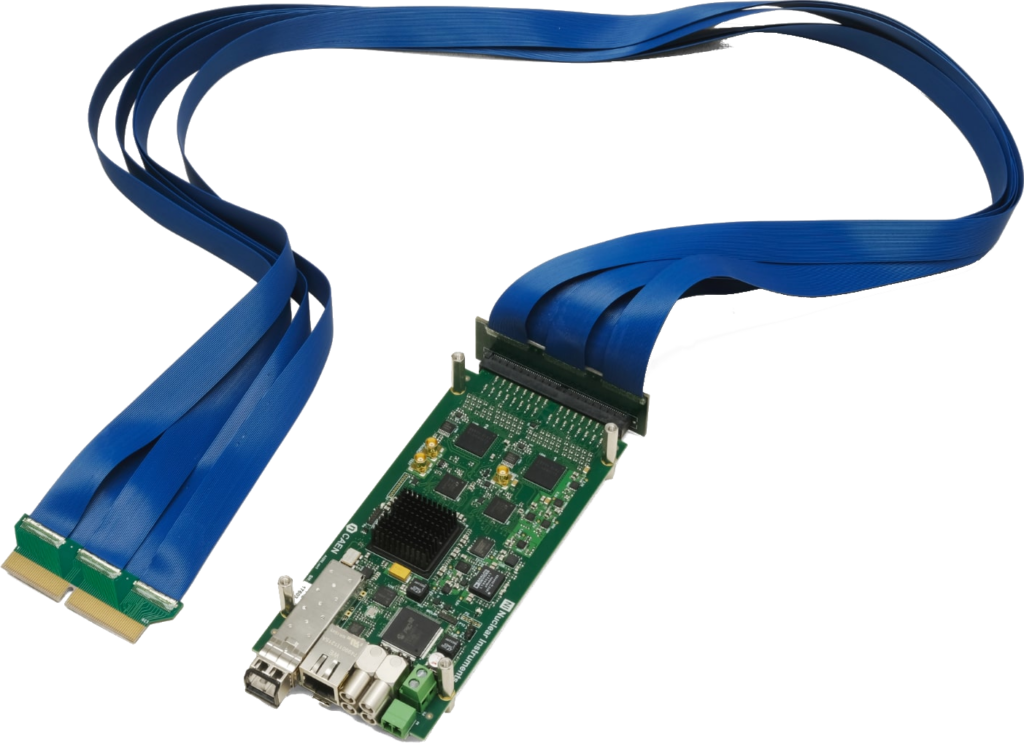

Photo of A5260

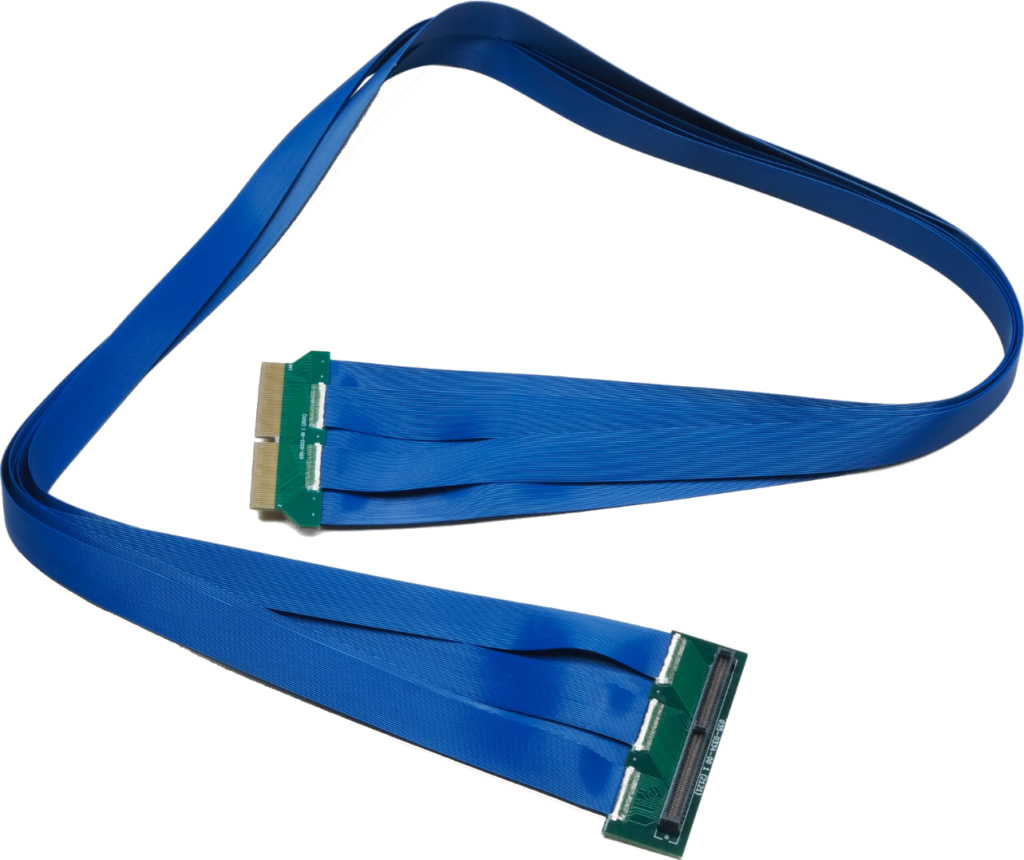

Photo of A5260
Photo of A5260

  • Flat extension cable for detector remoting

  • Microcoaxial cable assembly allowing minimum signal degradation

  • Suggested  to simplify the connection of detached electronics to cold detectors

  • Optimal fit for feed-through flanges

  • Available in two lengths: 0.5 m and 1 m

  • Cable impedance: 50 Ω

  • Cable Capacitance: 94.5 pF per meter

  • Time delay: 4,92 ns per meter

The A5260 flat cable has been designed to allow the remotization of the edge card connector of FERS-5200 boards. On one side, the cable features a Samtec HSEC8-170-01-S-DV-A connector mating directly to the edge card connector of FERS-5200 boards (e.g. A5202). On the other side, the cable features edge card connectors type HSEC8-170 (140 contacts with 0.8 mm pitch) mating directly to FERS-5200 header adapters (e.g. A5250, A5251, A5253). Thanks to this cable, detectors can be moved up to one meter (A5260B) away from the readout electronics without experiencing a significant signal degradation.

Ordering Options

Code Description
WA5260BXAAAA

A5260B – Remotization cable for FERS-5200 boards – 100 cm
WA5260XAAAAA

A5260 – Remotization cable for FERS-5200 boards – 50 cm
