A5270

FERS cooling fan

Home AccessoriesModular Electronics AccessoriesFERS-5200 Adapters A5270

1 ventilation fan, with two different speeds (selectable via a jumper)

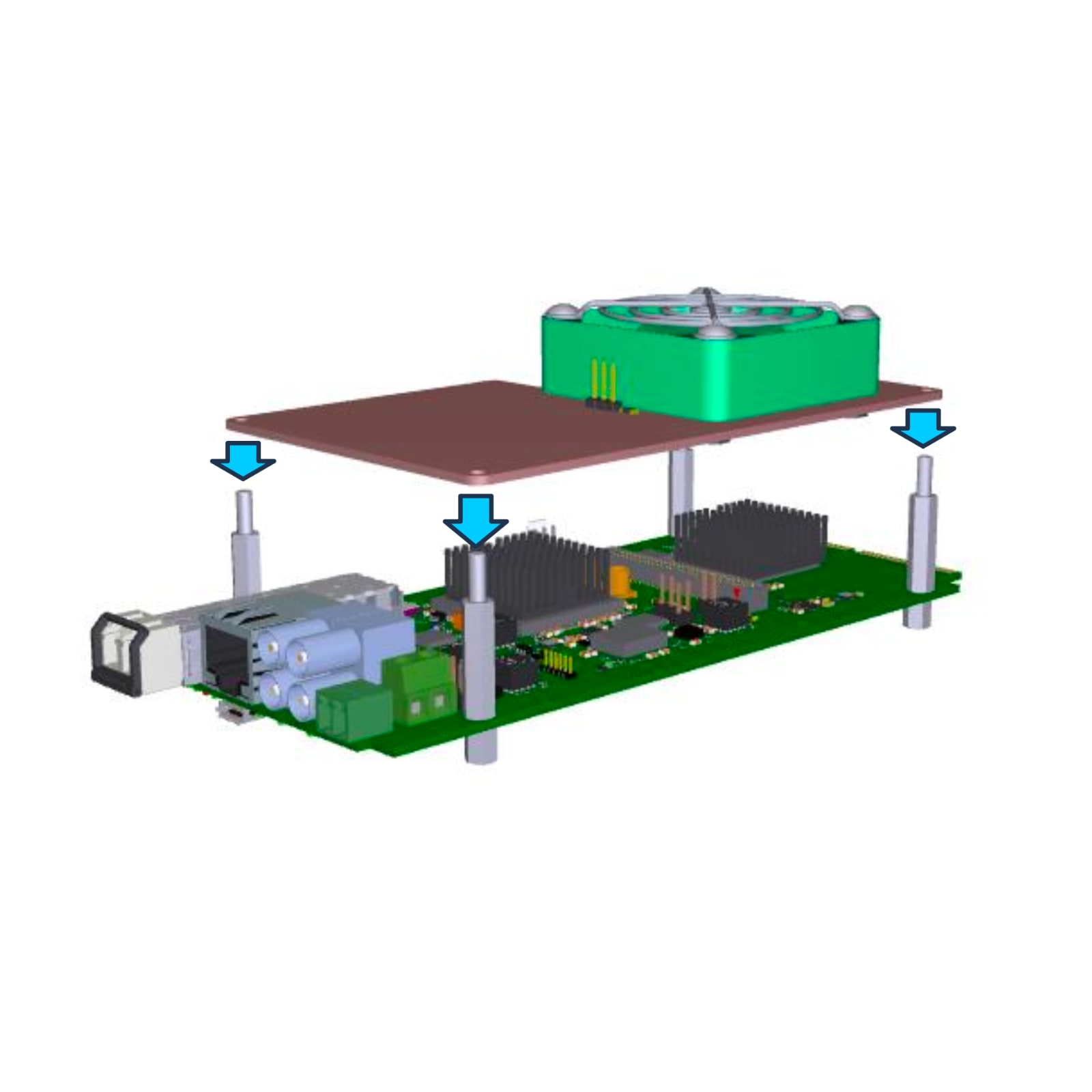

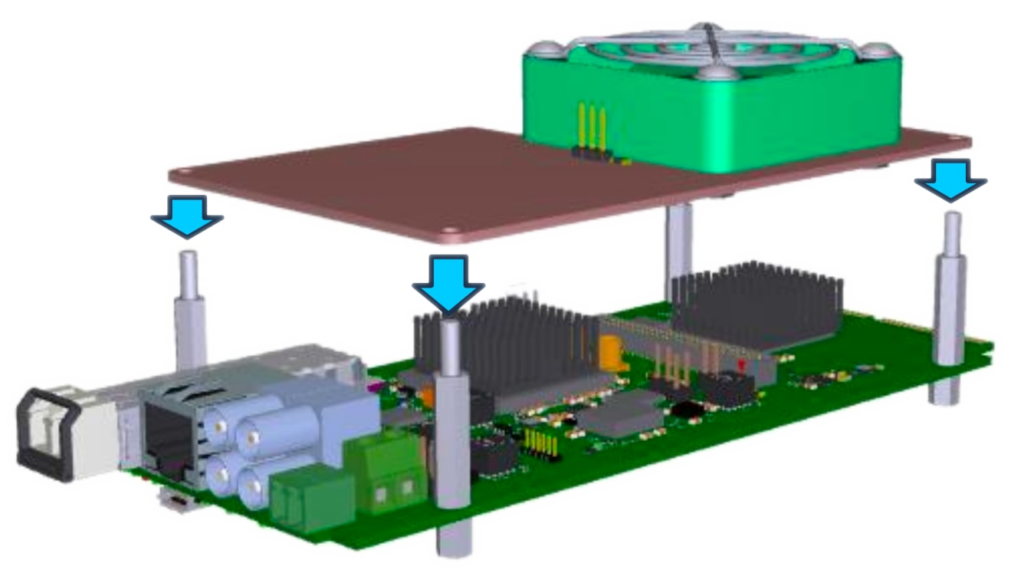

Mountable on top or on side of FERS-5200 units

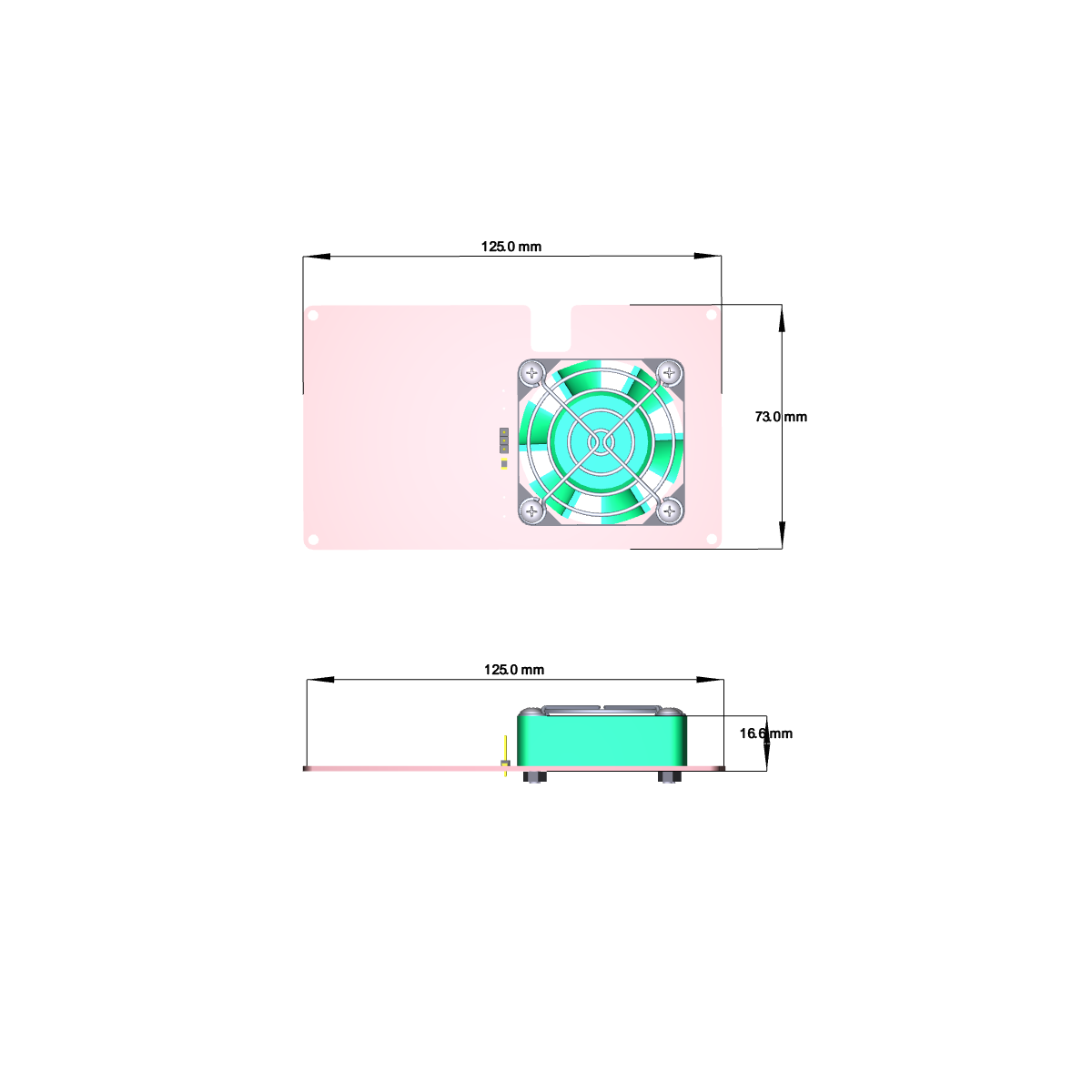

Dimensions: 16.6 mm x 73.0 mm x 125.0 mm (H x W x D)
Powered by a connector on the FERS-5200 units (12 V)

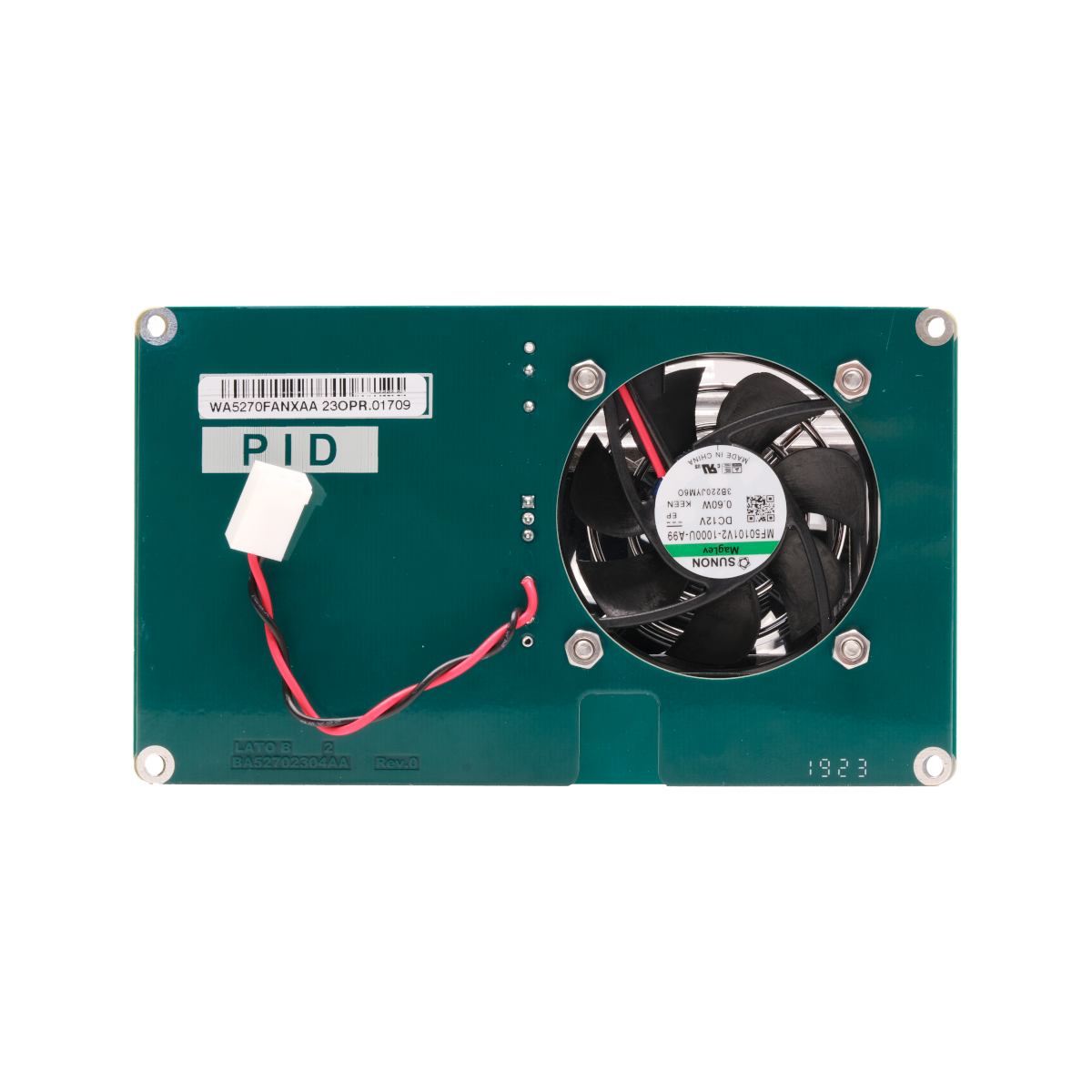

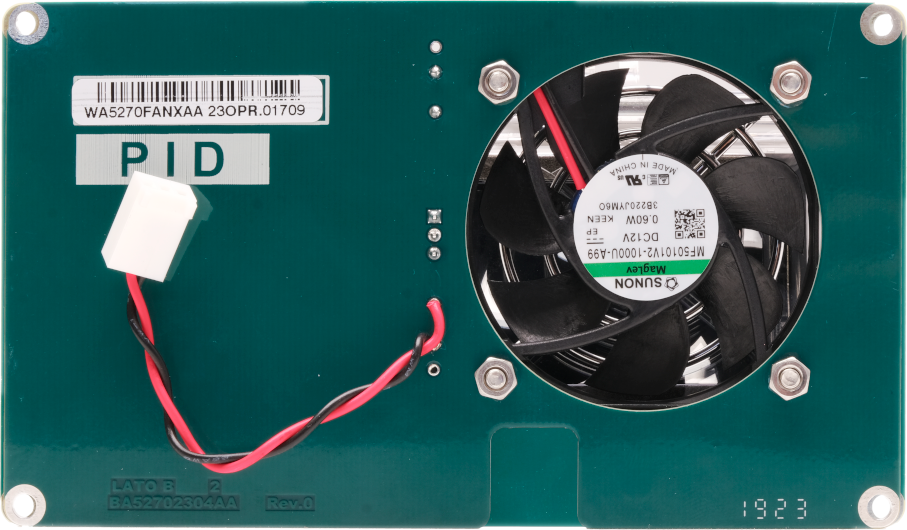

The CAEN Mod.A5270 is a fan for the FERS-5200 system, to be mounted on the top or on the side of A5202, A5203(B) and A5204 boards. It is powered by the same boards’ HV fan connector. The speed of the fan can be changed thanks to a jumper on the top of the board.

Ordering Options

Code	Description
WA5270FANXAA	A5270 – FERS cooling fan	RoHS

Add to Wishlist

Request a Quote

Image	Name	Description	Related Modules	Features
	A5255	Quad 17x4 Header adapter	A5203<br>DT5203 (already mounted)	For connection with flat cables
	A5250	2.54 mm pin header adapter	A5202<br>DT5202 (already mounted)	Mechanically adapts input edge card connector to 2.54mm header.
	A5254	onsemi MPPC adapter	A5202<br>DT5202	Compatible with onsemi (ex SensL) SiPM matrix ARRAYJ-60035-64P-PCB and ARRAYC-60035-64P-PCB
	A5253	3-pin header adapter	A5202<br>DT5202	Mates with CAEN A5261 cables
	New A5270	FERS cooling fan	A5202<br>A5203(B)	Powered by the HV fan connector of A5202/A5203(B) units
	A5260	Remotization cable for FERS-5200 boards	A5250, A5251, A5253, A5254, A5202	Detectors can be moved up to one meter (A5260B) away from the readout electronics without experiencing a significant signal degradation. / 50cm, 1m
	A5251	Hamamatsu MPPC header	A5202<br>DT5202	Compatible with Hamamatsu SiPM matrix S13361‐3050AE‐08
	A5256	16+1 ch pos/neg Discriminator	A5203<br>DT5203	Provides dual threshold, leading edge discriminators for analog single-ended signals on LEMO coaxial
