Adapts to 65 3-pin AMPMODU type 3-102203-4 connectors
-
A5253 Kit: A5253 adapter and 64 A5261 cables
-
64 connectors for the readout and bias of as many SiPMs, 1 for the readout of a temperature sensor
-

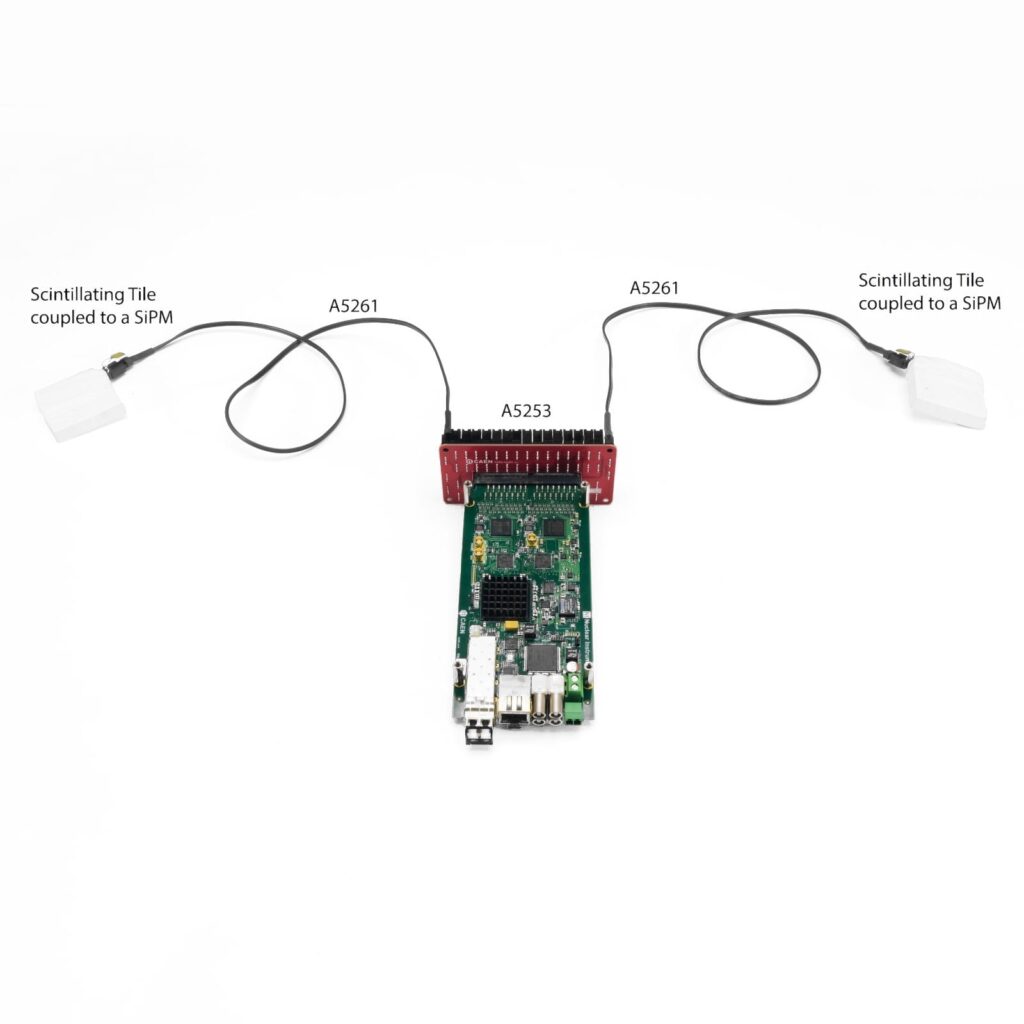

Mating with A5261 cables (having AMPMODU type 102241-1 female connectors)
-
Matches with all 5202 and 5204 form factors (A5202/DT5202, A5204/DT5204)

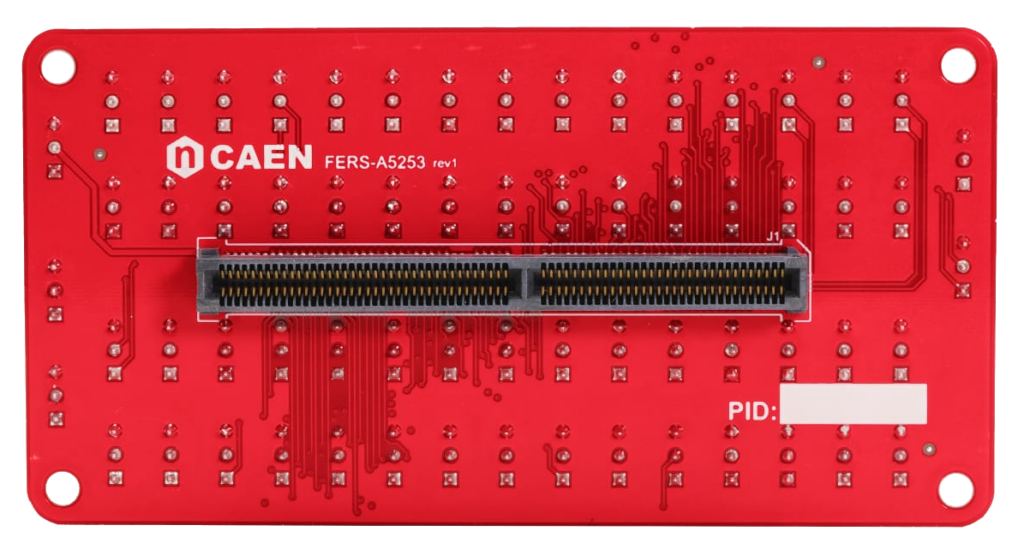

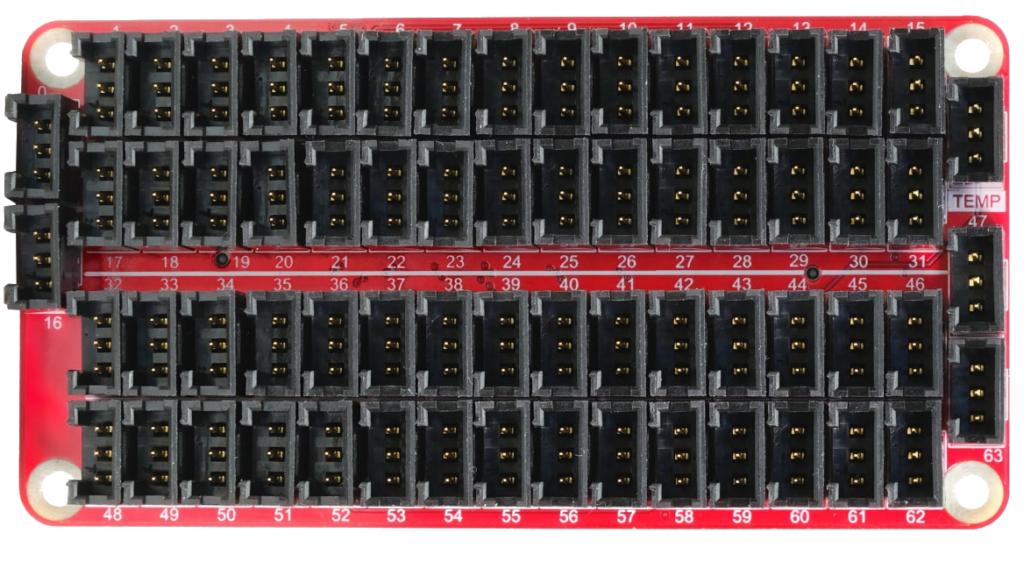

The A5253 header adapter is compliant with A5202/DT5202 and A5204/DT5204 boards. It mechanically adapts from the input edge card connector (type HSEC8‐170) to 65 3-pin connectors (AMPMODU type 3-102203-4). Each 3-pin connector mates to an AMPMODU type 102241-1. Of the headers mounted, 64 allows reading out and biasing as many SiPMs, while 1 allows reading out an external temperature sensor.
Accessories
You also may be interested in…
A5250
A5204
A5251
A5254
A5202
DT5202
DT5204
Request a Quote
Compare
|
|
Name
|
Description
|
Related Modules
|
Features
|
|
|
A5255 |
Quad 17x4 Header adapter |
A5203<br>DT5203 (already mounted) |
For connection with flat cables |
|
|
A5250 |
2.54 mm pin header adapter |
A5202<br>DT5202 (already mounted) |
Mechanically adapts input edge card connector to 2.54mm header. |
|
|
A5254 |
onsemi MPPC adapter |
A5202<br>DT5202 |
Compatible with onsemi (ex SensL) SiPM matrix ARRAYJ-60035-64P-PCB and ARRAYC-60035-64P-PCB |
|
|
A5253 |
3-pin header adapter |
A5202<br>DT5202 |
Mates with CAEN A5261 cables |
|
|
New A5270 |
FERS cooling fan |
A5202<br>A5203(B) |
Powered by the HV fan connector of A5202/A5203(B) units |
|
|
A5260 |
Remotization cable for FERS-5200 boards |
A5250, A5251, A5253, A5254, A5202 |
Detectors can be moved up to one meter (A5260B) away from the readout electronics without experiencing a significant signal degradation. / 50cm, 1m |
|
|

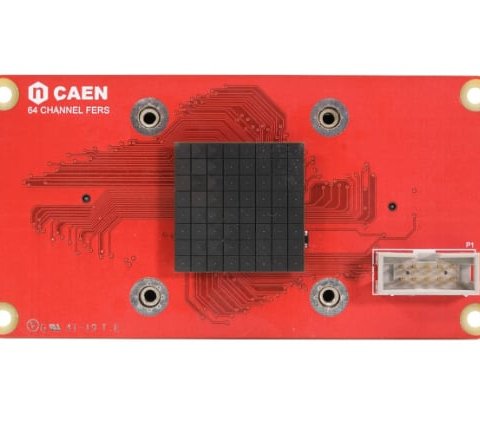

A5251 |
Hamamatsu MPPC header |
A5202<br>DT5202 |
Compatible with Hamamatsu SiPM matrix S13361‐3050AE‐08 |
|
|
A5256 |
16+1 ch pos/neg Discriminator |
A5203<br>DT5203 |
Provides dual threshold, leading edge discriminators for analog single-ended signals on LEMO coaxial |
