A5254

OnSemi (ex SensL) ARRAY J/C header adapter for A5202/DT5202 & A5204/DT5204

Home AccessoriesModular Electronics AccessoriesFERS-5200 Adapters A5254

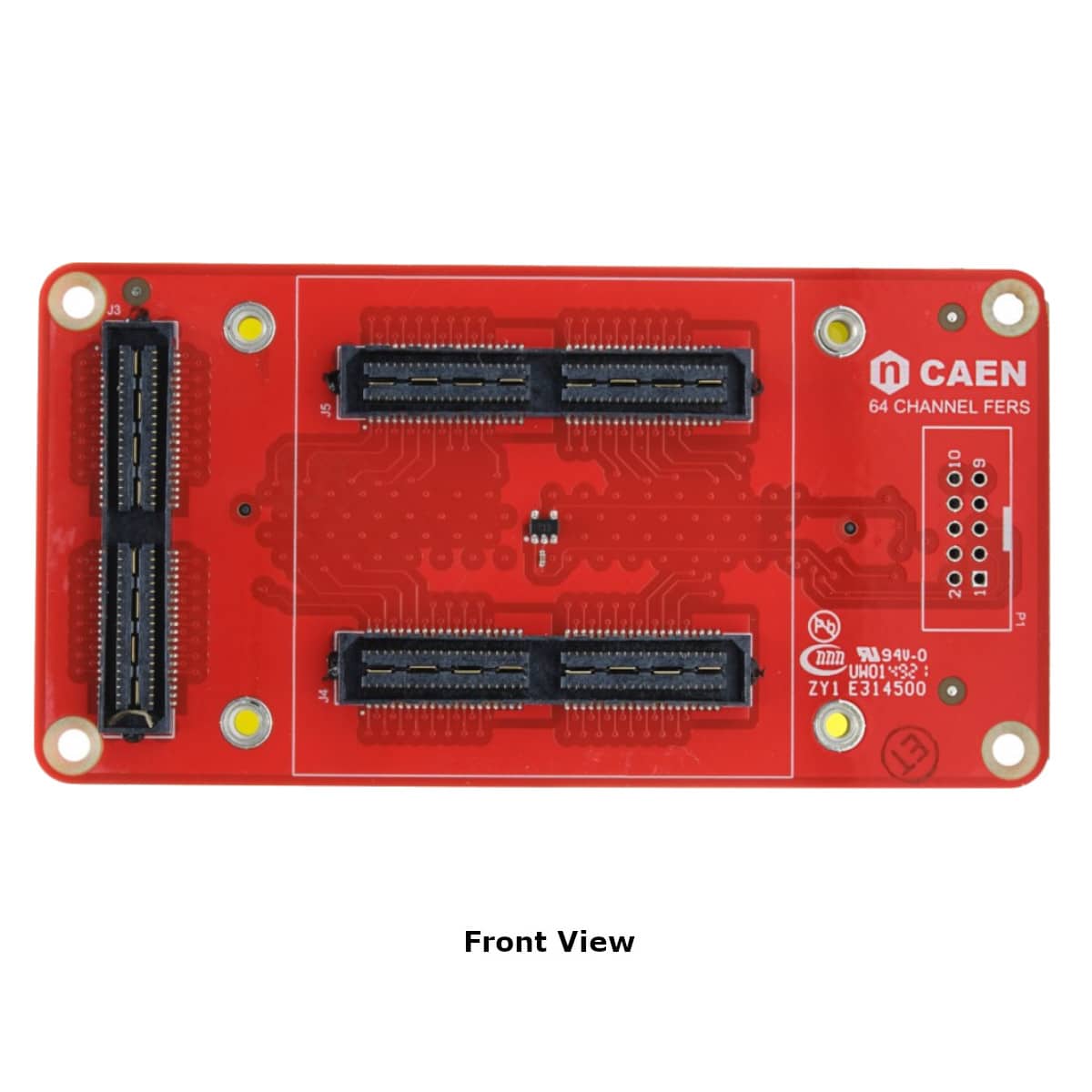

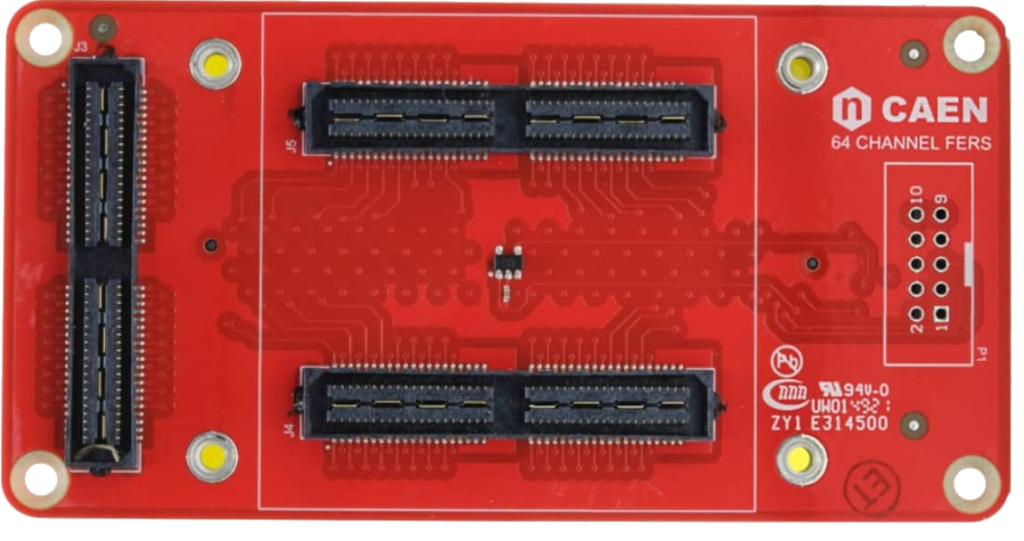

Adapts to a couple of Samtec QSE−040−01−F−D−A connectors
Compatible with OnSemi (ex SensL) SiPM matrix ARRAYJ-60035-64P-PCB and ARRAYC-60035-64P-PCB
Dedicated side connector Samtec QSE−040−01−F−D−A for fast output of SiPMs
Equipped with a TMP37 temperature readout sensor
Dark plastic box included
Matches with all 5202 and 5204 form factors (A5202/DT5202, A5204/DT5204)

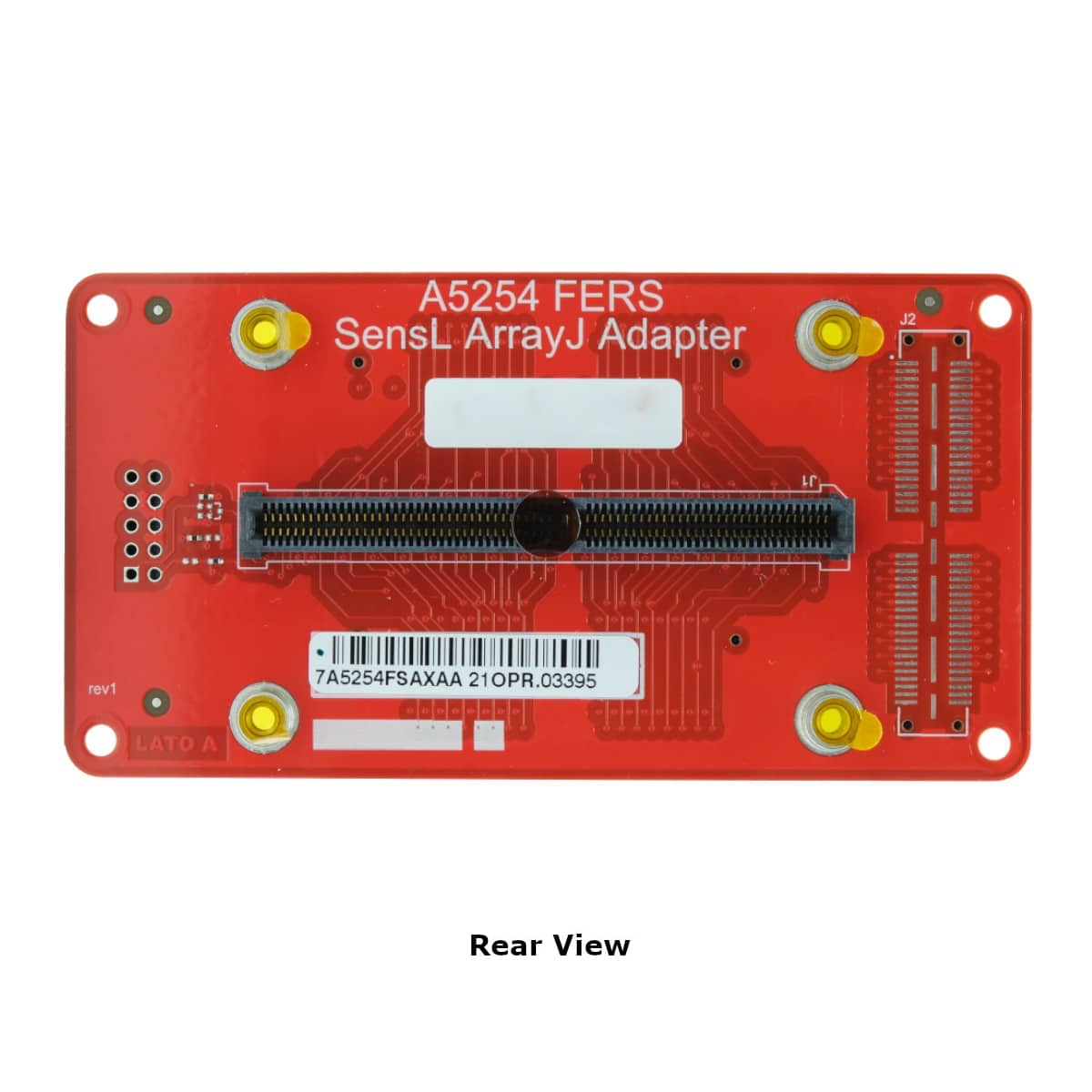

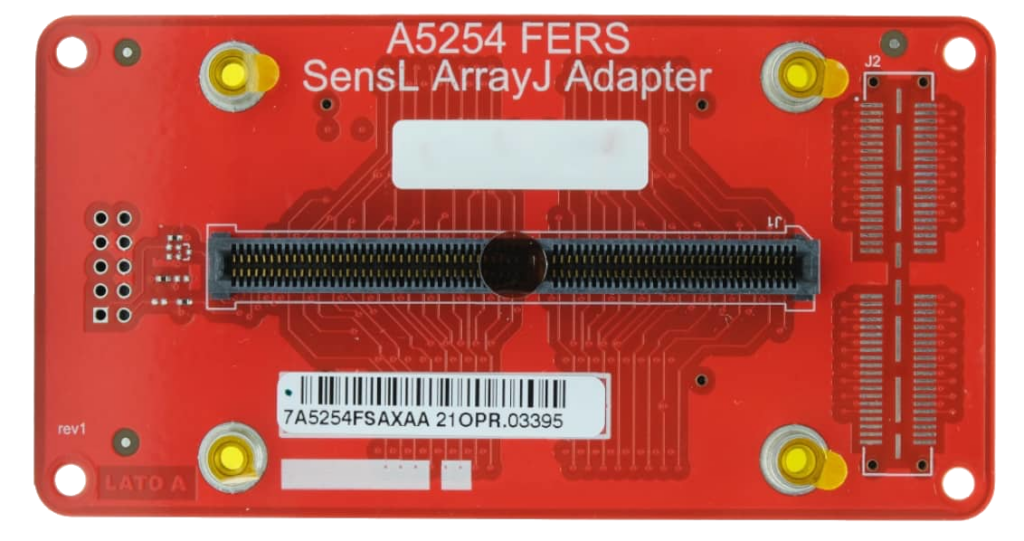

The A5254 adapter is compliant with A5202/DT5202 and A5204/DT5204 boards. It mechanically adapts from the input edge card connector (type HSEC8‐170) to a couple of Samtec QSE−040−01−F−D−A connectors. The adapter is suited for biasing and reading out an 8×8 OnSemi (ex SensL) ARRAYJ-60035-64P-PCB or ARRAYC-60035-64P-PCB SiPM matrix. Moreover, this adapter provides access to the individual fast output of the 64 SiPMs cells on a side Samtec QSE−040−01−F−D−A connector. The A5254 is also equipped with a TMP37 temperature sensor. A dark plastic box is also included in the delivered kit, which is ideal for shielding environmental light and pulsing the matrix via the fiber optic connector placed on top of it.

Note: 8×8 OnSemi (ex SensL) ARRAYJ-60035-64P-PCB or ARRAYC-60035-64P-PCB SiPM matrix not included in the adapter package.

Ordering Options

Code	Description
WA5254FSAXAA	A5254 – SensL ArrayJ Adapter for A5202/DT5202	RoHS

Add to Wishlist

Request a Quote

Image	Name	Description	Related Modules	Features

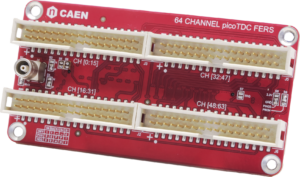

	A5255	Quad 17x4 Header adapter	A5203<br>DT5203 (already mounted)	For connection with flat cables

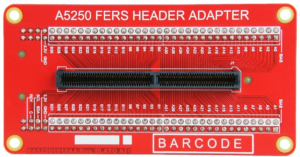

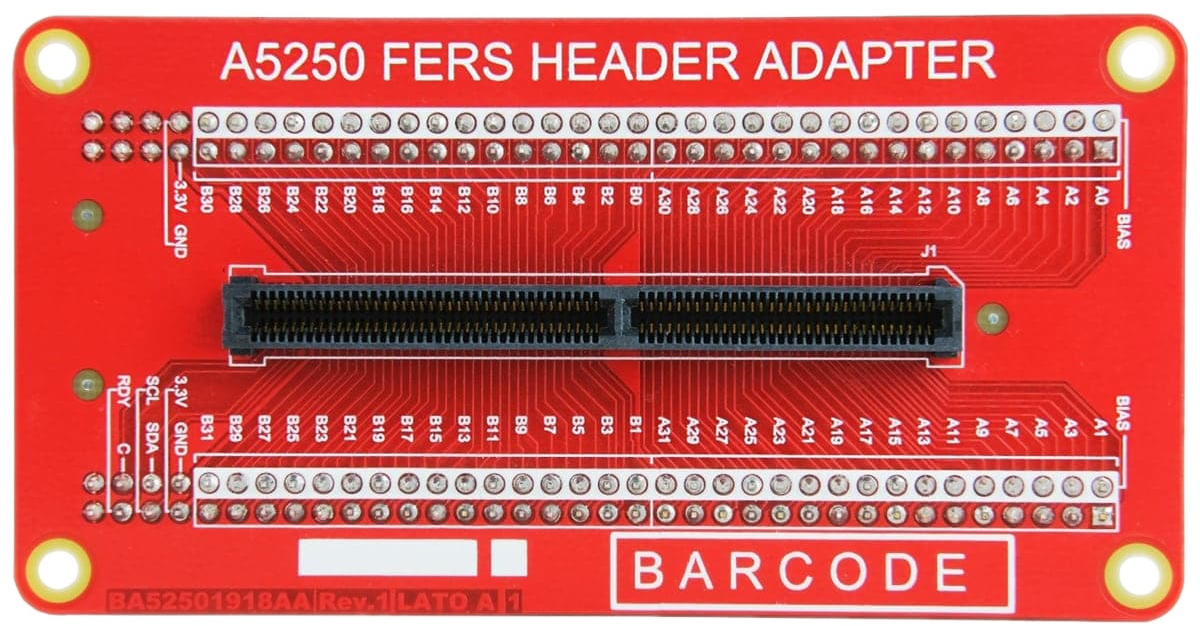

	A5250	2.54 mm pin header adapter	A5202<br>DT5202 (already mounted)	Mechanically adapts input edge card connector to 2.54mm header.
	A5254	onsemi MPPC adapter	A5202<br>DT5202	Compatible with onsemi (ex SensL) SiPM matrix ARRAYJ-60035-64P-PCB and ARRAYC-60035-64P-PCB

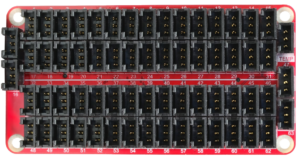

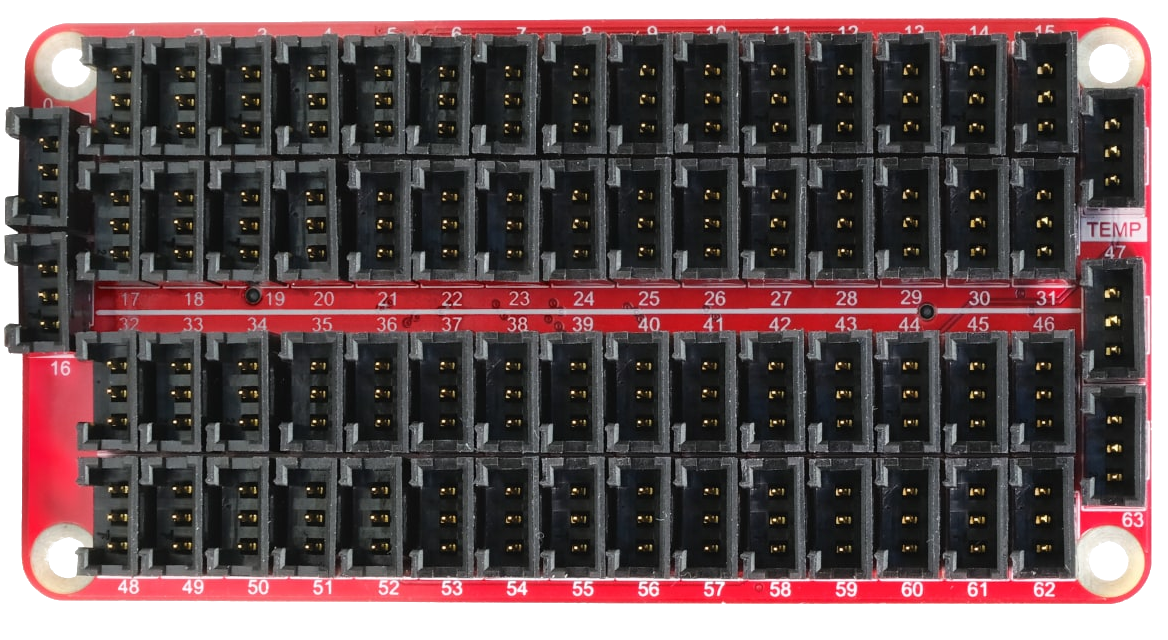

	A5253	3-pin header adapter	A5202<br>DT5202	Mates with CAEN A5261 cables

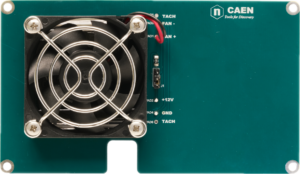

	New A5270	FERS cooling fan	A5202<br>A5203(B)	Powered by the HV fan connector of A5202/A5203(B) units

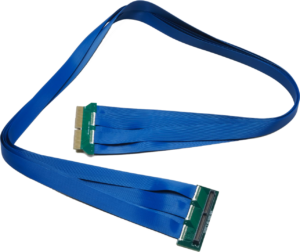

	A5260	Remotization cable for FERS-5200 boards	A5250, A5251, A5253, A5254, A5202	Detectors can be moved up to one meter (A5260B) away from the readout electronics without experiencing a significant signal degradation. / 50cm, 1m

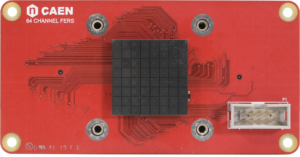

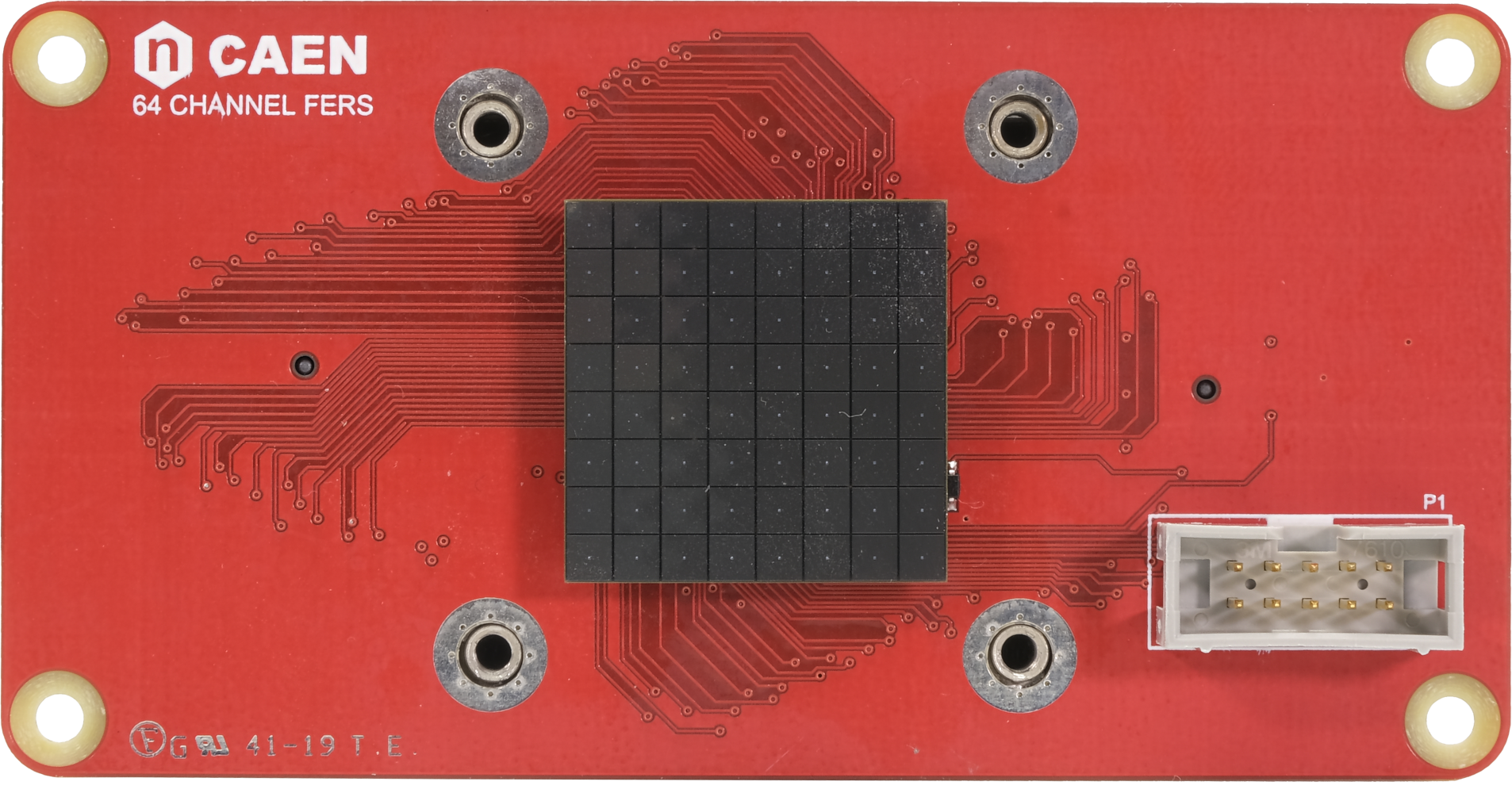

	A5251	Hamamatsu MPPC header	A5202<br>DT5202	Compatible with Hamamatsu SiPM matrix S13361‐3050AE‐08

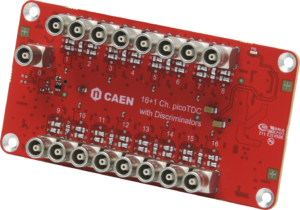

	A5256	16+1 ch pos/neg Discriminator	A5203<br>DT5203	Provides dual threshold, leading edge discriminators for analog single-ended signals on LEMO coaxial
