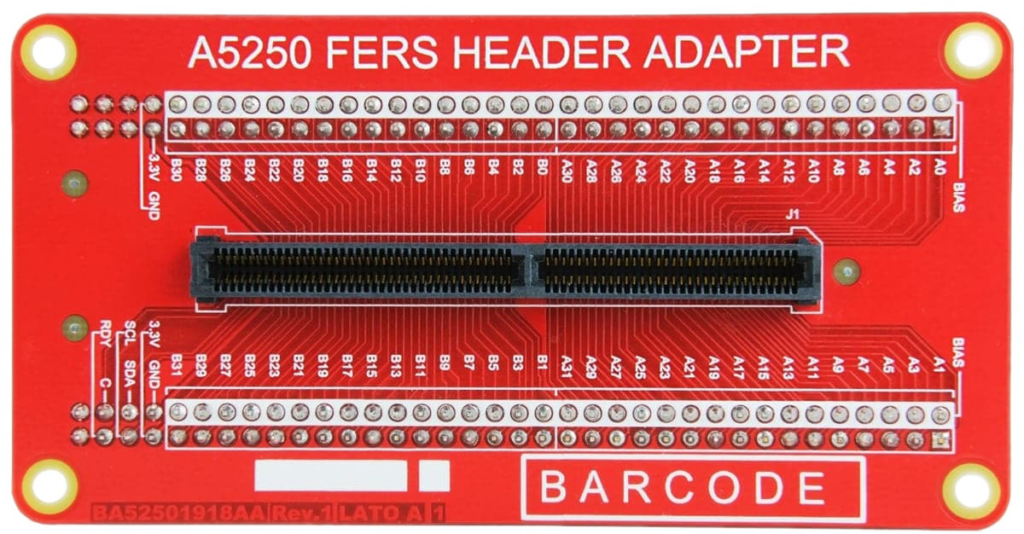

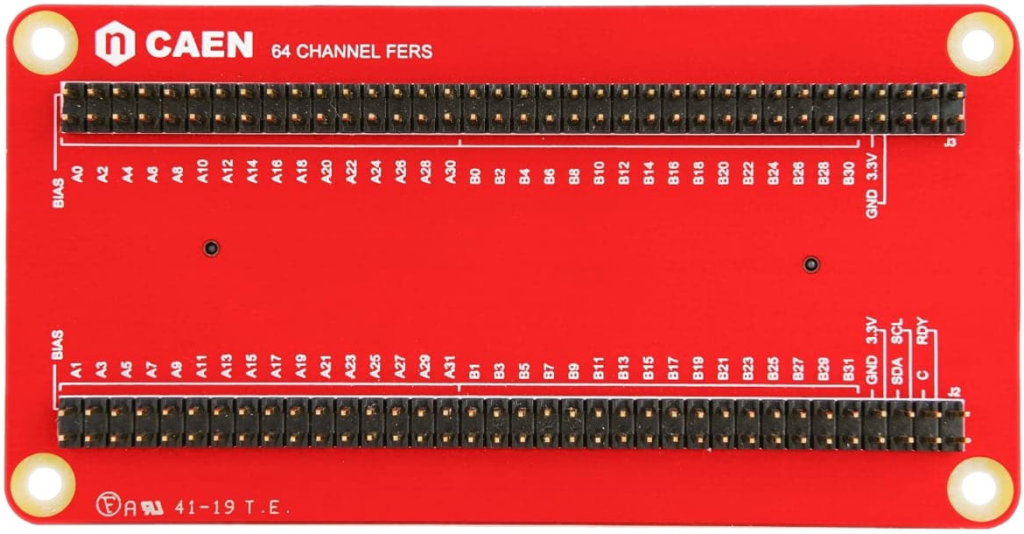

A5250

2.54 mm pin header adapter for A5202/DT5202 & A5204/DT5204

Home AccessoriesModular Electronics AccessoriesFERS-5200 Adapters A5250

Adapts to 64 channel 2.54 mm pin header
Matches with all 5202 and 5204 form factors (A5202/DT5202, A5204/DT5204)
Brings 64 couples (SiPM anodes and cathodes if using A5202/DT5202 or A5204/DT5204), the temperature readout sensor and several grounds

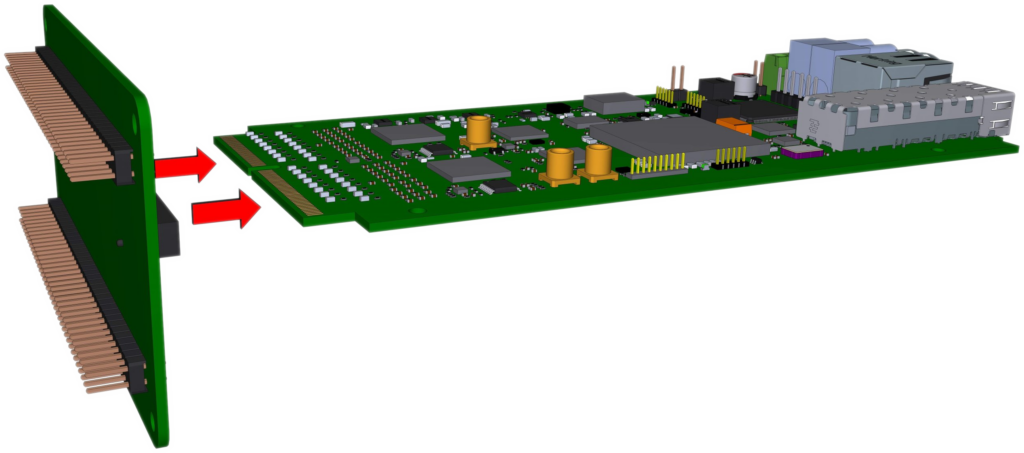

The A5250 adapter is compliant with A5202/DT5202 and A5204/DT5204 boards. It mechanically adapts from the input edge card connector (type HSEC8‐170) to 2.54mm header. Each strip on the adapter exposes 32 bias/signal couples. The adapter is already mounted in the back panel of the DT5202 and DT5204 boards.

Ordering Options

Code	Description
WA5250FHAXAA	A5250 – 2.54 mm pin header adapter for A5202/A5204	RoHS
WA5250FHAXXA	A5250 – 2.54 mm pin header adapter for A5205	RoHS

Add to Wishlist

Request a Quote

Image	Name	Description	Related Modules	Features
	A5255	Quad 17x4 Header adapter	A5203<br>DT5203 (already mounted)	For connection with flat cables
	A5250	2.54 mm pin header adapter	A5202<br>DT5202 (already mounted)	Mechanically adapts input edge card connector to 2.54mm header.
	A5254	onsemi MPPC adapter	A5202<br>DT5202	Compatible with onsemi (ex SensL) SiPM matrix ARRAYJ-60035-64P-PCB and ARRAYC-60035-64P-PCB
	A5253	3-pin header adapter	A5202<br>DT5202	Mates with CAEN A5261 cables

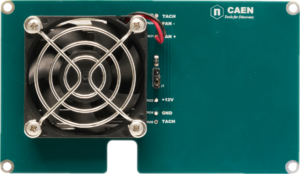

	New A5270	FERS cooling fan	A5202<br>A5203(B)	Powered by the HV fan connector of A5202/A5203(B) units
