A317

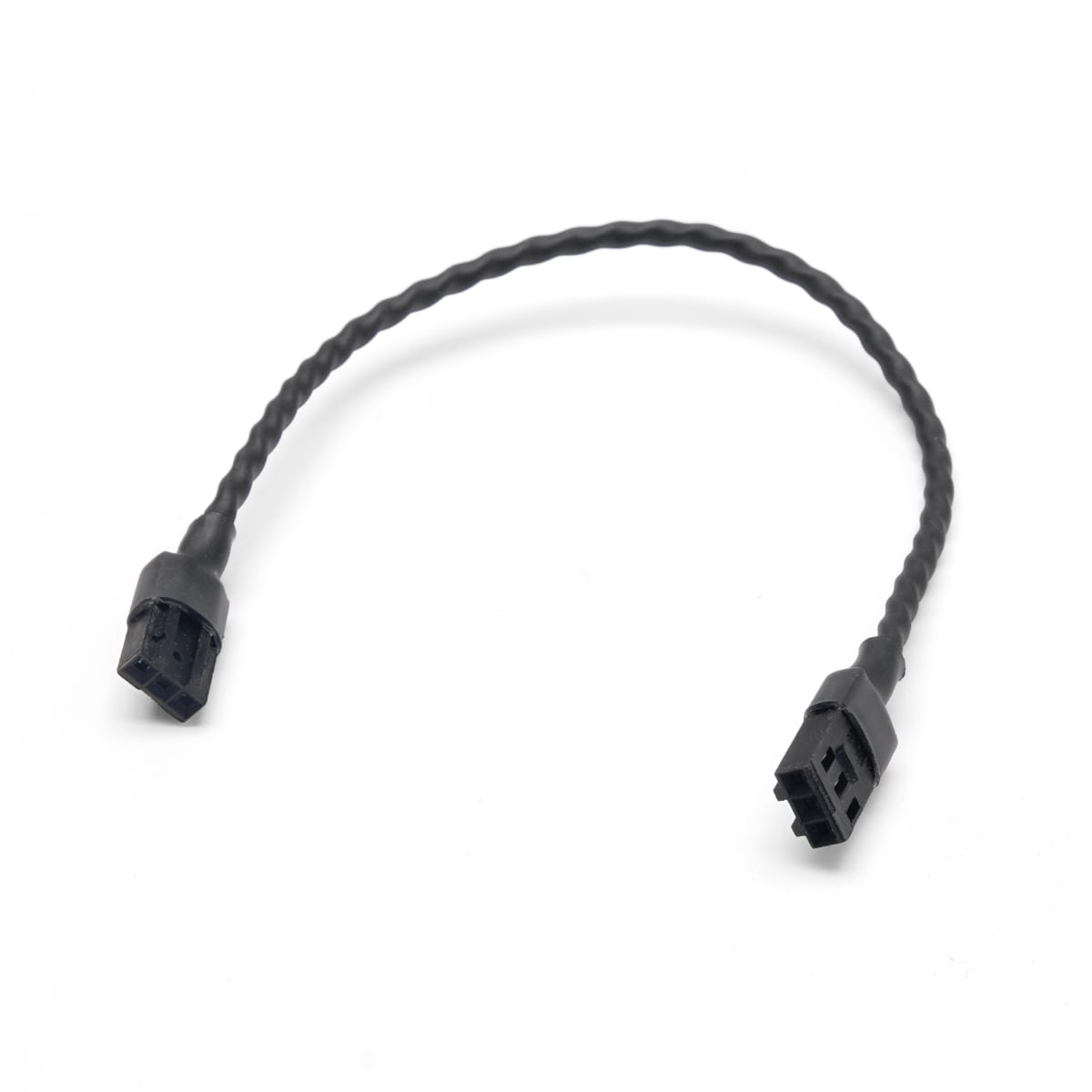

Cable assembly for Clock distribution 3-pin AMPMODU IV female terminations – 18 cm / 25cm

Home AccessoriesModular Electronics AccessoriesCables A317

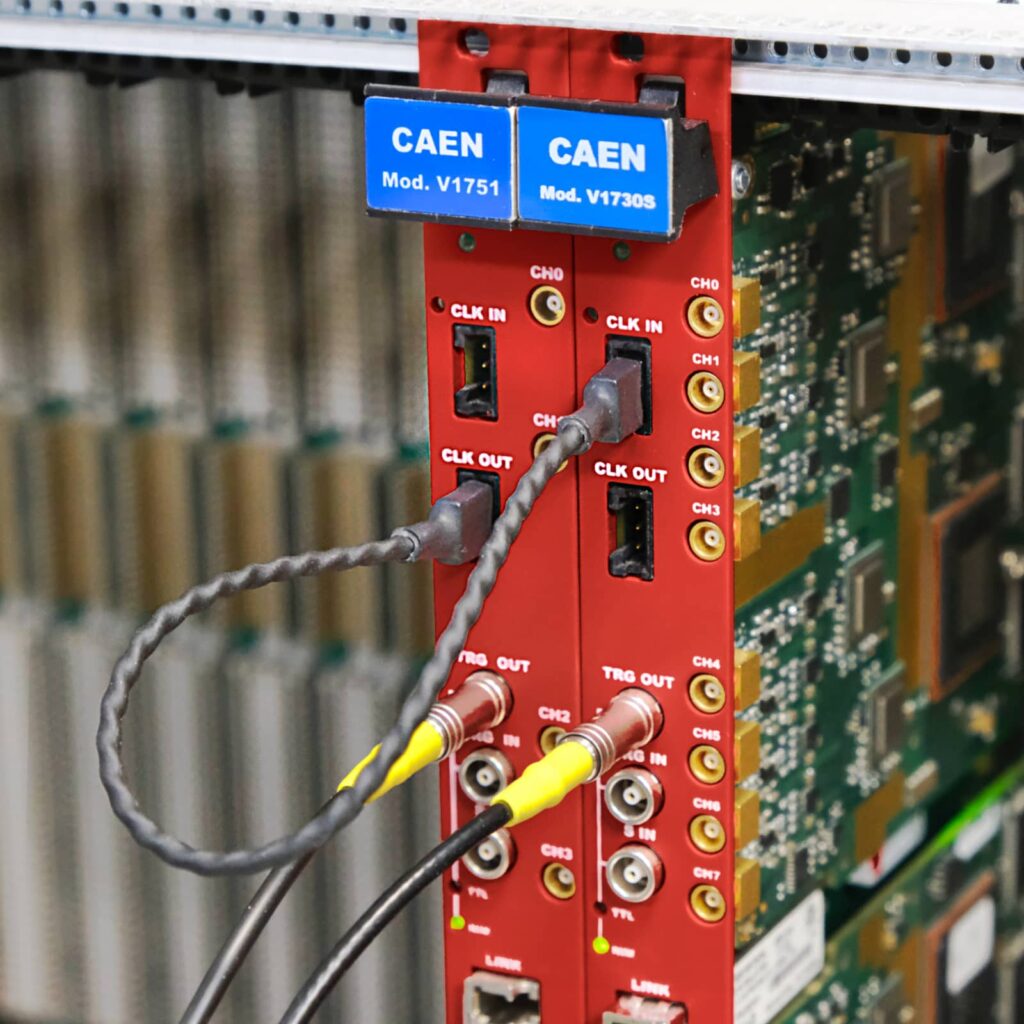

Cable assembly suitable for the CLK-IN and CLK-OUT connection on CAEN Digitizer Series 1 and V1741 Peak Sensing ADC to propagate the clock signal in multi-board systems. Two versions of different length are available: 18 and 25 cm.

CLK-IN and CLK-OUT are the input and output connectors for the external clock: type AMP 3-102203-4 (header 3 pin – 2.54 mm connector).

Ordering Options

Code	Description
WA317LXAAAAA	A317L – Cable assembly for Clock distribution 3-pin AMPMODU IV female terminations – 25 cm	RoHS
WA317XAAAAAA	A317 – Cable assembly for Clock distribution 3-pin AMPMODU IV female terminations – 18 cm	RoHS

Add to Wishlist

Request a Quote

Image	Name	Description	Related Modules	Features
	A32x	A1421 power cords	A1421, A325	Power cords used to supply the CAEN Preamplifier and Discriminator models A1421 / 20cm, 1m
	A317	Clock cable assembly	CAEN Digitizer Series 1.0, V1741 Peak Sensing ADCs	"CLK-OUT / CLK-IN daisy chain front panel / 18 cm
	A319A	Clock & Sync cable assembly	CAEN Digitizer Series 2.0	CLK-OUT / CLK-IN daisy chain front panel / 20 cm
	A319B	Clock cable assembly Digitizer 1.0/2.0	CAEN Digitizer Series 1.0, CAEN Digitizer Series 2.0	CLK-OUT / CLK-IN daisy chain front panel between non homogenous digitizer series / 20 cm
	A316	LVDS I/Os Cable assembly	CAEN Digitizer Series 1, V1741 Peak Sensing ADCs	Cable assembly for the front panel LVDS I/Os interconnection / 5 cm
	A5260	Remotization cable for FERS-5200 boards	A5250, A5251, A5253, A5254, A5202	Detectors can be moved up to one meter (A5260B) away from the readout electronics without experiencing a significant signal degradation. / 50cm, 1m
	A5261	SiPM remotization cable	A5202, DT5202, A5253	Each A5261 cable allowing to both read out and bias a single remotized SiPM
	A998	SATA cable for Hexagon synchronization	Hexagon	"SYNC-OUT / SYNC-IN daisy chain back panel / 50 cm"
	AI2700	Optical Fiber Series for CONET1/CONET2 Opt. Link	"Digitizer (Series 1.0 - 2.0)	Controllers
