AI2700

Optical Fiber Series

Datasheet

Home AccessoriesModular Electronics AccessoriesCables AI2700

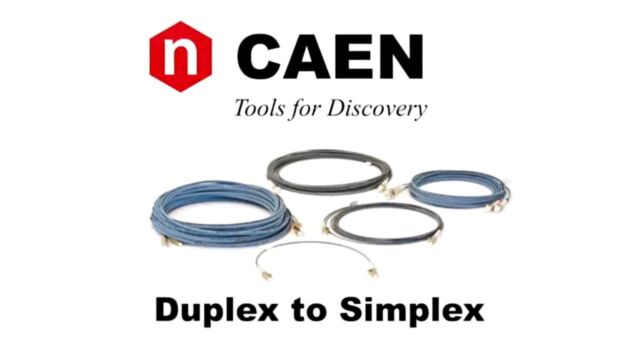

Photo of AI2700

Cables for CONET1/CONET2 Optical link
Multimode 62.5/125µm cables
LC connectors on both sides

AI2700 series are multimode 62.5/125µm cables with LC connectors on both sides used in CONET1/CONET2 Optical Link Networks.
various types of cables are available:

Simplex type (2 LC Simplex connectors):
- length: 30cm, 5m, 20m, 30m, 40m
Duplex type (1 LC Duplex + 2 LC Simplex):
- length: 5m, 20m, 30m, 40m

Ordering Options

Code	Description
WAI2703XAAAA	AI2703 – Optical Fibre 30cm. simplex	RoHS
WAI2705XAAAA	AI2705 – Optical Fibre 5 m. simplex	RoHS
WAI2720XAAAA	AI2720 – Optical Fibre 20 m. simplex	RoHS
WAI2730XAAAA	AI2730 – Optical Fibre 30 m. simplex	RoHS
WAI2740XAAAA	AI2740 – Optical Fibre 40 m. simplex	RoHS
WAY2705XAAAA	AY2705 – Optical Fibre 5 m.duplex (Rohs compliant)	RoHS
WAY2720XAAAA	AY2720 – Optical Fibre 20 m. duplex	RoHS
WAY2730XAAAA	AY2730 – Optical Fibre 30 m. duplex	RoHS
