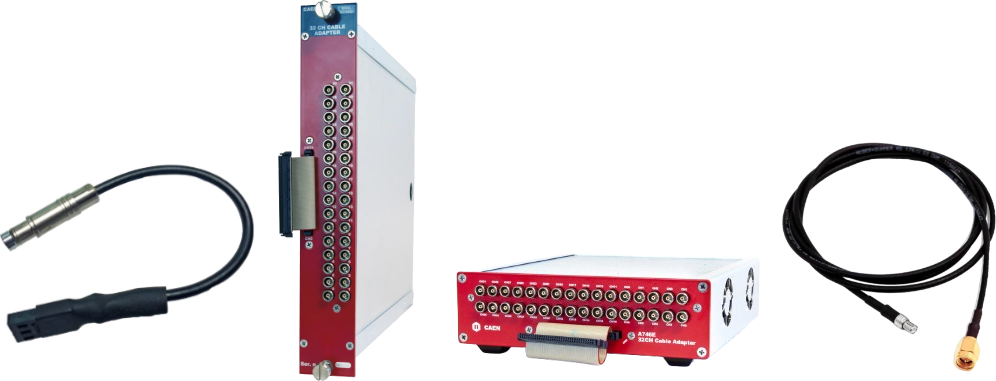

General Adapters

Modular Electronics Accessories

Home AccessoriesModular Electronics Accessories General Adapters

The General Adapters family includes a range of passive interface and signal-routing accessories designed to simplify connectivity between detectors, digitizers, logic modules and front-end electronics. These adapters provide mechanical and electrical conversion between different connector standards (header, Samtec, ERNI, LEMO, LVDS, NIM), enabling seamless integration of heterogeneous instrumentation within nuclear physics and radiation detection setups.

Optimized for signal integrity and robustness, these accessories support clock distribution, multi-board synchronization, channel splitting and detector interfacing across multiple CAEN digitizer and readout platforms.

Connector and signal adaptation
Convert between header, LVDS, NIM, Samtec and ERNI interfaces for flexible system integration.
Clock and sync distribution
Dedicated adapters for CLK-IN/CLK-OUT daisy-chain synchronization across digitizers.
Multi-channel routing
Channel splitters and header adapters for efficient signal fan-out and detector interfacing.
Compatibility with CAEN platforms
Designed for Series 1 and 2 digitizers, MCAs, peak-sensing ADCs and front-end electronics.

General Adapters Models

Grid Compare

A3429

64 channel Adapter to 2.54mm Male Header Connector

A371

Adapter 2.54mm 34x2 pin male to 1.27mm 68-pin ERNI SMC female

A319A

Clock & Sync cable assembly for Digitizer Series 2.0 - 20 cm

A319B

Clock cable assembly from Digitizer Series 1.0 to Digitizer Series 2.0 - 20cm

A966

Cable assembly 68 pin P50 to four 2.54mm 16 pin male - 25 cm

A659

Cable assembly BNC male to MCX male – 1 m

A643

SMA to BNC Cable Adapter

N1568ADAT

USB RS485 Adapter Board

A644

SMA to SHV Cable Adapter

A953

Cable assembly 2.54mm 34 pin female to two 2.54mm 34 pin female – 50 cm

A954

Cable assembly 2.54mm 34 pin female to two 2.54mm 16 pin female - 50 cm

A385

Adapter 2.54mm 34-pin female to 16x LEMO 00 female (or MCX male) – 50 cm / 1 m

A952

Cable assembly 2.54mm 34 pin female to 2.54mm 34 pin female - 50 cm

A642

SMA to MCX Cable Adapter

A372F

64 channel 2.54mm Male Header Connector Adapter for 274x Digitizers

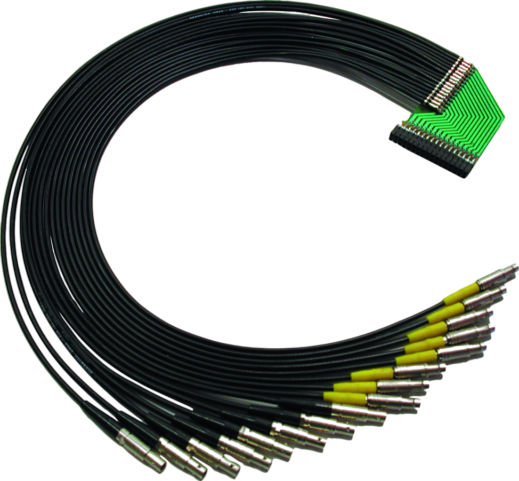

A392

Adapter 16x LEMO 00 female (or MCX male) to 2.54mm 34-pin female – 50 cm / 1 m

A372M

64 channel MCX Coax Connector Adapter for SE signals

A318

Adapter for Clock signal FISCHER S101A004 male to 3-pin AMPMODU IV female – 10 cm

A967

Cable assembly 68 pin P50 to two 2.54mm 34 pin male - 25 cm

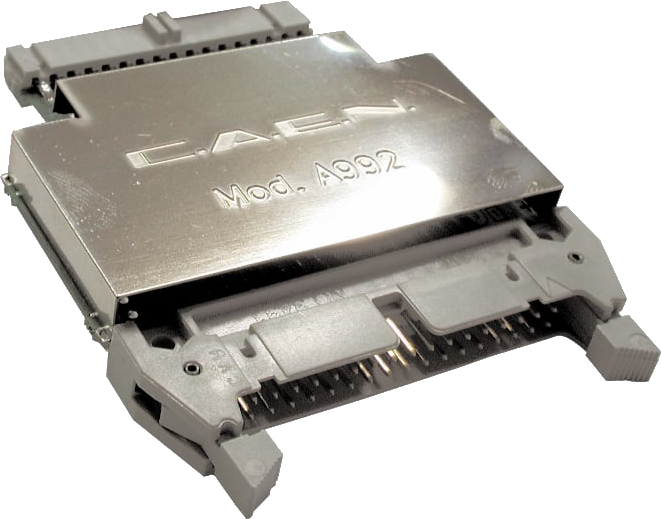

A992

16 Channel Impedance Adapter

A654

Cable assembly LEMO 00 male to MCX male – 1 m

Image	Name	Description	Related Modules	Features
	A3429	64 channel Adapter to 2.54mm Male Header Connector	A1429	four 2.54mm 34 pin male header to Samtec ERF8-040-01-L-D-RA-L-TR male connector
	A371	Double 2.54mm 34 pin to 68-pin ERNI adapter	V1741 Peak Sensing ADC, 740, 740D Digitizer Series	2.54mm standard pitch, to 1.27mm ERNI connector (34 pin / 32 channels)
	A319A	Clock & Sync cable assembly	CAEN Digitizer Series 2.0	CLK-OUT / CLK-IN daisy chain front panel / 20 cm
	A319B	Clock cable assembly Digitizer 1.0/2.0	CAEN Digitizer Series 1.0, CAEN Digitizer Series 2.0	CLK-OUT / CLK-IN daisy chain front panel between non homogenous digitizer series, / 20 cm
	A966	1.27mm 68 pin to four 2.54mm 16 pin cable adapter	V862, CAEN TDC boards, V1495, V2495, DT5495	Adapt one (Robinson Nugent 68-pin type) flat connector into four 16-pin Header connectors / 25 cm, For ECL inputs of CAEN TDC boards or ECL ports of V1495, V2495, DT5495
	A659	BNC to MCX cable adapter	CAEN Digitizer Series 1.0	BNC male to MCX male / 1 m
	A643	SMA to BNC cable adapter	A1423B, A1426, A1425	1,0 m
	N1568ADAT	USB RS485 adapter Board	N1568A	converts from USB to RS-485
	A954	2.54mm 34 pin to two 16 pin cable adapter	V812, V814, V895, VME Digitizers Series 1.0, V1782 MCA, V1741 Peak Sensing ADC	Splits the 32 used pins of a single header-type connector into 2 16pin header-type connectors
	A385	16 LEMO 00 or MCX to 2.54 mm 34-pin adapter	V785, N674, V1741, A371, N568E	16 LEMO 00 female or MCX male to 2.54 mm 34-pin female / 1 m, 50 cm
	A952	2.54mm 34 pin to 34 pin cable adapter	A1442, A1429, N1068, N6741, VME Digitizers Series 1.0 / 2.0, V1782 MCA, V1741 Peak Sensing ADC, V972	2.54mm 34 pin female to 2.54mm 34 pin female / 50 cm
	A642	SMA to MCX cable adapter	A1423B, A1426, A1425	1,0 m
	A372F	2.54mm header to the 2mm header adapter	2740/2745 Digitizer Family	Adapts to 64 channels 2.54 mm header, Compliant to both single-ended and differential 2740/2745 models
	A392	16 LEMO 00 or MCX to 2.54 mm 34-pin adapter	V792	16 LEMO 00 female or MCX male to 2.54 mm 34-pin female / 1 m, 50 cm
	A372M	MCX Coax to 2mm header adapter	2740/2745 Digitizer Family (single-ended input models)	Adapts to 64 channels MCX, Compliant to single-ended 274xB models only
	A318	FISCHER S101A004 to AMPMODU IV adapter	CAEN Digitizer Series 1.0, 741 Peak Sensing ADC	FISCHER S101A004 male to 3-pin AMPMODU IV female for clock signal / 10 cm
	A967	1.27mm 68 pin to two 2.54mm 34 pin cable adapter	V862, CAEN TDC boards, V1495, V2495, DT5495	Adapt one (Robinson Nugent 68-pin type) flat connector into two 34-pin Header connectors / 25 cm, For ECL inputs of CAEN TDC boards or ECL ports of V1495, V2495, DT5495
	A992	16-ch Impedance adapter	V792	16 independent input channels on a 34 pin male header connector, Matches the QDC’s input impedance from 50 Ohm to 110 Ohm
	A654	LEMO to MCX cable adapter	CAEN Digitizer Series 1.0	LEMO 00 male to MCX male / 1 m
