A953

Cable assembly 2.54mm 34 pin female to two 2.54mm 34 pin female – 50 cm

Request a Quote Add to WishlistView Wishlist

Home AccessoriesModular Electronics AccessoriesGeneral Adapters A953

Photo of A953
DatasheetDownloadTech. Spec.

Highlights

  • Splits one 34-pin LVDS I/O header into two 34-pin connectors

  • 32 signal pins routed, 16 per output connector

  • Same 2.54 mm header type on input and outputs, no adapters needed

  • 50 cm length

  • RoHS compliant

Overview

The A953 is a 50 cm splitter cable that divides the LVDS I/O connector of a CAEN board into two independent outputs.

It takes the 32 signal pins of a single 34-pin, 2.54 mm pitch female header and routes them to two connectors of the same type, 16 signals each. Each output connector is therefore only partially populated, carrying its own half of the I/O lines.

This makes it easy to send different groups of LVDS signals to two separate destinations, such as two modules or two parts of the acquisition chain, without custom wiring.

Compatibility

Designed for CAEN boards equipped with the LVDS I/O connector:

  • VME Digitizer Series 1 (V1720, V1724, V1725/V1725S, V1730/V1730S, V1751, V1761)

  • V1782 Octal Digital MCA

  • V1741 64-channel Peak Sensing ADC


Ordering Options

Code Description
WA953XAAAAAA

A953 – Cable assembly 2.54mm 34 pin female to two 2.54mm 34 pin female – 50 cm 16pin each used only

RoHS

You also may be interested in…

V1720

V1720

8 Input Channel 12bit 250 MS/s Digitizer
V1724

V1724

8 Input Channel 14 bit 100 MS/s Digitizer
V1725 / V1725S

V1725 / V1725S

16/8 Input Channel 14-bit 250 MS/s Digitizer
V1730 / V1730S

V1730 / V1730S

16/8 Channel 14 bit 500 MS/s Digitizer

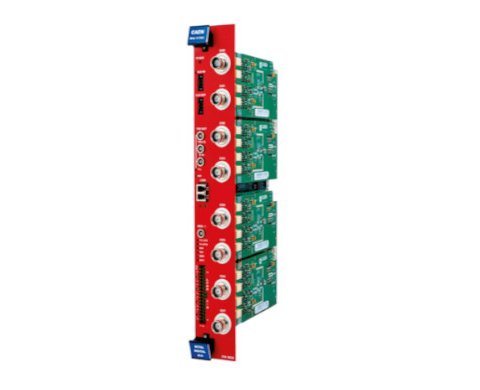

V1782

V1782

Octal Digital Multi Channel Analyzer
V1742

V1742

32+2 Channel 12bit 5 GS/s Switched Capacitor Digitizer
V1743

V1743

16 Input Channel 12bit 3.2 GS/s Switched Capacitor Digitizer
V1751

V1751

4/8 Input Channel 10 bit 2/1 GS/s Digitizer
V1761

V1761

2 Input Channel 10 bit 4GS/s Digitizer
V1741

V1741

64 Ch Peak Sensing ADC
Download Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Technical Specifications

    Close

    Function

    1-to-2 signal splitter

    Input connector

    1 × 34-pin female header, 2.54 mm pitch

    Output connectors

    2 × 34-pin female header, 2.54 mm pitch

    Signals routed

    32 pins total (16 per output)

    Cable length

    50 cm
