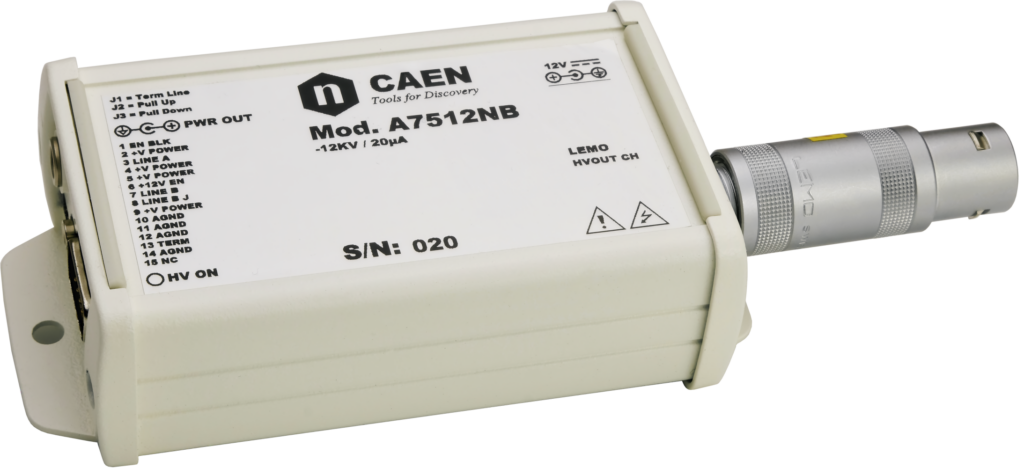

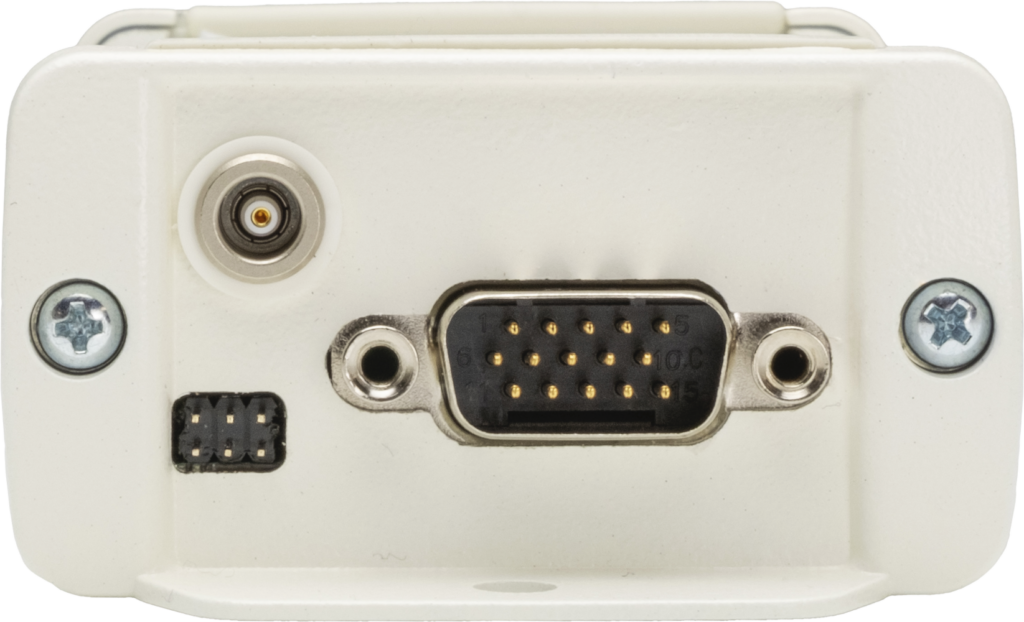

A7512DB
1 Ch 12 kV/20 µA Digital Controlled Power Supply Module for MRPC
Features
- Single Desktop HV channel
- 0 ÷ 12 kV output voltage
- 20 μA maximum output current
- Available with positive or negative polarity
- LEMO HV output connector
- 200 mV voltage monitor resolution
- 500 pA current monitor resolution
- Digital output voltage control
- Internal memory for permanent storage of calibration and configuration
- RS485 digital control (allows to build daisy chain network of A75xxDB modules)
- LEMO 00 connector for preamplifier power supply
- Interlock logic for Module enable
- SMART HV command interface
Overview
The A7512DB Power Supply Module is a compact desktop solution to provide stable and noiseless power supply for single and multi-gap Resistive Plate Chamber (RPC) detectors.
The module houses a digital controlled high voltage channel that provides a 12 kV maximum voltage with 200 mV monitor resolution The maximum output current is 20 μA, with 500 pA monitor resolution. It is available with either positive or negative output voltage. HV output is delivered through LEMO HV connector.
The following channel parameters can be programmed
- Output voltage: 0 ÷ 12 kV step: 200 mV
- Current limit 0 ÷ 20 μA step: 1 nA
- Voltage Ramp up/down: 1 ÷ 500 V/sec step: 1 V/sec
- TRIP parameter
Power supply control can be performed remotely, via RS485, that allows to build a daisy chain network of A75xxDB modules.
A7512DB houses also bias output through LEMO 00 connector for preamplifiers power supply. Three different options are available: 2.8 V / 3.3 V / 5 V (maximum output power: 3 W).
Safety features include:
- Overcurrent detection: if the channel attempts to draw a current larger than Iset, the output voltage is automatically adjusted to keep the current below Iset limit. Under this condition, the channel behaves as a current generator.
- The Module can be enabled or disabled through the interlock logic.
Technical Specifications
- Packaging
Custom Carrier
W=63 mm ; L=170 mm ; H=36 mm
- Output Connector
Lemo Connector HV FFB.3S.415.CLLC10
- COMM connector
15 Pin Male HD-Sub Connector VGA 5749768-1
- Operating temperature
-20° C ÷ +45° C
- Storage temperature
-55° C ÷ +85° C
- Voltage Supply (Vin)
+12 V ± 20%
- Output Voltage (Vout)
0 ÷ 12000 V
- Output polarity
Positive/Negative
- Maximum Output Current (Iout)
20 μA
- VSet Resolution
0.2 V
- VMon Resolution
0.1 V
- Current Set Resolution
1 nA
- Current Monitor Resolution
500 pA
- Aux PWS preamp
Default: ~ 2.8V Iout max 1 Amp (it is required a bulk capacitor on the preamplifier input, >470μF); 3.3V and 5V on request
- Power requirement
~ 2.5W @ 12000 V (Rload ≈ 1000 MΩ) only HV CH
~ 6W @ 12000 V + (Rload ≈ 1000 MΩ) HV CH+ Aux
- Output Ripple
Typical <30 mVpp; Maximum 50 mVpp (10KV working)
Typical <50 mVpp; Maximum 80 mVpp (12KV working)
- VMon vs. VOut Accuracy
typical: ± 0.3% ± 0.5 V max: ± 0.3% ± 2 V
- VSet vs. VMon Accuracy
typical: ± 0.3% ± 0.5 V max: ± 0.3% ± 2 V
- IMon vs. IOut Accuracy 2
2% ±200nA ±50ppm/°C with output current from 10% to 100% f.s.
- Vout vs. Vset Integral Non Linearity
<±0.035% (at 25° C)
- Electromagnetic compatibility
Weak emission of electromagnetic impulse and RF; one- piece metal shielding with several ground connections
- Uniformity of a lot
< 0.5 %
- Protection
Over current short circuit, sparks and humidity
- Documentation
- Software
- Firmware
