New

DT4810

One-channel Micro Digital Detector Emulator

Request a Quote Add to WishlistView Wishlist

Home Modular Pulse Processing ElectronicsDigitalDigital Detector Emulators DT4810

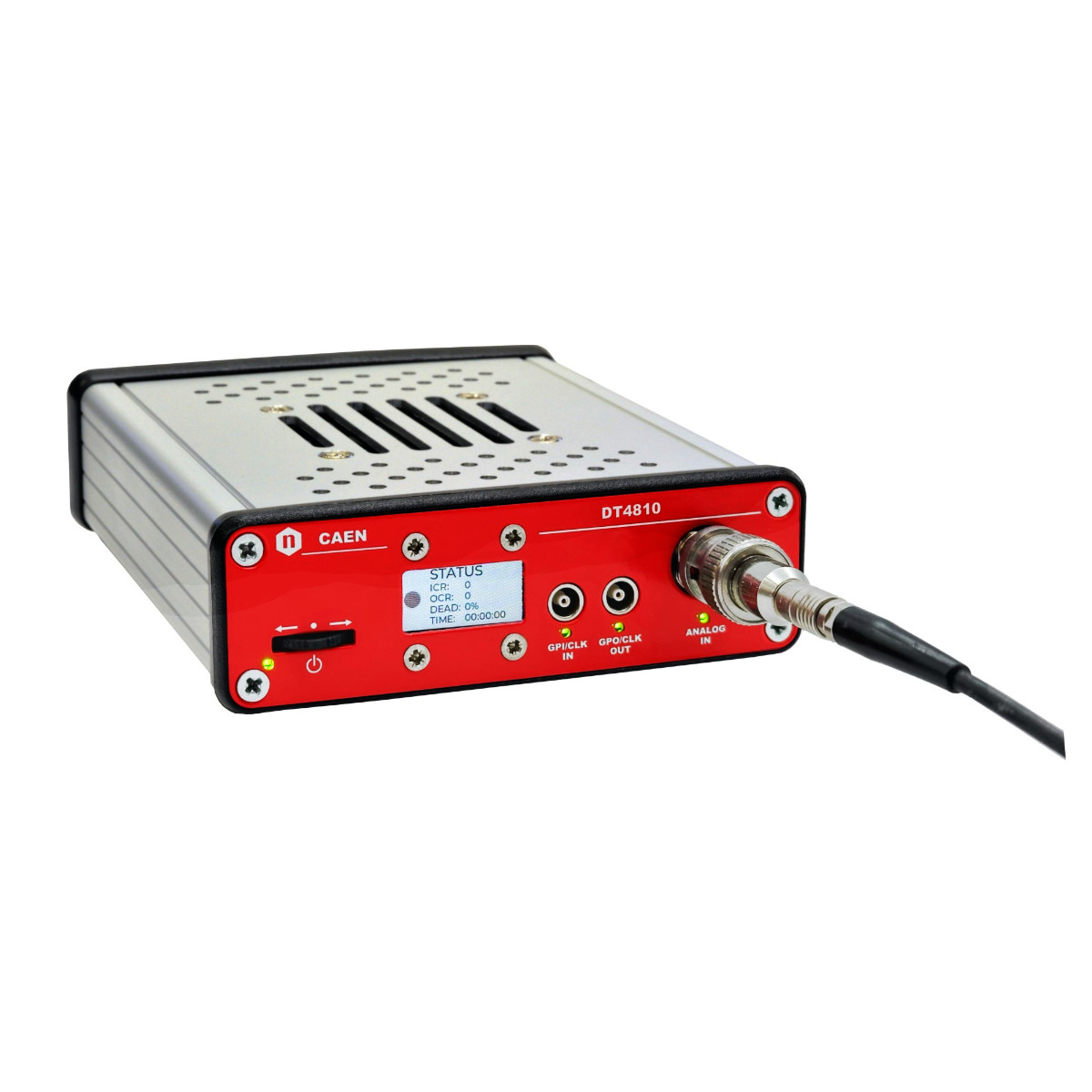

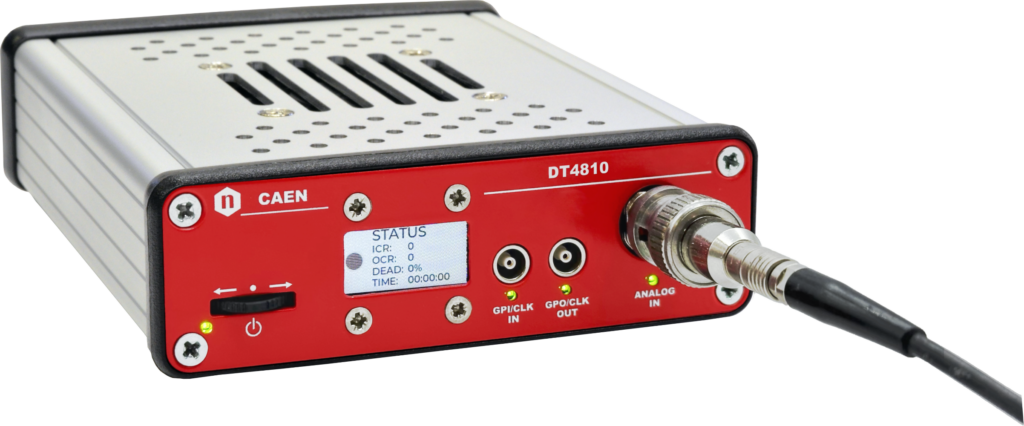

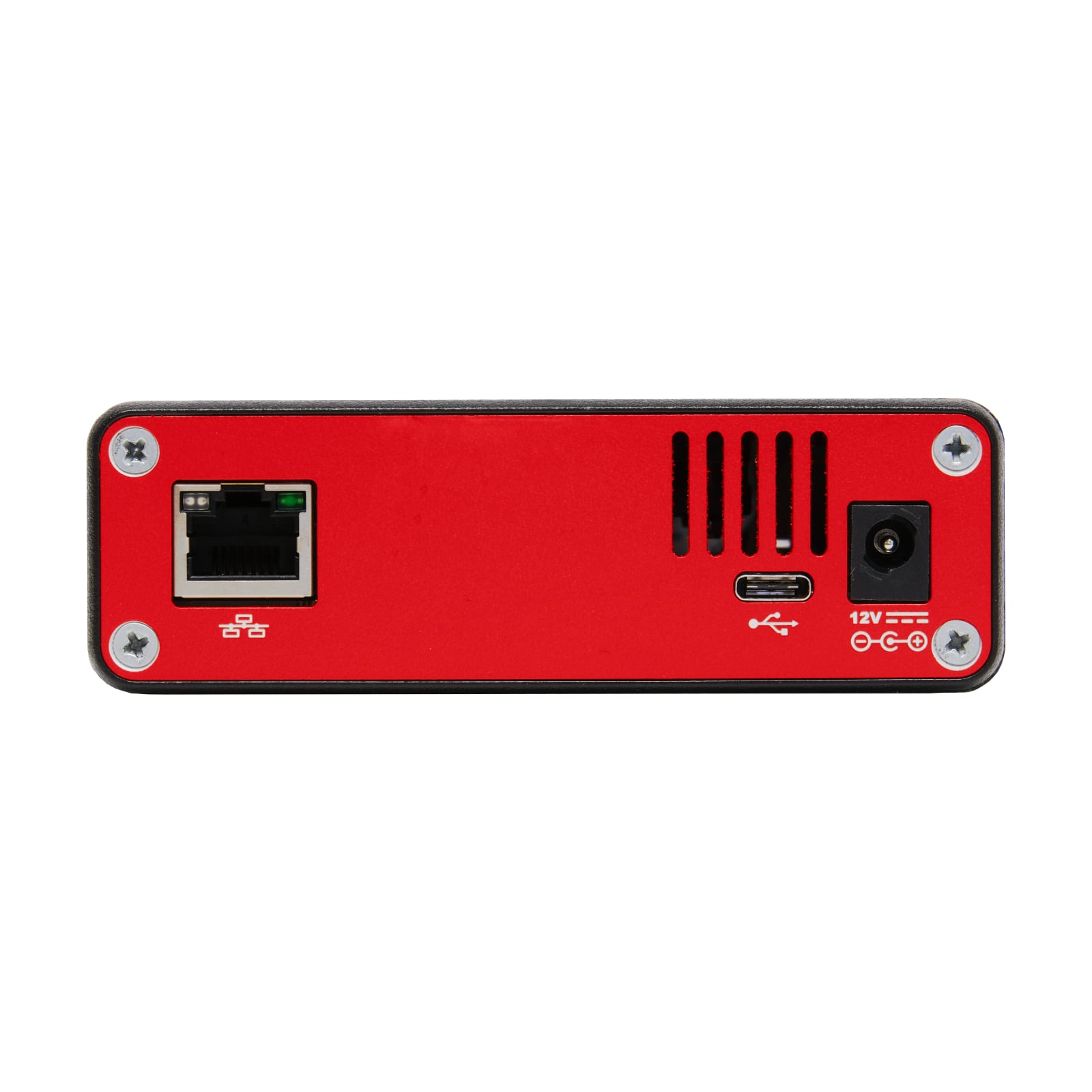

Photo of DT4810

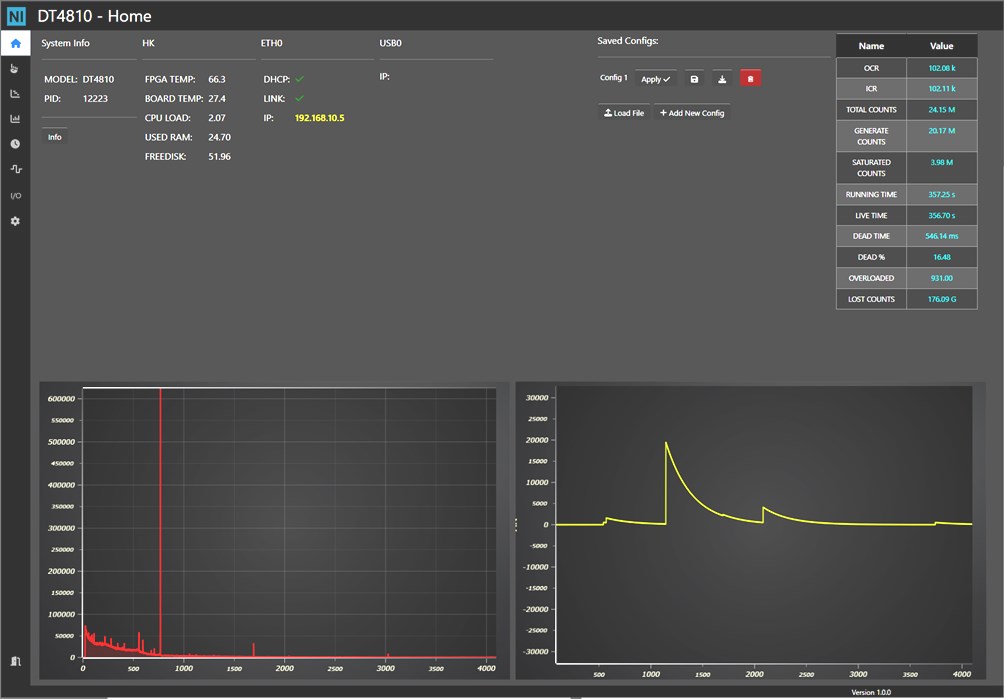

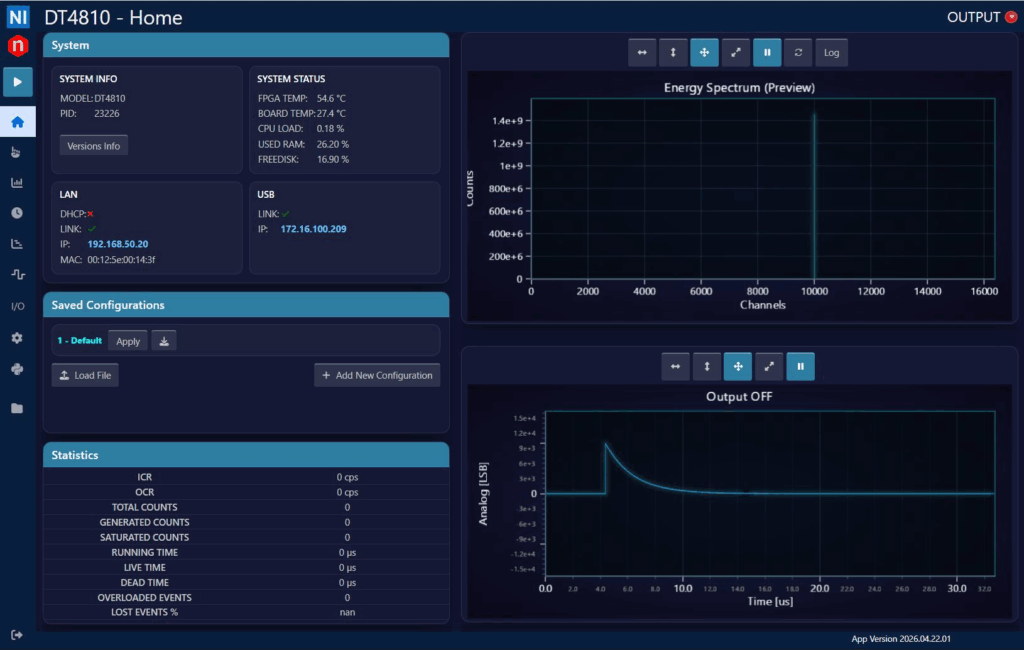

DT4810 web interface: the Home page provides a real-time overview of system status, network connectivity, statistics and live previews of the emulated energy spectrum and analog waveform.
DT4810 web interface: the Home page provides a real-time overview of system status, network connectivity, statistics and live previews of the emulated energy spectrum and analog waveform.

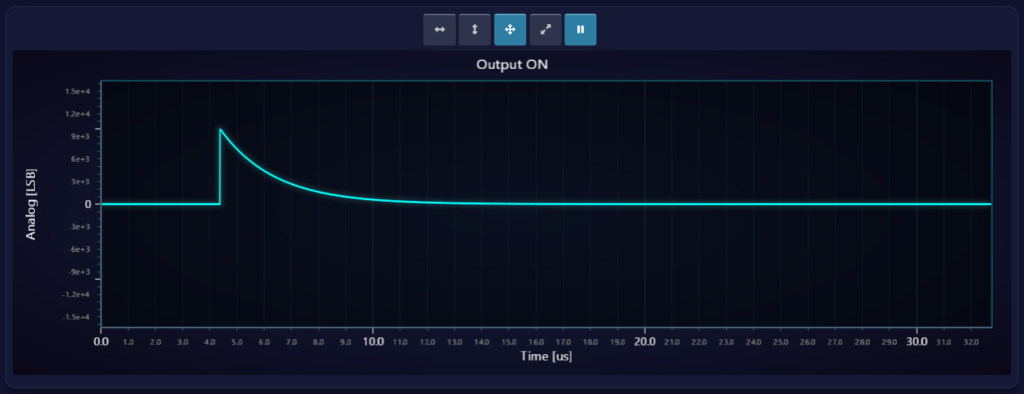

DT4810 web interface: the oscilloscope view displays the emulated analog waveform in real time.
DT4810 web interface: the oscilloscope view displays the emulated analog waveform in real time.

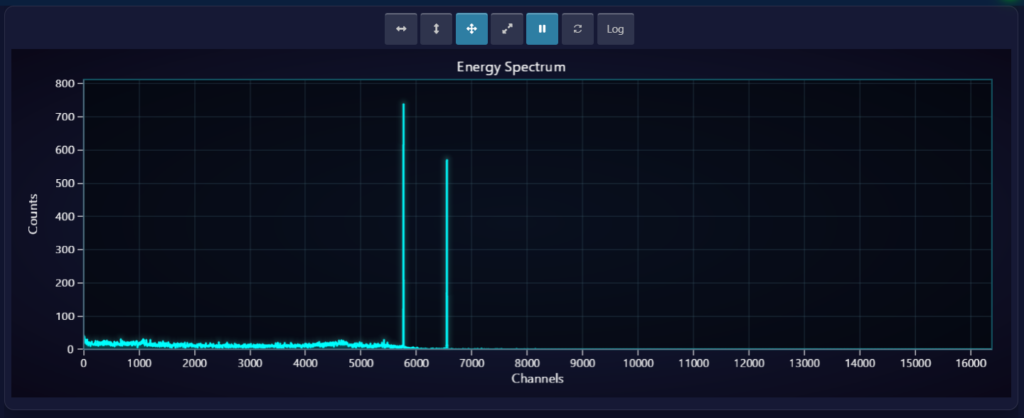

DT4810 web interface: the Energy Spectrum view displays the MCA histogram built from the emulated data stream., showing a Cobalt-60 reference spectrum.
DT4810 web interface: the Energy Spectrum view displays the MCA histogram built from the emulated data stream., showing a Cobalt-60 reference spectrum.
DatasheetDownloadCompareTech. Spec.

  • Emulation of detector-like signals

  • 500 MSps 14-bit DAC

  • Maximum event rate up to 5 MCPS

  • Analog output rise time down to 2 ns and exponential signal decay time up to 100 µs

  • Nuclides database with more than 50 real acquired spectra

  • White noise emulation

  • USB 2.0, 1 Gbit Ethernet

  • Web-based GUI

  • Standalone basic operation through the front panel display

  • Improved output signal quality

  • User-friendly web interface for control and visualization

  • JupyterLab support for Python scripting (Coming Soon)

Explore the results of our study to upgrade the DT4800 signal generator with improved performances at affordable rate! The CAEN Mod.DT4810 is your entry-level gateway to the Detector Emulator range, strategically designed for compactness, ease of use, and single-channel operation. Say goodbye to outdated hardware – we’re upgrading with the latest Xilinx SoCs.

No more software hassles – enjoy a web-based control interface accessible via Ethernet and USB2. No installations required!
Improved performance – now generating signals at up to 500 MSps for high quality outputs with reduced harmonic content.

Upgrade your lab equipment with the power of innovation. Don’t miss out – stay ahead with the new DT4810 Signal Generator.

Developed in collaboration with Nuclear Instruments.

Ordering Options

Code Description
WDT4810XAAAA

DT4810 – 1 Channel Micro Digital Detector Emulator

 RoHS

You also may be interested in…

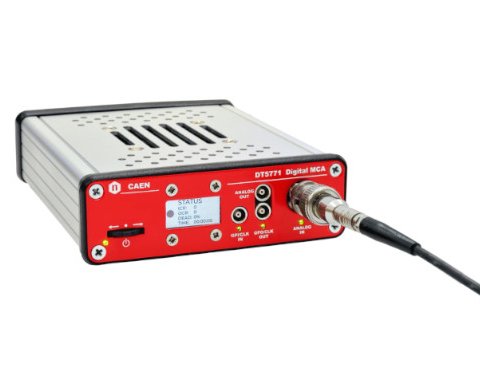

DT5771

DT5771

1 Channel Digital MCA
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist
Request a Quote

Request a Quote

    Submit I’ve read and accept the privacy policy *

    Compare

    Close
    Name
    Channels
    D/A Sample rate
    Maximum Rate
    Multiple shapes on a single channel
    Minimum rising time (fast mode)
    Form Factor
    NDT6800

    NDT6800

    2

    125 MHz

    10 Mcps / 5 Mcps (Poisson)

    Yes (2 different)

    8 ns

    NIM

    DT5800

    DT5800

    2

    125 MHz

    0 Mcps / 5 Mcps (Poisson)

    Yes (2 different)

    8 ns

    Desktop

    DT5810

    DT5810

    2

    1 GHz

    30 Mcps

    Yes (4 different)

    1 ns

    Desktop

    DT4810
    New

    DT4810

    1

    500 MHz

    Tbd

    No

    5 ns

    Desktop

    DT4800
    Discontinued

    DT4800

    1

    200 MHz

    Tbd

    No

    7 ns

    Desktop

    Technical Specifications

    Close

    Energy Emulation features

    • Single-line (16384 selectable levels)

    • Spectrum emulation (16384 bins with 14-bit resolution)

    • Output range: ± 4 V (high-Z); ± 2 V (50 Ω termination)

    • 14-bit D/A converter

    Time emulation features

    • Constant rate emulation

    • Poisson distribution

    • Up to 5 MCPS, both in constant and statistical emulation

    • Integrator circuit emulation (no pile-up limitation)

    • 2 ns to 10 μs exponential rise time

    • 10 ns to 100 µs exponential decay time

    • programmable rise time, width and falling time with 8 ns resolution for pulses

    Signal shape

    • Exponential Digital-RC Emulator

    • Rectangular Pulses Emulator

    Noise emulation

    • White noise emulation (Gaussian)

    Digital I/O

    • 1-input and 1-output programmable

    • Output modes: Run status, Trigger pulse (programmable width/delay), Trigger valid, Analog saturation, GPI Loopback

    • Input modes: Trigger Gate/Veto, External Trigger, Output Gate/Veto

    Software and interfaces

    • Graphical web interface

    • USB 2.0 and 1 Gbit Ethernet interfaces

    • Power Supply: 12V
