4 independent channels in 1U NIM module
-
1 kV / 200 µA output range
-
Channels with individually selectable positive or negative polarity
-
SHV output connectors
-
Common floating return
-
Low Ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
-
Graphic color display
-
Local and Remote control (USB2.0/RS485/RS232)
-
Daisy-chain capability
-
Optional DC Input Power Equalizer
-
Software Tools for easy channel management

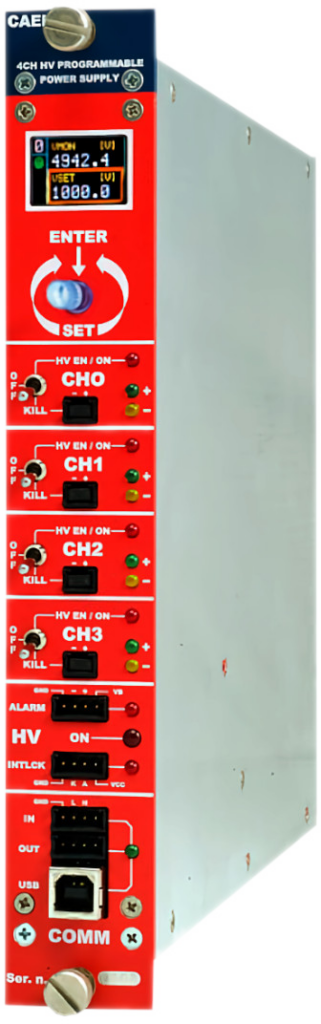

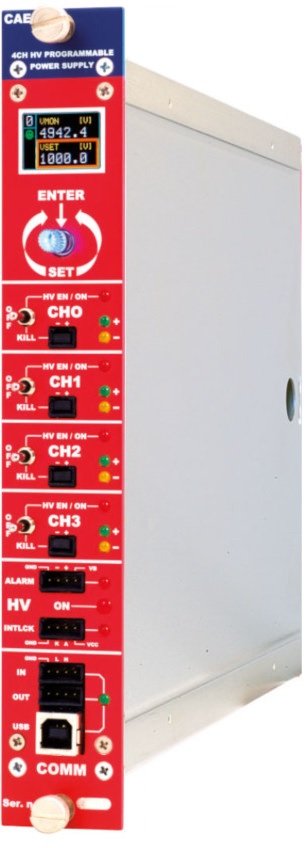

The CAEN Mod. N1410 provides 4 independent High Voltage channels in a single width NIM mechanics. Each channel can provide a ±1kV max voltage, a 200 µA max current. The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output Ramp-up and Ramp-down rates may be selected independently for each channel in the range 1÷100 V/s in 1 V/s steps. The module features 5 nA Iset/Imon resolution. Features include Imon Zoom, increasing resolution to 500 pA.
|

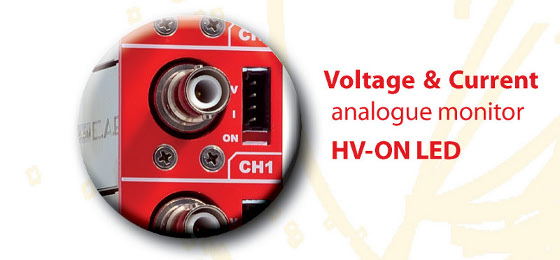

SHV connector NIM single width, 4 channels for Mod. N1410 |
Consult our connectors reference page for technical information.

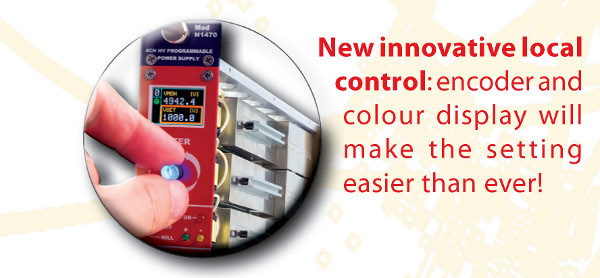

Power supply control can be performed either locally, assisted by a Graphic color display or remotely, via USB, RS232 or RS485, the latter allowing to build a daisy chain network of modules N14XX. It is also controllable via TCP/IP by the Smart Fan Unit of CAEN NIM8301.
A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 2% of set value (minimum 1V). |
|
Overcurrent detection |
if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
|
Hardware VMAX |
Programmable VMAX protection limit. |
|
Common Interlock logic |
for channels enable/disable and individual inputs signal for channel Kill function. |

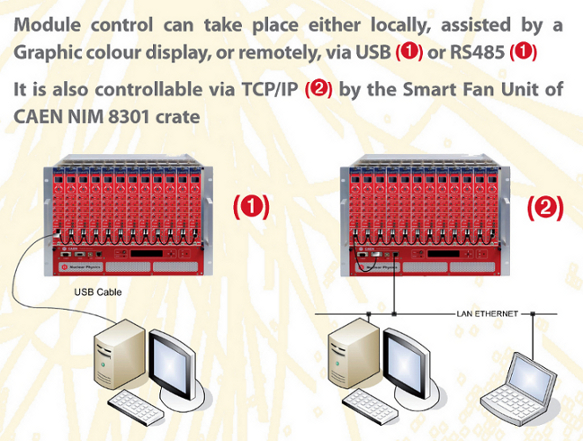

Module control can take place either locally, assisted by a Graphic colour display, or remotely, via USB (1) or RS485 (1). It is also controllable via TCP/IP (2) by the Smart Fan Unit of CAEN NIM8301 crate.
Available Options:
-
A1480 DC Input Power Equalizer.
N14xx modules are provided with a USB VCP interface and can be programmed via PC by connecting the PC USB port with the N14xx USB B-type port; the featured controller (FT232BM chip) requires a driver available on this page or at www.ftdichip.com
Software
CAEN HV Wrapper Library
Library for CAEN Power Supply Control
GECO2020
EPICS IOC (PSM Power Supply Modules)
LabVIEW Driver (PSM – Power Supply Modules)
SW1470
You also may be interested in…
NIM8301
NIM8302
NIM8305
NV8020A
NIM8303
NIM8306
NIM8304
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vset/Vmon Resolution
|
Iset/Imon Resolution
|
Max. Ramp Up/Down Rate
|
Ripple Typ (>1kHz)
|
Connectors
|
Max Power per Channel
|
Features
|
|
|
N1471ET |
4 |
±5500 V |
300 μA |
0.1 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
500 V/s |
< 3 mVpp |
SHV |
1.65 W |
Common Floating Return |
|
|
N1419 |
4 /2 / 1 |
±500 V |
20 μA |
0.01 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
100 V/s |
< 3 mVpp |
SHV |
0.1 W |
Common Floating Return |
|
|
N1471 |
4 /2 / 1 |
±5500 V |
300 μA |
0.1 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
500 V/s |
< 3 mVpp |
SHV |
1.65 W |
Common Floating Return |
|
|
N1470 |
4 /2 / 1 |
±8000 V |
3 mA |
0.2 V |
Iset: 50 nA <br>Imon: 50 / 5 nA |
500 V/s |
< 5-10 mVpp |
SHV |
9 W (< 3 kV) <br>8 W (> 3 kV) |
Common Floating Return<br>N1470AL: local control only<br>N1470AR: remote control only |
|
|
N1471HET |
4 |
±5500 V |
20 μA |
0.1 V |
Iset: 1 nA <br>Imon: 1 / 0.05 nA |
500 V/s |
< 2 mVpp |
SHV |
110 mW |
Common Floating Return |
|
|
NDT1471 |
4 |
±5500 V |
300 μA |
0.1 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
500 V/s |
< 3 mVpp |
SHV |
1.65 W |
Common Floating Return <br>NIM/Desktop |
|
|
N1570 |
2 |
±15000 V |
1 mA |
0.5 V |
Iset: 20 nA <br>Imon: 20 / 2 nA |
500 V/s |
< 4-20 mVpp |
HV LEMO |
10 mW |
Common Floating Return |
|
|
NDT1419 |
4 |
±500 V |
20 μA |
0.01 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
100 V/s |
< 3 mVpp |
SHV |
0.1 W |
Common Floating Return <br>NIM/Desktop |
|
|
|
NDT1471H |
4 |
±5500 V |
20 μA |
0.1 V |
Iset: 1 nA <br>Imon: 1 / 0.05 nA |
500 V/s |
< 2 mVpp |
SHV |
110 mW |
Common Floating Return <br>NIM/Desktop |
|
|
N1471H |
4 /2 / 1 |
±5500 V |
20 μA |
0.1 V |
Iset: 1 nA <br>Imon: 1 / 0.05 nA |
500 V/s |
< 2 mVpp |
SHV |
110 mW |
Common Floating Return |
|
|
N1470ET |
4 |
±8000 V |
3 mA |
0.2 V |
Iset: 50 nA <br>Imon: 50 / 5 nA |
500 V/s |
< 5-10 mVpp |
SHV |
9 W (< 3 kV) <br>8 W (> 3 kV) |
Common Floating Return |
|
|
NDT1470 |
4 |
±8000 V |
3 mA |
0.2 V |
Iset: 50 nA <br>Imon: 50 / 5 nA |
500 V/s |
< 5-10 mVpp |
SHV |
9 W (< 3 kV) <br>8 W (> 3 kV) |
Common Floating Return NIM/Desktop |
|
|
N1419ET |
4 |
±500 V |
20 μA |
0.01 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
100 V/s |
< 3 mVpp |
SHV |
0.1 W |
Common Floating Return |
|
|
N1410 |
4 |
±1000 V |
200 μA |
20 mV |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
100 V/s |
< 3 mVpp |
SHV |
200 mW |
Common Floating Return |
Technical Specifications
|
Packaging |
Single width NIM unit |
|
Output channels |
4 channels, Common Floating Return, SHV connector Positive or Negative Polarity (requires internal setting) |
|
Output ranges |
|
|
Max. Ch. Output Power |
200 mW |
|
Vset Resolution |
20 mV |
|
Vmon Resolution |
20 mV |
|
Iset Resolution |
5 nA |
|
Imon Resolution |
5 nA (IMRANGE = High) 500 pA (IMRANGE = Low) – Imon Zoom Active |
|
Vmax |
0 ÷ 1050 V; absolute maximum HV level that the channel is allowed to reach, independently from the preset value Vset. Output voltage cannot exceed the preset value Vmax. The accuracy is 0.2 % ± 20mV |
|
Vmax resolution |
± 0.1 V |
|
Ramp Up/Down |
1÷100 Volt/s, 1 Volt/s step |
|
Trip |
|
|
Voltage Ripple |
|
|
Vmon vs. Vout Accuracy |
±0.02% of read value ±500 mV |
|
Vset vs. Vout Accuracy |
±0.02% of read value ±500 mV |
|
Imon vs. Iout Accuracy |
±2% of read value ±20 nA (IMRANGE = High) ±2% of read value ±2 nA (IMRANGE = Low) – Imon Zoom Active |
|
Iset vs. Iout Accuracy |
±2% of read value ±30 nA (IMRANGE = High) ±2% of read value ±3 nA (IMRANGE = Low) – Imon Zoom Active |
|
Humidity range |
0 ÷ 80% |
|
Operating temperature |
0 ÷ 45°C |
|
Storage temperature |
-10 ÷ 70°C |
|
Vout / Temperature coefficient |
max. 50 ppm/°C |
|
Imon / Temperature coefficient |
max 100 ppm/C°; max 300 ppm/C° with Imon zoom |
|
Long term stability Vout vs. Vset |
± 0.02% (after one week @ constant temperature) |
