NIM / Up to 15 kV Reversible Polarity

VME - NIM Power Supplies

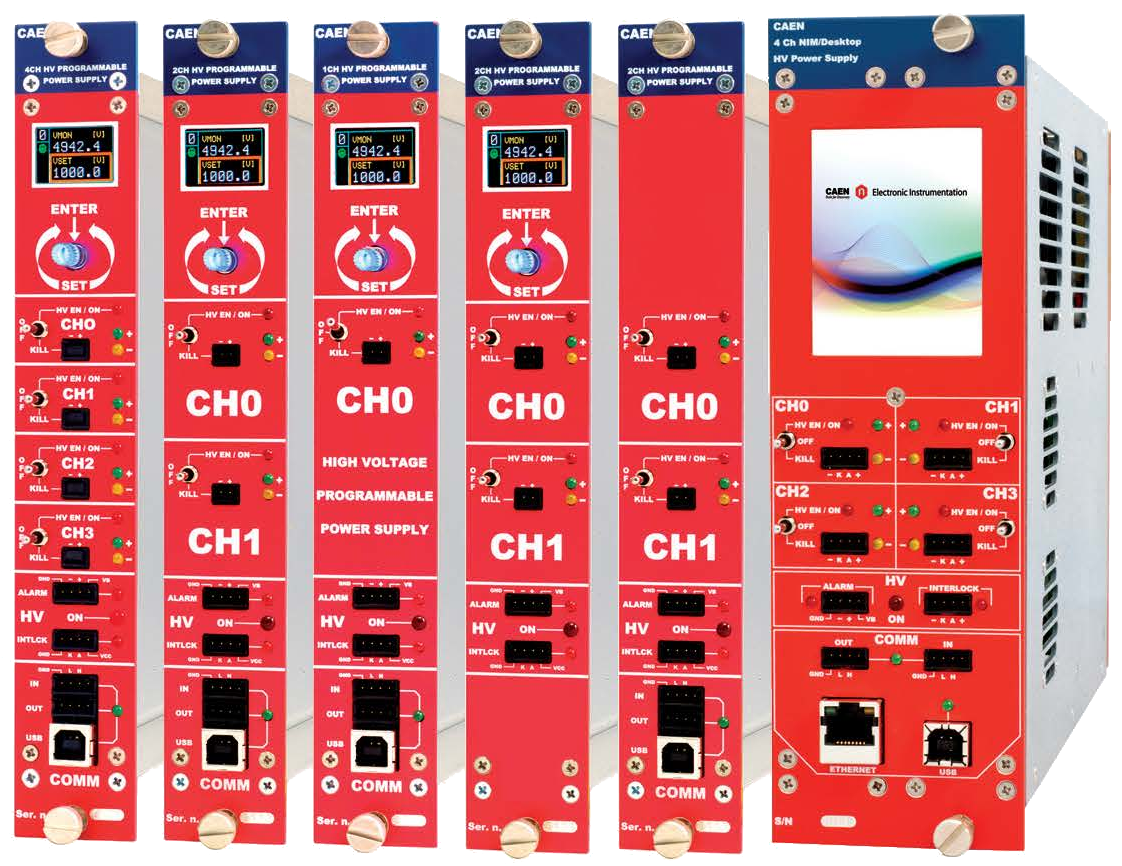

Photo of NIM / Up to 15 kV Reversible Polarity

The NIM power supply family provides a series of Independent High Voltage channels in 1U (N14xx) or 2U (NDT14xx, N14xxET, N1570) NIM module. N14xxET/NDT14xx families provides 4 channels, N1570 2 channels, while N14xx are available in versions housing 4, 2 or 1 channels (N14xx, N14xxA, N14xxB). Each channel can provides up to 15 kV and 3 mA max output. The output polarity is independently selectable for each channel that features common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV or LEMO-HV connectors.

The HV output ramp-up and ramp-down rates may be selected independently for each channel in the range 1 ÷ 50 V/s or 1 ÷ 500 V/s in 1 V/s steps. The modules feature high Iset/Imon resolution (up to 1 nA). Each unit is provided with Imon Zoom, this feature increase Imon resolution up to 50 pA. Power supply control can be performed either locally, assisted by a 2.8” color touch screen or OLED display or remotely, via Ethernet, USB, RS232, RS485, the latter allowing to build a daisy chain network of modules N14xx. For those module not featuring the Ethernet interface, it is also possible to setup a control via TCP/IP by the Smart Fan Unit of CAEN NIM8301. The NDT modules can work either as a standard NIM module or a desktop power supply thanks to the 110-220 AC plug. A complete set of software tools is available to control these units, from low level libraries to graphical application software. Safety features allows the module to perform as a current generator and includes:

  • Channels: can be enabled or disabled through the Global Interlock logic.

  • Overvoltage and Undervoltage warning: when the output voltage differs from the programmed value by more than 2% of set value (minimum 10 V).

  • Overcurrent detection: when a channel attempts to exceed the programmed current limit, it signals an “overcurrent” condition and enters TRIP status. The output voltage is adjusted to keep the current below the programmed limit for a programmable TRIP time, after which the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves as a current source.

  • VMAX : programmable VMAX protection limit.

  • Safety Board Interlock: common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function.

  Available Options:

  • A1480 DC Input Power Equalizer.

  • x 10 Imon Zoom, increasing Imon resolution to 500 pA.

N14xx modules are provided with a USB VCP interface and can be programmed via PC by connecting the PC USB port with the N14xx USB B-type port; the featured controller (FT232BM chip) requires a driver available on this page or at www.ftdichip.com

  • 4/2/1 independent channels in 1U NIM module

  • Channel polarity independently selectable

  • SHV or LEMO-HV coaxial output connectors

  • Common floating return

  • Very Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Daisy-chain capability

  • 2.8” colour touch screen or OLED display

  • Local and Remote control (USB 2.0/Ethernet)

  • Optional selectable power requirement

  • Interlock logic for board enable and Individual channel kill

  • LabVIEW Driver available

  • Software Tools for remote control

  • 2U/Desktop (with 110-220 Vac) version available

NIM / Up to 15 kV Reversible Polarity Models

Grid Compare

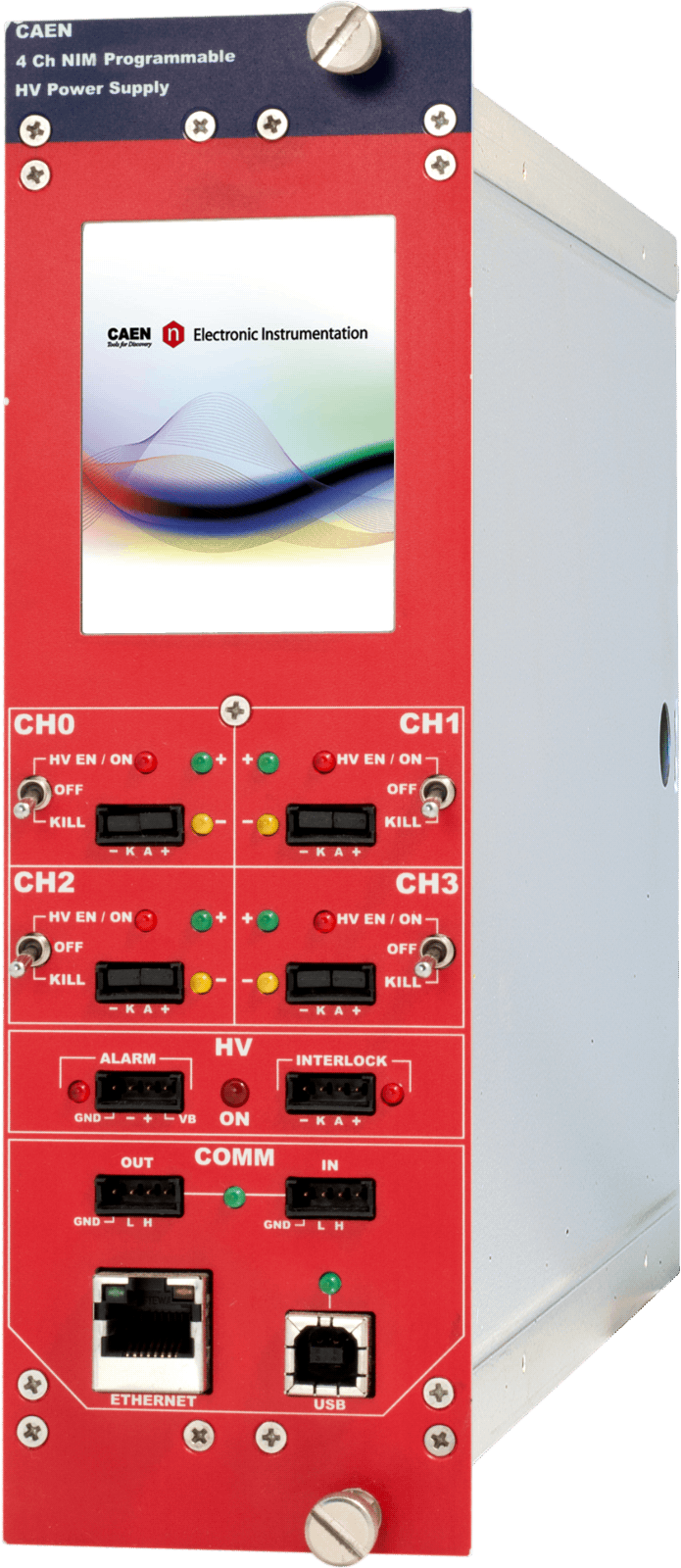

N1471ET

N1471ET

4 Ch Reversible 5.5 kV/300 µA NIM HV Power Supply Module (USB/Ethernet/T.screen)
N1419

N1419

4 Ch Reversible 500 V/200 µA NIM HV Power Supply Module (USB)
N1471

N1471

4 Ch Reversible 5.5 kV/300 µA NIM HV Power Supply Module (USB)
N1470

N1470

4 Ch Reversible 8 kV/3 mA (8 W) NIM HV Power Supply Module (USB)
N1471HET

N1471HET

4 Ch Reversible 5.5 kV/20 µA NIM HV Power Supply High Accuracy Module (USB/Ethernet/T.screen)
NDT1471

NDT1471

4 Ch Reversible 5.5 kV/300 µA NIM/Desktop HV Power Supply Module (USB/Ethernet/T.screen)
N1570

N1570

2 Channel 15 kV/1 mA (10 W) NIM HV Power Supply Module (USB/Ethernet/T.screen)
NDT1419

NDT1419

4 Ch Reversible 500 V/200 µA NIM/Desktop HV Power Supply Module (USB/Ethernet/T.screen)
NDT1471H

NDT1471H

4 Ch Reversible 5.5 kV/20 µA NIM/Desktop HV Power Supply High Accuracy Module (USB/Ethernet/T.screen)
N1471H

N1471H

4 Ch Reversible 5.5 kV/20 µA NIM HV Power Supply High Accuracy Module (USB)

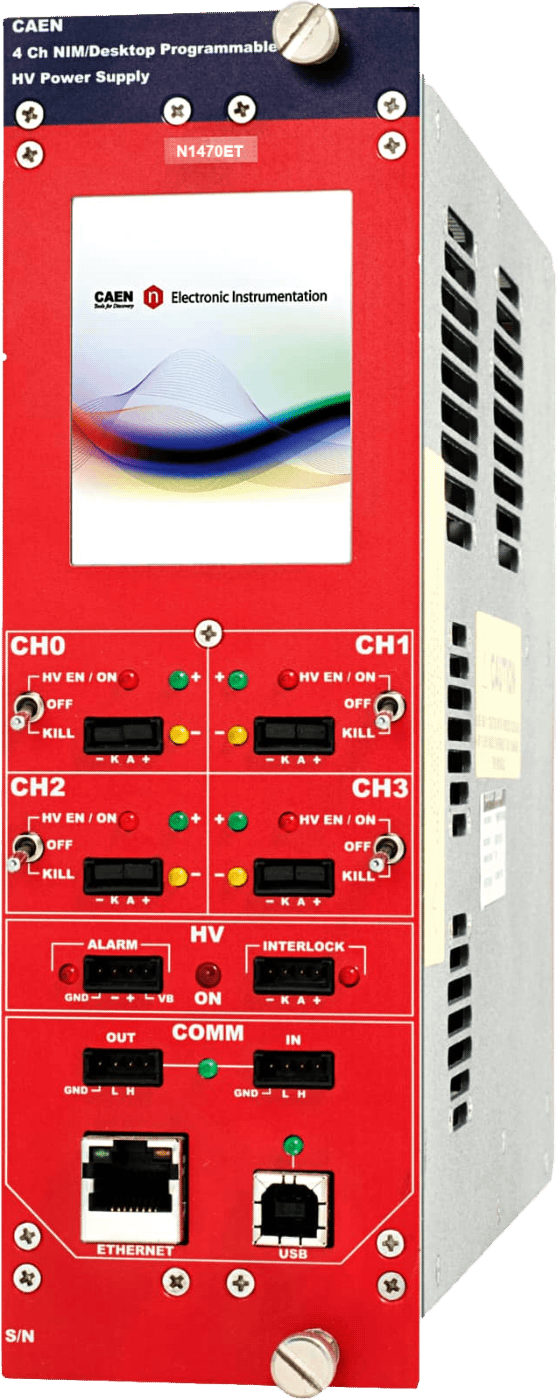

N1470ET

N1470ET

4 Ch Reversible 8 kV/3 mA (8 W) NIM HV Power Supply Module (USB/Ethernet/T.screen)
NDT1470

NDT1470

4 Ch Reversible 8 kV/3 mA (8 W) NIM/Desktop HV Power Supply Module (USB/Ethernet/T.screen)

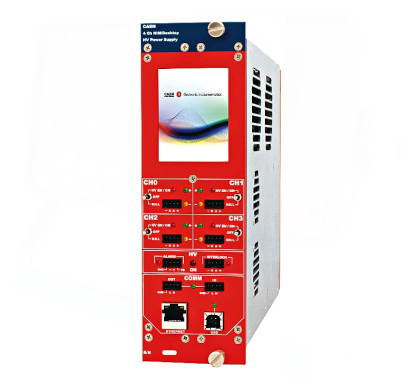

N1419ET

N1419ET

4 Ch Reversible 500 V/200 µA NIM HV Power Supply Module (USB/Ethernet/T.screen)

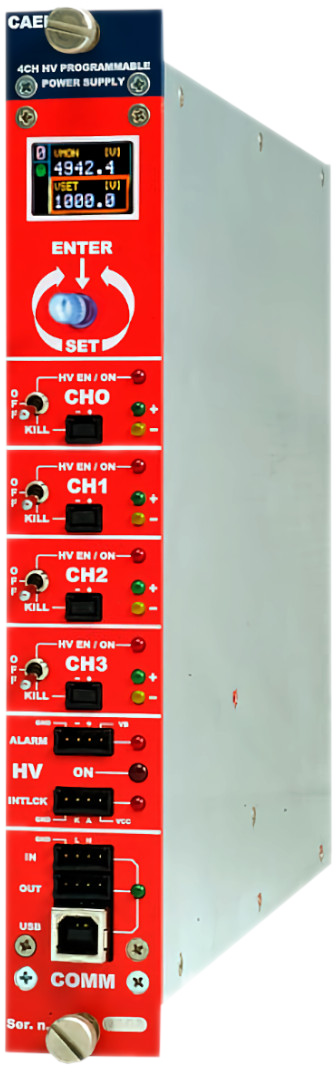

N1410

N1410

4 Ch Reversible 1 kV/200 µA NIM HV Power Supply Module (USB)
Name
No. of Channels
Max Output V
Max Output I
Vset/Vmon Resolution
Iset/Imon Resolution
Max. Ramp Up/Down Rate
Ripple Typ (>1kHz)
Connectors
Max Power per Channel
Features
N1471ET

N1471ET

4

±5500 V

300 μA

0.1 V

Iset: 5 nA
Imon: 5 / 0.5 nA

500 V/s

< 3 mVpp

SHV

1.65 W

Common Floating Return
N1419

N1419

4 /2 / 1

±500 V

20 μA

0.01 V

Iset: 5 nA
Imon: 5 / 0.5 nA

100 V/s

< 3 mVpp

SHV

0.1 W

Common Floating Return
N1471

N1471

4 /2 / 1

±5500 V

300 μA

0.1 V

Iset: 5 nA
Imon: 5 / 0.5 nA

500 V/s

< 3 mVpp

SHV

1.65 W

Common Floating Return
N1470

N1470

4 /2 / 1

±8000 V

3 mA

0.2 V

Iset: 50 nA
Imon: 50 / 5 nA

500 V/s

< 5-10 mVpp

SHV

9 W (< 3 kV)
8 W (> 3 kV)

Common Floating Return
N1470AL: local control only
N1470AR: remote control only
N1471HET

N1471HET

4

±5500 V

20 μA

0.1 V

Iset: 1 nA
Imon: 1 / 0.05 nA

500 V/s

< 2 mVpp

SHV

110 mW

Common Floating Return
NDT1471

NDT1471

4

±5500 V

300 μA

0.1 V

Iset: 5 nA
Imon: 5 / 0.5 nA

500 V/s

< 3 mVpp

SHV

1.65 W

Common Floating Return
NIM/Desktop
N1570

N1570

2

±15000 V

1 mA

0.5 V

Iset: 20 nA
Imon: 20 / 2 nA

500 V/s

< 4-20 mVpp

HV LEMO

10 mW

Common Floating Return
NDT1419

NDT1419

4

±500 V

20 μA

0.01 V

Iset: 5 nA
Imon: 5 / 0.5 nA

100 V/s

< 3 mVpp

SHV

0.1 W

Common Floating Return
NIM/Desktop
NDT1471H

NDT1471H

4

±5500 V

20 μA

0.1 V

Iset: 1 nA
Imon: 1 / 0.05 nA

500 V/s

< 2 mVpp

SHV

110 mW

Common Floating Return
NIM/Desktop
N1471H

N1471H

4 /2 / 1

±5500 V

20 μA

0.1 V

Iset: 1 nA
Imon: 1 / 0.05 nA

500 V/s

< 2 mVpp

SHV

110 mW

Common Floating Return
N1470ET

N1470ET

4

±8000 V

3 mA

0.2 V

Iset: 50 nA
Imon: 50 / 5 nA

500 V/s

< 5-10 mVpp

SHV

9 W (< 3 kV)
8 W (> 3 kV)

Common Floating Return
NDT1470

NDT1470

4

±8000 V

3 mA

0.2 V

Iset: 50 nA
Imon: 50 / 5 nA

500 V/s

< 5-10 mVpp

SHV

9 W (< 3 kV)
8 W (> 3 kV)

Common Floating Return NIM/Desktop
N1419ET

N1419ET

4

±500 V

20 μA

0.01 V

Iset: 5 nA
Imon: 5 / 0.5 nA

100 V/s

< 3 mVpp

SHV

0.1 W

Common Floating Return
N1410

N1410

4

±1000 V

200 μA

20 mV

Iset: 5 nA
Imon: 5 / 0.5 nA

100 V/s

< 3 mVpp

SHV

200 mW

Common Floating Return

Software

Software Tools available (free download) to control the Up to 15 kV Reversible Polarity Family:

  • CAEN LabVIEW: It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.

  • EPICS IOC: mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.

  • CAEN HV Wrapper Library: it is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products.

  • GECO2020: CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.

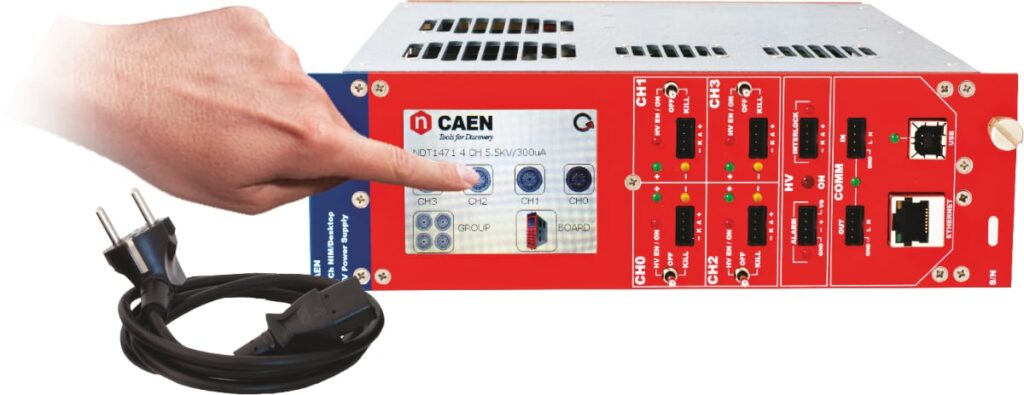

Our NDT Power Supplies can work as a standalone unit like the classic desktop ones!
