N1471H

4 Ch Reversible 5.5 kV/20 µA NIM HV Power Supply High Accuracy Module (USB)

Request a Quote Add to WishlistView Wishlist

Home Power SupplyVME - NIM Power SuppliesNIM / Up to 15 kV Reversible Polarity N1471H

Photo of N1471H
Photo of N1471H
Photo of N1471H
Photo of N1471H
DatasheetDownloadCompareTech. Spec.

Highlights

  • 4 independent channels in 1U NIM module (2 & 1 channel versions also available)

  • 5.5 kV / 20 µA output range

  • Channels with individually selectable positive or negative polarity

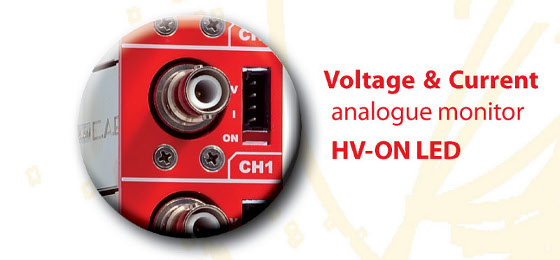

  • SHV output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 1 nA Current monitor resolution (with x20 Imon-Zoom: 50 pA)

  • Graphic color display

  • Local and Remote control (USB2.0/RS485/RS232)

  • Daisy-chain capability

  • Optional DC Input Power Equalizer

  • Software Tools for easy channel management

Overview

The CAEN Mod. N1471H provides 4 independent high voltage channels in a single-width NIM module. Two-channel and one-channel versions (N1471HA and N1471HB) are also available. Each channel delivers up to ±5.5 kV and 20 µA, and its output polarity can be selected independently.

All models are housed in a single-width NIM module and feature SHV output connectors: the Mod. N1471H provides 4 channels, the N1471HA provides 2 channels, and the N1471HB provides 1 channel. For further technical information, consult our connectors reference page.

The channels share a common floating return, insulated from the crate ground. Ramp-up and ramp-down rates can be set independently for each channel from 1 to 500 V/s in 1 V/s steps. The module offers 1 nA Iset/Imon resolution, and the x20 Imon Zoom increases the current monitor resolution to 50 pA.

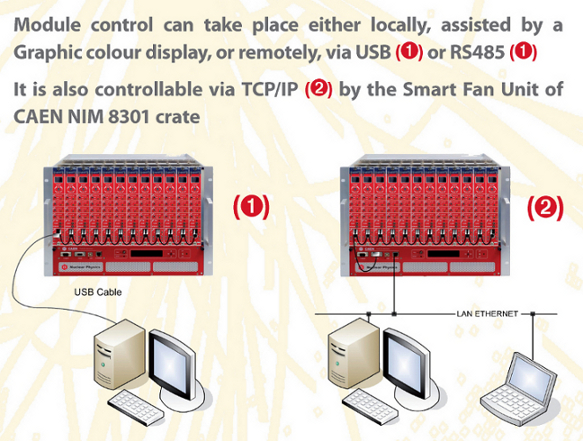

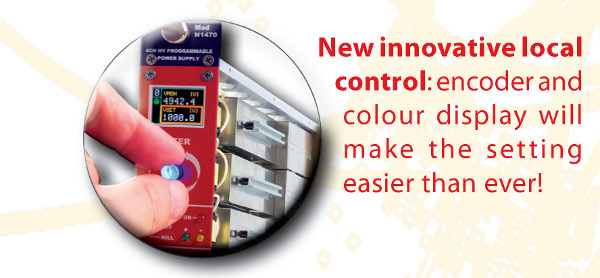

The module can be controlled locally, with the aid of a graphic color display, or remotely via USB, RS232 or RS485, the latter allowing a daisy-chain network of N14xx modules to be built. It can also be controlled via TCP/IP through the Smart Fan Unit of the CAEN NIM8301 crate. A complete set of free software tools is available to control the unit: GECO2020, with a user-friendly GUI, and the CAEN HV Wrapper library for custom software development. EPICS and LabVIEW are also supported.

N14xx modules feature a USB VCP interface and can be programmed from a PC by connecting the PC’s USB port to the module’s USB type-B port. The on-board controller (FT232BM or FT232RL chip) requires a driver, available on this page or at ftdichip.com.

The module also includes dedicated safety features that allow it to operate as a current generator. A common safety board interlock logic enables or disables the channels globally, while individual input signals provide a kill function for each channel. An overvoltage and undervoltage warning is issued when the output voltage differs from the programmed value by more than 2% of the set value (minimum 10 V). If a channel attempts to draw a current higher than its programmed limit, it enters TRIP status and holds the maximum allowed value for a programmable time (TRIP) before being switched off. A programmable hardware VMAX protection limit is also available.

Several special versions are available. Besides the 2-channel N1471HA and the 1-channel N1471HB, the NDT1471H is a 2U NIM module with a 220/110 V AC plug for desktop operation, equipped with a 2.8″ touchscreen, Ethernet and USB interface, while the N1471HET is a 2U NIM module with the same 2.8″ touchscreen, Ethernet and USB interface.

The A1480 DC Input Power Equalizer is available as an option.

Supported Software

  • CAEN HV Wrapper Library — Library for CAEN Power Supply Control
  • GECO2020 — GEneral COntrol Software for CAEN HV Power Supplies
  • EPICS IOC (PSM Power Supply Modules) — EPICS IOC for Power Supply Modules
  • LabVIEW Driver (PSM – Power Supply Modules) — LabVIEW Instrument Driver for Power Supply Modules
  • SW1470 — Control Software for NIM Power Supply Modules

Accessories

A1480

A1480

DC Power Input Equalizer for N14XX Family
A1481

A1481

Kill Signal Adapter for N14XX series
A148x

A148x

Inhibit - Kill Signal BNC Adapter for HV Power Supply Modules
HV CABLES

HV CABLES

High Voltage Cable Assemblies

Ordering Options

Code Description
WN1471HA05AC

N1471HA – 2 Ch NIM Programmable High CurrentRes. HV Power Supply (±5.5kV, 20µA, 1nA res.)

RoHS
WN1471HB05AC

N1471HB – 1 Ch NIM Programmable High CurrentRes. HV Power Supply (±5.5kV, 20µA, 1nA res.)

RoHS
WN1471HX05AC

N1471H – 4 Ch NIM Programmable High CurrentRes. HV Power Supply (±5.5kV, 20µA, 1nA res.)

RoHS

You also may be interested in…

NIM8302

NIM8302

5U 10 slot 150 W Compact Crate
NIM8305

NIM8305

2 Slot Switching 450 W Mini Crate
NV8020A

NV8020A

7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150W
NIM8303

NIM8303

5U 12 slot 300/600 W Crate
NIM8306

NIM8306

2 Slot Switching 750 W Mini Crate
NIM8304

NIM8304

7U 12 slot smart fan unit Switching 2000 W Crate
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist
Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    No. of Channels
    Max Output V
    Max Output I
    Vset/Vmon Resolution
    Iset/Imon Resolution
    Max. Ramp Up/Down Rate
    Ripple Typ (>1kHz)
    Connectors
    Max Power per Channel
    Features
    N1471ET

    N1471ET

    4

    ±5500 V

    300 μA

    0.1 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    < 3 mVpp

    SHV

    1.65 W

    Common Floating Return

    N1419

    N1419

    4 /2 / 1

    ±500 V

    200 μA

    0.01 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    0.1 W

    Common Floating Return

    N1471

    N1471

    4 /2 / 1

    ±5500 V

    300 μA

    0.1 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    < 3 mVpp

    SHV

    1.65 W

    Common Floating Return

    N1470

    N1470

    4 /2 / 1

    ±8000 V

    3 mA

    0.2 V

    Iset: 50 nA <br>Imon: 50 / 5 nA

    500 V/s

    < 5-10 mVpp

    SHV

    9 W (< 3 kV) <br>8 W (> 3 kV)

    Common Floating Return<br>N1470AL: local control only<br>N1470AR: remote control only

    N1471HET

    N1471HET

    4

    ±5500 V

    20 μA

    0.1 V

    Iset: 1 nA <br>Imon: 1 / 0.05 nA

    500 V/s

    < 2 mVpp

    SHV

    110 mW

    Common Floating Return

    NDT1471

    NDT1471

    4

    ±5500 V

    300 μA

    0.1 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    < 3 mVpp

    SHV

    1.65 W

    Common Floating Return <br>NIM/Desktop

    N1570

    N1570

    2

    ±15000 V

    1 mA

    0.5 V

    Iset: 20 nA <br>Imon: 20 / 2 nA

    500 V/s

    < 4-20 mVpp

    HV LEMO

    10 W

    Common Floating Return

    NDT1419

    NDT1419

    4

    ±500 V

    200 μA

    0.01 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    0.1 W

    Common Floating Return <br>NIM/Desktop

    NDT1471H

    NDT1471H

    4

    ±5500 V

    20 μA

    0.1 V

    Iset: 1 nA <br>Imon: 1 / 0.05 nA

    500 V/s

    < 2 mVpp

    SHV

    110 mW

    Common Floating Return <br>NIM/Desktop

    N1471H

    N1471H

    4 /2 / 1

    ±5500 V

    20 μA

    0.1 V

    Iset: 1 nA <br>Imon: 1 / 0.05 nA

    500 V/s

    < 2 mVpp

    SHV

    110 mW

    Common Floating Return

    N1470ET

    N1470ET

    4

    ±8000 V

    3 mA

    0.2 V

    Iset: 50 nA <br>Imon: 50 / 5 nA

    500 V/s

    < 5-10 mVpp

    SHV

    9 W (< 3 kV) <br>8 W (> 3 kV)

    Common Floating Return

    NDT1470

    NDT1470

    4

    ±8000 V

    3 mA

    0.2 V

    Iset: 50 nA <br>Imon: 50 / 5 nA

    500 V/s

    < 5-10 mVpp

    SHV

    9 W (< 3 kV) <br>8 W (> 3 kV)

    Common Floating Return NIM/Desktop

    N1419ET

    N1419ET

    4

    ±500 V

    200 μA

    0.01 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    0.1 W

    Common Floating Return

    N1410

    N1410

    4

    ±1000 V

    200 μA

    20 mV

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    200 mW

    Common Floating Return

    Technical Specifications

    Close

    Packaging

    Single width NIM unit

    Output Channels

    4 / 2 / 1 channels, Common Floating Return, SHV connector Positive or Negative Polarity (requires internal setting)

    Output ranges

    5.5 kV / 20 µA (IMRANGE = High)
    5.5 kV / 2 µA (IMRANGE = Low) – Imon Zoom Active

    Max. Ch. Output Power

    0.11 W

    Vset Resolution

    100 mV

    Vmon Resolution

    100 mV

    Iset Resolution

    1 nA

    Imon Resolution

    1 nA (IMRANGE = High)
    50 pA (IMRANGE = Low) – Imon Zoom Active

    Vmax

    0 ÷ 5600 V Absolute maximum HV level that the channel is allowed to reach, independently from the preset value Vset. Output voltage cannot exceed the preset value Vmax. The accuracy is 1 % ± 5 V

    Vmax resolution

    ± 1 V

    Alarm output

    Open collector, 100 mA maximum sink current

    Interlock input

    LOW: < 1 V; current~5mA; HIGH: 4÷6 V

    Ramp Up/Down

    1÷500 Volt/s, 1 Volt/s step

    Trip

    • Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value.
    • “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”.
    • Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state.
    • Trip range: 0 ÷ 999.9 s; 1000 s = INFINITE. Step = 0.1 s (If trip= INFINITE, “overcurrent” lasts indefinitely).

    Voltage Ripple

    20 ÷ 1000 Hz

    Typical: 12 mVpp; Maximum: 20 mVpp

    1 ÷ 20000 kHz

    Typical: 2 mVpp; Maximum: 5 mVpp

    Vmon vs. Vout Accuracy

    ±0.02% of read value ±2V

    Vset vs. Vout Accuracy

    ±0.02% of read value ±2V

    Imon vs. Iout Accuracy

    ±2% of read value ±2 nA (IMRANGE = High)
    ±2% of read value ±200 pA (IMRANGE = Low) – Imon Zoom Active

    Iset vs. Iout Accuracy

    ±2% of read value ±3 nA (IMRANGE = High)
    ±2% of read value ±300 pA (IMRANGE = Low) – Imon Zoom Active

    Humidity range

    0 ÷ 80%

    Operating temperature

    0 ÷ 45°C

    Storage temperature

    -10 ÷ 70°C

    Vout / Temperature coefficient

    max. 50 ppm / °C

    Imon / Temperature coefficient

    max 100 ppm/C°; max 300 ppm/C° with Imon zoom

    Long term stability Vout vs. Vset

    ± 0.02% (after one week @ constant temperature)
