POPROC

MA-PMT readout out chip

Datasheet

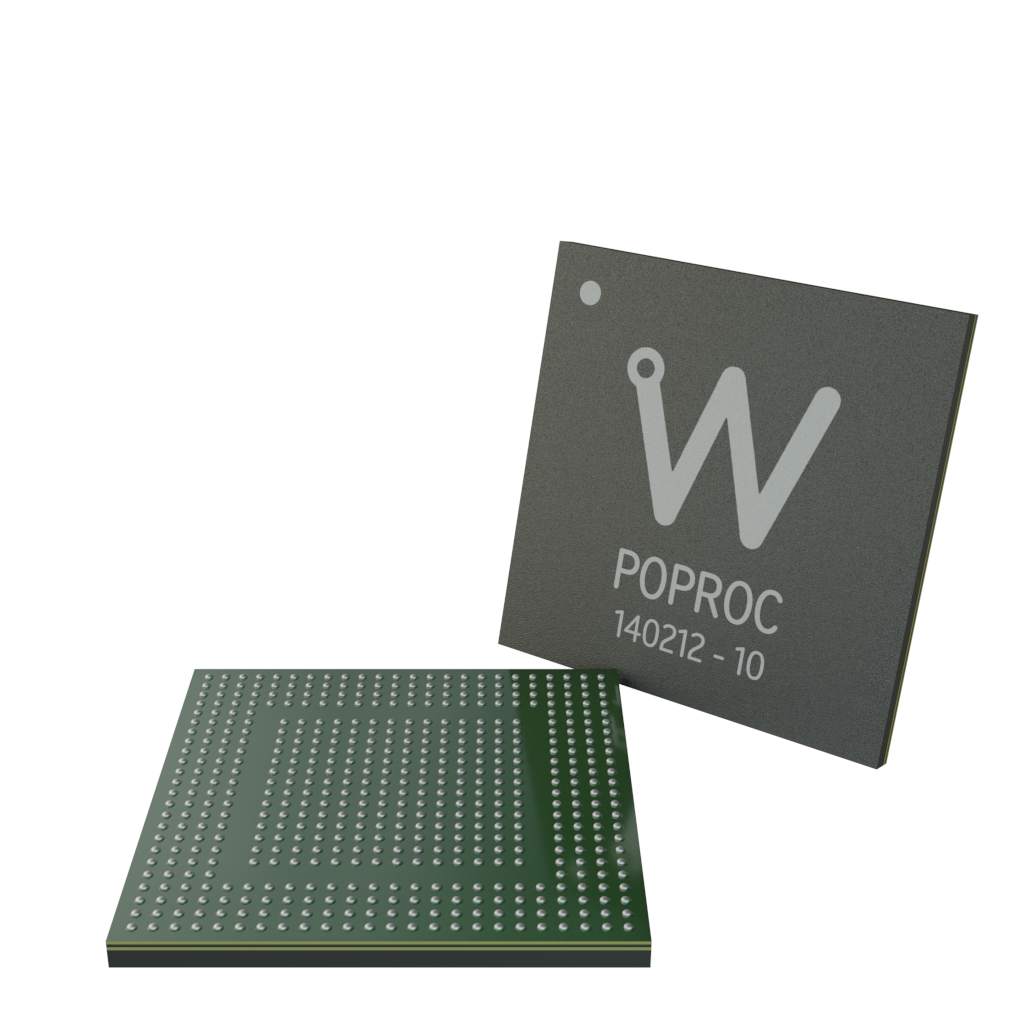

Photo of POPROC

  • TRL Technology Readiness Level

  • Detector Read-Out MA-PMT, PMT

  • Number of Channel 64

  • Signal Polarity Negative

  • Sensitivity Trigger on 1/3 photo-electron

POPROC is a MA-PMT readout out chip, specifically design for fast counting output. This chip is fully analog and features differential trigger output for each detector channel. The ASIC is designed to accept negative polarity input and can readout up to 64 channels.

POPROC allows triggering down to 1/3 p.e. and provides low-voltage differential trigger output for each channel with an excellent timing resolution (better than 20ps FWHM) and excellent double-peak separation (100% efficiency on 3 ns separated single photo-electrons). POPROC allows fast single photon counting over 300MHz per channel.

Channel-by-channel calibration on the trigger threshold is also possible thanks to 6-bit DACs.

POPROC features a GHz measurement line composed of a current conveyor followed by a fast discriminator and low swing differential output driver.
