R5560

128 Channel 14 bit 125 MS/s Open FPGA Digitizer

Datasheet

Home Modular Pulse Processing ElectronicsAnalogDigitizers R5560

128 channels, 14-bit @125 MS/s Digitizer
Based on powerful Xilinx Zynq-7000 SoC with open FPGA
2U, 19” Rackmount unit with automatic fan control
Full-featured readout system for the readout of large arrays of detector (PMTs, segmented HPGe, Gas Tubes, …)
Specifically designed for the readout of position-sensitive 3He tubes in combination with R1443 preamplifier
2 V_pp input dynamic
Fully supported by SCI-Compiler for easy FPGA programming (Firmware runtime license included onboard)
Easily scalable
Board-to-board synchronization with a single CAT5e cable.
Configurable digital I/Os to interface with external systems
Maximum flexibility: USB3.0, Ethernet, and Optical Link ^(OPTIONAL) connectivity, to support remote management as well as extreme fast data flow
2.4” touch screen display for quick configuration and status control

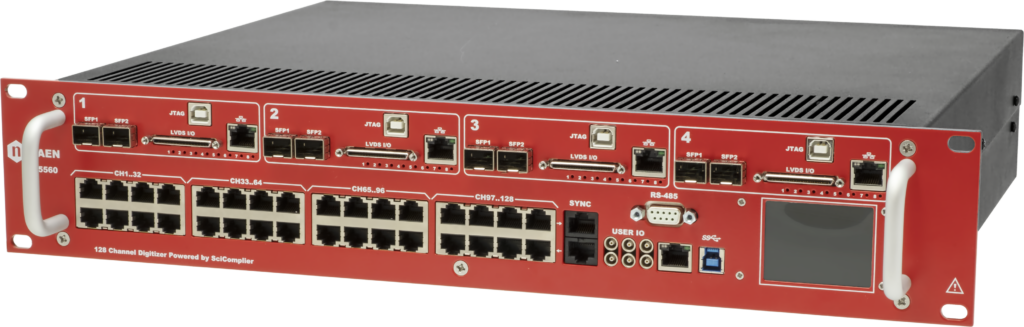

The R5560 is a 2U, 19″ rack-mount 128 Channels 14-bit 125MS/s Open FPGA Digitizer Family, designed to attain programmable data processing capabilities.

The R5560 is designed for the readout of large arrays of detectors (PMTs, segmented HPGe, ³He tubes, …) using a customizable platform. In fact, it is possible to take advantage of the powerful SoC mounted onboard to write a custom pulse processing algorithm on the open FPGA as well as build a middleware/software that fits the needs of the application of interest.

The board can manage simultaneously a large number of digital (LVDS, NIM, TTL) and analog signals, allowing to implement many functionalities required by physics experiments: signal digitization, complex trigger logic, Pulse Height Analysis with MCA capabilities, Time Tagging, Pulse Shape Discrimination, etc.

It is an optimal solution for large experiments, usually requiring fast digitization of analog signals and usage of several digital lines to interface with external systems. The board supports multi-board synchronization through a single CAT5e cable, with the possibility scale up to thousands of channels. Moreover, the rack-mount form factor simplifies the experimental setup in case of multi-board systems, where an effective space management is often a constraint. The usage of differential inputs on RJ45 connectors optimizes the cost for the installation, reducing the cabling cost.

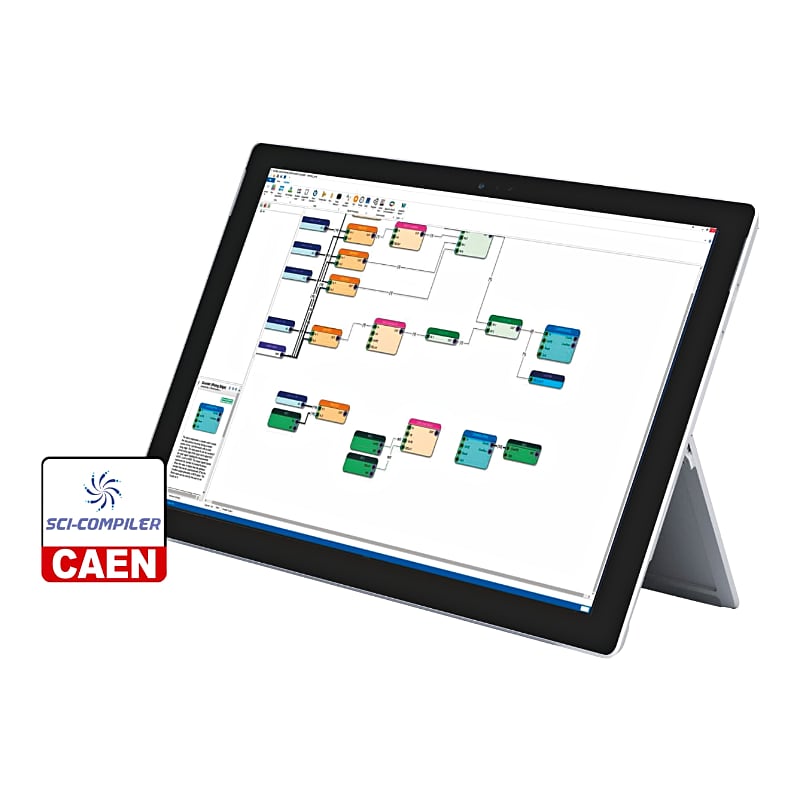

SCI-Compiler software, the CAEN block-diagram-based firmware generator and compiler, helps in programming the FPGA to develop intensive real-time data processing. A free and open-source demo readout software is available to manage the standard pulse height analysis firmware implementing energy measurements using a trapezoidal filter.

Applications includes:

Readout of the following detectors	Neutron Detector (3He tubes, position sensing tubes) HPGe, Segmented germanium detector Array/matrix of PMTs Position sensing detectors (for application like gamma camera) with real-time position reconstruction CdTE and CZT detector Neutron scintillator detectors with Gamma Neutron discrimination
Readout of mixed signals ASICs
Nuclear Spectroscopy
High Energy Physics
Imaging with multichannel detectors

Developed in collaboration with Nuclear Instruments.

Ordering Options

Code	Description
WR5560AXAAAA	R5560A 128 Ch. 14 bit 125 MS/s Digitizer-7030	RoHS
WR5560BXAAAA	R5560B 128 Ch. 14 bit 125 MS/s Digitizer-7035	RoHS

Add to Wishlist

Request a Quote

Image	Name	Package	No. of Channels	Max Sampling Rate (MS/s)	Bandwidth (MHz)	Full Scale Range (V)	Resolution (bits)	Board Memory (Samples/ch)	Analog Input Connectors	CAEN firmware	Open FPGA
	V1725 / V1725S	VME	8 / 16	250	125	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	DT2745	Desktop	64	125	20	[0.04 + 4]	16	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	New R5560	rack mount 19 -2U	128+6	125	60	2	14	max. 8k	RJ45	n. a.	YES
	New DTL2730	Desktop	8	500	TBD	TBD	14	TBD	MCX	DPP-PHA(cs), DPP-PSD(cs), D-SCOPE(cs)	YES
	V1761	VME	2	4000	1000	1	10	7.2 M / 57.6 M	MCX	D-WAVE	NO
	DT5751	Desktop	2(DES mode) - 4	2000(DES mode) - 1000	500	0.2 / 1	10	3.6 M(DES mode) - 1.8 M	MCX	DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	VX1740D	VME64X	64	62.5	30	2 / 10	12	192 k	SMC 68P	DPP-QDC, D-WAVE	NO
	DT5725 / DT5725S	Desktop	8	250	125	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	VX1724	VME64X	8	100	40	0.5 / 2.25 / 10	14	512 k / 4 M	MCX	DPP-PHA, DPP-DAW	NO
	DT5761	Desktop	1	4000	1000	1	10	7.2 M	MCX	D-WAVE	NO
	VX2745	VME64X	64	125	20	[0.4 ÷ 4]	16	21 M	2mm 40-pin header male	D-SCOPE, DPP-PHA, DPP-PSD, DPP-ZLEplus<sup>(cs)</sup>	YES
	DT5724	Desktop	4 / 2	100	40	0.5 / 2.25 / 10	14	512 k / 4 M	MCX	DPP-PHA, DPP-DAW, D-WAVE	NO
	DT5730 / DT5730S	Desktop	8	500	250	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	VX2740	VME64X	64	125	50	2	16	21 M	2mm 40-pin header male	DPP-PHA, D-SCOPE, DPP-PSD, DPP-ZLEplus<sup>(cs)</sup>	YES
	V1724	VME	8	100	40	0.5 / 2.25 / 10	14	512 k / 4 M	MCX	DPP-PHA, DPP-DAW, D-WAVE	NO
	VX1761	VME64X	2	4000	1000	1	10	7.2 M / 57.6 M	MCX	D-SCOPE	NO
	DT2740	Desktop	64	125	50	2	16	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	V2740	VME	64	125	50	2	16	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	New DT2751	Desktop	16	1000	500	[0.2 ÷ 2]	14	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE<sup>(cs)</sup>	YES
	V1730 / V1730S	VME	8 / 16	500	250	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	N6725 / N6725S	NIM	8	250	125	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	New VX2751	VME64X	16	1000	500	[0.2 ÷ 2]	14	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE<sup>(cs)</sup>	YES
	VX1740	VME64X	64	62.5	30	2 / 10	12	192 k / 1.5 M	SMC 68P	D-WAVE	NO
	DT5740D	Desktop	32(SMC conn.) - 16(MCX conn)	62.5	30	2 / 10	12	192 k	SMC 68P - MCX	DPP-QDC,D-WAVE	NO
	V2745	VME	64	125	20	[0.04 + 4]	16	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	DT5742	Desktop	16 + 1	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	500	1	12	0.128 / 1	MCX	D-WAVE	NO
	VX1725 / VX1725S	VME64X	8 / 16	250	125	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	VX2730	VME64X	32	500	250	[0.2 ÷ 4]	14	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE<sup>(cs)</sup>	YES
	VX1730 / VX1730S	VME64X	8 / 16	500	250	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	V2730B	VME64	16	500	250	[0.2 ÷ 4]	14	MCX	84 M	DPP-PHA, DPP-PSD, D-SCOPE(cs)	YES
	N6730 / N6730S	NIM	8	500	250	0.5 - 2	14	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	V1743	VME	16	3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array)	500	2.5	12	0.007 M	MCX	D-WAVE	NO
	VX1751	VME64X	2(DES mode) - 4	2000(DES mode) - 1000	500	0.2 / 1	10	3.6 M(DES mode) - 1.8 M / 28.8 M(DES mode) - 14.4 M	MCX	DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	DT5740	Desktop	32(SMC conn.) - 16(MCX conn)	62.5	30	2 / 10	12	192 k	SMC 68P - MCX	D-WAVE	NO
	V1720	VME	8	250	125	2	12	1.25 M / 10 M	MCX	DPP-PSD, D-WAVE	NO
	V1751	VME	2(DES mode) - 4	2000(DES mode) - 1000	500	0.2 / 1	10	3.6 M(DES mode) - 1.8 M / 28.8 M(DES mode) - 14.4 M	MCX	DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	VX1742	VME64X	32 + 2	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	500	1	12	0.128 / 1	MCX	D-WAVE	NO
	DT5743	Desktop	8	3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array)	500	2.5	12	0.007 M	MCX	D-WAVE	NO
	DT5720	Desktop	4 / 2	250	125	2	12	1.25 M / 10 M	MCX	DPP-PSD, D-WAVE	NO
	V1742	VME	32 + 2	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	500	1	12	0.128 / 1	MCX	D-WAVE	NO
	DT2730	Desktop	32 / 16	500	250	[0.2 ÷ 4]	14	MCX	84 M	DPP-PHA, DPP-PSD, D-SCOPE	YES
	VX1743	VME64X	16	3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array)	500	2.5	12	0.007 M	MCX	D-WAVE	NO
	V1740D	VME	64	62.5	30	2 / 10	12	192 k	SMC 68P	DPP-QDC, D-WAVE	NO
	New DTL2751	Desktop	4	1000	TBD	TBD	14	MCX	TBD	DPP-PSD(cs), D-SCOPE(cs)	YES
	VX1720	VME64X	8	250	125	2	12	1.25 M / 10 M	MCX	DPP-PSD, D-WAVE	NO
	N6742	NIM	16 + 1	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	500	1	12	0.128 / 1	MCX	D-WAVE	NO


General	Form Factor : 19”, 2U Rack-mount Dimensions: 88/482.0/367.0 (396 with handles) mm
Power Requirements	Voltage: 100-240 V_ac Frequency: 50/60 Hz Typ. Power consumption: 0.5 A @ 220 V_ac
Analog Input	Channels: 128 channels Differential Impedance: Z_diff = 100 Ω Connector : 32 x CAT5e RJ45 Full Scale Range: 2 Vpp Bandwidth: 125MHz
Digital Input	Channels: 128 Differential Impedance: Z_diff = 100 Ω Connector: 4 x VHDCI Coupling: DC Signal Type: LVCMOS 2.5V, LVDS, BLVDS
Digital Conversion	Resolution: 14 bits Sampling Rate: 125 MS/s Simultaneously on each channel
Clock Generation	Clock source: internal/external On-board programmable PLL provides generation of the main board clocks from an internal (25 MHz local Oscillator) or external (rear panel CLK-IN connector) reference External Clock from Sync connector with clock and sync propagation Clock recovery and propagation from optical link with integrated jitter cleaner
LEMO Digital I/O	USER IO 0…5 (LEMO) Programmable Digital I/O:s can be used as Trigger, Start, Busy IN/OUT Single-ended, Z_in / Rt = 50 Ω
Trigger	Trigger Source: Internal/External: managed by the default firmware; Complex trigger logic: implementable by the user on the open FPGA. Trigger Propagation: Through LEMO and Sync Connector. Trigger Time Stamp: Default FW: 32-bit counter, 8 ns resolution, 26-day range; Custom FW: defined by the firmware design.
Open FPGA	4x Xilinx Zynq-7000 SoC: Z-7030 (R5560A, R5560SEA) Z-7035 model (R5560B, R5560SEB)
Memory	1 GByte of memory for list readout on each SoC Up to 8kS/ch for simultaneous waveform readout
Communication Interface	All readout interfaces allow to perform the same task at different speed and using different media. They can be used independently or simultaneously. The different readout interface allows to integrate the R5560 in existing experimental environment. Ethernet (readout): 4 x 1 Gbps (4 Gbps cumulative speed) Ethernet (slow control): 1 Gbps (slow control is an additional port, not required if the fast readout ethernet is used) Parallel TTL/LVDS Readout: Readout through the VHDCI digital I/O on custom protocol USB 3.0: 1 x USB 3.0 readout Optical Link: Slots for 8 x 10Gbps SFP+ transceivers (communication protocol not implemented by default): can operate as point-to-point or in daisy chain mode
Firmware	Default: Waveform recording and Pulse Height Analysis, Ethernet communication Custom: Use SCI-Compiler to develop your own firmware.
Firmware Upgrade	Firmware can be upgraded via Ethernet, USB 3.0 or USB 2.0 debugger (on-fly)
Software	SCI-55X0 Readout Software to manage the default firmware SCI-Compiler for custom firmware development
