R8031

8-16 Channel 100 V / 10 mA 19'' Power Supply Module (USB/Ethernet/Touchscreen)

Request a Quote Add to WishlistView Wishlist

Home Power SupplyStand Alone Power Supply8/16 Channel up to 6 kV Family with USB, Ethernet & Touchscreen R8031

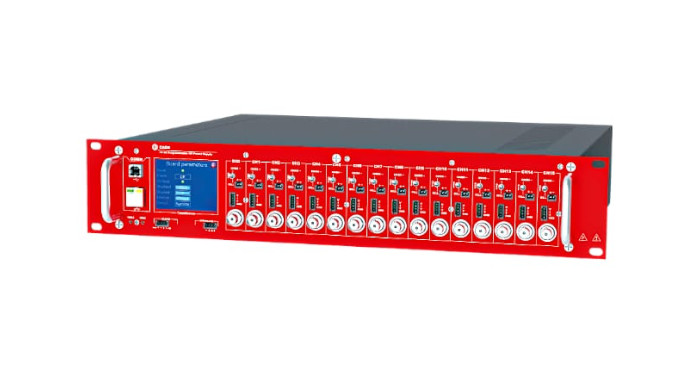

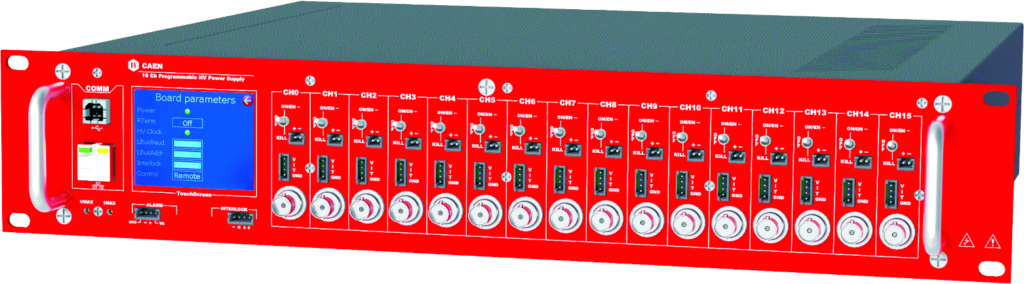

Photo of R8031

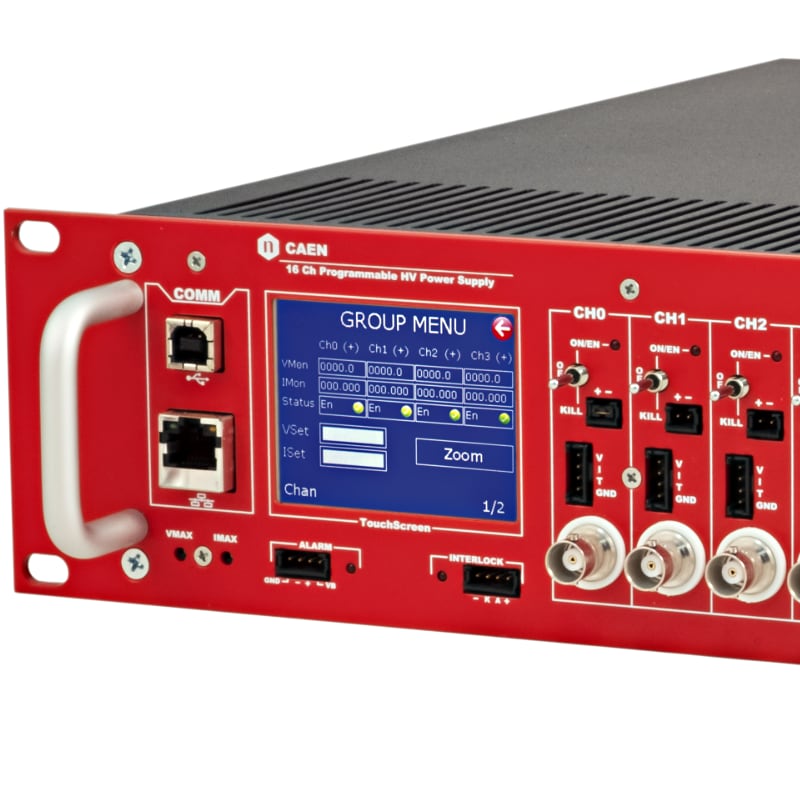

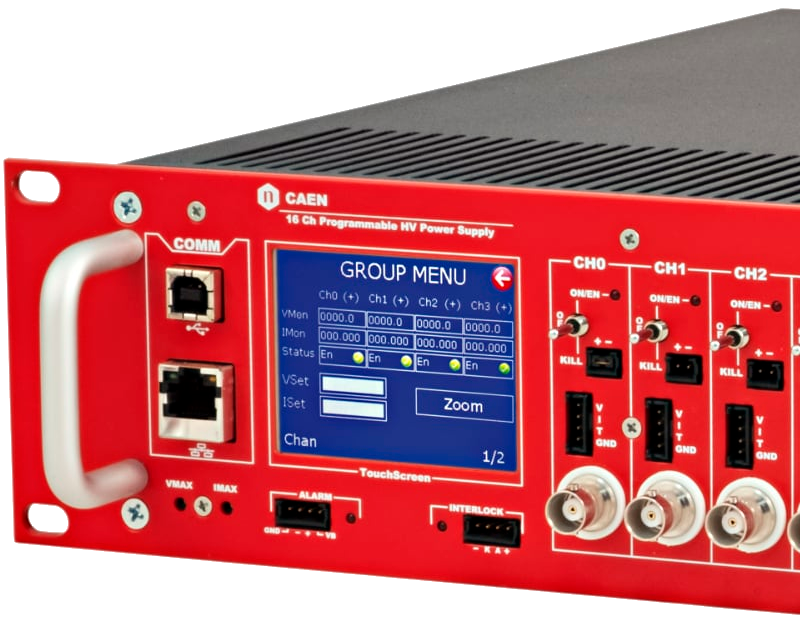

Photo of R8031

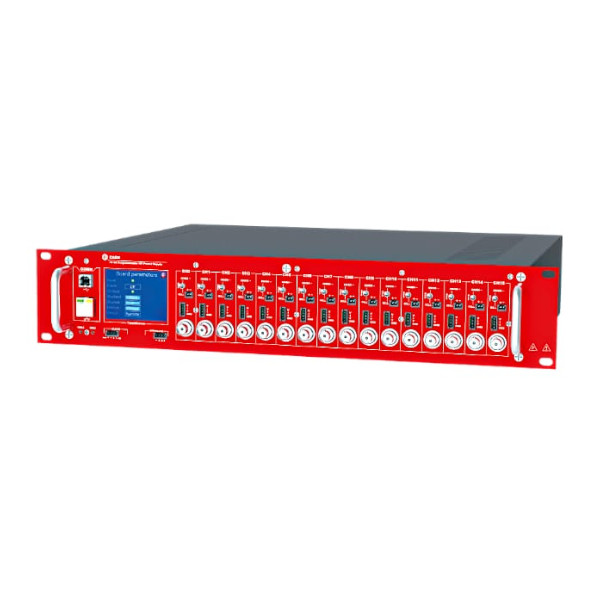

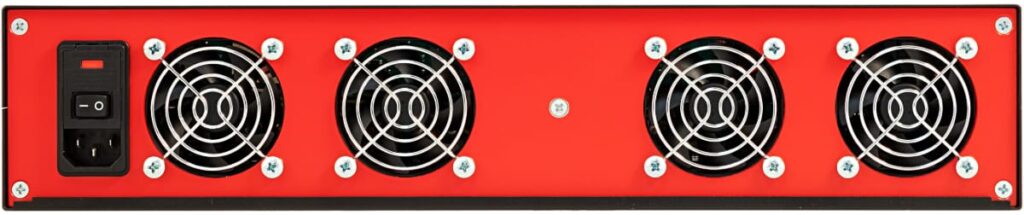

Photo of R8031
DatasheetDownloadCompareTech. Spec.

Highlights

  • 8 or 16 independent channels in a 19″ rack unit (110/220V AC Powered)

  • 100 V / 10 mA output range

  • Channels with either positive or negative polarity

  • BNC coaxial output connectors

  • Temperature probe input

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 50 nA current monitor resolution (with x10 Imon-Zoom: 5 nA)

  • 2.8″ color touch screen display

  • Local and Remote control (USB2.0/Ethernet)

  • Software Tools for easy channel management

Overview

The CAEN Mod. R8031 provides 8 or 16 independent 100 V / 10 mA channels in a 19″ rack unit (110/220 V AC powered). Each channel delivers up to 100 V and 10 mA. The unit is available with positive, negative or “mixed” channels (4-8 positive and 4-8 negative).

The Mod. R8031 is housed in a 19″ 2U rack unit and, in both the 8- and 16-channel versions, delivers its outputs through BNC connectors; for further technical information, consult our connectors reference page. Ramp-up and ramp-down rates can be set independently for each channel from 1 to 50 V/s in 1 V/s steps, and the module offers 50 nA Iset resolution.

The module can be controlled locally, through a 2.8″ color touchscreen LCD display with a completely redesigned user interface, or remotely via USB 2.0 or Ethernet. A complete set of software tools is available to control the unit, and users can freely download low-level libraries, the LabVIEW driver and graphical application software.

The module also includes dedicated safety features that allow it to operate as a current generator. An overvoltage and undervoltage warning is issued when the output voltage differs from the programmed value by more than 2% of the set value (minimum 10 V). When a channel attempts to exceed its programmed current limit, it is flagged as being in “overcurrent” and enters TRIP status: the output voltage is adjusted to keep the current below the programmed limit for a programmable TRIP time, after which the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves as a current generator. Hardware VMAX and IMAX limits can be set via front panel potentiometers to the same common value for all channels of the board, and both values can be read out via software. Finally, a common safety board interlock logic enables or disables the channels, while individual input signals provide a kill function for each channel.

Supported Software

  • CAEN HV Wrapper Library — Library for CAEN Power Supply Control
  • GECO2020 — GEneral COntrol Software for CAEN HV Power Supplies
  • LabVIEW Driver (PSM – Power Supply Modules) — LabVIEW Instrument Driver for Power Supply Modules

Accessories

A148x

A148x

Inhibit - Kill Signal BNC Adapter for HV Power Supply Modules
HV CABLES

HV CABLES

High Voltage Cable Assemblies

Ordering Options

Code Description
WR8031DXAAAA

R8031DN – 16CH Rack-mount Programmable HV Power Supply (-100V 10mA) – BNC conn. – Common Gnd

RoHS
WR8031DXMAAA

R8031DM – 16CH Rack-mount Programmble HV P.S. (8ch-100V 10mA,8ch +100V 10mA) – BNC conn. – C. Gnd

RoHS
WR8031DXPAAA

R8031DP – 16CH Rack-mount Programmable HV Power Supply (+100V 10mA) – BNC conn. – Common Gnd

RoHS
WR8031XAAAAA

R8031N – 8CH Rack-mount Programmable HV Power Supply (-100V 10mA) – BNC conn. – Common Gnd

RoHS
WR8031XMAAAA

R8031M – 8CH Rack-mount Programmable HV P.S.(4ch -100V 10mA,4ch +100V 10mA) – BNC conn. – Common Gnd

RoHS
WR8031XPAAAA

R8031P – 8CH Rack-mount Programmable HV Power Supply (+100V 10mA) – BNC conn. – Common Gnd

RoHS

You also may be interested in…

DT8031

DT8031

8 Channel 100 V/ 10 mA Desktop Power Supply Module (USB/Ethernet/Touchscreen)
N8031

N8031

8 Channel 100 V / 10 mA NIM Power Supply Module (USB/Ethernet/Touchscreen)
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    No. of Channels
    Max Output V
    Max Output I
    Vset/Vmon Resolution
    Iset/Imon Resolution
    Max. Ramp Up/Down Rate
    Ripple Typ. (>1kHz)
    Max Power per Channel
    Features
    Connectors
    R8033

    R8033

    8/16

    4000 V

    3 mA

    10 mV

    Iset: 10 nA <br>Imon: 10 / 1 nA

    500 V/s

    <2 mVpp

    6 W

    Remote control via USB or Ethernet

    SHV

    R8031

    R8031

    8/16

    100 V

    10 mA

    0.5 mV

    Iset: 50 nA <br>Imon: 50 / 5 nA

    50 V/s

    <1 mVpp

    1 W

    Remote control via USB or Ethernet

    BNC

    R8034

    R8034

    8/16

    6000 V

    1 mA

    20 mV

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    <2 mVpp

    6 W

    Remote control via USB or Ethernet

    SHV

    R8032

    R8032

    8/16

    500 V

    10 mA

    2 mV

    Iset: 50 nA <br>Imon: 50 / 5 nA

    100 V/s

    <2 mVpp

    5 W

    Remote control via USB or Ethernet

    SHV

    R8034H

    R8034H

    8/16

    6000 V

    20 µA

    20 mV

    Iset: 100 pA <br>Imon: 100 / 10 pA

    500 V/s

    <2 mVpp

    120 mW

    Remote control via USB or Ethernet

    SHV

    Technical Specifications

    Close

    Packaging

    19” rack (h: 2U; d: 360 mm). 110/220V AC Powered

    Output Channels

    8-16 channels, BNC connector Positive, Negative or Mixed (4-8 positive and 4-8 negative) Polarity; common ground

    Output Voltage

    0÷100 V

    Max. Output Current

    10 mA

    Max. Ch. Output Power

    1 W

    Voltage Resolution

    500 µV

    Vmon Resolution

    500 µV

    Iset Resolution

    50 nA

    Imon Resolution

    50 nA (high range) / 5 nA (low range)

    Vmax

    0 ÷ 100 V

    Vmax resolution

    1V

    IMAX hardware

    10 mA

    IMAX hardware resolution

    10 μA

    Ramp Up/Down

    • 1÷50 Volt/s, 1 Volt/s step

    • Step = 0.1 s

    Trip

    Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value. “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”. Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the off state. If trip= INFINITE, “overcurrent” lasts indefinitely. TRIP range: 0 ÷ 999.9s; 1000 s = Infinite.

    Voltage Ripple

    • 10 – 1000Hz: < 3mVpp typ; < 5mVpp max

    • 1kHz – 20MHz: < 1mVpp typ; < 3mVpp max

    Vmon vs. Vout Accuracy

    ± 0.02% ± 20mV

    Vset vs. Vout Accuracy

    ± 0.02% ± 20mV

    Imon vs. Iout Accuracy

    ± 0.5% ± 50µA

    Iset vs. Iout Accuracy

    ± 0.5% ± 50µA

    Humidity range

    0 ÷ 80% non condensing

    Operating Temperature

    0 ÷ 45°C

    Storage Temperature

    -10 ÷ 70°C

    Vout / Temperature coefficient

    ±10 ppm/°C typ

    Long Term stability (1 week after 1h warmup)

    ±0.02% / full scale

    Local Control

    LCD touchscreen

    Remote Control

    USB & Ethernet
