N8031

8 Channel 100 V / 10 mA NIM Power Supply Module (USB/Ethernet/Touchscreen)

Request a Quote Add to WishlistView Wishlist

Home Modular Pulse Processing ElectronicsRead Out SystemsElectronics for Silicon Photomultipliers N8031

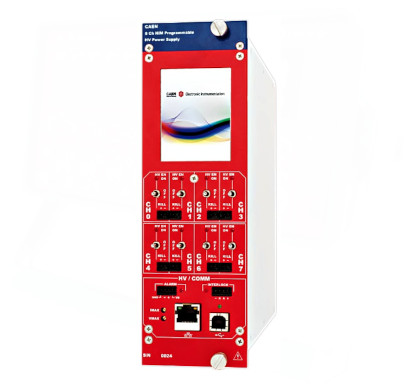

Photo of N8031

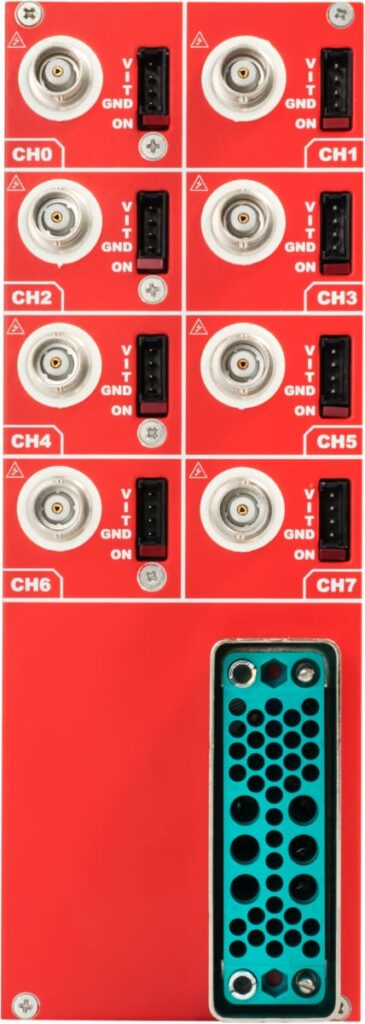

Photo of N8031
Photo of N8031
Photo of N8031
DatasheetDownloadCompareTech. Spec.

Highlights

  • 8 independent channels in a 2U NIM module

  • 100 V / 10mA output range

  • Channels with either positive or negative polarity

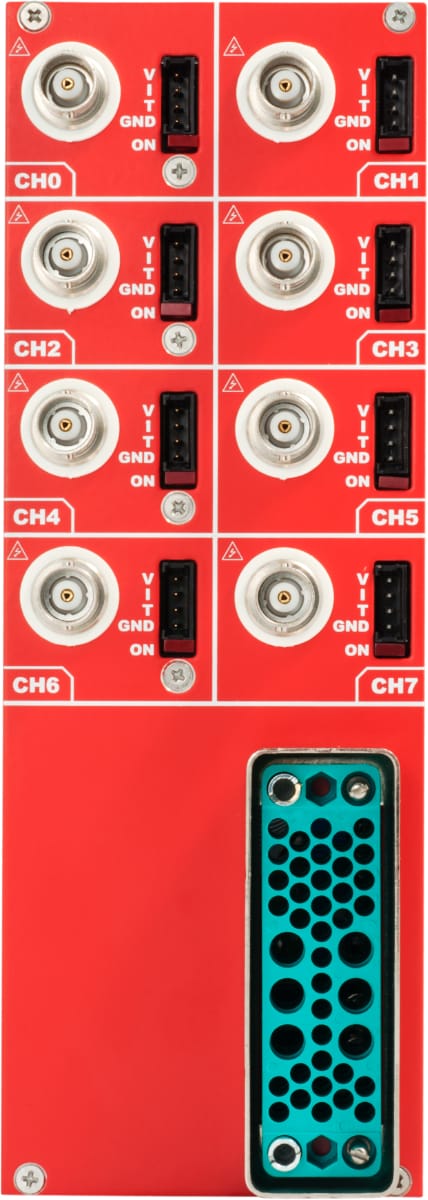

  • BNC coaxial output connectors

  • Temperature probe input

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)

  • 2.8″ color touch screen display

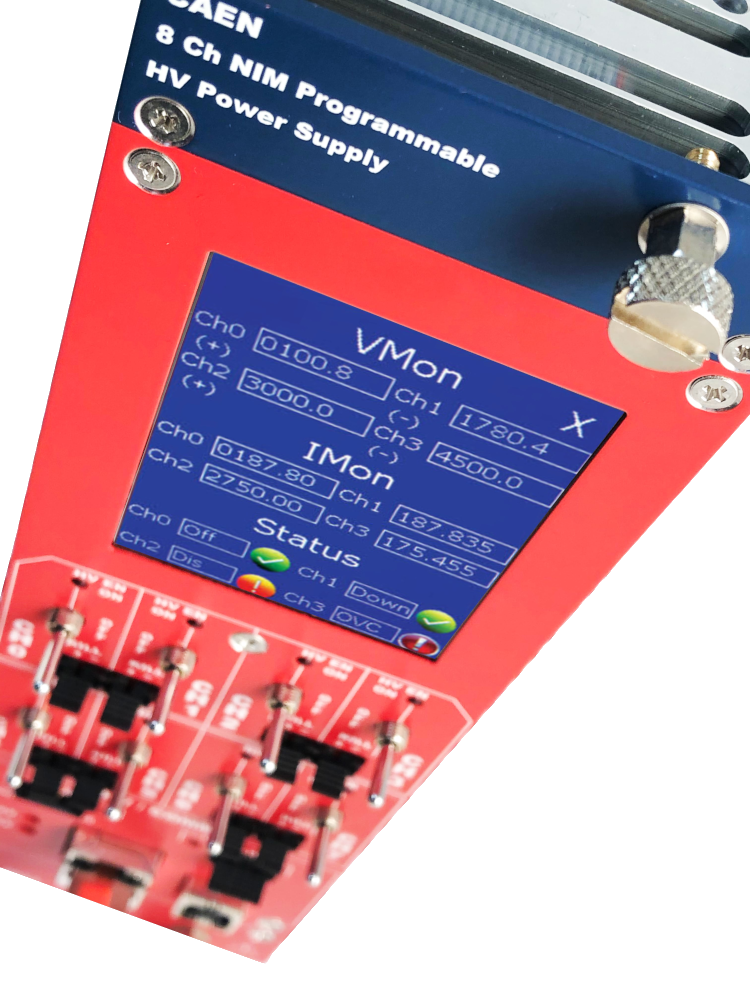

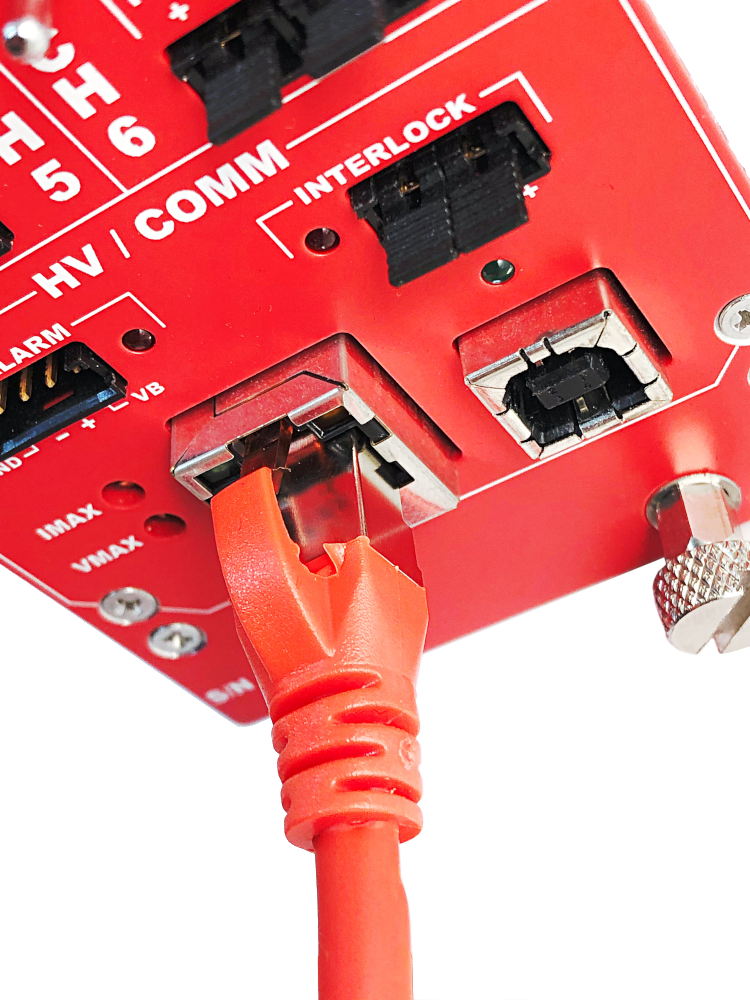

  • Local and Remote control (USB2.0/Ethernet)

  • Software Tools for easy channel management

Overview

The CAEN Mod. N8031 provides 8 independent 100 V / 10 mA channels in a double-width NIM module. Each channel delivers up to 100 V and 10 mA. The unit is available with positive, negative or “mixed” channels (4 positive and 4 negative).

The Mod. N8031 delivers its 8 channel outputs through BNC connectors; for further technical information, consult our connectors reference page. Ramp-up and ramp-down rates can be set independently for each channel from 1 to 50 V/s in 1 V/s steps, and the module offers 50 nA Iset resolution.

The module can be controlled locally, through a 2.8″ color touchscreen LCD display with a completely redesigned user interface, or remotely via USB 2.0 or Ethernet. A complete set of software tools is available to control the unit, and users can freely download low-level libraries, the LabVIEW driver and graphical application software, allowing them to monitor the module status and configure the output parameters of each channel in real time.

The module also includes dedicated safety features that allow it to operate as a current generator. An overvoltage and undervoltage warning is issued when the output voltage differs from the programmed value by more than 2% of the set value (minimum 10 V). When a channel attempts to exceed its programmed current limit, it is flagged as being in “overcurrent” and enters TRIP status: the output voltage is adjusted to keep the current below the programmed limit for a programmable TRIP time, after which the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves as a current generator. Hardware VMAX and IMAX limits can be set via front panel potentiometers to the same common value for all channels of the board, and both values can be read out via software. Finally, a common safety board interlock logic enables or disables the channels, while individual input signals provide a kill function for each channel.

Supported Software

  • CAEN HV Wrapper Library — Library for CAEN Power Supply Control
  • GECO2020 — GEneral COntrol Software for CAEN HV Power Supplies
  • LabVIEW Driver (PSM – Power Supply Modules) — LabVIEW Instrument Driver for Power Supply Modules

Accessories

A148x

A148x

Inhibit - Kill Signal BNC Adapter for HV Power Supply Modules
HV CABLES

HV CABLES

High Voltage Cable Assemblies

Ordering Options

Code Description
WN8031XAAAAA

N8031N – 8 Channel NIM Programmable High Voltage Power Supply (-100V 10mA) – BNC conn. Common Gnd

RoHS
WN8031XMAAAA

N8031M – 8 Channel NIM Programmable High Voltage Power Supply (4ch-100V 10mA, 4ch+100V 10mA) – BNC

RoHS
WN8031XPAAAA

N8031P – 8 Channel NIM Programmable High Voltage Power Supply (+100V 10mA) – BNC conn. Common Gnd

RoHS

You also may be interested in…

R8031

R8031

8-16 Channel 100 V / 10 mA 19'' Power Supply Module (USB/Ethernet/Touchscreen)
DT8031

DT8031

8 Channel 100 V/ 10 mA Desktop Power Supply Module (USB/Ethernet/Touchscreen)
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    No. of Channels
    Max Output V
    Max Output I
    Vset/Vmon Resolution
    Iset/Imon Resolution
    Max. Ramp Up/Down Rate
    Ripple Typ (>1kHz)
    Connectors
    Max Power per Channel
    Features
    N8034

    N8034

    8

    6000 V

    1 mA

    20 mV

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    < 2 mVpp

    SHV

    6 W

    Common Ground <br>Available with positive, negative or mixed polarity

    N8032

    N8032

    8

    500 V

    10 mA

    2 mV

    Iset: 50 nA <br>Imon: 50 / 5 nA

    100 V/s

    < 2 mVpp

    SHV

    5 W

    Common Ground <br>Available with positive, negative or mixed polarity

    N8031

    N8031

    8

    100 V

    10 mA

    0.5 mV

    Iset: 50 nA <br>Imon: 50 / 5 nA

    50 V/s

    < 1 mVpp

    BNC

    1 W

    Common Ground <br>Available with positive, negative or mixed polarity, Temperature Probe Input

    N8033

    N8033

    8

    4000 V

    3 mA

    10 mV

    Iset: 10 nA <br>Imon: 10 / 1 nA

    500 V/s

    < 2 mVpp

    SHV

    6 W

    Common Ground <br>Available with positive, negative or mixed polarity

    N8034H

    N8034H

    8

    6000 V

    20 µA

    20 mV

    Iset: 100 pA <br>Imon: 100 / 10 pA

    500 V/s

    < 2 mVpp

    SHV

    120 mW

    Common Ground <br>Available with positive, negative or mixed polarity

    Technical Specifications

    Close

    Package

    Double width NIM mechanics. Weight: ~2.6 kg

    Output channels

    • 8 channels, BNC connector
    • Positive, Negative or Mixed (4-8 positive and 4-8 negative) Polarity; Common Ground

    Output Voltage

    0÷100 V

    Max. Output Current

    10 mA

    Max. Ch. Output Power

    1 W

    Vset Resolution

    500 µV

    Vmon Resolution

    500 µV

    Iset Resolution

    50 nA

    Imon Resolution

    50 nA (high range) / 5 nA (low range)

    Vmax

    0 ÷ 100 V

    Vmax resolution

    1 V

    IMAX hardware

    10 mA

    IMAX hardware resolution

    10 μA

    Ramp Up/Down

    1÷50 Volt/s, 1 Volt/s step

    Trip

    Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value. “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”. Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the off state. If trip= INFINITE, “overcurrent” lasts indefinitely.

    TRIP range: 0 ÷ 999.9s; 1000 s = Infinite. Step = 0.1 s

    Voltage Ripple

    • 10 – 1000Hz: < 3 mVpp typ; <5 mVpp max
    • 1kHz – 20MHz: < 1 mVpp typ; <3 mVpp max

    Vmon vs. Vout Accuracy

    ± 0.02% ± 20mV

    Vset vs. Vout Accuracy

    ± 0.02% ± 20mV

    Imon vs. Iout Accuracy

    ± 0.5% ± 50µA

    Iset vs. Iout Accuracy

    ± 0.5% ± 50 µA

    Humidity range

    0 ÷ 80% non condensing

    Operating temperature

    0 ÷ 45°C

    Storage temperature

    -10 ÷ 70°C

    Vout / Temperature coefficient

    ±10 ppm/°C typ

    Long Term stability (1 week after 1h warmup)

    ±0.02% / full scale

    Local Control

    LCD touchscreen

    Remote Control

    USB & Ethernet
