SY8800

Universal Multichannel Low Voltage Power Supply System

Request a Quote Add to WishlistView Wishlist

Home Power SupplyUniversal Multichannel SystemMainframes SY8800

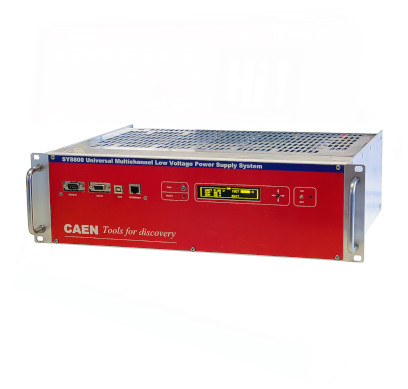

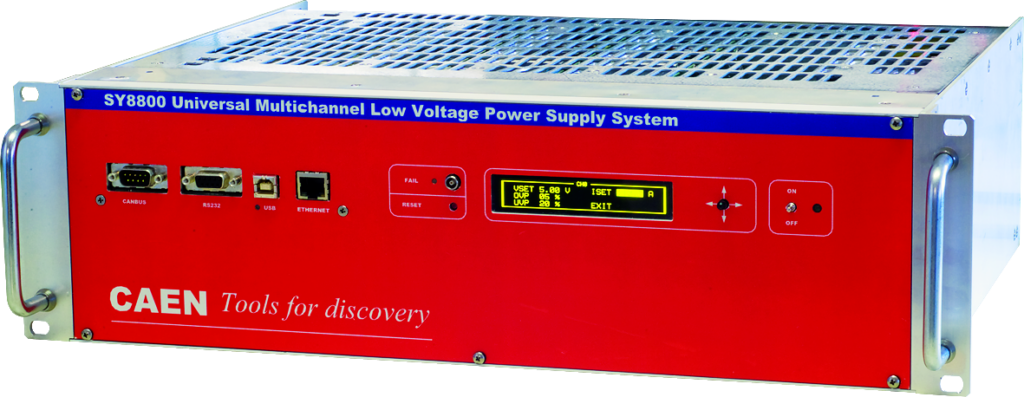

Photo of SY8800
DatasheetDownloadCompareTech. Spec.

Highlights

  • Factory configured modular system

  • 5 free slots for power supply modules

  • 3U x 19″ x 35 cm crate size

  • Floating channels

  • Local and Remote Control

  • Remote control via Ethernet, USB, CANBUS and RS232

  • Max output power: 2.5kW @ 220Vac, 1.5kW @ 115Vac

  • Up to 8 independent channels

  • Low noise

  • Available Modules:

    • 2÷7V 550W (110A @5V) 1 slot

    • 2÷7V 1100W (220A @5V) 2 slot

    • ±7÷16V 550W (23A @±12V) 1 slot

    • ±7÷16V 1100W (46A @±12V) 2 slot

    • ±20÷28V 550W (11A @±24V) 1 slot

    • ±20÷28V 1100W (22A @±24V) 2 slot

    • 10 mV Voltage Set/Monitor resolution

    • 100/200 mA Current Set/Monitor resolution (2÷7V)

    • 20/40mA Current Set/Monitor resolution (±7÷16V/±20÷28V)

    • Individual channel ON/OFF and TRIP

    • Sense wires for the voltage drop recovery

    • 4 Analog Input, 4 Digital Input, 4 Digital Output

    • Fans embedded for vertical cooling

Overview

The CAEN Mod. SY8800 is a high-density, floating low voltage power supply system designed to power low-noise front-end electronics that need medium to high currents. It fits in a compact 3U × 19″ crate, 35 cm deep. It delivers up to 2.5 kW from 230 Vac mains and hosts up to five power modules, for a maximum of eight independent floating channels. Each system is configured at the factory according to the user’s requirements.

Power modules

The modules cover three output ranges: 2–7 V, ±7–16 V and ±20–28 V. Each range comes in a 550 W single-slot version and an 1100 W double-slot version.

Code

Output range

Power

Typical current

Channels

Slots

M01

2–7 V

550 W

110 A @ 5 V

1

1

M21

2–7 V

1100 W

220 A @ 5 V

1

2

B01

±7–16 V

550 W

23 A @ ±12 V

2

1

B21

±7–16 V

1100 W

46 A @ ±12 V

2

2

B02

±20–28 V

550 W

11 A @ ±24 V

2

1

B22

±20–28 V

1100 W

22 A @ ±24 V

2

2

All modules set and monitor voltage with 10 mV resolution. Current resolution is 100/200 mA on the 2–7 V modules and 20/40 mA on the ±7–16 V and ±20–28 V modules. Every channel can be switched on and off individually. Ripple stays below 10 mVpp, and load regulation is within 10–15 mV for a 0–100% load change. Remote sensing lines on each channel compensate for the voltage drop along the connection cables, so the load receives exactly the programmed voltage.

Control and integration

The system can be operated locally from the front-panel display, or remotely via Ethernet (10Base-T), USB (Type B), CAN bus and RS232. Remote integration into custom control software is supported by the CAEN HV Wrapper Library. Four analog inputs, four digital inputs and four digital outputs connect the system to external signals. The firmware can be upgraded via Ethernet. For technical information on the connectors, see our connectors reference page.

Protection and safety

Each channel is protected against overvoltage, undervoltage and overcurrent:

  • Overvoltage: a channel is tripped off when its output exceeds the programmable maximum voltage (VOVP).

  • Undervoltage: a channel is tripped off when its output falls below 90% of the set value.

  • Overcurrent: a channel that tries to draw more than its programmed limit enters TRIP status. It then acts as a current generator, holding the maximum allowed current for a programmable time before switching off.

Ramp-up and ramp-down times can be set independently for each channel. An interlock logic can enable or disable channels, and a safety interlock disables the outputs when they are not connected to their loads. Over-temperature protection trips off a power block that exceeds 90 °C and signals a warning when the control section exceeds 65 °C. Embedded fans provide vertical cooling, allowing operation from 0 to 50 °C without derating.

Supported Software

  • CAEN HV Wrapper Library — Library for CAEN Power Supply Control

Ordering Options

Code Description
WPERS8800B01

B01 – 2 Ch. LV Floating Power Module ± 7V÷16V /23A (550W)

RoHS
WPERS8800B02

B02 – 2 Ch. LV Floating Power Module ± 20V÷28V/ 11A (550W)

RoHS
WPERS8800B21

B21 – 2 Ch. LV Floating Power Module ± 7V÷16V/ 46A (1100W)

RoHS
WPERS8800B22

B22 – 2 Ch. LV Floating Power Module ± 20V÷28V/ 22A (1100W)

RoHS
WPERS8800M01

M01 – 1 Ch. LV Floating Power Module 2V÷7V / 110A(550W)

RoHS
WPERS8800M21

M21 – 1 Ch. LV Floating Power Module 2V÷7V / 220A(1100W)

RoHS
WSY8800XXXXX

SY8800 – Universal Multichannel Low Voltage PowerSupply System (1250W US – 2500W EU)

RoHS
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist
Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Max power (W)
    Power requirements
    Width
    Height
    Depth
    Max # channels
    Max # boards
    Local control
    Remote control
    SY5527LC

    SY5527LC

    400 @ 220 Vac 350 @ 110 Vac

    100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 700 W @ 220 Vac 660 W @ 110 Vac

    19”

    4U

    49 cm (with handles)

    192

    4

    No

    Gb Ethernet, Wi-Fi (opt.)

    SY4527LC

    SY4527LC

    600 @ 220 Vac550 @ 110 Vac

    100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 1050 W @ 220 Vac 1020 W @ 110 Vac

    19”

    8U

    56 cm (with handles)

    480

    10

    No

    Gb Ethernet, Wi-Fi (opt.)

    SY5527

    SY5527

    1800 @ 220 Vac 1850 @ 110 Vac

    100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 2500 W @ 220 Vac 2340 W @ 110 Vac

    19”

    4U

    75 cm (with handles)

    288

    6

    5.7” touchscreen color LCD (opt.)

    Gb Ethernet, Wi-Fi (opt.)

    SY8800

    SY8800

    2500 @ 220 Vac 1250 @ 110 Vac

    3300 @ 200 Vac / 2000 @ 115 Vac

    19”

    3U

    35 cm

    -

    6

    OLED display Ergonomic Pointer

    RS232/Ethernet CAEN Bus/ USB 2.0

    SY4527

    SY4527

    4200 @ 220 Vac 1990 @ 110 Vac

    100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 5500 W @ 220 Vac 2750 W @ 110 Vac

    19”

    8U

    75 cm (with handles)

    768

    16

    10.4” or 5.7” touchscreen color LCD (opt.)

    Gb Ethernet, Wi-Fi (opt.)

    Name
    Max power (W)
    Power requirements
    Width
    Height
    Depth
    Max # channels
    Max # boards
    Local control
    Remote control
    SY8800

    SY8800

    2500 @ 220 Vac 1250 @ 110 Vac

    3300 @ 200 Vac / 2000 @ 115 Vac

    19”

    3U

    35 cm

    -

    6

    OLED display Ergonomic Pointer

    RS232/Ethernet CAEN Bus/ USB 2.0

    Technical Specifications

    Close

    Mechanical Packaging

    3U x 19″ x 35 cm crate size; weight: 17kg

    Mains input

    • Auto range: 92 ÷264 Vac, 50÷60 Hz
    • Inrush current: <16 A @ 230 Vac
    • Power Factor: > 0.98 @ Output Power > 1 kW

    Maximum Total OutputPower

    1250 W @ 100 Vac, 2530 W @ 211 Vac

    Interface

    RS232, USB (2.0), CAN bus, Ethernet

    Fuse

    External 16 A, type B/C

    Maximum currents

    110/220 A @ +5 V, 23/46A @ ±12 V, 11/28 A @ ±24V

    Power Modules

    Max 5 Modules of width = 1

    Load Regulation

    < 10 mV for 0-100% load change @ 2V÷7V
    < 15 mV for 0-100% load change @ ± 7V÷16V
    < 15 mV for 0-100% load change @ ± 20V÷28V

    Efficiency

    75% ÷ 85% @ 230 Vac configuration dependent

    Temperature sensors

    Power Supply Control: nr. 1

    Voltage Protection

    • Over Voltage: Trip Off when the output voltage > VOVP (programmable)
    • Under Voltage: Trip Off when the output voltage < 90% of set voltage
    • Over Current: Trip Off when the current > programmable Iset value

    Over Temperature Protection

    Trip Off when temperature of a single Power Supply block > 90° C
    Signaled when temperature Power Supply Control > 65° C

    Operation

    0÷50°C without derating

    Firmware

    SY8800 firmware can be upgraded via Ethernet

    Power Factor Correction Module

    • Input voltage: 92 ÷ 264 Vac
    • Frequency 50 ÷ 60 Hz
    • Inrush Current: <16 A @ 230 Vac, Fuse External 16A type B/C, Power Factor > 0.98 @ Output Power > 1 kW
    • Fuse External: 16A type B/C, Power Factor > 0.98 @ Output Power > 1 kW
    • Power Factor: > 0.98 @ Output Power > 1 kW
    • Maximum Total Output Power: 1200 W @ 100 Vac, 2530 W @ 211 Vac
    • Turn on Delay: 50 ms to 100% of voltage, monotonic rise
    • Efficiency: 75% ÷ 85% @ 230 Vac configuration dependent

    Power Module (2V÷7V)

    • Voltage: 2V ÷ 7V
    • Current: 115 A / 230 A
    • Ramp Up/Down &amp; Trip time: Max 5s; 10 ms step
    • Ripple: Max: < 10 mVpp, Typ: 6.0 mVpp
    • Voltage Accuracy: ± 20 mV
    • Load Regulation: < 10 mV (sense) for 0-100% load change
    • Transient Response Recovery:
        • < 100 mV @ ±25A current step change
        • 6 ms for recovery to ±1% of set voltage @ 25A to 0A current step change
        • 0.5 ms for recovery to ± 1% of set voltage @ ±25A current step change
        • 0.7 ms for recovery to ± 0.1% of set voltage @ ±25A current step change
    • Flicker immunity: <50 ms

    Power Module (+/- 7V-16V)

    • Voltage: ±7V ÷ ±16V
    • Current: 23 A / 46 A
    • Ramp Up/Down &amp; Trip time: Max 5s; 10 ms step
    • Ripple: Max < 10 mVpp, Typ: 4.5 mVpp
    • Voltage Accuracy: ± 20 mV
    • Load Regulation: < 15 mV for 0-100% load change
    • Transient Response Recovery:
        • < 100 mV @ ±5A current step change
        • 8 ms for recovery to ±1% of set voltage @ 5A to 0A current step change
        • 1.0 ms for recovery to ± 1% of set voltage @ ±5A current step change
        • 1.8 ms for recovery to ± 0.1% of set voltage @ ±5A current step change
    • Flicker immunity: <30 ms

    Power Module (+/- 20V-28V)

    • Voltage: ± 20V÷28V
    • Current: 23 A / 46 A
    • Ramp Up/Down time; Trip time: Max 5s; 10 ms step
    • Ripple: Max < 10 mVpp, Typ: 4.5 mVpp
    • Voltage Accuracy: ± 20 mV
    • Load Regulation: < 15 mV for 0-100% load change
    • Transient Response Recovery:
      • < 100 mV @ ±5A current step change
      • 8 ms for recovery to ±1% of set voltage @ 5A to 0A current step change
      • 1.0 ms for recovery to ± 1% of set voltage @ ±5A current step change
      • 1.8 ms for recovery to ± 0.1% of set voltage @ ±5A current step change
    • Flicker immunity: < 30 ms
