V1250

VME 16-channel Differential to Single-Ended Signal Converter

Request a Quote Add to WishlistView Wishlist

Home Modular Pulse Processing ElectronicsAnalogAnalog Signal Converters V1250

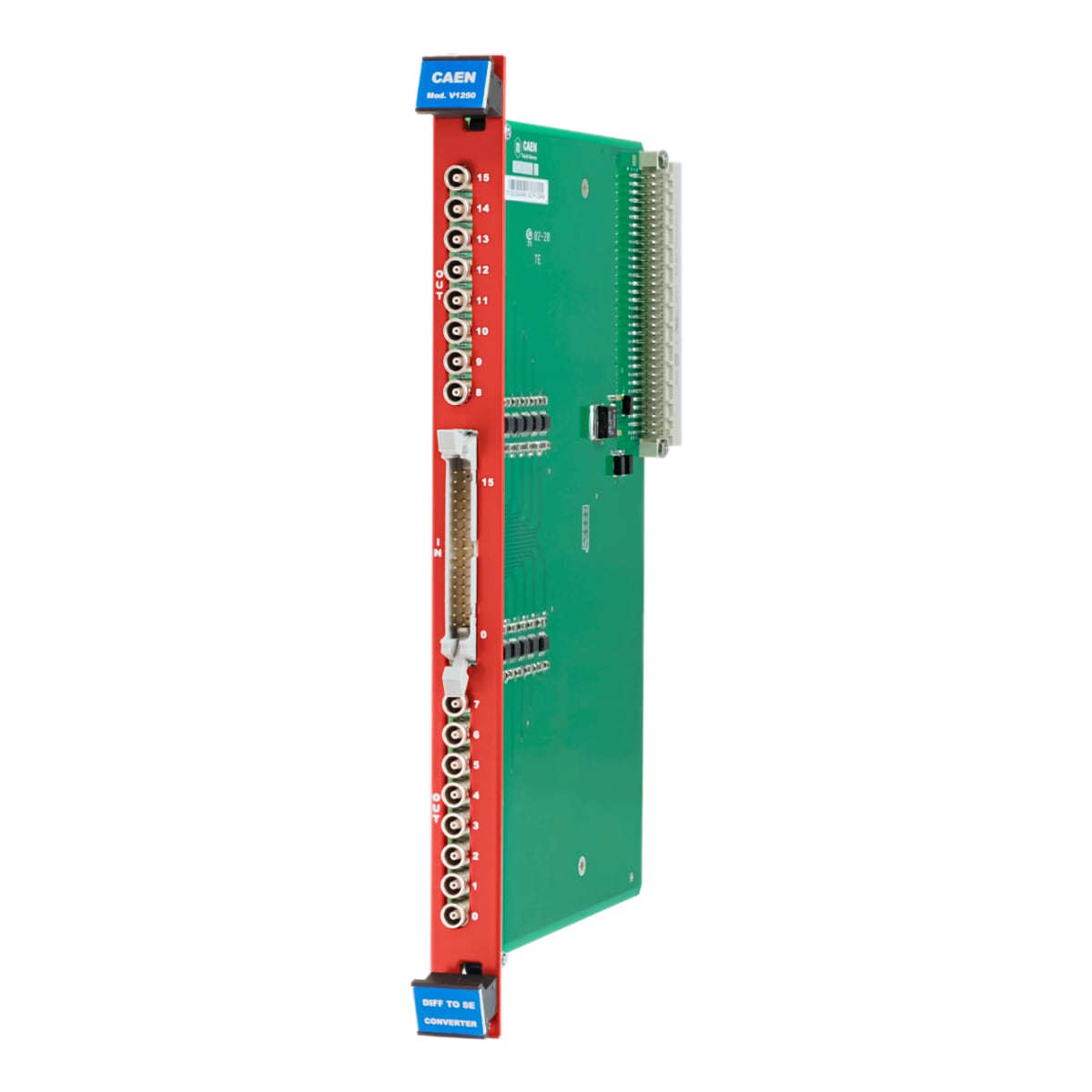

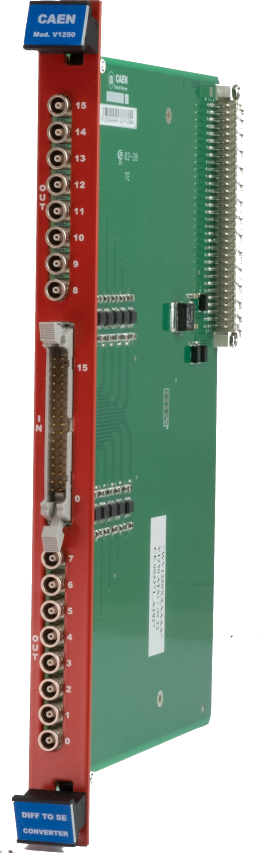

Photo of V1250
DatasheetDownloadTech. Spec.

Highlights

  • 1 unit VME 6U

  • 16 differential inputs on 34-pin (2.54mm) header connector

  • 16 single-ended outputs on LEMO connectors

  • Fixed Gain: 1*

  • ±2 Vpp input range

  • ±2 V output range*

  • Bandwidth: DC to 30 MHz

  • Output noise < 480 uV RMS (with disconnected inputs and outputs terminated to 50 Ω

  • Suitable for CAEN A1442 CSP

* with no termination: output range = ± 4V, Gain = 2.

Overview

The CAEN Mod. V1250 is a 16-channel differential to single-ended signal converter in a 1-unit wide VME 6U form factor. It features differential inputs on a 34-pin 2.54 mm header connector (Zdiff = 100 Ω) and single-ended outputs on coaxial LEMO connectors (Rout = 50 Ω).

Although the V1250 is a general-purpose converter, it is best suited to converting signals from charge-sensitive preamplifiers such as the A1442 (typical rise time > 10 ns). For this reason, the analog bandwidth is set to 30 MHz to optimize the signal-to-noise ratio.

The inputs are delivered through a 34-pin male header connector (2.54 mm pitch) and the outputs through 16 LEMO connectors; for further technical information, consult our connectors reference page.

Accessories

A954

A954

Cable assembly 2.54mm 34 pin female to two 2.54mm 16 pin female - 50 cm

Ordering Options

Code Description
WV1250XAAAAA

V1250 – 16 ch Differential to Single Ended signal converter

RoHS

You also may be interested in…

VME8001

VME8001

1U 2 Slot VME64 Mini Crate
VME8008B

VME8008B

4U 8 Slot VME64 Mini Crate
µ-crate

µ-crate

Desktop single-slot VME64X Crate
DT5550AFE

DT5550AFE

Single Ended to Differential Input Adapter for DT5550
NV8020A

NV8020A

7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150W
VME8100

VME8100

8U 21 Slot VME64/64X Enhanced Crate Series
VME8011

VME8011

7U 21 Slot VME64 Low Cost Crate
VME8200

VME8200

9U 21Slot VME64X Enhanced Crate series
VME8004B

VME8004B

2U 4 Slot VME64 Mini Crate
VME8004X

VME8004X

2U 4 Slot VME64X Mini Crate
A1442

A1442

16/32 Channel charge sensitive preamplifier
VME8008X

VME8008X

4U 8 Slot VME64X Mini Crate
Download Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Technical Specifications

    Close

    Form Factor

    1-unit wide VME 6U

    Inputs

    16 channels, 100 Ω terminated
    34-pin male header connector
    (pitch – mating: 2.54 mm)

    Outputs

    16 LEMO outputs
    50 Ω series output resistance

    Gain

    x1 (output signal terminated to 50 Ω)
    x2 (output signal not terminated)

    Input Range

    ±2 Vpp (Zdiff = 100 Ω)

    Output Range

    ±4 V (output signal not terminated)
    ±2 V (output signal terminated to 50 Ω)

    Bandwidth

    DC to 30 MHz

    Output Noise

    < 480 μV RMS (measured with disconnected inputs and outputs terminated to 50 Ω)

    Power Requirements

    • 120 mA @ +5V
    • 130 mA @ -12V
    • +12V not used
