Highlights
-
1 analog input, 14-bit @ 200 MS/s, 50 Ω
-
Scope & DPP modes with internal memory buffer
-
Open FPGA – user firmware via Sci-Compiler
-
USB 2.0 and 10/100 Mb Ethernet interfaces
-
Compatible with WaveDump and CoMPASS
-
Available as desktop version
Overview

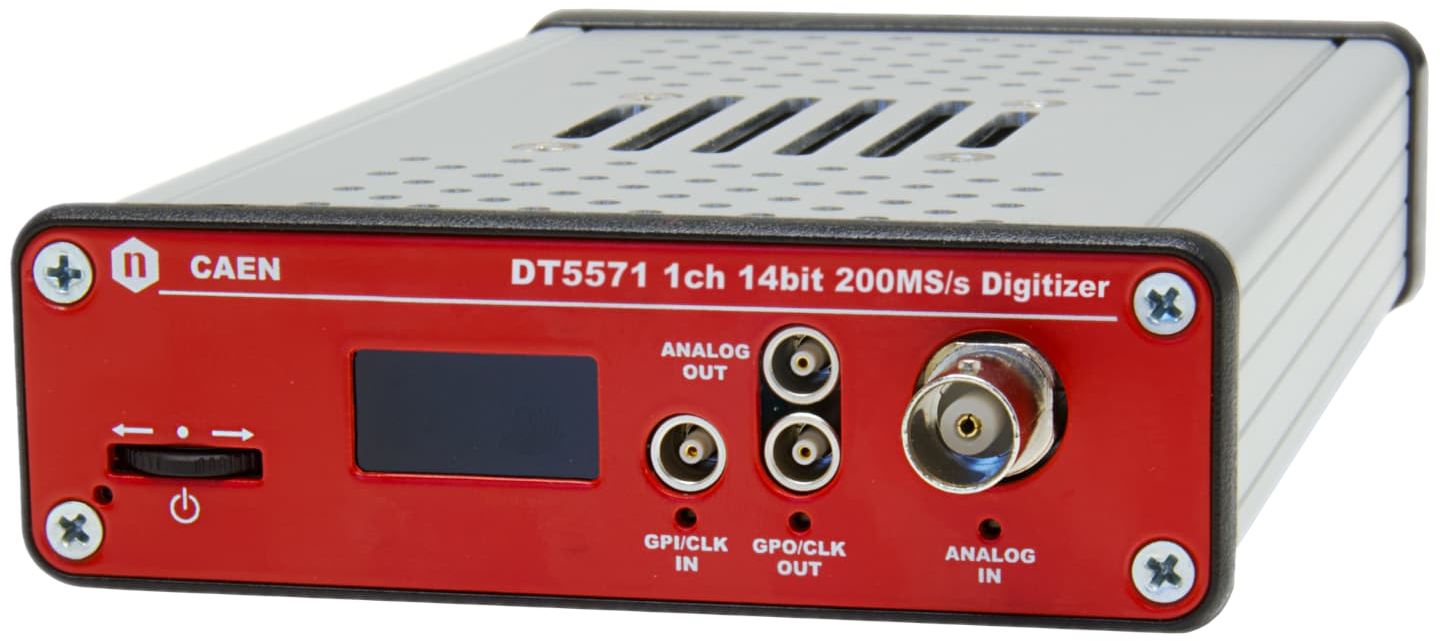

The DT5571 is a high-performance waveform digitizer featuring 14-bit resolution and a 200 MS/s sampling rate on a single analog input. Designed to meet the needs of modern acquisition setups, it combines precision, speed, and flexibility in a streamlined desktop form factor.
Two operating modes are supported: Scope Mode for raw waveform recording, and DPP Mode for real-time on-board signal processing. With software-selectable input polarity and an internal memory buffer, the DT5571 is ideal for reading out scintillators, SiPMs, and other fast detectors.
The module offers USB 2.0 and 10/100 Mb Ethernet interfaces for fast data transfer and remote access. Its Open FPGA architecture enables full customization of acquisition logic via CAEN’s Sci-Compiler, with a graphical environment accessible to users with no VHDL experience.
It is also fully compatible with WaveDump2 and CoMPASS, supporting both advanced analysis and straightforward configuration. Whether for R&D, prototyping, or education, the DT5571 delivers reliable performance and flexibility in a compact, lab-friendly solution.
The DT5571 is available in desktop version and is ready to support your next acquisition challenge.
In collaboration with Nuclear Instruments.
You also may be interested in…
Request Information
Technical Specifications
|
GENERAL |
Form Factor: Desktop 257 x 102 x 331 mm3 (WxHxD) |
||||
|
ANALOG INPUT |
Channels: 1 BNC type Impedance: 50 Ω/1 kΩ programmable Bandwidth: 60 MHz, Programmable DC offset adjustment on each input in the full scale range Analog Coarse Gain: [x1:x100] Full Scale Range: [0.015 Vpp: 1.5 Vpp] |
||||
|
DIGITAL I/Os |
USER IO 0…2 (LEMO)
|
||||
|
DIGITAL CONVERSION |
Resolution: 14 bits Sampling Rate: 200 MS/s |
||||
|
CLOCK GENERATION |
200 MHz ADC clock Clock sources: internal/external
|
||||
|
TRIGGER |
|
||||
|
SYNCHRONIZATION |
Clock Propagation: USER I/Os connectors SYNC Connector Acquisition Synchronization
Sync connector allows to cascade multiple units and synchronize them with a single standard CAT5e cable |
||||
|
FPGA |
Open FPGA: Xilinx Zynq-7000 SoC Z-7030 |
||||
|
MEMORY |
1 GByte of memory for list readout on each SoC Up to 8kS/ch for simultaneous waveform readout |
||||
|
COMMUNICATION INTERFACE |
The different readout interface allows to integrate the DT5560SE in existing experimental environment.
|
||||
|
FIRMWARE |
Default
Custom
|
||||
|
FIRMWARE UPGRADE |
Firmware can be upgraded via Ethernet, mini-USB or JTAG mini-USB debugger (on-the-fly) |
||||
|
SOFTWARE |
|
||||
|
POWER REQUIREMENTS |
|
