720 Digitizer Family
8/4/2 Ch. 12-bit 250 MS/s Digitizer
Features
- 12-bit @ 250 MS/s
- Analog inputs on MCX coax. connectors
- VME64/VME64X (8 ch.), NIM (4 or 2 ch.) and Desktop (4 or 2 ch.) modules
- 2 Vpp input dynamic range with programmable DC offset adjustment
- Algorithms for Digital Pulse Processing (DPP)
- VME, USB and Optical Link communication interfaces
- Multi-board synchronization features
- Daisy chain capability
- Demo software tools, Control Software for waveform recording and DPP firmware, C and LabVIEW libraries
Overview
The 720 is a family of CAEN Waveform Digitizer able to perform basic waveform recording and run online advanced algorithms (DPP) of charge integration and pulse shape discrimination. Data is read by a Flash ADC, 12-bit resolution and 250 MS/s sampling rate, which is well suited for mid-fast signals as the ones coming from liquid or inorganic scintillators coupled to PMTs or Silicon Photomultipliers. In the waveform recording mode, algorithms of zero suppression are also implemented to reduce the data throughput.
The acquisition can be channel independent and it is possible to make coincidence/anti-coincidence logic among different channels and external veto/gating. Multiple boards can be synchronized to build up complex systems. In case of DPP mode, data can be saved in time-stamped list mode to support higher input rates and improving the throughput performances. Piled-up events can be rejected or saved for offline analysis. The acquisition in DPP mode is fully controlled by the CoMPASS software, which manages the algorithm parameters, builds plots and saves the relevant energy, time, and PSD spectra.
In case of waveform recording mode, the user can take advantage of the CAENScope and WaveDump software to access and save the waveforms. Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems.

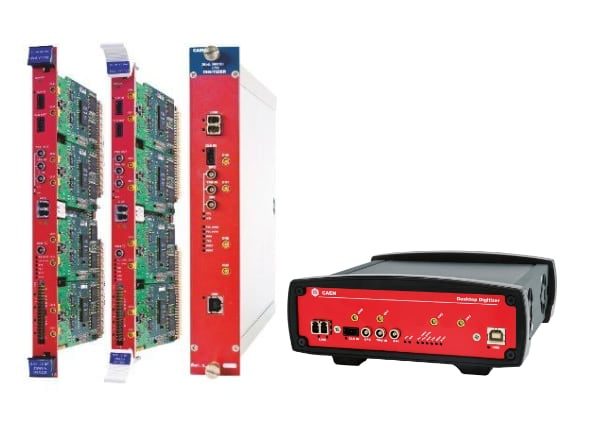

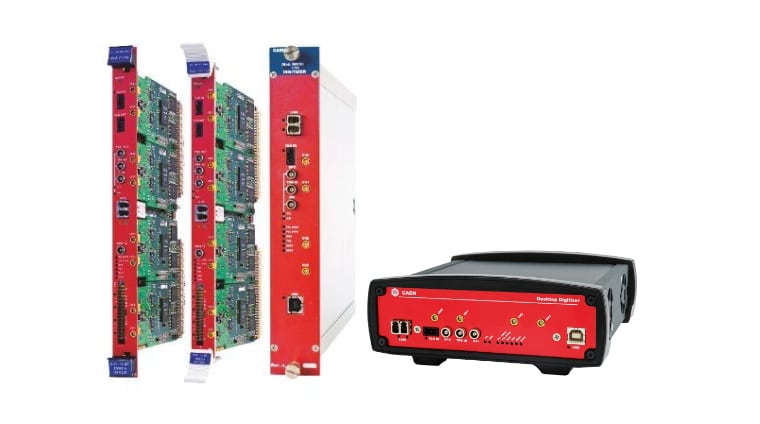

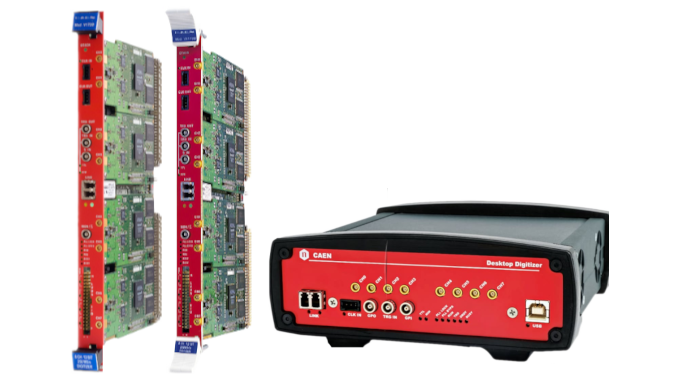

720 family comes in three form factors: VME (8 input channels), NIM (4 or 2 input channels) and Desktop (4 or 2 input channels). The desktop form factor is also included in the Educational Kit for the readout of the SiPMs.
The communication to and from the board is provided through the following interfaces: USB (Desktop and NIM form factors), VMEbus (VME form factor), and Optical Link (all form factors).
Loading…
Interfaces & I/O
USB
An USB 2.0 link is provided in NIM and Desktop form factors for an easy data readout
VME Digitizer can be controlled via USB using the CAEN V3718 VME-USB2.0 Bridge
Optical Link
An Optical link is provided in any form factor for high performance data readout through CAEN proprietary daisy-chainable CONET communication protocol.
it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod. a4818/A3818)
Digital I/O
Digital I/Os are provided in VME boards that can be used for individual trigger propagation to external trigger logic. This feature makes VME form factor ideal to scale up the acquisition channels where a global trigger generation is mandatory.
Models
| Model | Image | Package | No. of Channels | Max Sampling Rate (MS/s) | Bandwidth (MHz) | Full Scale Range (V) | Resolution (bits) | Board Memory (Samples/ch) | Actions |
|---|---|---|---|---|---|---|---|---|---|

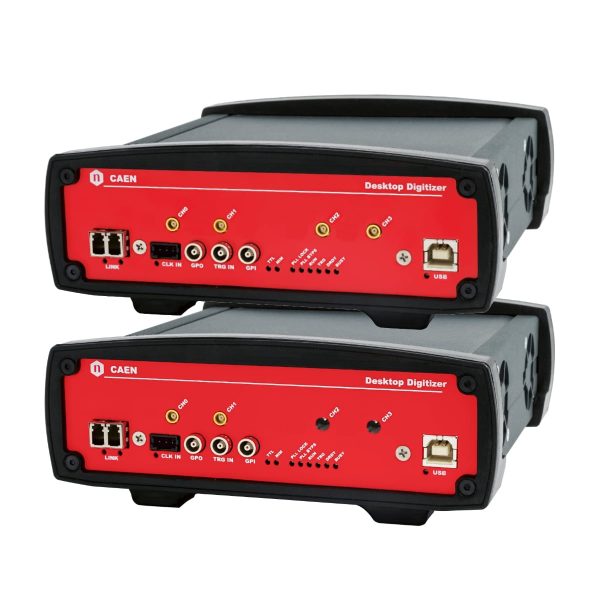

| DT5720 | | Desktop | 4 / 2 | 250 | 125 | 2 | 12 | 1.25 M / 10 M | QUOTE |

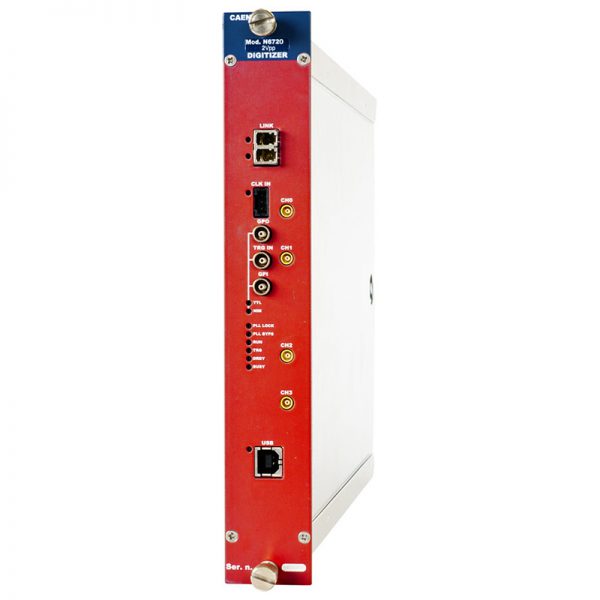

| N6720 | | NIM | 4 / 2 | 250 | 125 | 2 | 12 | 1.25 M / 10 M | QUOTE |

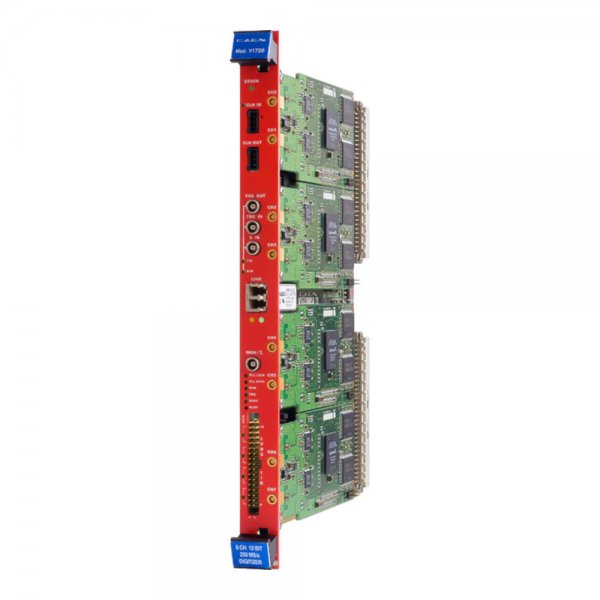

| V1720 | | VME | 8 | 250 | 125 | 2 | 12 | 1.25 M / 10 M | QUOTE |

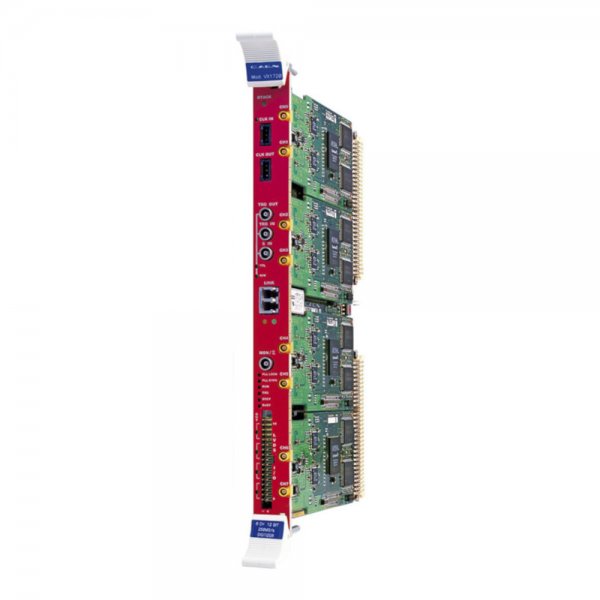

| VX1720 | | VME64X | 8 | 250 | 125 | 2 | 12 | 1.25 M / 10 M | QUOTE |
