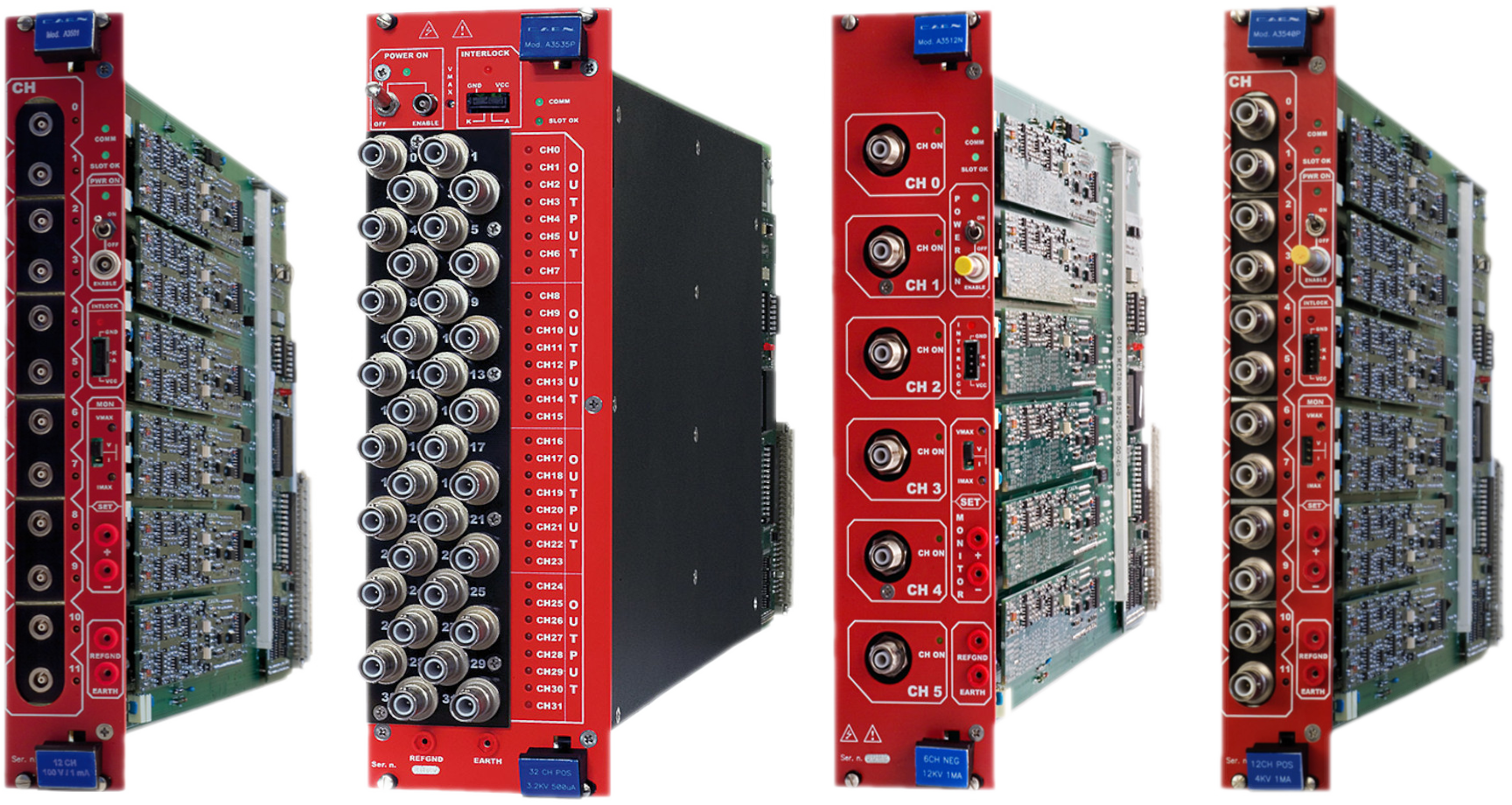

EASY3000 HV boards provide high-voltage detector biasing for systems operating in hostile environments. Based on CAENโs patented EASY (Embedded Assembly SYstem) technology, originally developed for the main LHC experiments, they are designed to work reliably in magnetic fields and radiation, and can be installed directly in the experimental area, close to the detectors, while being remotely controlled from a safe area.
The range covers output voltages from 100 V to 12 kV. The A5512 provides six +12 kV / 1 mA channels in a low noise version, for high-voltage detector biasing, while the A5540A offers sixteen -4 kV / 1 mA channels for applications requiring higher channel density. The A3501, with twelve floating 100 V / 1 mA channels, completes the range at the low end.
The A5512 and A5540A supersede the previous A3512, A3535 and A3540 models.
Radiation and magnetic-field tolerant HV boards for detector biasing in hostile environments
Output voltages from 100 V to 12 kV, with up to 16 channels per board
Remote control and monitoring from a safe area as part of the EASY system

16 Channel -4 kV / 1 mA HV Board for Hostile Environments

6 Channel +12 kV / 1 mA Low Noise HV Board for Hostile Environments

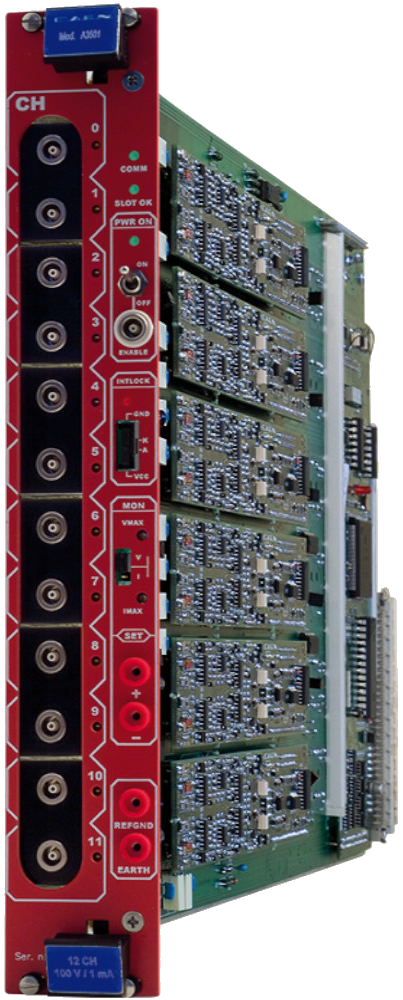

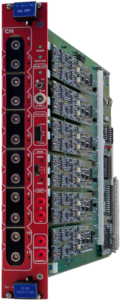

12 Channels 100 V / 1 mA Power Supply Board

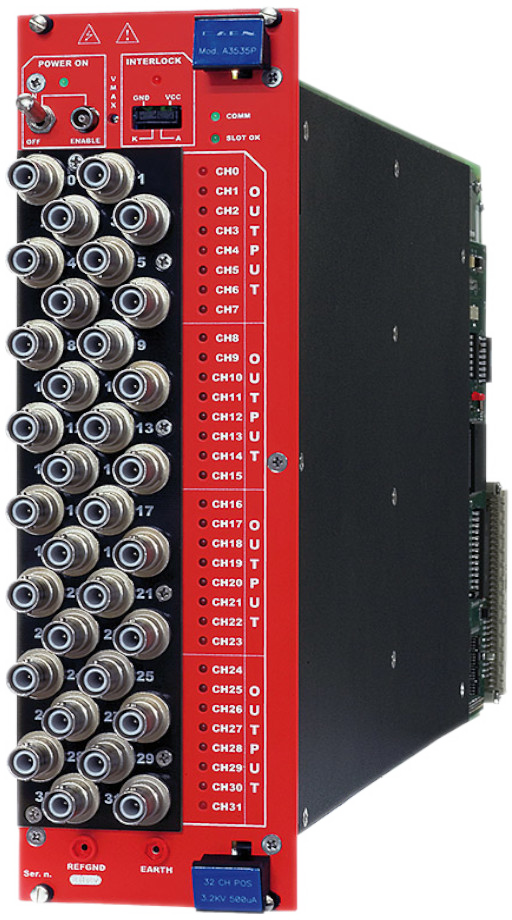

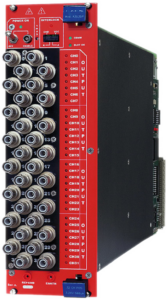

32 Channel 3.2 kV / 0.5 mA / 1.1 W Board

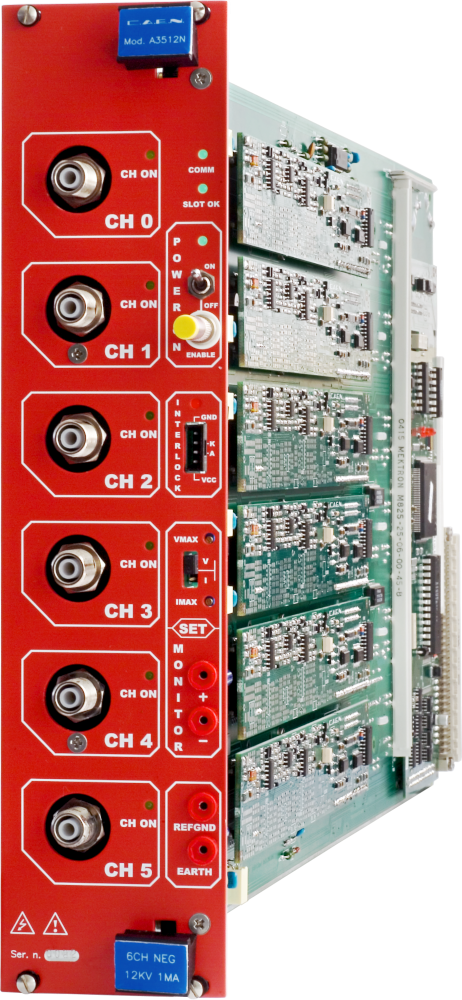

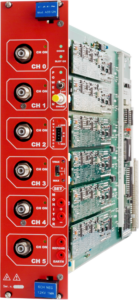

6 Channel 12 kV / 1 mA Power Supply Board

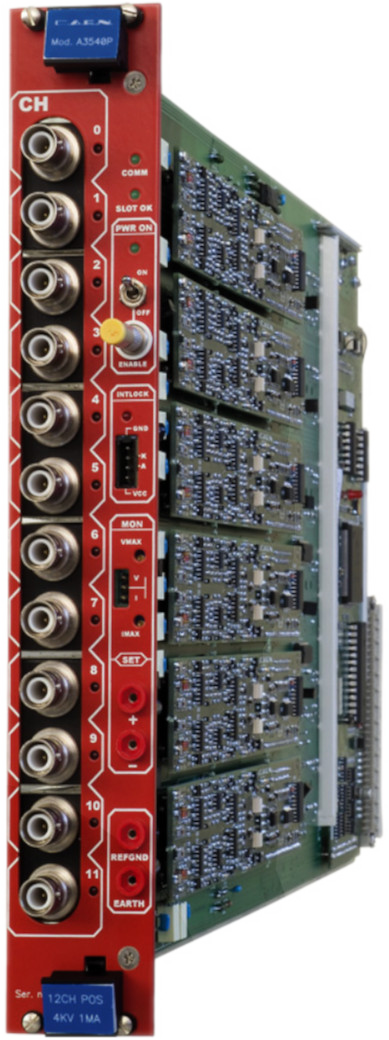

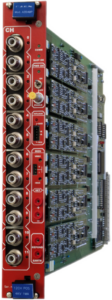

12 Channel 4 kV / 1 mA Power Supply Board
Image |
Name
|
No. of Channels | Connectors | No. max of boards per crate | Width (slots) | Max power per channel (W) | Iset/Imon resolution | Vset/Vmon resolution | Current Full Scale | Voltage Full Scale (V) | Max Ripple (mVpp) | |
![]() |
A3501 |
12 | SHV | 10 | 2 | 0.1 | 100 nA | 100mV | 1 mA | 100 | 30 | |
![]() |
A3535 |
32 | SHV | 5 | 4 | 1.75 | 100 nA | 500 mV | 500 ยตA | 3200 | 30 | |
![]() |
A3512 |
6 | CPE HV | 7 | 3 | 12 | 100 nA | 1 V | 1 mA | 12000 | 50 | |
![]() |
A3540 |
12 | SHV | 10 | 2 | 4 | 100 nA | 500 mV | 1 mA | 4000 | 30 |
