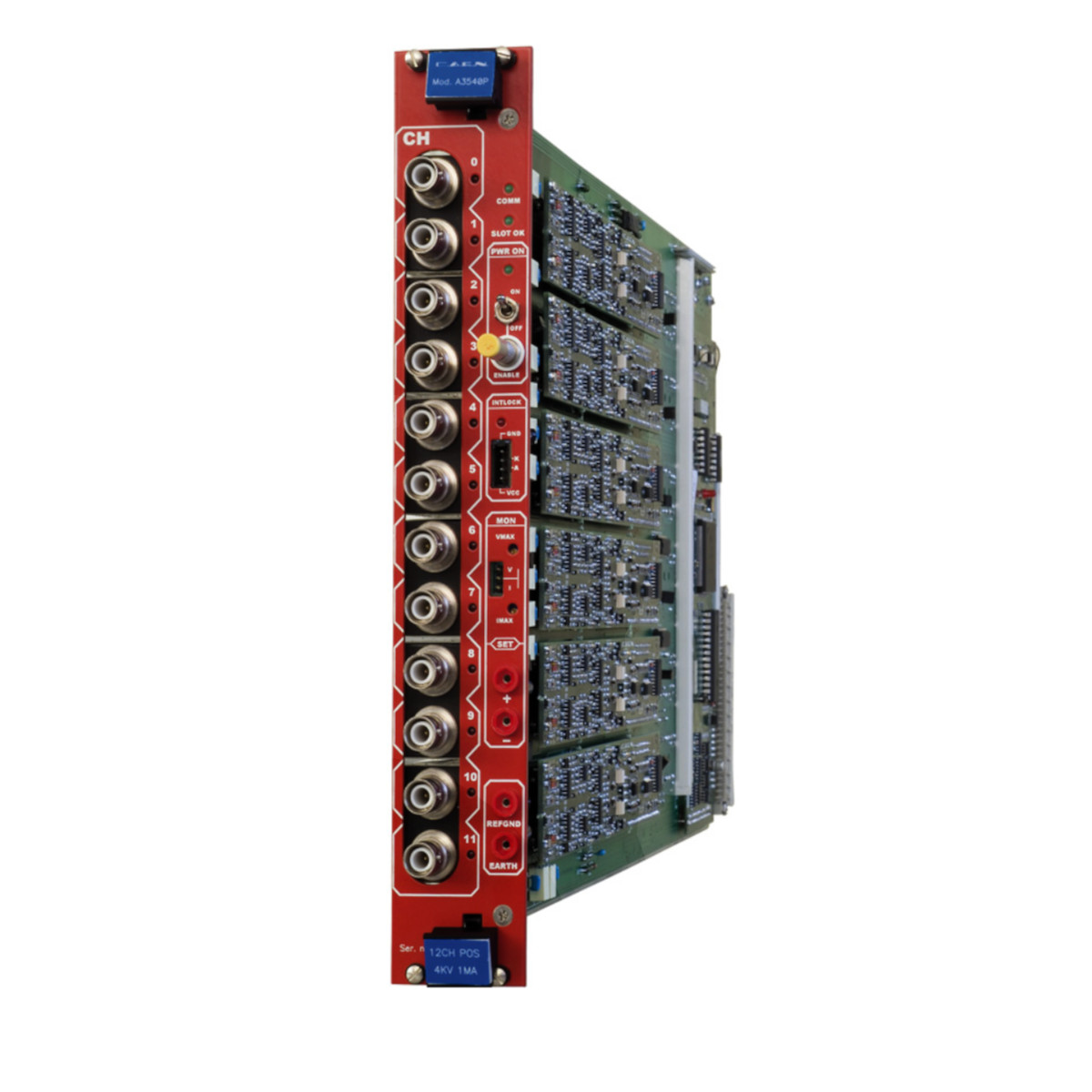

A3540

12 Channel 4 kV / 1 mA Power Supply Board

Request a Quote Add to WishlistView Wishlist

Home Power SupplyEASY - Radiation & Magnetic Field TolerantEASY3000 HV Boards A3540

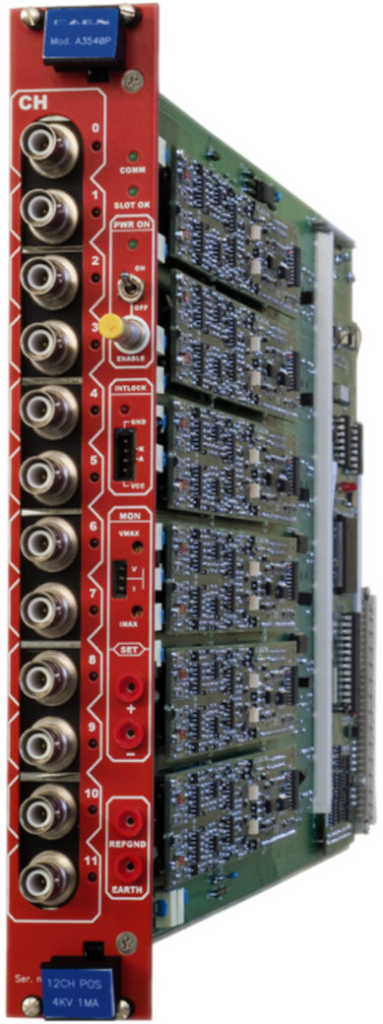

Photo of A3540
DatasheetDownloadCompareTech. Spec.

Highlights

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 12 4 kV / 1 mA channels

  • Channel floating up to 5 V between each other

  • VMax and IMax set by trimmer

  • Channel protections: overvoltage, overcurrent, overtemperature

  • On/Off for each channel

  • Interlock capability

  • 48 V Service local and remote on/off

Overview

Please note: the A3540 has been superseded by the A5540A.

The CAEN Mod. A3540 is a 12 Channel 4 kV / 1 mA Power Supply Board, developed for operation in magnetic field and radioactive environment. Each A3540 houses 12 floating channels, floating up to 5 V between each other, each rated 4 kV / 1 mA. The board is available in a negative (A3540N) and a positive (A3540P) version.

The output voltage can be set with 500 mV monitor resolution. For each channel, a voltage protection limit, SVMAX, can be fixed via software with 500 mV resolution, and the output voltage cannot be programmed beyond this value.

The outputs are available on an SHV connector, a 12-channel Radiall R317580 HV coaxial connector. For further technical details, please refer to our connectors reference page.

Its safety features allow the module to perform as a current generator. All channels can be enabled or disabled through the Global Interlock logic. If the output voltage differs from the programmed value by more than 3% of the voltage full scale range, the channel is signalled to be in either Overvoltage or Undervoltage condition.

When a channel attempts to exceed the programmed current limit, Overcurrent detection signals it as being in “overcurrent” and puts it into TRIP status. The output voltage is then varied to keep the current below the programmed limit for a programmable TRIP time, after which the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.

Finally, the Hardware VMAX and IMAX values, which set the maximum output voltage and the maximum current, can be fixed via a front panel potentiometer at the same common value for all the board channels, and can be read out via software.


Ordering Options

Code Description
WE3540XAAAAA

A3540N – EASY3000 H.V. channels -4 KV 1 mA(12 ch)

WE3540XPAAAA

A3540P – EASY3000 H.V. channels +4 KV 1 mA(12 ch)

You also may be interested in…

A3802

A3802

128 Channel DAC Board
A3501

A3501

12 Channels 100 V / 1 mA Power Supply Board
A3512

A3512

6 Channel 12 kV / 1 mA Power Supply Board
A3535

A3535

32 Channel 3.2 kV / 0.5 mA / 1.1 W Board
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    No. of Channels
    Connectors
    No. max of boards per crate
    Width (slots)
    Max power per channel (W)
    Iset/Imon resolution
    Vset/Vmon resolution
    Current Full Scale
    Voltage Full Scale (V)
    Max Ripple (mVpp)
    A3501

    A3501

    12

    SHV

    10

    2

    0.1

    100 nA

    100mV

    1 mA

    100

    30

    A3535

    A3535

    32

    SHV

    5

    4

    1.75

    100 nA

    500 mV

    500 µA

    3200

    30

    A3512

    A3512

    6

    CPE HV

    7

    3

    12

    100 nA

    1 V

    1 mA

    12000

    50

    A3540

    A3540

    12

    SHV

    10

    2

    4

    100 nA

    500 mV

    1 mA

    4000

    30

    Technical Specifications

    Close

    No. of Channels

    12

    Polarity

    Positive (A3540P) or Negative (A3540N), with individual floating return (up to 5 V between each other)

    Output Voltage

    0 ÷ 4 kV (connector output)

    Max. Output Current

    1 mA

    Voltage Set/Monitor Resolution

    500 mV

    Current Set/Monitor Resolution

    100 nA

    VMAX hardware

    0 ÷ 4 kV

    VMAX hardware accuracy

    ± 2% of FSR

    VMAX software

    0 ÷ 4 kV

    VMAX software resolution

    500 mV

    Voltage Ripple

    < 30 mV pp From 10 Hz to 20 MHz at full load

    Voltage Monitor vs. Output Voltage Accuracy

    • Typical: ± 0.3% of reading ± 2.5 V
    • Maximum: ± 0.3% of reading ± 5 V

    Voltage Set vs. Output Voltage Accuracy

    • Typical: ± 0.3% of setting ± 2.5 V
    • Maximum: ± 0.3% of setting ± 5 V

    Current Monitor vs. Output Current Accuracy

    • Typical: ± 2% of reading ± 1 µA
    • Maximum: ± 2% of reading ± 2 µA

    Current Set vs. Output Current Accuracy

    • Typical: ± 2% of setting ± 1 µA
    • Maximum: ± 2% of setting ± 2 µA

    Weight

    2.7 kg
