A3501

12 Channels 100 V / 1 mA Power Supply Board

Request a Quote Add to WishlistView Wishlist

Home Power SupplyEASY - Radiation & Magnetic Field TolerantEASY3000 HV Boards A3501

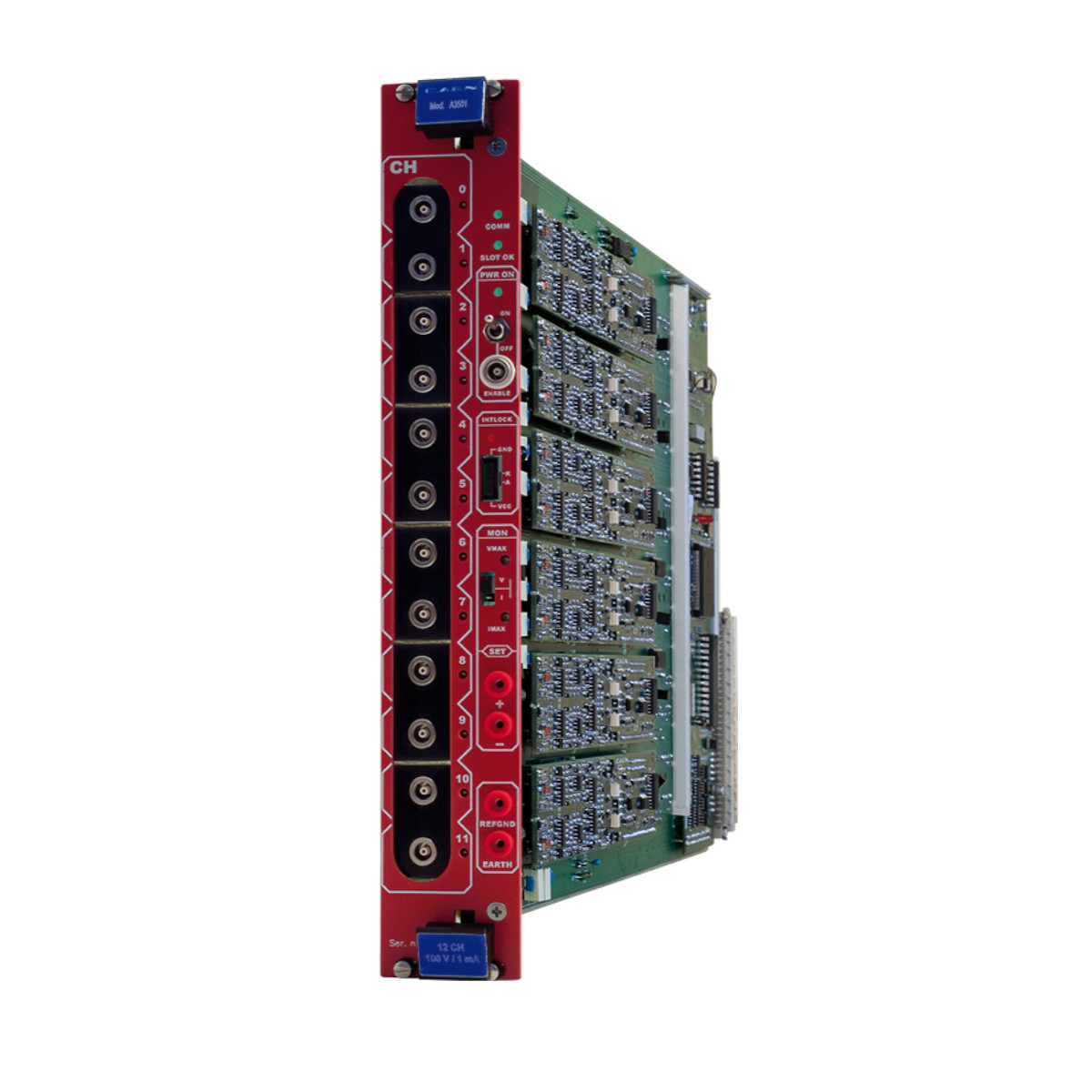

Photo of A3501
DatasheetDownloadCompareTech. Spec.

Highlights

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 12 100 V / 1 mA channels

  • Available with positive and negative floating channels

Overview

The CAEN Mod. A3501 is a 12 Channel 100 V / 1 mA Power Supply Board, developed for operation in magnetic field and radioactive environment. Each A3501 houses 12 individual floating channels, each rated 100 V / 1 mA, and the board is available in a negative version (A3501N) and a positive version (A3501P).

The output voltage can be set with 100 mV monitor resolution, while the output current is monitored with 100 nA resolution. For each channel, a voltage protection limit, SVMAX, can be fixed via software with 100 mV resolution, and the output voltage cannot be programmed beyond this value.

The outputs are available on a 12-channel LEMO type coaxial connector. For further technical details, please refer to our connectors reference page.

Its safety features allow the module to perform as a current generator. All channels can be enabled or disabled through the Global Interlock logic. If the output voltage differs from the programmed value by more than 3% of the voltage full scale range, the channel is signalled to be in either Overvoltage or Undervoltage condition.

If a channel tries to draw a current larger than its programmed limit, it is signalled to be in Overcurrent condition and enters TRIP status: the SY1527 system detects this state as a fault and reacts according to the setting of the TRIP parameter. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, after which the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.

Finally, the Hardware VMAX and IMAX values, which set the maximum output voltage and the maximum current, can be fixed via a front panel potentiometer at the same common value for all the board channels, and can be read out via software.


Ordering Options

Code Description
WE3501XAAAAA

A3501N 12CH 100V 1MA NEG

WE3501XPAAAA

A3501P 12CH 100V 1MA POS

You also may be interested in…

A3802

A3802

128 Channel DAC Board
A3512

A3512

6 Channel 12 kV / 1 mA Power Supply Board
A3535

A3535

32 Channel 3.2 kV / 0.5 mA / 1.1 W Board
A3540

A3540

12 Channel 4 kV / 1 mA Power Supply Board
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    No. of Channels
    Connectors
    No. max of boards per crate
    Width (slots)
    Max power per channel (W)
    Iset/Imon resolution
    Vset/Vmon resolution
    Current Full Scale
    Voltage Full Scale (V)
    Max Ripple (mVpp)
    A3501

    A3501

    12

    SHV

    10

    2

    0.1

    100 nA

    100mV

    1 mA

    100

    30

    A3535

    A3535

    32

    SHV

    5

    4

    1.75

    100 nA

    500 mV

    500 µA

    3200

    30

    A3512

    A3512

    6

    CPE HV

    7

    3

    12

    100 nA

    1 V

    1 mA

    12000

    50

    A3540

    A3540

    12

    SHV

    10

    2

    4

    100 nA

    500 mV

    1 mA

    4000

    30

    Technical Specifications

    Close

    No. of Channels

    12

    Polarity

    Individual Floating

    Output Voltage

    0 ÷ 100 V (connector output)

    Max. Output Current

    1 mA

    Voltage Set/Monitor Resolution

    100 mV

    Current Set/Monitor Resolution

    100 nA

    VMAX hardware

    0 ÷ 100 V

    VMAX hardware accuracy

    ± 2% of FSR

    VMAX software

    0 ÷ 100 V

    VMAX software resolution

    100 mV

    Voltage Ripple

    < 30 mV pp (From 10 Hz to 20 MHz at full load)

    Voltage Monitor vs. Output Voltage Accuracy

    • Typical: ± 0.3% ± 0.5 V
    • Maximum: ± 0.3% ± 1 V

    Voltage Set vs. Output Voltage Accuracy

    • Typical: ± 0.3% ± 0.5 V
    • Maximum: ± 0.3% ±1 V

    Current Monitor vs. Output Current Accuracy

    • Typical: ± 2% ± 1 µA
    • Maximum: ± 2% ± 2 µA

    Current Set vs. Output Current Accuracy

    • Typical: ± 2% ± 1 µA
    • Maximum: ± 2% ± 2 µA
