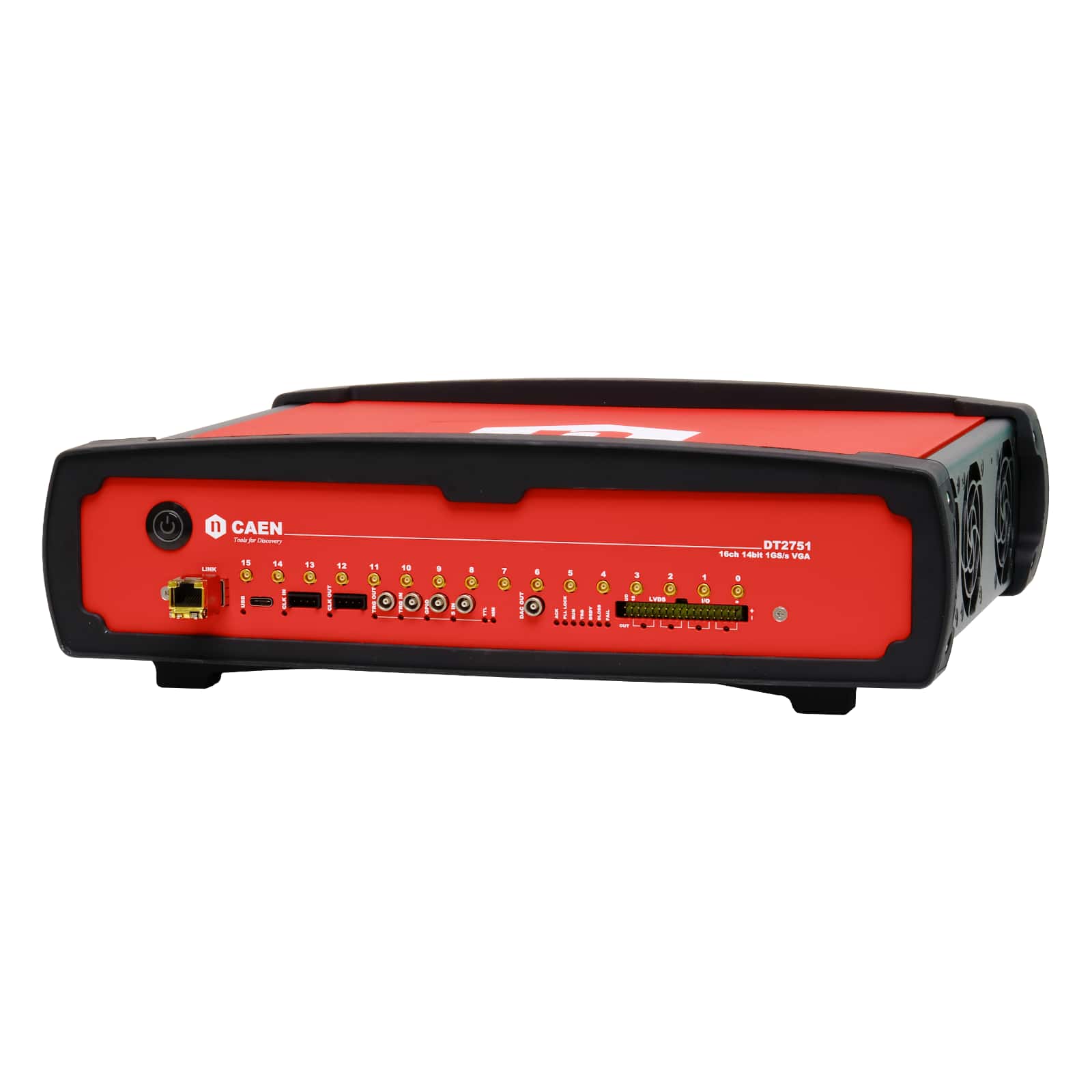

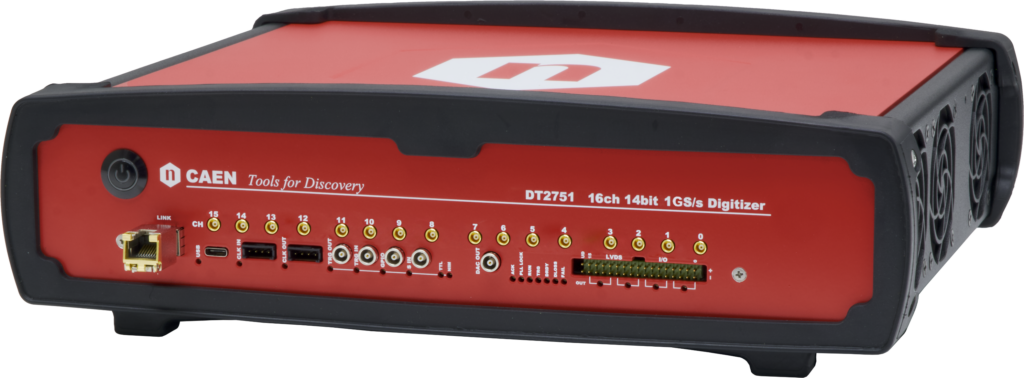

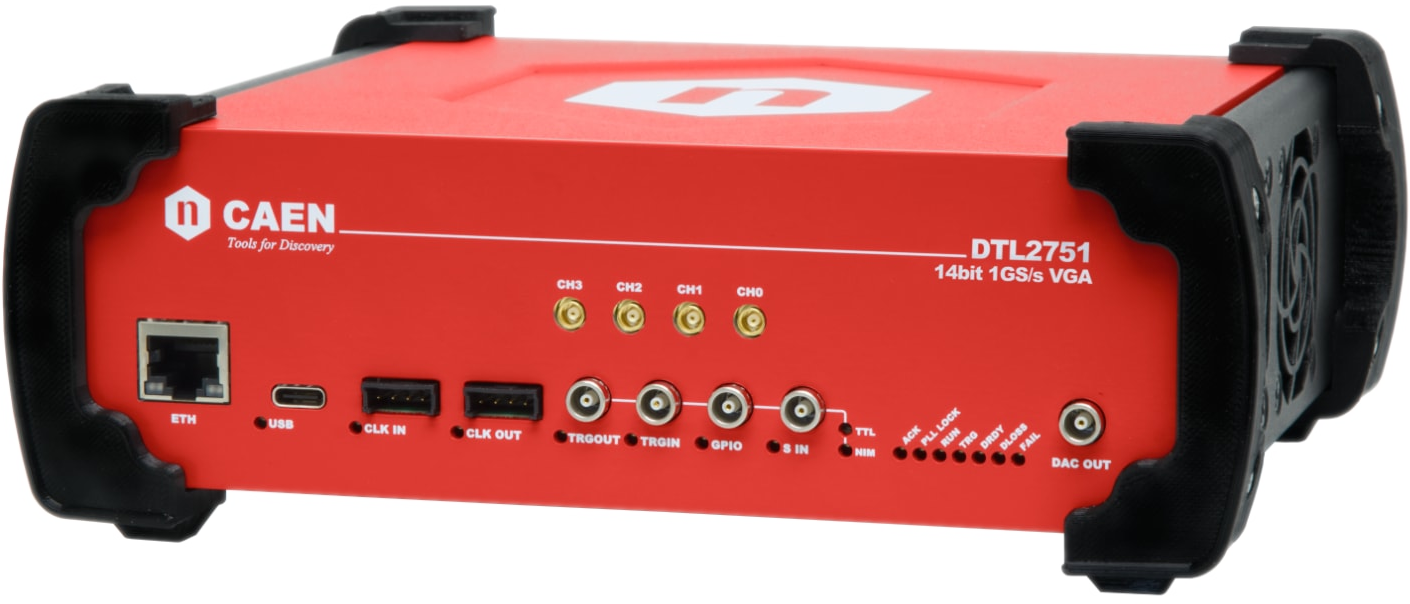

DT2751

• 16 differential pairs

• Sw programmable I/O function (individual self-trigger outputs, trigger validations, Veto, Busy, Start, Stop, Pattern Input, etc.)

• LVDS

• Zdiff = 100 Ω (when set as inputs)

• 2.54mm 34-pin AMPMODU Mod II male connector

• General-purpose digital I/Os

• Sigle-ended TTL/NIM

• LEMO 00 male connector

• Software programmable function (trigger, veto, busy, etc.)

• TRG-IN/S-IN: internally terminated with 50 Ω (Zin = 50 Ω)

• TRG-OUT requires Rt = 50 Ω

• GPIO as Input must be terminated with 50 Ω

• GPIO as TTL Output requires Rt = 50 Ω

• GPIO as NIM Output requires Rt = 50 Ω or 25 Ω

• 5 GB total DDR4 memory size (83.886 MS/ch) divisible in multiple buffers

• Maximum record length: ~84 ms @ 1 GS/s (total memory size divided by 2)¹

⁽¹⁾ Value referred to the Scope firmware (minimum of two buffers admitted)

• Copper RJ45 or optical LC connector on SFP+ transceiver

• Protocol: TCP

• Transfer rate: 110 MB/s

• Copper RJ45 or LC optical connector on SFP+ transceiver

• Protocol: UDP

• Transfer rate: 850 MB/s

• Connector Type: USB-C

• Protocol: USB 3.1 GEN1

• Transfer rate: 280 MB/s

All the channels fire simultaneously upon a global trigger generated by the Central Logic Unit receiving the trigger source signals; a zero suppression function is available.

• Software by register writing

• External upon the leading edge of The TRG-IN signal (TTL/NIM)

• Local (self-trigger) upon the channel discriminator with programmable threshold

• Resolution: 8 ns coarse time stamp

• Counter range: 48 bits

• Full-scale range: ~625 h

Streaming Readout Mode

Each channel autonomously identifies the ROI and uses the local trigger to get events independently on the other channels; validation logics can be configured for correlated acquisition (coincidence/anticoincidence).

Trigger Timestamp – DPP firmware

• Resolution: 1 ns coarse timestamp, 1 ps fine timestamp

• Counter range: 48 bits

• Full-scale range: ~78 h

By default, the Digitizer’s main clocks can be optionally generated upon from the internal 50MHz or external 62.5MHz reference (CLK-IN). Onboard programmable PLL allows locking to different external frequencies.

• Two differential pairs:

  – CLK, reference clock signal

  – SYNC, synchronization signal (start/stop, T0, etc.)

• 2.54mm 4-pin AMPMODU Mod II male connector

• CLK-IN: AC-coupled LVDS, ECL, PECL, LVPECL, CML (Zdiff = 100 Ω)

• CLK-OUT: LVDS

Clock Synchronization

Default 62.5MHz frequency distributed by:

• Fan-out to CLK-IN

• CLK-IN/CLK-OUT Daisy chain with sw programmable CLK-OUT delay shift

Custom frequencies can be supported upon request.

Data Synchronization

Programmable Busy/Veto logic on differential LVDS I/O, or single-ended NIM/TTL I/O for event building.

Run Synchronization (Acquisition Start/Stop)

Optionally, by Daisy chain or fan-out propagation through differential CLK-IN/CLK-OUT or LVDS I/O, or single-ended NIM/TTL I/O.

Trigger Distribution

TRG-IN/TRG-OUT NIM/TTL LEMO I/O (global trigger) or LVDS I/O (global or local trigger).

Trigger Time Stamp Reset

Optionally, by Software from start run command or Hardware from S-IN/GPIO input (Scope Firmware only).

• Xilinx Zynq UltraScale+ Multiprocessor System-on-Chip mod. XCZU19EG

• Processing System based on Quad-core Arm with 2GB DDR4 memory @2400 MT/s (Linux OS onboard)

• Programmable logic with more than 1100K system logic cells and 80 Mbit memory

Pay firmware implementing a digital pulse processing algorithm:

• DPP-PSD: Charge Integration, Pulse Shape Discrimination, CFD for fine timestamp

30-minute per power cycle in Trial mode; license is required for full-time work.

Designed for waveform recording.

Web available CUP files for Scope and DPP firmware upgrade via Web Interface or CAEN Toolbox software.

Customizable features of the Scope firmware:

• Common trigger

• Simultaneous waveform recording management on all the input channels

• Trigger logic

• Wave processing

Customizable features of the DPP firmware:

• Individual trigger and channel acquisition management

• DPP algorithm

• Trigger logic

• Event data information

• CoMPASS spectroscopy software (DPP firmware only)

• WaveDump2 (Scope firmware only)

Automatic generation of drivers (USB, Ethernet), libraries, and demo software for Windows®, Linux®.

SDK and Tools (Freeware)

General-purpose libraries (C/Python) with demo samples for host Windows® and Linux® PC, and embedded Arm.

Web Interface

Firmware management (e,g. upgrades and on-the-fly selection of the firmware to run), board information, PLL and Ethernet configuration, board status monitoring.
