PETIROC 2A

SiPM read out for time of flight PET

Datasheet

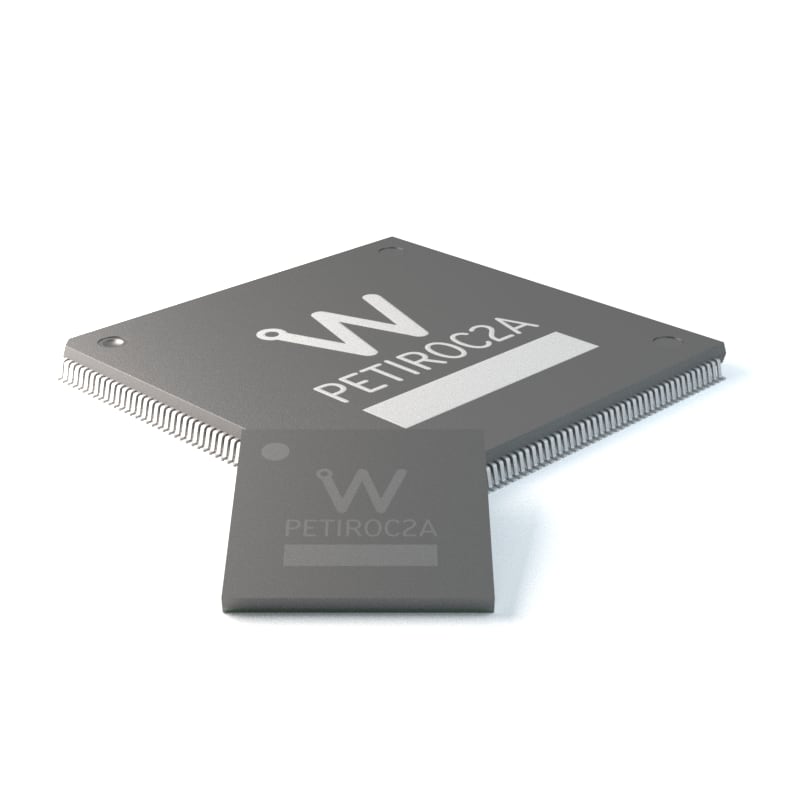

Photo of PETIROC 2A

  • Optimized for SiPM

  • Number of channels: 32

  • Type of measurement: Self triggered, Charge, Time

  • Outputs: Digital output (energy on 10 bits, time on 10 bits – 40ps bin), 32 trigger outputs, 1 multiplexed charge output, 1 multiplexed hit register, 2 ASIC trigger outputs (Trigger OR on 32 channels, 2 levels)

  • Input Polarity: Positive, Negative

  • Main performances: Energy measurement, Time of flight, Photon counting, Input DAC for HV adjustment

PETIROC 2A IS DEPRECATED – NOT RECOMMENDED FOR NEW DESIGN Please consider Temporoc, Liroc or Radioroc

Petiroc 2A is a 32-channel front-end ASIC designed to readout silicon photomultipliers (SiPM) with both polarities for particle time-of-flight measurement applications. Petiroc 2A combines a very fast and low-jitter trigger with accurate charge and time measurements. Energy and time are digitized internally with a 10-bit ADC and 40ps-bin TDC.
The concept of the ASIC is to combine two measurement lines that won’t interfere one with each other to measure both first incident photon timing measurement and whole crystal light charge integration.
An adjustment of the SiPM high voltage is possible using a channel-by-channel input DAC. It allows a fine SiPM gain and dark noise adjustment at the system level to correct for the non-uniformity of SiPMs.
The power consumption is 6 mW/channel, excluding buffers used to output the analogue signals. The main application of Petiroc 2A is PET time-of-flight prototyping but it can also be used for any application that requires both accurate time resolution and precise energy measurement.

Ordering Options

Code Description
WWPETIROC2AB

PETIROC 2A – SiPM read out for time of flight PET – BGA (Ball Grid Array)

(Discontinued)
WWPETIROC2AQ

PETIROC 2A – SiPM read out for time of flight PET- QFP (Quad Flat Pack)

(Discontinued)

Add to Wishlist

Request a Quote

Request a Quote

    Submit I’ve read and accept the privacy policy *

    Compare

    Close
    Name
    Package
    No. of Channels
    Compatible Detectors
    Input Polarity
    Main Applications
    Time Measurement
    TRIROC 1A
    Discontinued

    TRIROC 1A

    TFBGA353

    64

    SiPM, SiPM array

    Negative, Positive

    PHA, ToF, Timing

    TDC

    GEMROC 1
    Discontinued

    GEMROC 1

    PQFP160

    64

    Micromegas GEMS

    Negative

    PHA, Timing

    Trigger-based

    PETIROC 2A
    Discontinued

    PETIROC 2A

    TQFP208, TFBGA353

    32

    SiPM, SiPM array, RPCs

    Negative, Positive

    PHA, ToF, Timing

    TDC

    CATIROC 1
    Discontinued

    CATIROC 1

    TQFP208

    16

    PMT, PMT array

    Negative

    PHA, Timing, Zero suppression

    TDC

    PSIROC
    New

    PSIROC

    BGA516

    64

    PIN diodes, Silicon strips, GEMs

    Negative, Positive

    PHA, Energy mass.

    Trigger-based

    CITIROC 1A
    Discontinued

    CITIROC 1A

    PQFP160, TFBGA353

    32

    SiPM, SiPM array

    Positive

    PHA, Photon Counting

    Trigger-based

    MAROC 3A
    Discontinued

    MAROC 3A

    TFBGA353

    64

    MA-PMT, PMT, SIPM, SiPM array

    Negative

    PHA, Photon counting

    Trigger-based

    LIROC 1
    New

    LIROC 1

    BGA516

    64

    SIPM, SiPM array

    Negative, Positive

    PHA, Photon counting

    Trigger-based

    POPROC

    POPROC

    BGA516

    64

    MA-PMT, PMT

    Negative

    PHA, Photon counting

    Trigger-based

    RADIOROC 2
    Coming Soon

    RADIOROC 2

    BGA516

    64

    SIPM, SiPM array

    Positive

    PHA, Photon counting

    Time and Charge (trigger)

    Technical Specifications

    Close

    Detector Read-Out

    SiPM, SiPM array

    Number of Channels

    32

    Signal Polarity

    Positive or Negative

    Sensitivity

    Trigger on first photo-electron

    Timing Resolution

    below 40 ps

    Dynamic Range

    3000 photoelectrons (106 SIPM gain), Integral Non Linearity : 1% up to 2500 photoelectrons

    Packaging & Dimension

    • TQFP 208 28x28mm

    • TFBGA353 12x12mm

    Power Consumption

    Power supply : 3.3V 192mW Analogue cire (excluding outing buffer), 6mw/ch

    Inputs

    2 voltage inputs with DC adjustment for SiPM HV tuning

    Outputs

    • Digital output (energy on 10 bits, time on 10 bits – 40ps bin)

    • 32 trigger outputs

    • 1 multiplexed charge output, 1 multiplexed hit register

    • 2 ASIC trigger outputs (Trigger OR on 32 channels, 2 levels)

    Internal Programmable Features

    • 32 HV adjustment for SiPM (32X8bits)

    • trigger threshold adjustment (10bits)

    • charge measurement tuning

    • 32 trigger masks

    • internal temperature sensor

    • trigger latch
