8/4 Ch Reversible 5.5 kV/300 µA Desktop 19' Power Supply Module (USB/Ethernet/T.screen)

Request a quote
Downloads

Features

  • 4 or 8 independent channels in a 19″ rack unit (110/220V AC Powered)
  • 5.5 kV / 300µA output range
  • Channels with individually selectable positive or negative polarity
  • SHV coaxial output connectors
  • Common floating return
  • Low Ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for board enable and Individual channel kill
  • 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
  • 2.8″ color touch screen display

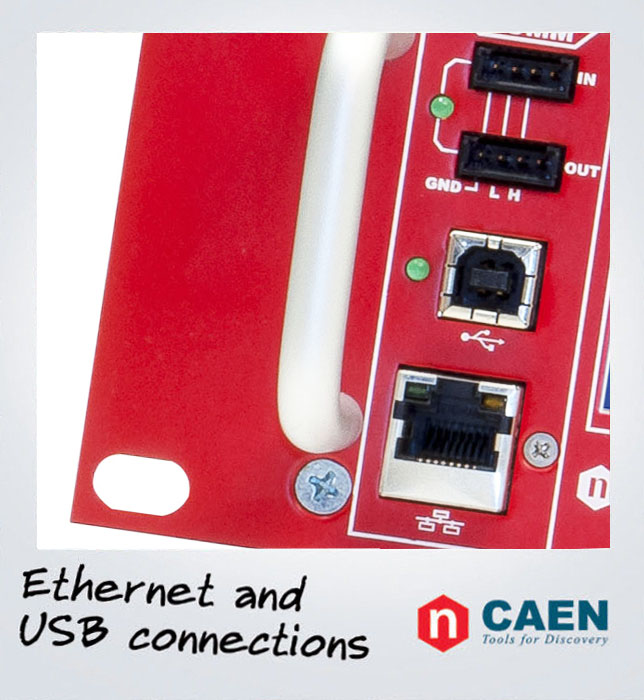

  • Local and Remote control (USB2.0/Ethernet)
  • Daisy-chain capabilty (4 channel only)
  • Software Tools for easy channel management
More info
placeholder
placeholder
placeholder

Overview

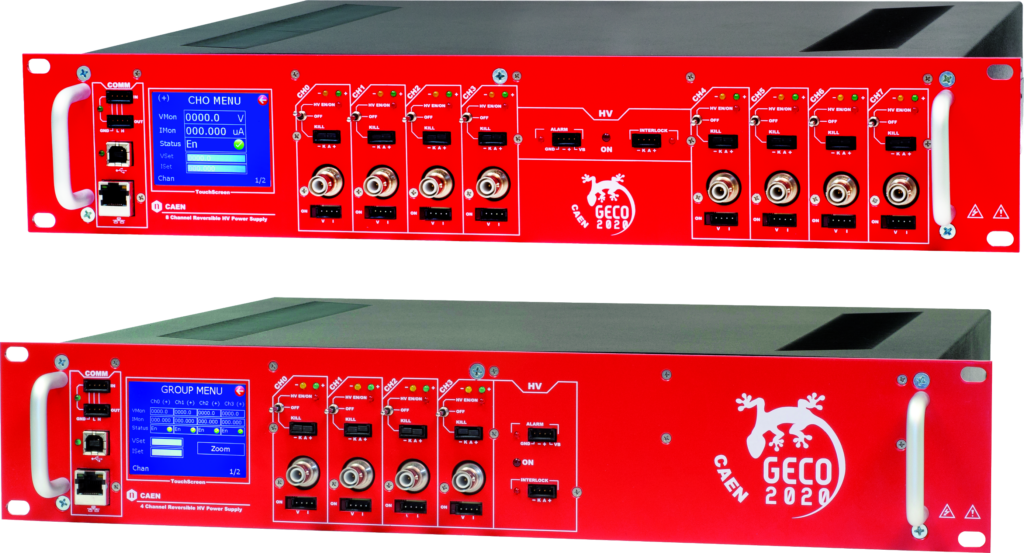

The CAEN Mod. R1471ET provides 4 or 8 (depending on version) independent High Voltage channels in a 19″ rack unit (110/220V AC Powered). Each channel can provide a ±5.5 kV max voltage and a 300 µA max current. The output polarity is independently selectable for each channel.
Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 5nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 500 pA.

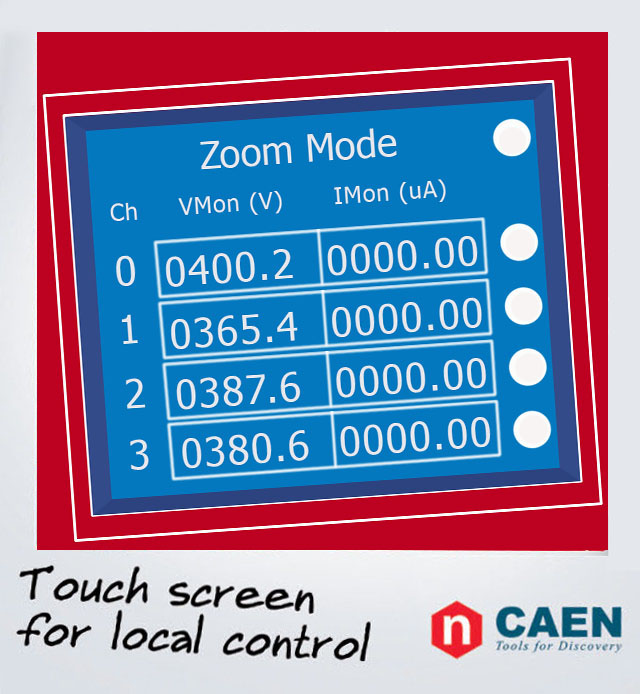

Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.

blank SHV connector

19” 2U,  4/8 channels for Mod. R1471ET

Consult our connectors reference page for technical information.

A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.

Safety features allows the module to perform as a current generator and includes:

Interlock Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V)
Overcurrent detection if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off
VMAX Programmable VMAX protection limit

Technical Specifications

Packaging

19” rack (h: 2U; d: 360mm). Weight: ~9kg (2-4 ch), 10.5kg (8 ch);

Output channels

4-8 channels, Common Floating Return, SHV connector
Positive or Negative Polarity (requires internal setting)

Output ranges
5.5 kV / 300 µA
5.5 kV / 30 µA
(IMonRange = High)
(IMonRange = Low) – Imon Zoom Active
Max. Ch. Output Power

1.65 W

Vset Resolution

100 mV

Vmon Resolution

100 mV

Iset Resolution

5 nA

Imon Resolution
5 nA
500 pA
(IMonRange = High)
(IMonRange = Low) – Imon Zoom Active
Vmax

0 ÷ 5600 V Absolute maximum HV level that the channel is allowed to reach, independently from the preset value Vset.
Output voltage cannot exceed the preset value Vmax. The accuracy is 1 % ± 5 V

Vmax resolution

± 1 V

Alarm output

Open collector, 100 mA maximum sink current

Interlock input

LOW: < 1 V; current~5mA; HIGH: 4÷6 V

Ramp Up/Down

1÷500 Volt/s, 1 Volt/s step

Trip
  • Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value.
  • “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”.
  • Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state.
  • Trip range: 0 ÷ 999.9 s; 1000 s = INFINITE. Step = 0.1 s (If trip= INFINITE, “overcurrent” lasts indefinitely)
Voltage Ripple
  • 20 ÷ 1000 Hz: Typical: 10 mVpp / Maximum: 15 mVpp
  • 1 ÷ 20000 kHz: Typical: 3 mVpp / Maximum: 8 mVpp
Vmon vs. Vout Accuracy

:±0.02% of read value ±2V

Vset vs. Vout Accuracy

±0.02% of read value ±2V

Imon vs. Iout Accuracy
±2% of read value ±20 nA
±2% of read value ±2 nA
(IMonRange = High)
(IMonRange = Low) – Imon Zoom Active
Iset vs. Iout Accuracy
±2% of read value ±30 nA
±2% of read value ±3 nA
(IMonRange = High)
(IMonRange = Low) – Imon Zoom Active
Ventilation Fan

60×60 24V; 62 dBA maximum noise level

Humidity range

0 ÷ 80%

Storage temperature

-10 ÷ 70°C

Operating temperature

0 ÷ 45°C

Vout / Temperature coefficient

max. 50 ppm / °C

Imon / Temperature coefficient

max 100 ppm/C°; max 300 ppm/C° with Imon zoom

Long term stability Vout vs. Vset

± 0.02% (after one week @ constant temperature)
