6 independent channels in 1 unit wide VME 6U module
-
6 kV / 20 µA output range
-
Available with positive, negative or mixed polarity
-
SHV coaxial output connectors
-
Common floating return
-
Low Ripple
-
Under/Overvoltage alert, overcurrent and max. voltage protection
-
1 nA Current monitor resolution (with x10 Imon-Zoom: 100 pA)
-
Interlock logic for board enable
-
Individual channel enable
-
Optional DC Input Power Equalizer
-
Module control via software Tools

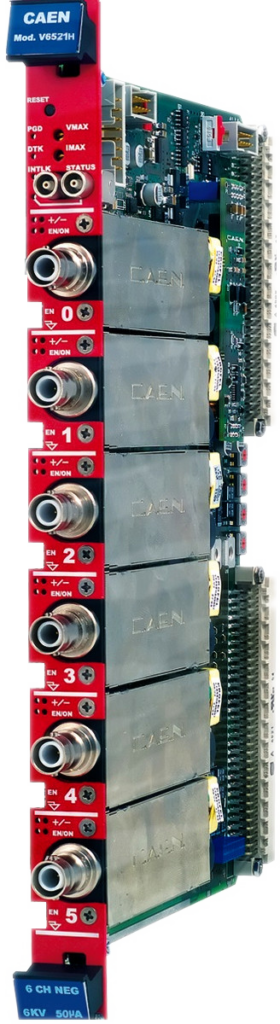

The CAEN Mod.V6521H is a 1-unit wide VME 6U module housing 6 High Voltage Power Supply Channels 6kV, 20 µA. The board is available with either positive or negative output polarity; mixed version with 3 positive and 3 negative channels is also available. The channels share a common floating return, which allows on-detector grounding reducing the noise level. HV outputs are delivered through SHV connectors.
|
SHV connector Single width (1U wide), 6 channels for Mod. V6521H |
Consult our connectors reference page for technical information.
The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1÷ 500 V/s range with 1 V/s steps.
The module features 1 nA Iset/Imon resolution. Features include Imon Zoom, increasing resolution to 100pA. The modules fit into both VME/VME64 standard and V430 crates. Functional parameters can be programmed and monitored via VMEbus.
A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. OPC Server also supported.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. Channels individually enabled via front panel jumpers (passive or active mode available). |
|
Overvoltage and Undervoltage |
warning when the output voltage differs from the programmed value. |
|
Overcurrent detection |
if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX and IMAX |
Maximum output voltage and maximum current value can be fixed, via front panel potentiometer, at the same common value for all the board channels. IMAX and VMAX values can be read out via software. |
Available Options:
-
A6580 DC Input Power Equalizer.
-
10 Imon Zoom, increasing Imon resolution to 500 pA.
These modules are provided with a USB VCP interface and can be programmed via PC by connecting the PC USB port with the N14xx USB B-type port; the featured controller (FT232BM chip) requires a driver available on this page or at www.ftdichip.com
Software
CAEN HV Wrapper Library
Library for CAEN Power Supply Control
CAEN Toolbox
GECO2020
CAEN Upgrader
OPC Server
OPC Server for CAEN Power Supplies
You also may be interested in…
VME8001
VME8008B
NV8020A
VME8100
VME8011
VME8200
V3718
V4718
VME8004B
VME8004X
VME8008X
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vset/Vmon Resolution
|
Iset/Imon Resolution
|
Max. Ramp Up/Down Rate
|
Ripple Typ. (>1kHz)
|
Connectors
|
Max Power per Channel
|
Features
|
|
|
V6521H |
6 |
6000 V |
20 µA |
0.1 V |
Iset: 1 nA <br>Imon: 1 / 0.1 nA |
500 V/s |
< 3 mVpp |
SHV |
0.12 W |
Common Floating Return |
|
|
V6534 |
6 |
6000 V |
1 mA |
0.1 V |
Iset: 20 nA <br>Imon: 20 / 2 nA |
500 V/s |
< 15 mVpp |
SHV |
6 W |
Common Floating Return |
|
|
V6533 |
6 |
4000 V |
3 mA |
0.1 V |
Iset: 50 nA <br>Imon: 50 / 5 nA |
500 V/s |
< 5 mVpp |
SHV |
9 W |
Common Floating Return |
|
|
V6519 |
6 |
500 V |
3 mA |
10 mV |
Iset: 50 nA <br>Imon: 50 / 5 nA |
100 V/s |
< 3 mVpp |
SHV |
1.5 W |
Common Floating Return |
|
|
V6521 |
6 |
6000 V |
300 µA |
0.1 V |
Iset: 5 nA <br>Imon: 5 / 0.5 nA |
500 V/s |
< 3 mVpp |
SHV |
1.8 W |
Common Floating Return |
Technical Specifications
|
Package |
1-unit wide VME 6U module |
|
No. of Channels |
6 (Common floating return) |
|
Output Voltage |
0÷6 kV |
|
Max. Output Current |
20 µA, Max. 2 µA with Imon Zoom (optional) |
|
Voltage Set Resolution |
100 mV |
|
Voltage Monitor Resolution |
100 mV |
|
Current Set Resolution |
1 nA |
|
Current Monitor Resolution |
1 nA (0.1 nA with Imon x10 Zoom) |
|
VMAX hardware |
0÷6 kV common for all the board channels |
|
VMAX hardware accuracy |
± 2% of FSR |
|
VMAX software |
0÷6 kV settable for each channel |
|
VMAX software resolution |
100 mV |
|
Ramp Up/Down |
1÷500 Volt/sec, 1 Volt/sec step |
|
Trip |
Max. time an “overcurrent” is allowed to last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value. “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”. Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state. If trip= INFINITE, “overcurrent” lasts indefinitely. |
|
Voltage Ripple |
|
|
Vmon vs. Vout accuracy |
|
|
Vset vs. Vout accuracy |
|
|
Imon vs. Iout accuracy |
|
|
Iset vs. Imon accuracy |
|
