EASY3000 LV BOARDS
EASY (Embedded Assembly SYstem)
Overview

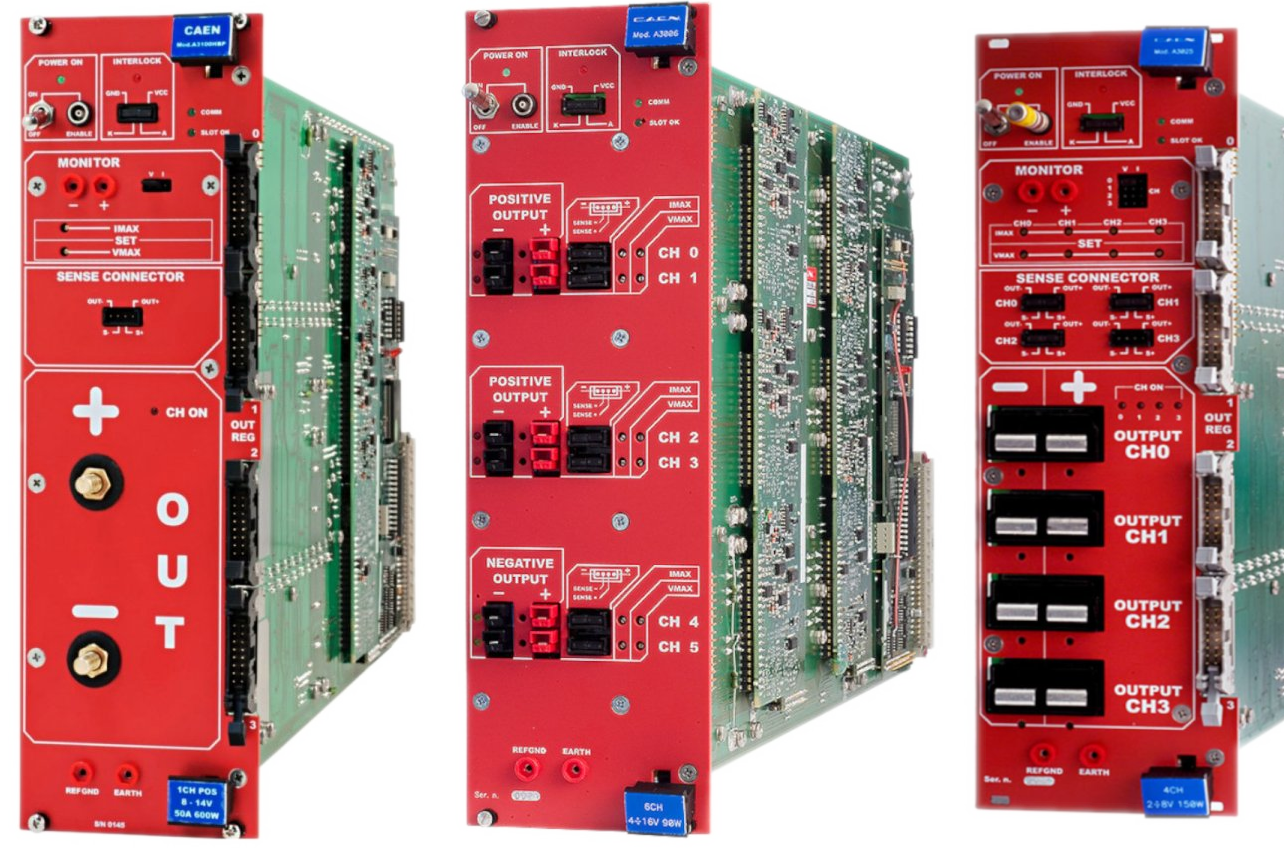

EASY3000-compatible LV boards are designed to operate reliably in radiation and magnetic-field environments, delivering stable front-end power in the 2–16 V range with different channel densities and power levels. These modules combine high current capability, remote sensing, and advanced protection features to ensure precise voltage delivery to front-end electronics, even over long cables and in harsh experimental conditions.
The family includes solutions such as the A3009HB/A3009H with 12 channels up to 14 V / 5 A for distributed front-end powering, the high-current A3100HBP with a single 8–14 V / 50 A channel, and compact multi-channel boards like the A3602, providing 3 floating 2–7 V / 5 A channels. All models support programmable limits, TRIP and interlock logic, and individual channel control for safe and flexible system integration.
Highlights
-
EASY3000-compatible LV boards for radiation and magnetic-field environments
-
Front-end power range from 2 to 16 V with multiple channel densities
-
Remote sensing, programmable protections, and interlock support
-
High-current and multi-channel options for scalable front-end powering
EASY3000 LV BOARDS Models
A3009B

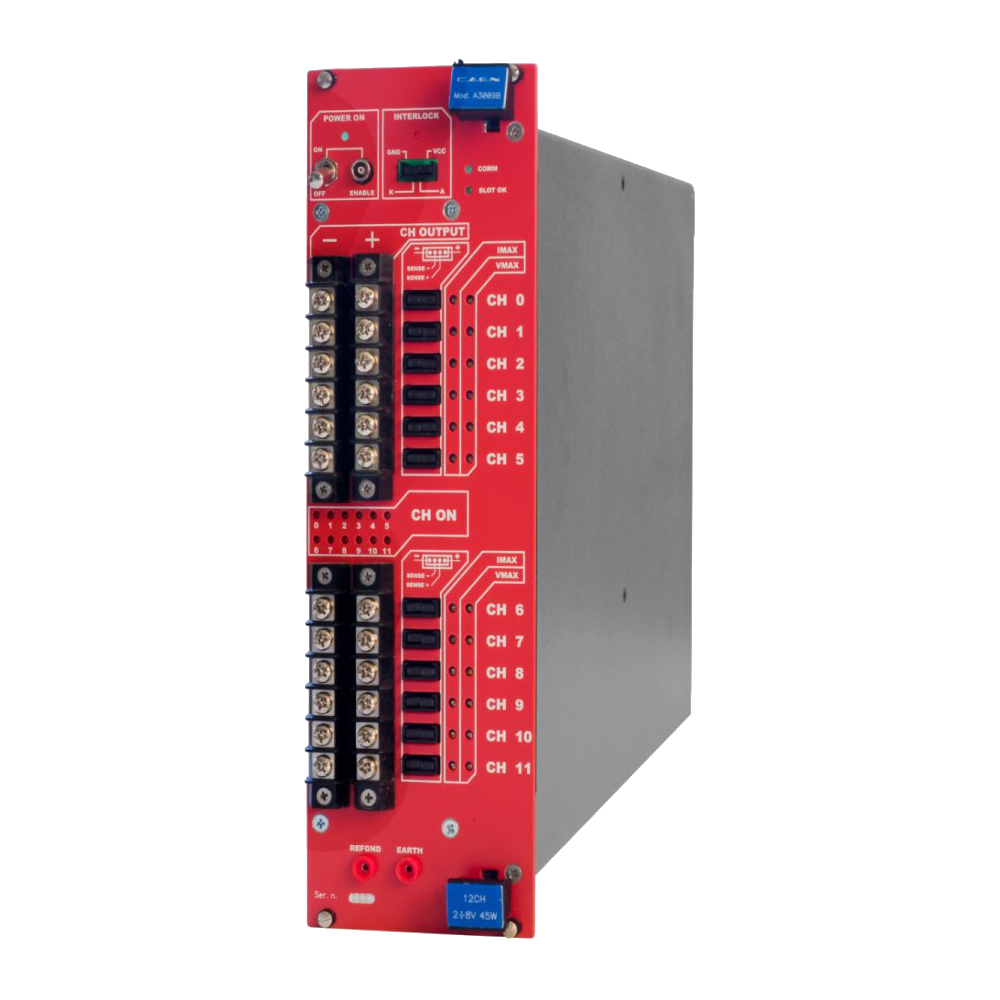

12 Channel 8 V / 9 A / 45 W Power Supply Board

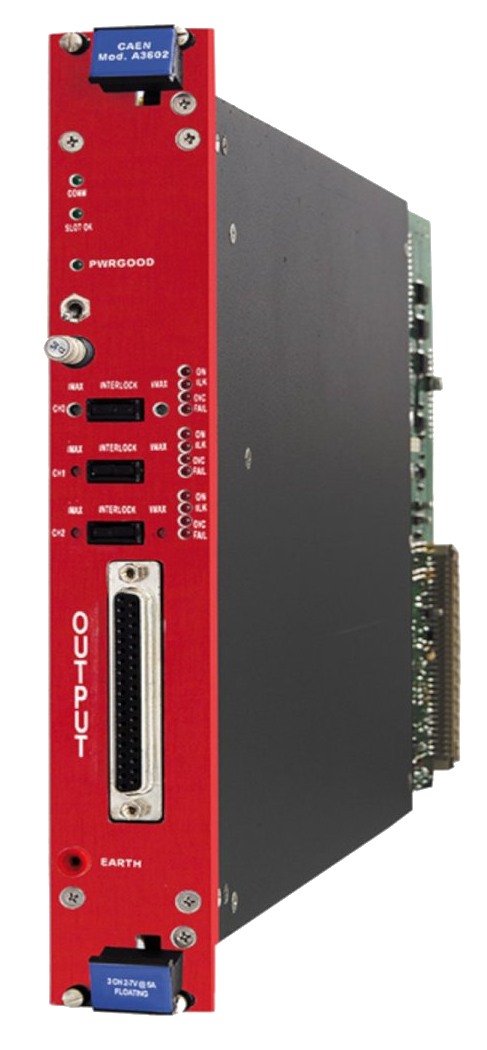

A3602
3 Channel 7 V / 5 A / 35 W Power Supply Board

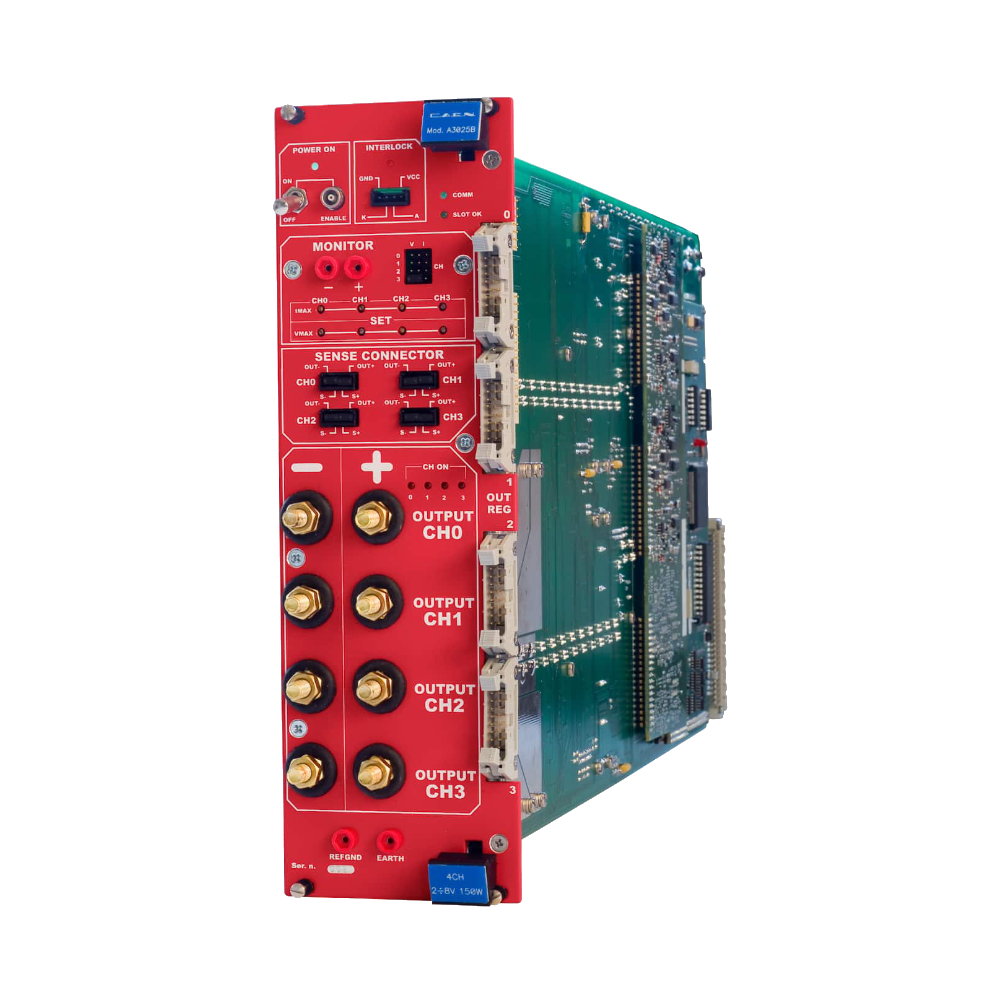

A3025B

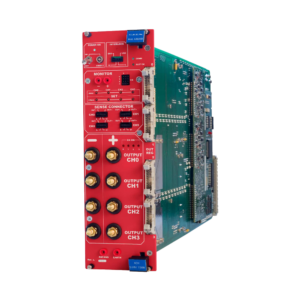

4 Channel 8 V / 25 A / 150 W Power Supply Board
A3009

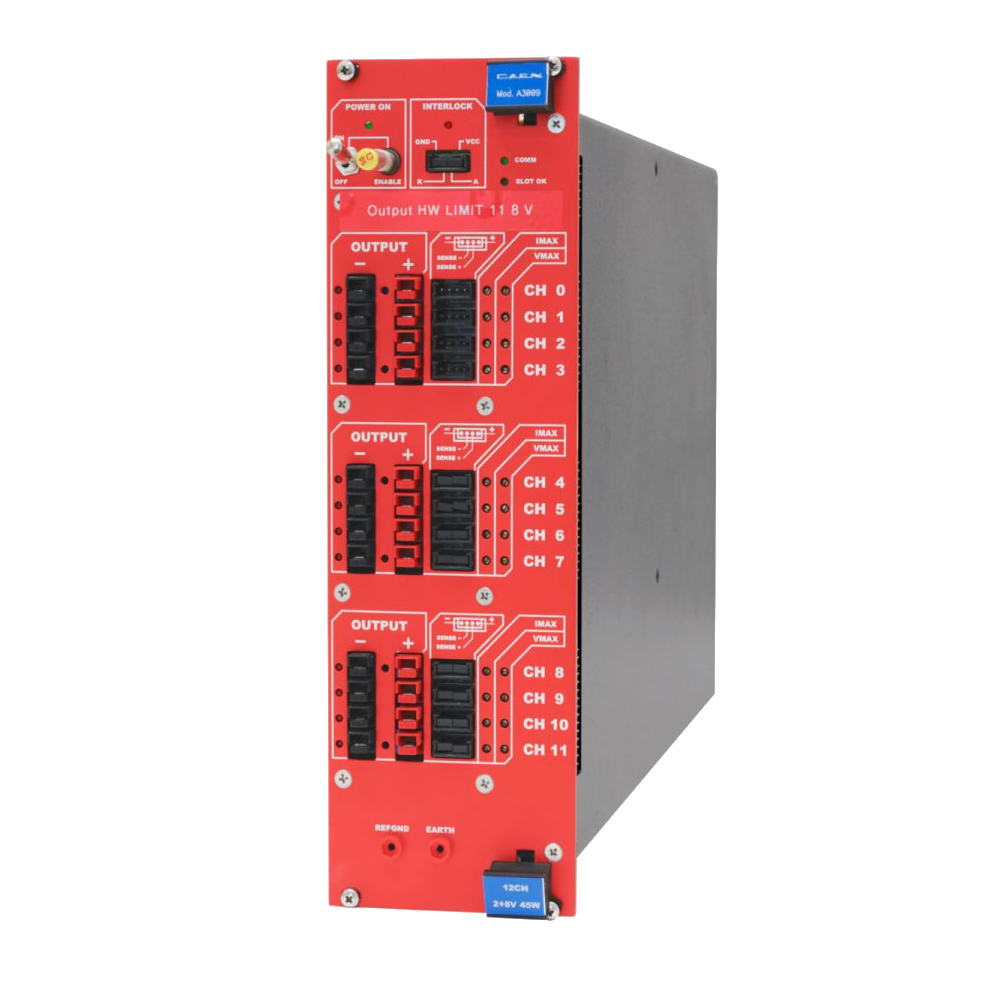

12 Channel 8 V / 9 A / 45 W Power Supply Board

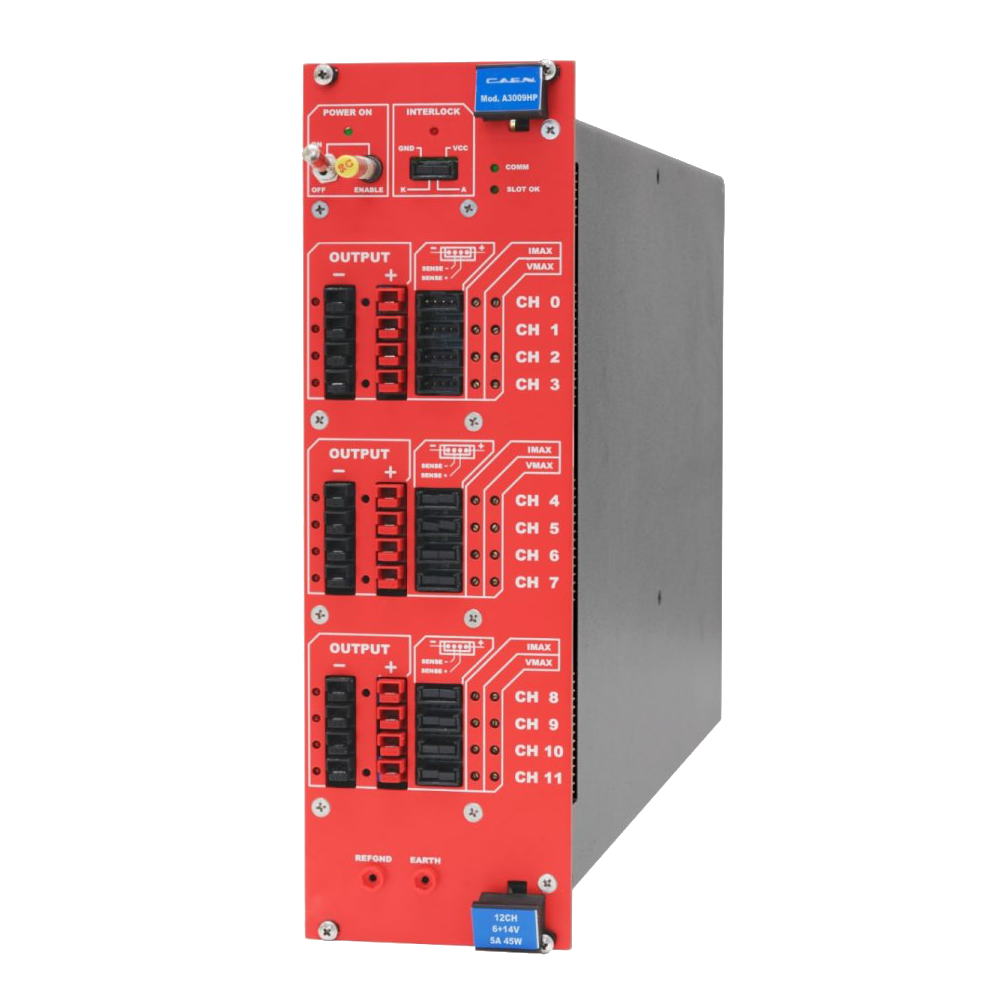

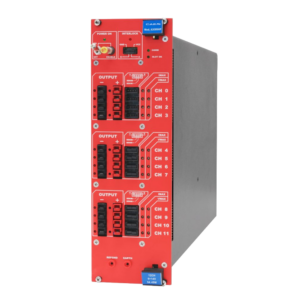

A3009H
12 Channel 14 V / 9 A / 45 W Power Supply Board

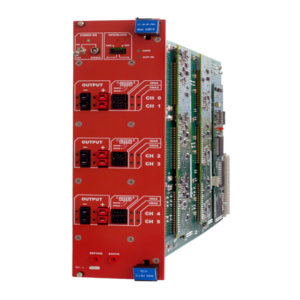

A3016

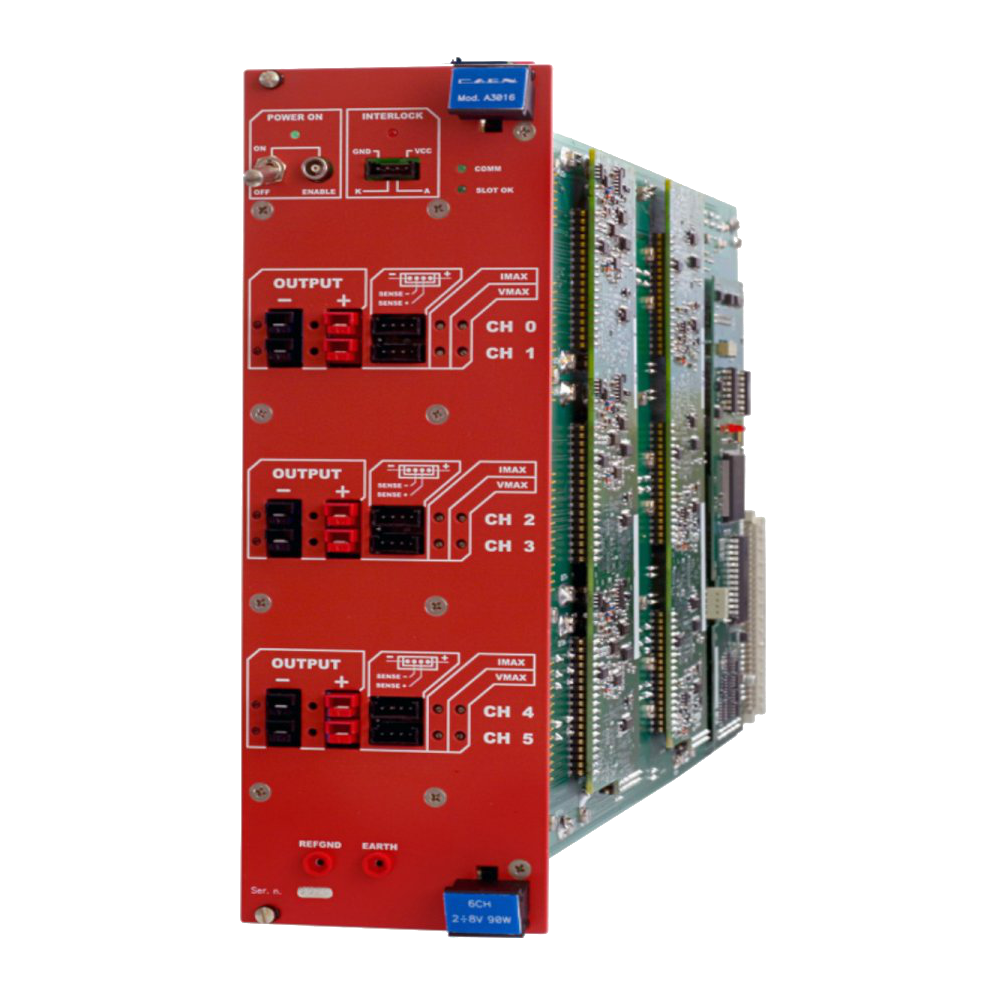

6 Channel 8 V / 16 A / 90 W Power Supply Board

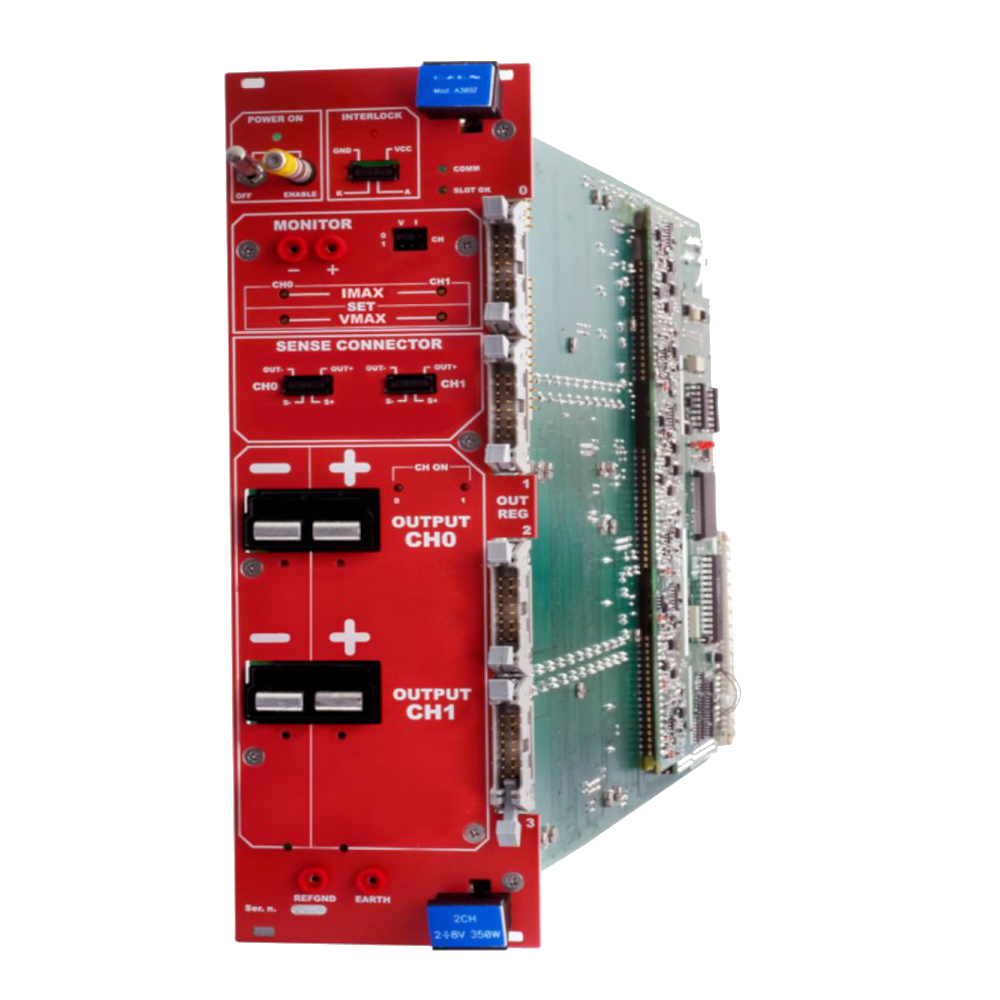

A3050B

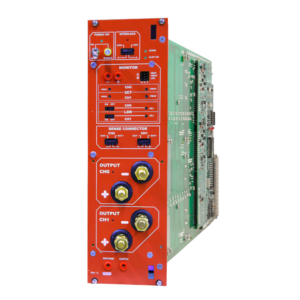

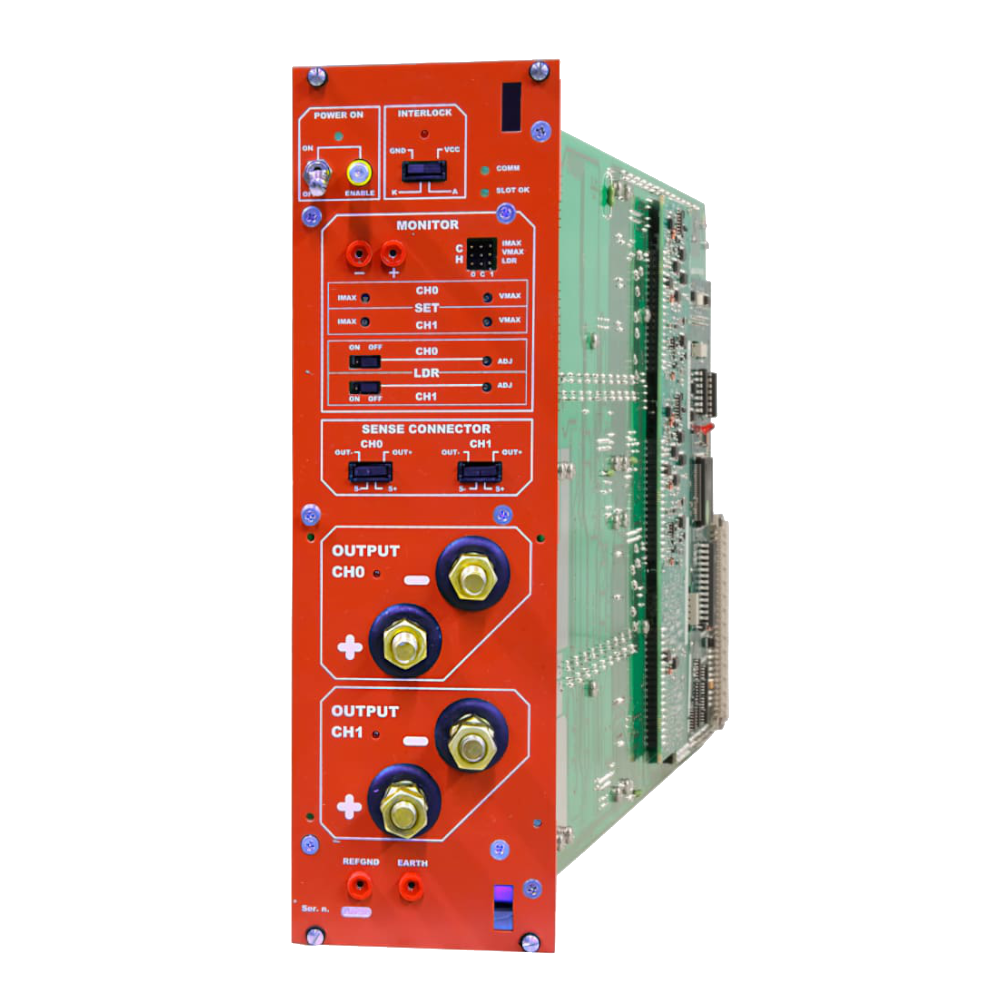

2 Channel 8 V / 50 A / 300 W Power Supply Board

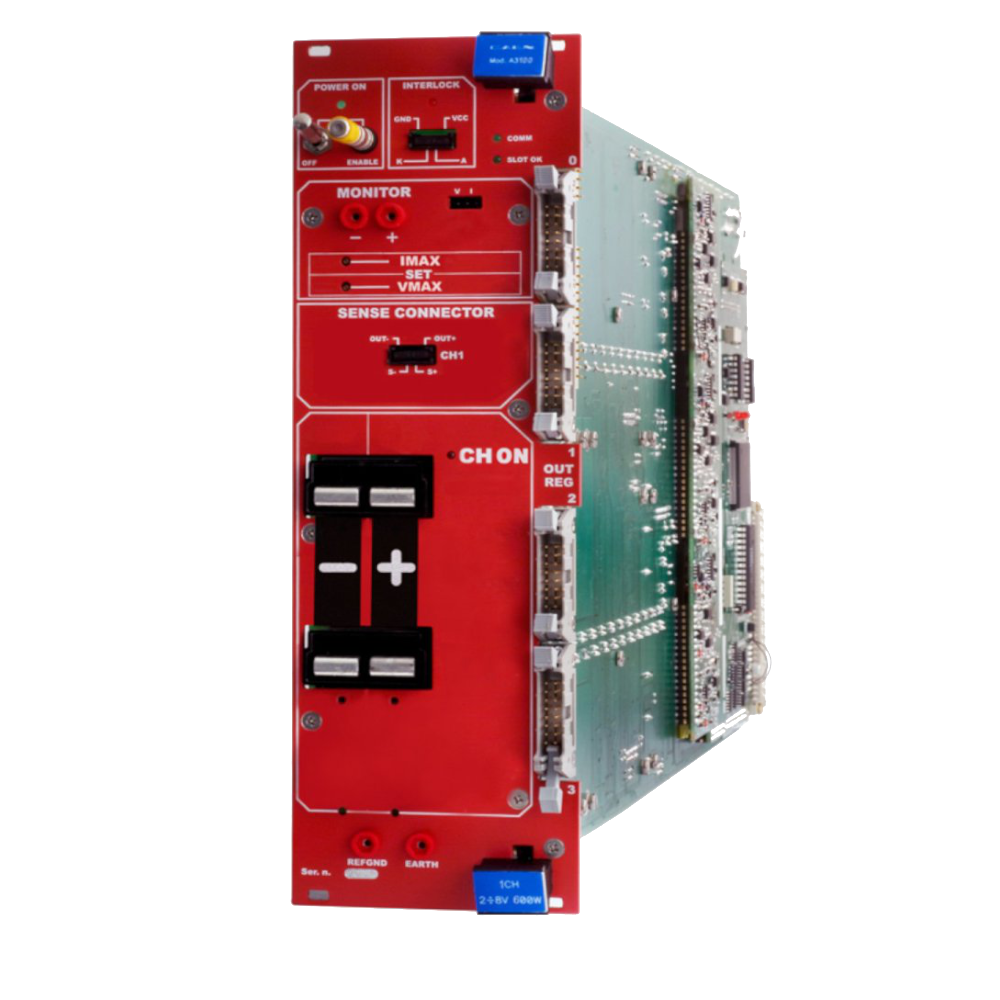

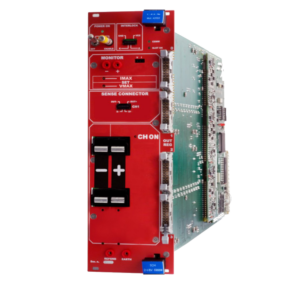

A3100

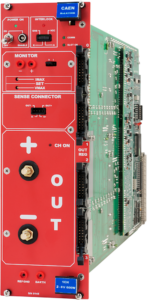

1 Channel 8 V / 100 A / 600 W Power Supply Board

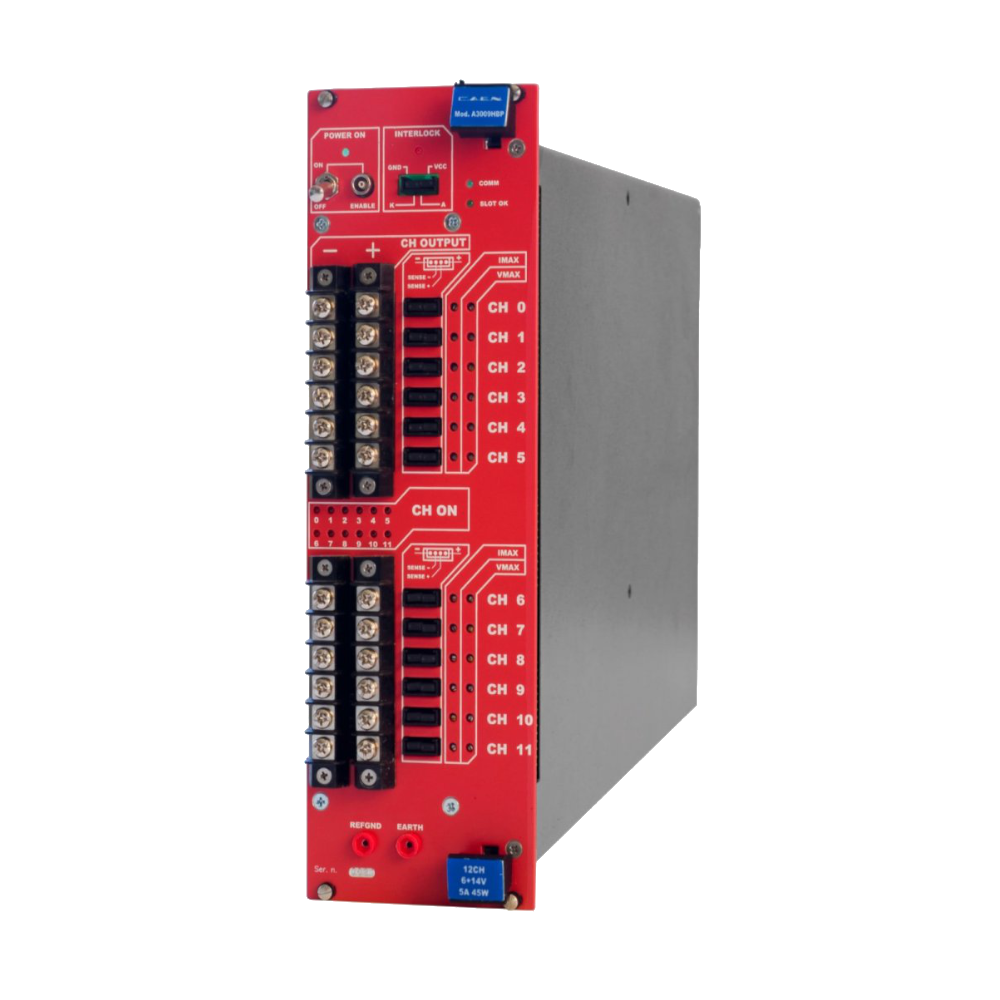

A3009HB
12 Channel 14 V / 9 A / 45 W Power Supply Board
A3050

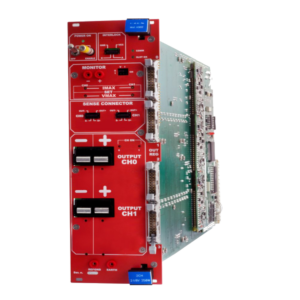

2 Channel 8 V / 50 A / 300 W Power Supply Board

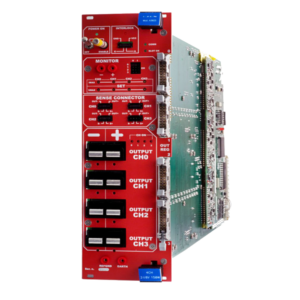

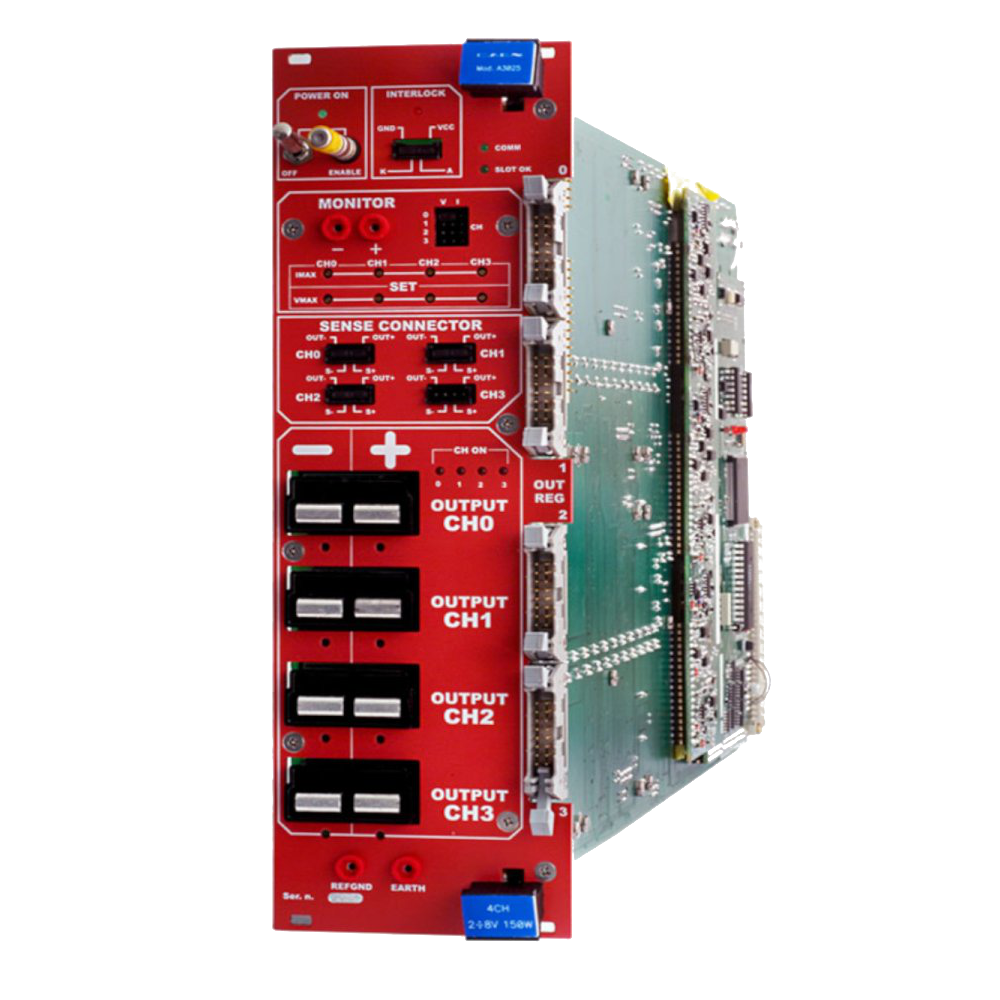

A3025
4 Channel 8 V / 25 A / 150 W Power Supply Board

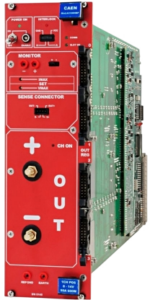

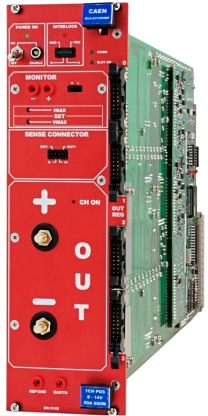

A3100HBP
1 Channel 8-14 V / 50 A / 600 W Power Supply Board

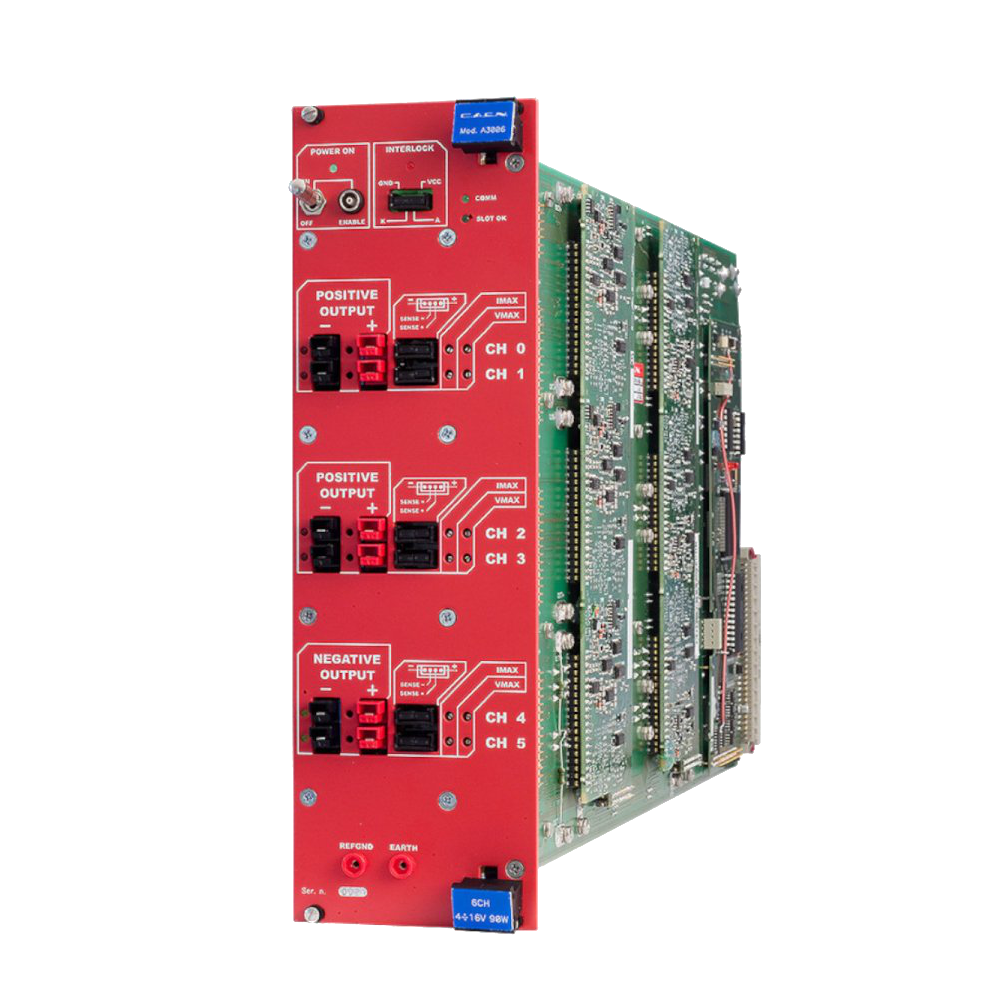

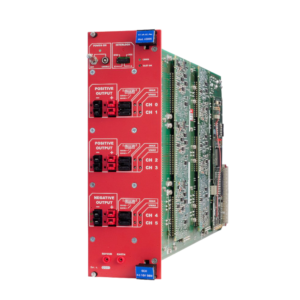

A3006
4 Positive and 2 Negative Ch 16 V / 6 A / 90 W Power Supply Board

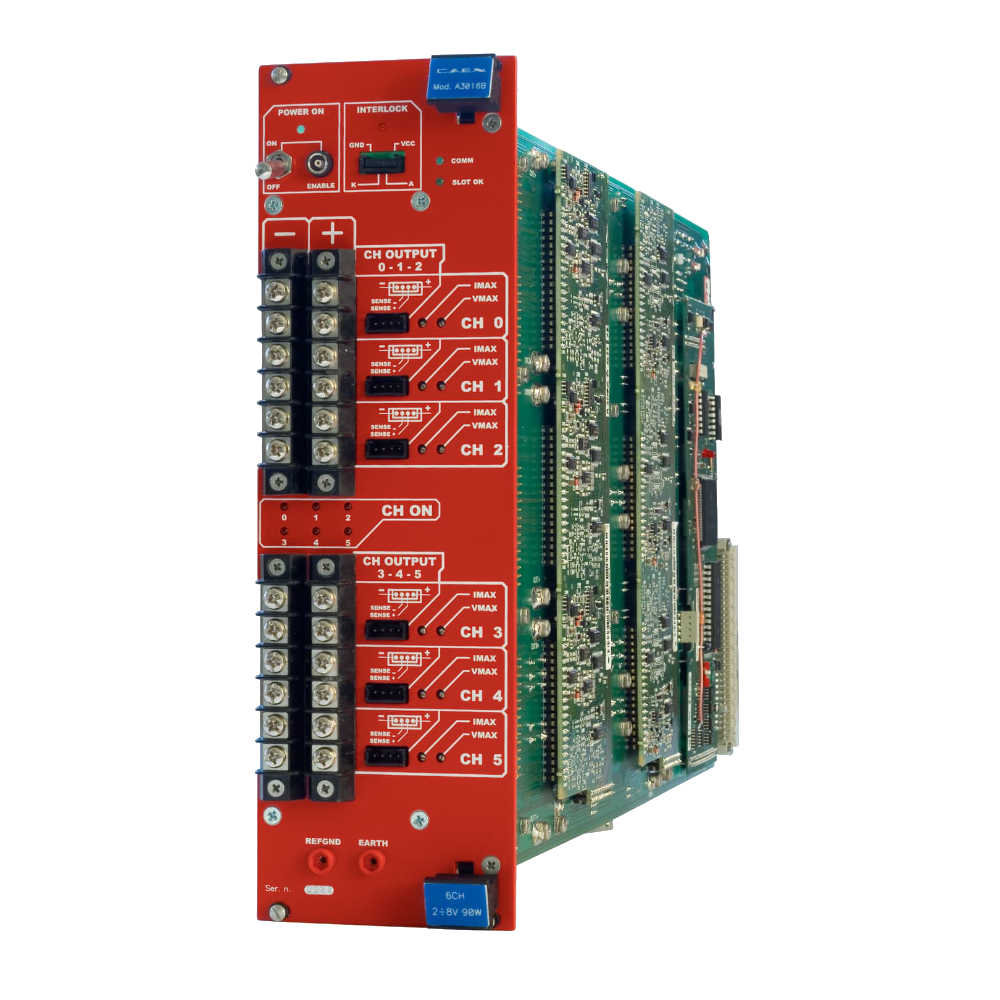

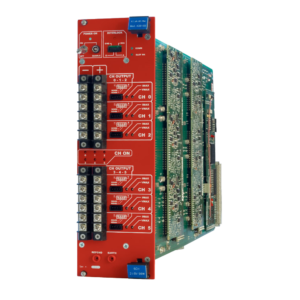

A3016B
6 Channel 8 V / 16 A / 90 W Power Supply Board

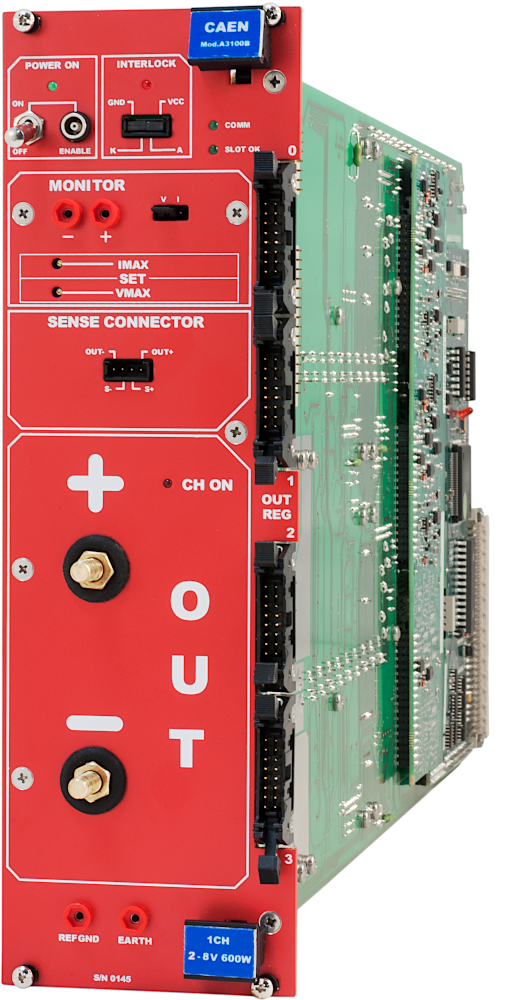

A3100B
1 Channel 8 V / 100 A / 600 W Power Supply Board
Image |
Name
|
No. of Channels |
Connectors |
No. max of boards per crate |
Width (slots) |
Max power per channels |
Iset/Imon resolution |
Vset/Vmon resolution (mV) |
Current Full Scale (A) |
Voltage full Scale (V) |
Max Ripple (mVpp) | |
 |
A3009B |
12 |
Screw lock connectors |
5 |
4 |
45 W |
10 mA |
5 |
9 |
2 ÷ 8 |
20 | |
 |
A3602 |
3 |
DB37 |
10 |
2 |
35 W |
10 mA |
5 |
5 |
2 ÷ 7 |
5 | |
 |
A3025B |
4 |
Brass hexagon head bolt |
5 |
4 |
150 W |
100 mA |
5 |
25 |
2 ÷ 8 |
10 | |
 |
A3009 |
12 |
APP 1317G4 |
5 |
4 |
45 W |
10 mA |
5 |
9 |
2 ÷ 8 |
20 | |
 |
A3009H |
12 |
APP 1317G4 |
5 |
4 |
45 W |
10 mA |
5 |
9 |
6 ÷ 14 |
20 | |
 |
A3016 |
6 |
APP 1317G4 |
5 |
4 |
90 W |
10 mA |
5 |
16 |
2 ÷ 8 |
20 | |
 |
A3050B |
2 |
Brass hexagon head bolt |
5 |
4 |
300 W |
100 mA |
5 |
50 |
2 ÷ 8 |
10 | |
 |
A3100 |
1 |
APP PC5933T |
5 |
4 |
600 W |
100 mA |
5 |
100 |
2 ÷ 8 |
10 | |
 |
A3009HB |
12 |
Screw lock connectors |
5 |
4 |
45 W |
10 mA |
5 |
9 |
6 ÷ 14 |
20 | |
 |
A3050 |
2 |
APP PC5933T |
5 |
4 |
300 W |
100 mA |
5 |
50 |
2 ÷ 8 |
10 | |
 |
A3025 |
4 |
APP PC5933T |
5 |
4 |
150 W |
100 mA |
5 |
25 |
2 ÷ 8 |
10 | |
 |
New A3100HBP |
1 |
Brass hexagon head bolt |
5 |
4 |
600 W |
100 mA |
10 |
50 |
8 ÷ 14 |
10 | |
 |
A3006 |
6 |
APP 1317G4 |
5 |
4 |
90 W |
10 mA |
10 |
6 |
4 ÷ 16 |
20 | |
 |
A3016B |
6 |
Brass hexagon head bolt |
5 |
4 |
90 W |
10 mA |
5 |
16 |
2 ÷ 8 |
20 | |
 |
A3100B |
1 |
Brass hexagon head bolt |
5 |
4 |
600 W |
100 mA |
5 |
100 |
2 ÷ 8 |
10 |
