Highlights
-
EASY3000 Power Supply Module
-
Magnetic field and radiation tolerant
-
3 floating (up to 100 V with respect to ground) 2 ÷ 7 V / 5 A channels
-
35 W maximum output power per channel
-
VMax and IMax set by trimmer for each channel
-
On/Off for each channel
-
Channels individually controlled and protected
-
Sensing Lines for voltage drop compensation
-
Interlock capability (per channel)
-
48 V Service local and remote on/off
Overview

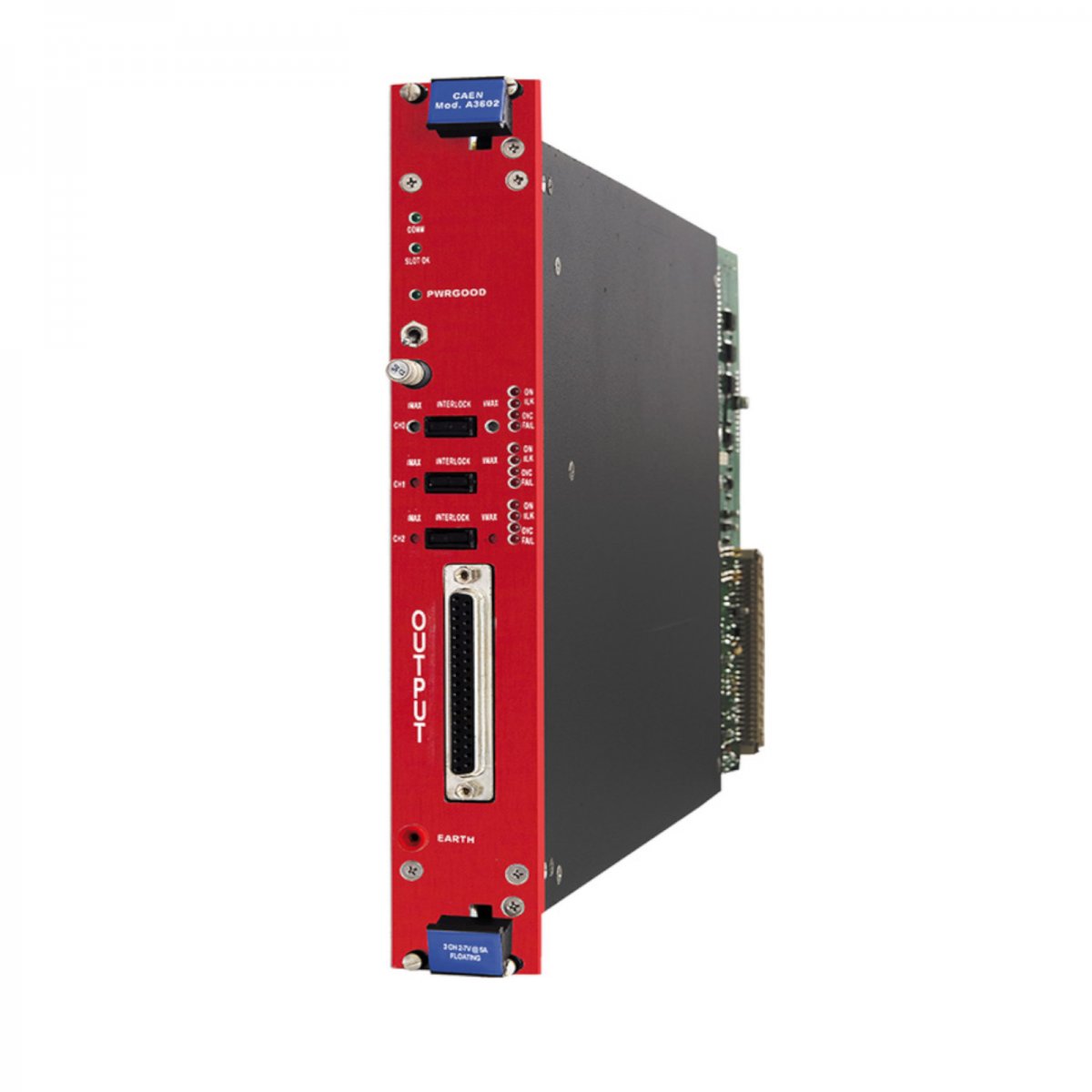

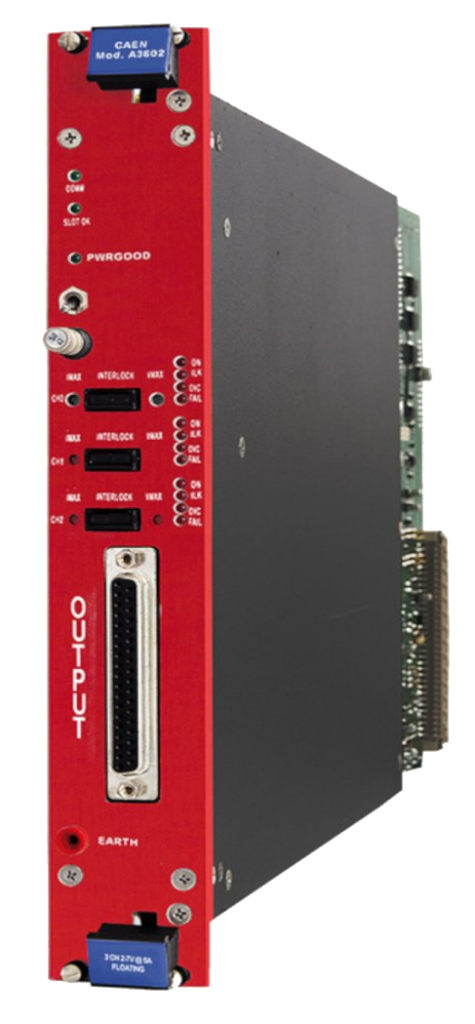

The CAEN Mod. A3602 3 Channel 7 V / 5 A Power Supply Board is developed for operation in magnetic field and moderate radioactive environment.
The board houses 3 floating (up to 100 V with respect to ground, reversible polarity) 7 V / 5 A / 35 W maximum output power channel.
The connector output voltage range is 2 ÷ 7 V with 5 mV monitor resolution.
Channels are provided with Remote Sensing Lines to compensate for the voltage drop over the connection cables. If the output voltage differs from the programmed value by more than 3% of voltage full scale range, the channel is signalled to be either in Overvoltage and Undervoltage condition.
|
DB37 connector FCI DCPV37S300GT type connector for Mod. A3602 |
Consult our connectors reference page for technical information.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 3% of voltage full scale range. |
|
Overcurrent detection |
When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX and IMAX |
Maximum output voltage and maximum current value can be fixed via software with 5 mV resolution and the output voltage can not be programmed beyond this value. |
You also may be interested in…
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Connectors
|
No. max of boards per crate
|
Width (slots)
|
Max power per channels
|
Iset/Imon resolution
|
Vset/Vmon resolution (mV)
|
Current Full Scale (A)
|
Voltage full Scale (V)
|
Max Ripple (mVpp)
|
|
|
A3009B |
12 |
Screw lock connectors |
5 |
4 |
45 W |
10 mA |
5 |
9 |
2 ÷ 8 |
20 |
|
|
A3602 |
3 |
DB37 |
10 |
2 |
35 W |
10 mA |
5 |
5 |
2 ÷ 7 |
5 |
|
|
A3025B |
4 |
Brass hexagon head bolt |
5 |
4 |
150 W |
100 mA |
5 |
25 |
2 ÷ 8 |
10 |
|
|
A3009 |
12 |
APP 1317G4 |
5 |
4 |
45 W |
10 mA |
5 |
9 |
2 ÷ 8 |
20 |
|
|
A3009H |
12 |
APP 1317G4 |
5 |
4 |
45 W |
10 mA |
5 |
9 |
6 ÷ 14 |
20 |
|
|
A3016 |
6 |
APP 1317G4 |
5 |
4 |
90 W |
10 mA |
5 |
16 |
2 ÷ 8 |
20 |
|
|
A3050B |
2 |
Brass hexagon head bolt |
5 |
4 |
300 W |
100 mA |
5 |
50 |
2 ÷ 8 |
10 |
|
|
A3100 |
1 |
APP PC5933T |
5 |
4 |
600 W |
100 mA |
5 |
100 |
2 ÷ 8 |
10 |
|
|
A3009HB |
12 |
Screw lock connectors |
5 |
4 |
45 W |
10 mA |
5 |
9 |
6 ÷ 14 |
20 |
|
|
A3050 |
2 |
APP PC5933T |
5 |
4 |
300 W |
100 mA |
5 |
50 |
2 ÷ 8 |
10 |
|
|
A3025 |
4 |
APP PC5933T |
5 |
4 |
150 W |
100 mA |
5 |
25 |
2 ÷ 8 |
10 |
|
|
New A3100HBP |
1 |
Brass hexagon head bolt |
5 |
4 |
600 W |
100 mA |
10 |
50 |
8 ÷ 14 |
10 |
|
|
A3006 |
6 |
APP 1317G4 |
5 |
4 |
90 W |
10 mA |
10 |
6 |
4 ÷ 16 |
20 |
|
|
A3016B |
6 |
Brass hexagon head bolt |
5 |
4 |
90 W |
10 mA |
5 |
16 |
2 ÷ 8 |
20 |
|
|
A3100B |
1 |
Brass hexagon head bolt |
5 |
4 |
600 W |
100 mA |
5 |
100 |
2 ÷ 8 |
10 |
Technical Specifications
|
Polarity |
Floating (up to 100 V with respect to ground) |
|
Output Voltage |
2 ÷ 7 V (connector output) |
|
Max. Output Current |
5 A |
|
Voltage Set/Monitor Resolution |
5 mV |
|
Current Set/Monitor Resolution |
10 mA |
|
VMAX hardware |
2 ÷ 7 V |
|
VMAX software |
2 ÷ 7 V |
|
VMAX software resolution |
5 mV |
|
Voltage Ripple |
< 5 mVpp |
|
Voltage Monitor vs. Output Voltage Accuracy |
|
|
Voltage Set vs. Output Voltage Accuracy |
|
|
Current Monitor vs. Output Current Accuracy |
|
|
Current Set vs. Output Current Accuracy |
|
|
Load Regulation |
± 0.3 % (with sense wires) |
|
Output Power (per Channel) |
35 W |
