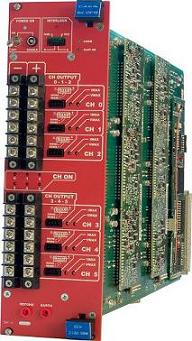

EASY Subsystem Power Supply Module
Magnetic field and radiation tolerant
6 floating 1.5 ÷ 8 V / 16 A channels
90 W maximum output power per channel
VMax and IMax set by trimmer for each channel
On/Off for each channel
Channels individually controlled and protected
Interlock capability
48 V Service local and remote on/off
Screw Lock output connectors

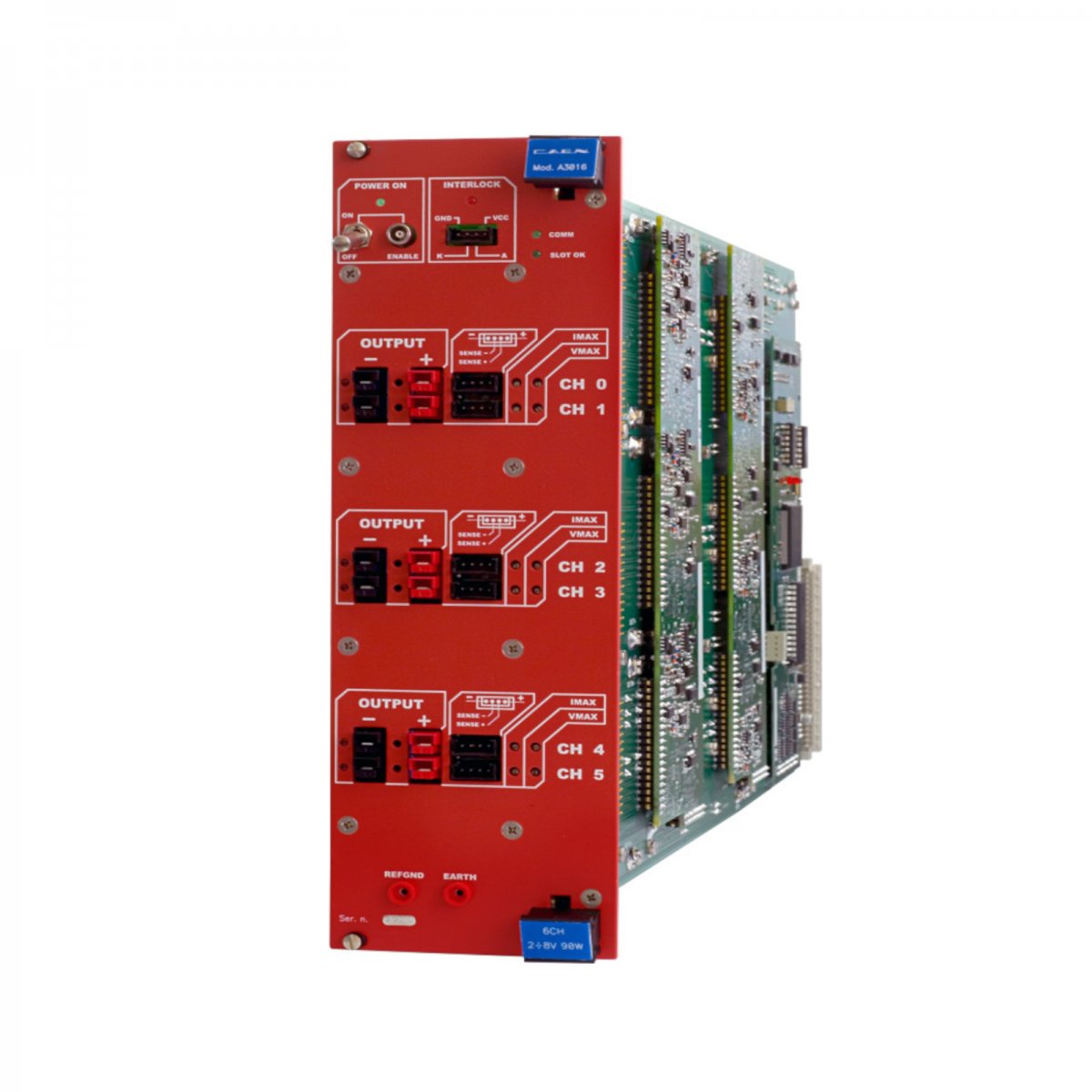

The CAEN Mod. A3016B is a 6 Channel 8 V / 16 A Power Supply Board, developed for operation in magnetic field and moderate radioactive environment. Each A3016B houses six floating channels with reversible polarity, each rated 8 V / 16 A with a maximum output power of 90 W. The output voltage range at the connector is 2 ÷ 8 V, with 5 mV monitor resolution, and channel control includes various alarms and protections.
The outputs are available on a screw lock connector, a right-angle 64-position header with 2.54 mm pitch dedicated to the Mod. A3016B. For further technical details, please refer to our connectors reference page.
The board is provided with Remote Sensing Lines that compensate for the voltage drop over the connection cables.
Its safety features allow the module to perform as a current generator. All channels can be enabled or disabled through the Global Interlock logic. An Overvoltage or Undervoltage warning is issued when the output voltage differs from the programmed value by more than 3% of the voltage full scale range.
When a channel attempts to exceed the programmed current limit, Overcurrent detection signals it as being in “overcurrent” and puts it into TRIP status. The output voltage is then varied to keep the current below the programmed limit for a programmable TRIP time, after which the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Finally, the Hardware VMAX and IMAX values, which set the maximum output voltage and the maximum current, can be fixed via software with 5 mV resolution, and the output voltage cannot be programmed beyond this value.
|
|
Name
|
No. of Channels
|
Connectors
|
No. max of boards per crate
|
Width (slots)
|
Max power per channels
|
Iset/Imon resolution
|
Vset/Vmon resolution (mV)
|
Current Full Scale (A)
|
Voltage full Scale (V)
|
Max Ripple (mVpp)
|
|
|
New A5001 |
32 |
RJ45 |
10 |
2 |
1.3 W |
10 μA |
1 |
0.260 |
0 ÷ 5 |
20 |
|
|
New A5009 |
12 |
APP30 |
5 |
4 |
45 W |
10 mA |
5 |
9.3 |
1.5 ÷ 9.3 |
20 |
|
|
A3602 |
3 |
DB37 |
10 |
2 |
35 W |
10 mA |
5 |
5 |
2 ÷ 7 |
5 |
|
|
A3025B |
4 |
Brass hexagon head bolt |
5 |
4 |
150 W |
100 mA |
5 |
25 |
2 ÷ 8 |
10 |
|
|
A3016 |
6 |
APP 1317G4 |
5 |
4 |
90 W |
10 mA |
5 |
16 |
2 ÷ 8 |
20 |
|
|
A3050B |
2 |
Brass hexagon head bolt |
5 |
4 |
300 W |
100 mA |
5 |
50 |
2 ÷ 8 |
10 |
|
|
A3100 |
1 |
APP PC5933T |
5 |
4 |
600 W |
100 mA |
5 |
100 |
2 ÷ 8 |
10 |
|
|
A3050 |
2 |
APP PC5933T |
5 |
4 |
300 W |
100 mA |
5 |
50 |
2 ÷ 8 |
10 |
|
|
A3025 |
4 |
APP PC5933T |
5 |
4 |
150 W |
100 mA |
5 |
25 |
2 ÷ 8 |
10 |
|
|
New A3100HBP |
1 |
Brass hexagon head bolt |
5 |
4 |
600 W |
100 mA |
10 |
50 |
8 ÷ 14 |
10 |
|
|
A3006 |
6 |
APP 1317G4 |
5 |
4 |
90 W |
10 mA |
10 |
6 |
4 ÷ 16 |
20 |
|
|
A3016B |
6 |
Brass hexagon head bolt |
5 |
4 |
90 W |
10 mA |
5 |
16 |
2 ÷ 8 |
20 |
|
|
A3100B |
1 |
Brass hexagon head bolt |
5 |
4 |
600 W |
100 mA |
5 |
100 |
2 ÷ 8 |
10 |
|
No. of Channels |
6 |
|
Polarity |
Reversible |
|
Output Voltage |
2 ÷ 8 V (connector output) |
|
Max. Output Current |
16 A |
|
Voltage Set/Monitor Resolution |
10 mV |
|
Current Set/Monitor Resolution |
10 mA |
|
VMAX hardware |
2 ÷ 8 V |
|
VMAX software |
2 ÷ 8 V |
|
VMAX software resolution |
10 m V |
|
Voltage Ripple |
<20 mV pp on 10 µF // 0.1 µF 10Hz-15MHz |
|
Voltage Monitor vs. Output Voltage Accuracy |
max. ±30 mV ±0.3% of reading |
|
Voltage Set vs. Output Voltage Accuracy |
max. ±30 mV ±0.3% of reading |
|
Current Monitor vs. Output Current Accuracy |
± 0.05A ± 2% of reading |
|
Current Set vs. Output Current Accuracy |
± 0.05A ± 2% of reading |
|
Load Regulation |
|
|
Output Power (per Channel) |
90 W |
|
Test Set Up |
|
