HV Adapters
Power Supplies Accessories

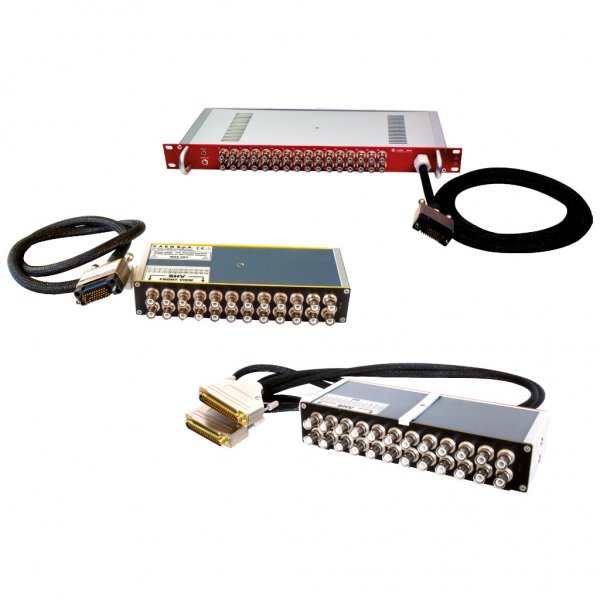

A1015x – A64x – R64x is a family of cable adapter that allows to adapt the high density SY boards connectors (DB37 and Radiall 52) to the SHV one. Available in Desktop and Rack form factor and can accommodate 12, 24, 32, 36 or 48 channels.
-
DB37 and Radiall to SHV
-
INTERLOCK and SHIELD connection provided
-
Desktop and Rack form factor
HV Adapters Models
A1015

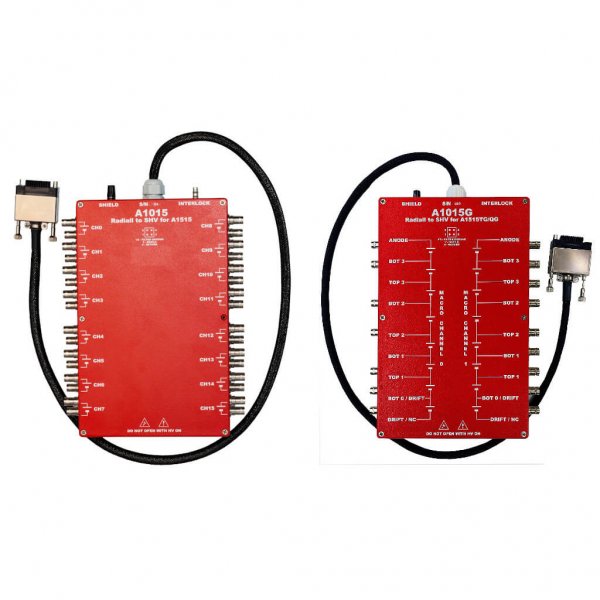

16 Floating Channel Multipin Radiall to SHV connector Adapter for A1515 board
R649
32 Channel Radiall to SHV connector Adapter (Max: 3 kV - 19' Rack)
A646
12 Channel DB37 to SHV connector Adapter (Max: 500 V - Desktop)
A1015G
14/16 Stacked Channel Multipin Radiall to SHV connector Adapter for A1515TG/A1515QG
A648
36-48 Channel Multipin Radiall to SHV connector Adapter (Max: 3 kV - Desktop)
A649B
32 Channel Multipin Radiall to SHV connector Adapter (Max: 8kV - Desktop)
R648
48 Channel Radiall to SHV connector Adapter (Max: 3 kV - 19' Rack)
R649B
32 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - 19' Rack)
A649
32 Channel Multipin Radiall to SHV connector Adapter (Max: 3 kV - Desktop)
A647
24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - Desktop)
R647
24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - 19'' Rack)
Image |
Name
|
No. of Channels |
Form Factor |
In Connectors |
Out Connectors |
Maximum Voltage |
Cable length | |
 |
A1015 |
16 |
Desktop |
Multipin |
SHV |
5 kV |
HV type, shielded, ~100cm | |
 |
R649 |
32 |
19’’ Rack |
Multipin |
SHV |
3 kV |
HV type, shielded, ~200cm | |
 |
A646 |
12 |
Desktop |
DB37 |
SHV |
500 V |
HV type, shielded, ~100cm | |
 |
A1015G |
14/16 |
Desktop |
Multipin |
SHV |
5 kV |
HV type, shielded, ~100cm | |
 |
A648 |
36/48 |
Desktop |
Multipin |
SHV |
3 kV |
HV type, shielded, ~100cm | |
 |
A649B |
32 |
Desktop |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm | |
 |
R648 |
36/48 |
19’’ Rack |
Multipin |
SHV |
3 kV |
HV type, shielded, ~150cm | |
|
R649B |
32 |
19” Rack |
Multipin |
SHV |
8 kV |
HV type, shielded, ~200cm | |
 |
A649 |
32 |
Desktop |
Multipin |
SHV |
3 kV |
HV type, shielded, ~100cm | |
 |
A647 |
24 |
Desktop |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm | |
 |
R647 |
24 |
19’’ Rack |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm |
