- Desktop, Aluminium case
- 220 x 80 x 44 mm3
- Weight ~2 kg
- 52-pin Radiall input connector
- Radiall SHV output connectors (HV coaxial)
- Up to 3 kV

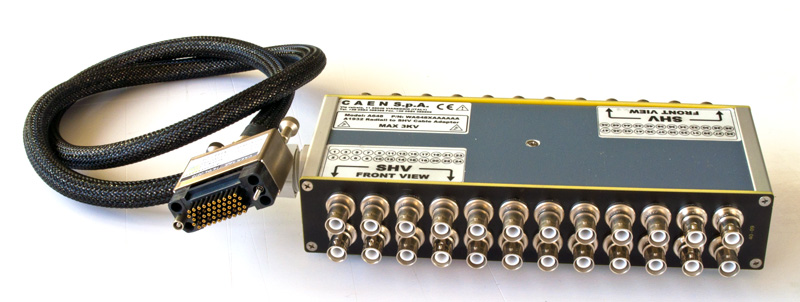

The A648 Multipin to SHV Adapter features:
-
Fits one Radiall 691803004-type Multipin connector into 48 Radiall R317580-type SHV connectors; it is suitable for both 36 and 48 channels boards.
-
INTERLOCK and SHIELD connections are provided through LEMO connectors.
-
Maximum input voltage: 3 kV
-
Desktop mechanic
-
Boards Supported:
-
A7030 12/24/36/48 Channel 3 kV/1 mA (1.5W) Common Floating Return Boards
-
AG7030 12/24/36/48 Channel 3 kV/1 mA (1.5W) Common Ground Boards
-
You also may be interested in…
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Form Factor
|
In Connectors
|
Out Connectors
|
Maximum Voltage
|
Cable length
|
|
|
A1015 |
16 |
Desktop |
Multipin |
SHV |
5 kV |
HV type, shielded, ~100cm |
|
|
R649 |
32 |
19’’ Rack |
Multipin |
SHV |
3 kV |
HV type, shielded, ~200cm |
|
|
A646 |
12 |
Desktop |
DB37 |
SHV |
500 V |
HV type, shielded, ~100cm |
|
|
A1015G |
14/16 |
Desktop |
Multipin |
SHV |
5 kV |
HV type, shielded, ~100cm |
|
|
A648 |
36/48 |
Desktop |
Multipin |
SHV |
3 kV |
HV type, shielded, ~100cm |
|
|
A649B |
32 |
Desktop |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm |
|
|
R648 |
36/48 |
19’’ Rack |
Multipin |
SHV |
3 kV |
HV type, shielded, ~150cm |
|
|
|
R649B |
32 |
19” Rack |
Multipin |
SHV |
8 kV |
HV type, shielded, ~200cm |
|
|
A649 |
32 |
Desktop |
Multipin |
SHV |
3 kV |
HV type, shielded, ~100cm |
|
|
A647 |
24 |
Desktop |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm |
|
|
R647 |
24 |
19’’ Rack |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm |
Technical Specifications
|
Mechanics |
Desktop; aluminium case; 220x80x44mm3; weight ~1.1kg |
|
Input connector |
2x ITT Cannon DCM-37P (DB37 Male) |
|
Output connectors |
Radiall SHVR317580-type HV coaxial |
|
Shield |
2x 00-type LEMO connectors; insert 0Ohm termination to short SHV Rtn with Shield Pin of the ITT Cannon DCM-37P (see also board manual) |
|
Cable |
HV type, shielded, ~100cm length |
|
Maximum ratings |
500V |
