Desktop, Aluminium case
-
220 x 80 x 44 mm3
-
Weight ~1.7 kg
-
52-pin Radiall input connector
-
Radiall SHV output connectors (HV coaxial)
-
Up to 3 kV

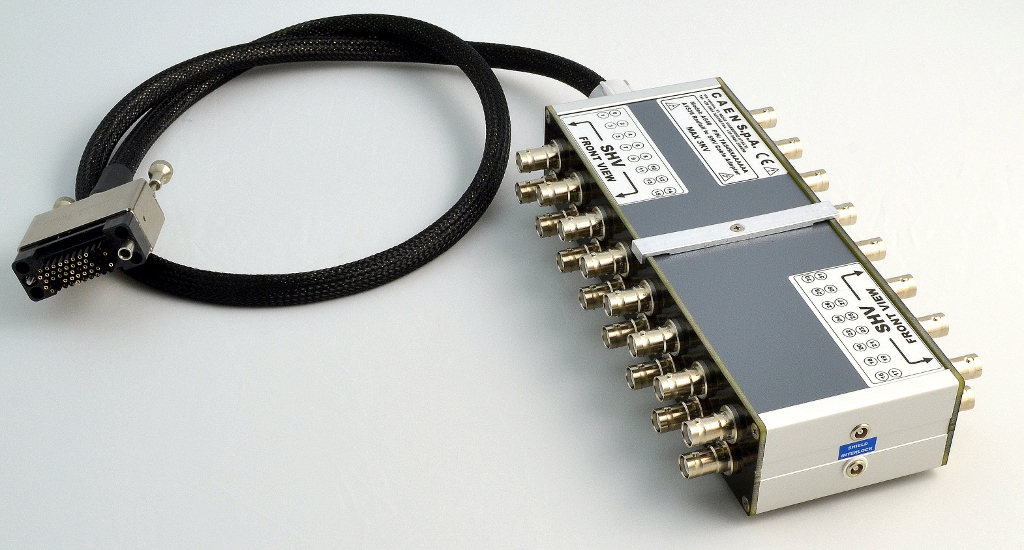

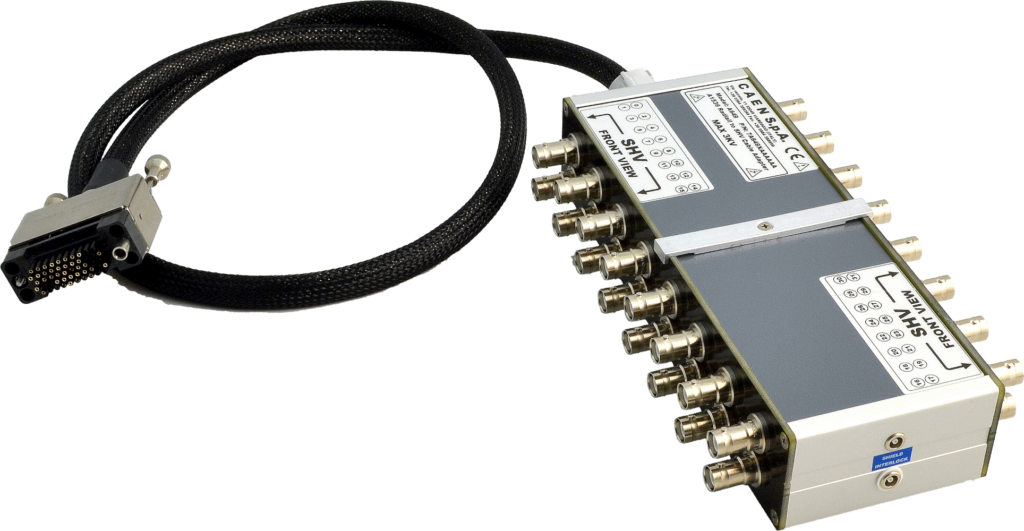

The A649 Multipin to SHV Adapter features:
-
Fits one Radiall 691803004-type Multipin connector into 32 Radiall R317580-type HV coaxial connectors
-
INTERLOCK and SHIELD connections are provided through LEMO connectors
-
Maximum input voltage: 3 kV
-
Desktop mechanic
-
Boards Supported:
-
A1536 12/24/32 Channel 3 kV/1 mA Common Floating Return Boards
-
AG536 12/24/32 Channel 3 kV/1 mA Common Ground Boards Board
-
A1536H 12/24/32 Channel 3 kV, 1 mA/100 µA Common Floating Return Dual Range Boards
-
A7236 12/24/32 Channel 3.5 kV, 1.5/0.15 mA (4W) Common Floating Return Dual Range Boards
-
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Form Factor
|
In Connectors
|
Out Connectors
|
Maximum Voltage
|
Cable length
|
|
|
A1015 |
16 |
Desktop |
Multipin |
SHV |
5 kV |
HV type, shielded, ~100cm |
|
|
R649 |
32 |
19’’ Rack |
Multipin |
SHV |
3 kV |
HV type, shielded, ~200cm |
|
|
A646 |
12 |
Desktop |
DB37 |
SHV |
500 V |
HV type, shielded, ~100cm |
|
|
A1015G |
14/16 |
Desktop |
Multipin |
SHV |
5 kV |
HV type, shielded, ~100cm |
|
|
A648 |
36/48 |
Desktop |
Multipin |
SHV |
3 kV |
HV type, shielded, ~100cm |
|
|
A649B |
32 |
Desktop |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm |
|
|
R648 |
36/48 |
19’’ Rack |
Multipin |
SHV |
3 kV |
HV type, shielded, ~150cm |
|
|
|
R649B |
32 |
19” Rack |
Multipin |
SHV |
8 kV |
HV type, shielded, ~200cm |
|
|
A649 |
32 |
Desktop |
Multipin |
SHV |
3 kV |
HV type, shielded, ~100cm |
|
|
A647 |
24 |
Desktop |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm |
|
|
R647 |
24 |
19’’ Rack |
Multipin |
SHV |
8 kV |
HV type, shielded, ~100cm |
