V2495

Programmable Logic Unit PLUS

Datasheet

Home Modular Pulse Processing ElectronicsDigitalCoincidence/Logic/Trigger Units V2495

User customisable FPGA Unit
LVDS/ECL/PECL inputs (differential)
64 inputs, expandable to 162 (with 32 outputs)
32 outputs, expandable to 130 (with 64 inputs)
32 independent programmable Gate and Delay Generators
3 expansion slots for piggyback board
Mini-USB 2.0 Connection
Available in Desktop version DT5495

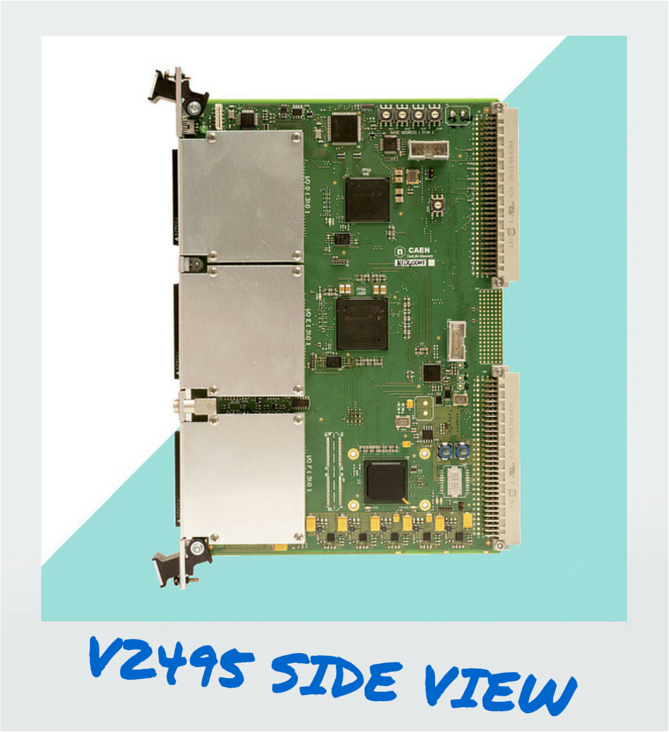

The CAEN Mod.V2495 is a general purpose programmable FPGA and I/O unit housed in a 1-unit wide VME 6U module. The board is a suitable solution for the implementation of digital functions such as Coincidence, Trigger Logic, Gate and Delay generator, Input/Output Register and more.

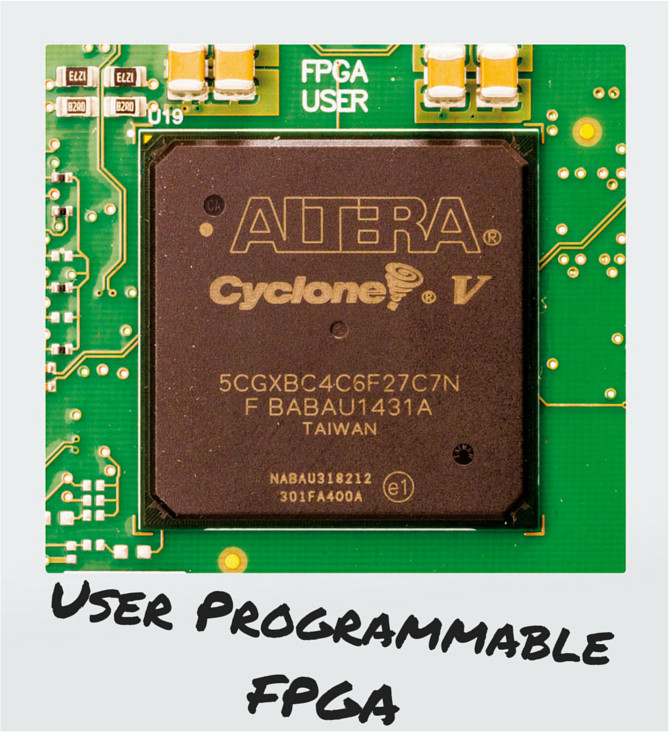

The architecture of the V2495 is based on the User FPGA (Altera Cyclone V 5CGXC4, 50K Logic Elements) which is directly interfaced to the front panel I/Os (up to 162 inputs and up to 130 outputs) and to an internal local bus.
The V2495 can be controlled and programmed “on the fly” via the VME Bus or directly through the Mini-USB connector on the front panel. A Software tool is provided for free to easily upload the custom Firmware on the User FPGA.

The V2495 is also completed by 32 internal delay lines that can be used to generate programmable gate and delay signals. The channel interface can be freely expanded by adding up to three independent piggyback boards (there are 3 expansion slots interfaced to the User FPGA), choosing between the five available types:

A395A 32 LVDS/ECL/PECL input channels
A395B 32 LVDS output channels
A395C 32 ECL output channels
A395D 8 NIM/TTL input/output channels
A395E 8 Analog output 16 bit channels

Therefore, the Mod. V2495 can achieve a maximum number of 194 I/O channels.

Model Compare:

Piggyback	A395A	A395B	A395C	A395D	A395E
No. of channels	32	32	32	8	8
Channel type	Digital Input	Digital Output	Digital Output	Digital I/O selectable	Analog Output
Description	Differential LVDS/ECL/PECL	Differential LVDS	Differential ECL	NIM/TTL	16 bit resolution Output range: ± 5V @10 Ω RL ± 4V @200 Ω RL
Note	single ended TTL optional	LVDS 100 Ω RI	ECL	NIM/TTL selectable 50 Ω Rt	DAC board equipped with DT5495 – Vx495 Firmware and VHDL source for custom development
Bandwidth	200 MHz	250 MHz	300 MHz	250 MHz	–
Front panel connector	3M P50E-068-P1-SR1 type (34+34) pins	3M P50E-068-P1-SR1 type (34+34) pins	3M P50E-068-P1-SR1 type (34+34) pins	LEMO 00	LEMO 00

FW2495SC is a FPGA firmware that allows to use the Mod. V2495 as a Multievent latching scaler housing up to 160 independent counting channels (this maximum number of channels is achieved if the V2495 is expanded with three A395A boards).

Ordering Options

Code	Description
WK2495KITPRO	V2495 + SW555PRO – Programmable Logic Unit & Sci-Compiler PRO Bundle Kit (Obsolete)	RoHS
WV2495XAAAAA	V2495 – Programmable Logic Unit PLUS	RoHS

Code

Description

WK2495KITPRO

V2495 + SW555PRO – Programmable Logic Unit & Sci-Compiler PRO Bundle Kit

(Obsolete)

RoHS

WV2495XAAAAA

V2495 – Programmable Logic Unit PLUS

RoHS

Add to Wishlist

Request a Quote

Image	Name	Package	Function	Inputs per Section	Outputs per Section	I/O Delay (ns)	Input Bandwidth (MHz)	Majority	Strobe/ Veto	Connectors	No. of Sections
	N405	NIM	Logic Unit	4 NIM	2+/1 NIM, NIM Linear	< 14	100	Yes	yes	LEMO	3
	New DT1081B	Desktop	Programmable Logic Unit	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	Coming Soon DT1082	Desktop	Open FPGA	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	DT5495	Desktop	Programmable Trigger Unit FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/ PECL/ LVDS+2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS+2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Yes	Yes	Robinson Nugent Flat/LEMO	1
	Coming Soon N1082	NIM	Open FPGA	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	N455	NIM	OR / AND	2 NIM	3+/1 NIM, 1 NIM Overlap	< 16	130	No	Yes	LEMO	4
	V976	VME	Logic Unit	4 NIM/TTL	4 NIM/TTL	< 9	150	Yes	No	LEMO	4
	N1081B	NIM	Programmable Logic Unit	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	V2495	VME	Programmable Trigger Unit FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/ PECL/ LVDS+2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS+2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Yes	Yes	Robinson Nugent Flat/LEMO	1
	N113	NIM	OR	12 NIM	2 NIM	< 10	130	No	Yes	LEMO	2

Image	Name	Package	No. of Sections	Function	Inputs per Section	Outputs per Section	In Connectors	Out Connectors
	DT5495	Desktop	1	Programmable I/O register FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/PECL/LVDS +2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS +2 bidirectional NIM/TTL (expandable up to 130)	Robinson Nugent Flat/LEMO	Robinson Nugent Flat/LEMO
	V977	VME	1	Pattern Unit, I/O register	16 NIM / TTL	16 NIM / TTL	LEMO	LEMO
	V2495	VME	1	Programmable I/O register FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/PECL/LVDS +2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS +2 bidirectional NIM/TTL (expandable up to 130)	Robinson Nugent Flat/LEMO	Robinson Nugent Flat/LEMO

Image	Name	Package	Function	Inputs per Section	Outputs per Section	I/O Delay (ns)	Input Bandwidth (MHz)	Majority	Strobe/ Veto	Connectors	No. of Sections
	New DT1081B	Desktop	Programmable Logic Unit	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	Coming Soon DT1082	Desktop	Open FPGA	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	DT5495	Desktop	Programmable Trigger Unit FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/ PECL/ LVDS+2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS+2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Yes	Yes	Robinson Nugent Flat/LEMO	1
	Coming Soon N1082	NIM	Open FPGA	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	N1081B	NIM	Programmable Logic Unit	6 NIM/TTL	4 NIM/TTL	20	n.a.	Yes	Yes	LEMO	4
	V2495	VME	Programmable Trigger Unit FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/ PECL/ LVDS+2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS+2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Yes	Yes	Robinson Nugent Flat/LEMO	1

Image	Name	Package	No. Of Sections	Function	Inputs per Section	Outputs per Section	I/O delay (ns)	Input Bandwidth (MHz)	In Conn.	Out Conn.
	DT5495	Desktop	1	Depending on board configuration	64 ECL/PECL/LVDS +2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS+2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Robinson Nugent Flat/ LEMO	Robinson Nugent Flat/ LEMO
	N89	NIM	2	NIM to TTL; TTL to NIM	4 + 4	4 + 4	< 10	60 / 40	LEMO	LEMO
	V538A	VME	1	NIM to ECL/NIM; ECL to NIM/ECL	8 NIM / 8 ECL	2x8 NIM / 2x8 ECL	< 3	300	LEMO / Std. Flat	LEMO / Std. Flat
	V2495	VME	1	Depending on board configuration	64 ECL/PECL/LVDS +2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS+2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Robinson Nugent Flat/ LEMO	Robinson Nugent Flat/ LEMO
	N638	NIM	2	NIM to ECL/NIM; ECL to NIM/ECL	8 NIM / 8 ECL	2x8 NIM / 8 ECL	< 3.5	300	LEMO / Std. Flat	LEMO / Std. Flat

Image	Name	Package	No. of Sections	Type	Inputs per Section	Outputs per Section	I/O Delay (ns)	Input Bandwidth (MHz)	Connectors
	New DT1081B	Desktop	null	Logic	6 NIM/TTL	4 NIM/TTL	20	n.a.	LEMO
	DT5495	Desktop	null	Logic User-customizable FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/PECL/LVDS +2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS +2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Robinson Nugent Flat/LEMO
	V925	VME	null	Linear	3x4+1x3 Bipolar	3x4+1x3 Bipolar	< 4	120	LEMO
	N1081B	NIM	null	Logic	6 NIM/TTL	4 NIM/TTL	20	n.a.	LEMO
	V2495	VME	null	Logic User-customizable FPGA: Cyclone V 5CGXC4 (50 K LEs)	64 ECL/PECL/LVDS +2 bidirectional NIM/TTL (expandable up to 162)	32 LVDS +2 bidirectional NIM/TTL (expandable up to 130)	n/a	Section A/B: 200, Section C/D: 250	Robinson Nugent Flat/LEMO
	N625	NIM	null	Linear	4 Bipolar	4 Bipolar	< 4	100	LEMO
	N454	NIM	null	Logic	4 NIM	4+/2 NIM	< 8	100	LEMO

Form Factor

1-unit wide, 6U high VME64

I/O Sections A and B

Nr. of Channels

Logic

Direct

Bandwidth

200 MHz

Direction

Input

Front Panel Connector

Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins

Signal

Differential LVDS/ECL/PECL
(single ended TTL optional)
Zdiff: 100 Ω
Extended Common Mode Input range: -4V to +5V
Fail Safe input feature

I/O Section C

Nr. of Channels

32 channels

Signal

Differential LVDS
Require 100 Ω termination

Logic

Direct

Direction

Output

Front Panel Connector

Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins

Bandwidth

250 MHz

I/O Section G

Nr. of Channels

32 channels

Signal

Single ended NIM/TTL selectable
Oprn 50 Ω termination selectable

Logic

TTL IN = Direct
TTL OUT = Direct
NIM IN = Invert
NIM OUT = Direct

Direction

I/O selectable

Front Panel Connector

LEMO 00

Bandwidth

250 MHz

Gate and Delay Generator

	Min.	Typ.	Max.
Minimum Delay/Gate	9.6 ns	10.7 ns	11.8 ns
Maximum Delay/Gate	631 μs	701.2 μs	771.5 μs
Maximum channel-to-channel spread	20%

Power Requirements

1.0A (max.) @ +5V
+12V and -12V rails are not used

A395A Mezzanine Board

No. of channels	32
Direction	Input
Logic	Direct
Signal	Differential LVDS/ECL/PECL (single ended TTL optional) Zdiff: 100 Ω Extended Common Mode input range: -4V to +5V Fail Safe input feature
Bandwidth	200 MHz
Front Panel Connector	Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions	0.1 A (max) @ +5V internal power supply; +12V and -12V power supply are not used

A395B Mezzanine Board

No. of channels	32
Direction	Output
Logic	Direct
Signal	Differential LVDS Requires 100 Ω termination
Bandwidth	250MHz
Front Panel Connector	Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions	0.1 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

A395C Mezzanine Board

No. of channels	32
Direction	Output
Logic	Direct
Signal	Differential ECL
Bandwidth	300 MHz
Front Panel Connector	Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions	1.4 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

A395D Mezzanine Board

No. of channels	8
Direction	Output
Logic	I/O selectable
Signal	selectable TTL/NIM: TTL IN = Direct TTL OUT = Direct NIM IN = Invert NIM OUT = Direct
Bandwidth	250MHz
Front Panel Connector	LEMO 00
Power Consumptions	1.1 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

A395E Mezzanine Board

No. of channels	8
Direction	Output
Logic	Analog
Signal	16-bit resolution ±5V @10kΩ RL ±4V @200Ω RL
Bandwidth	n.a.
Front Panel Connector	LEMO 00
Power Consumptions	0.3 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

Communication Interface

VME
VME64X compliant, Addressing space: A24, A32, Data Transfer mode: D16, D32, BLT32, Geographical addressing (VX2495), Multicast commands

USB
USB 2.0 compliant
