Set of functions for the control and the use of:
-
CAEN Digitizers families
-
CAEN Digital MCAs
-
CAEN Digital Pulse Analyzer DT5790
-
-
Available for C/C++ environment (Windows, Linux) and LabVIEW environment (Windows)
-
DPP firmware (PHA, PSD, CI and ZLEplus) managed
CAENDigitizer contains the functions to program CAEN boards like Digitizers, Digital MCAs and Digital Pulse Analyzers, to manage the acquisition, execute the readout, unpack the data, send triggers, etc. This library is designed specifically to support both Standard and DPP firmware.

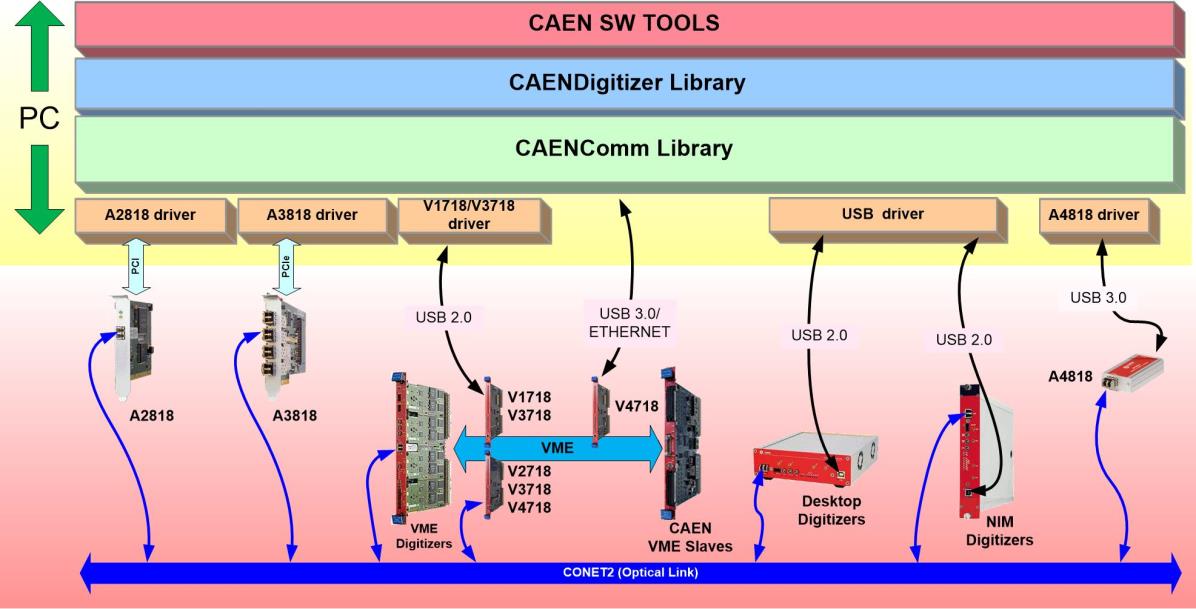

CAENDigitizer library relies on the CAENComm and CAEVMELib libraries, allowing to implement a common interface to the higher software layers, masking the details of the physical channel and its protocol. Libraries and applications that rely on the CAENDigitizer become this way independent from the physical layer.
|
Supported Operating Systems: |
Windows (32-64 bit), Linux (32-64 bit) |
|
Language: |
C, LabVIEW (Windows only) |
|
Supported Products: |
VME, NIM and Desktop digitizers(a), Digital MCAs and Digital Pulse Analyzer DT5790 |
|
Supported Comm. Interface: |
USB, Optical Link, VME |
|
Additional Software Required: |
CAENComm, CAENVMELib, NI LabVIEW Development System |
(a) The LabVIEW library doesn’t support 743 digitizer family and DPP-ZLEplus firmware.
You also may be interested in…
DT5751
DT5740

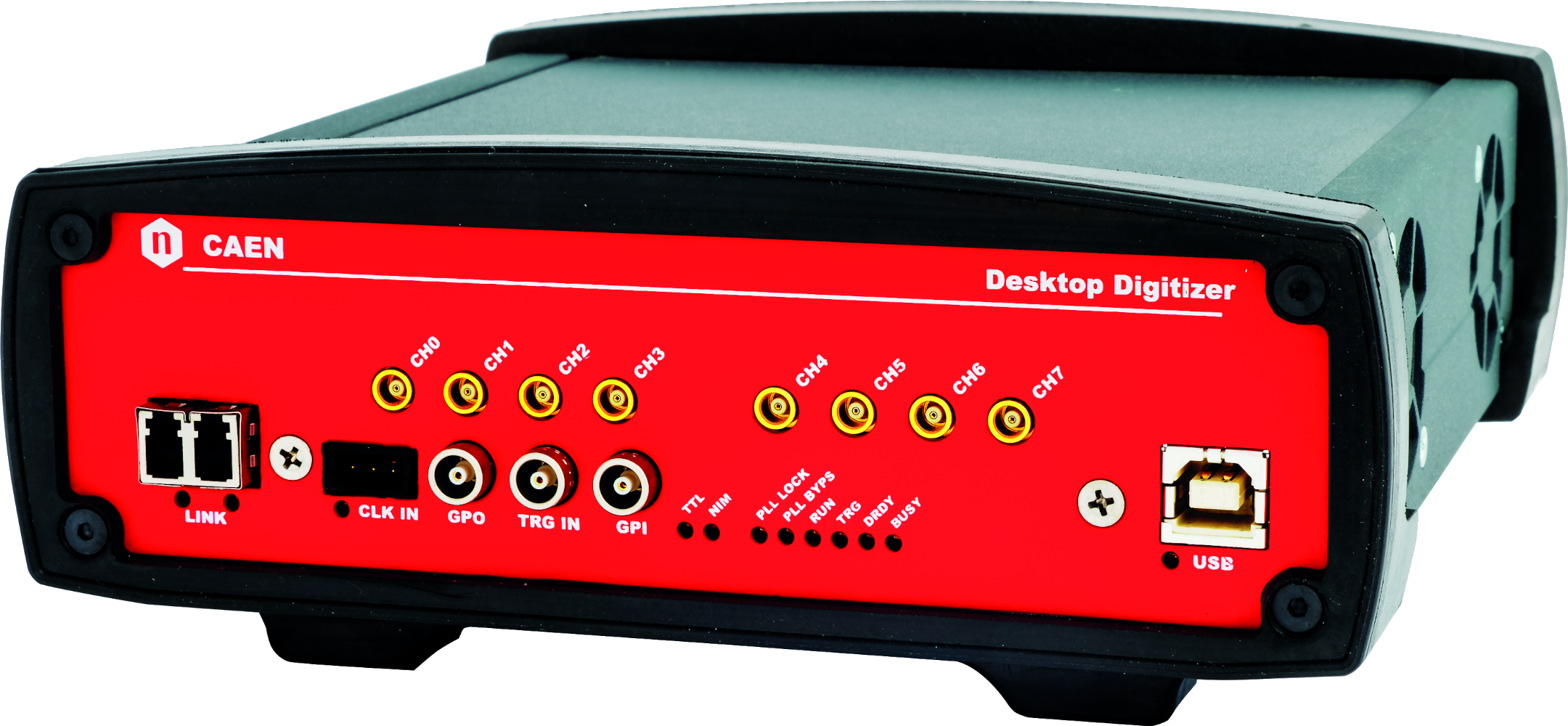

DT5743

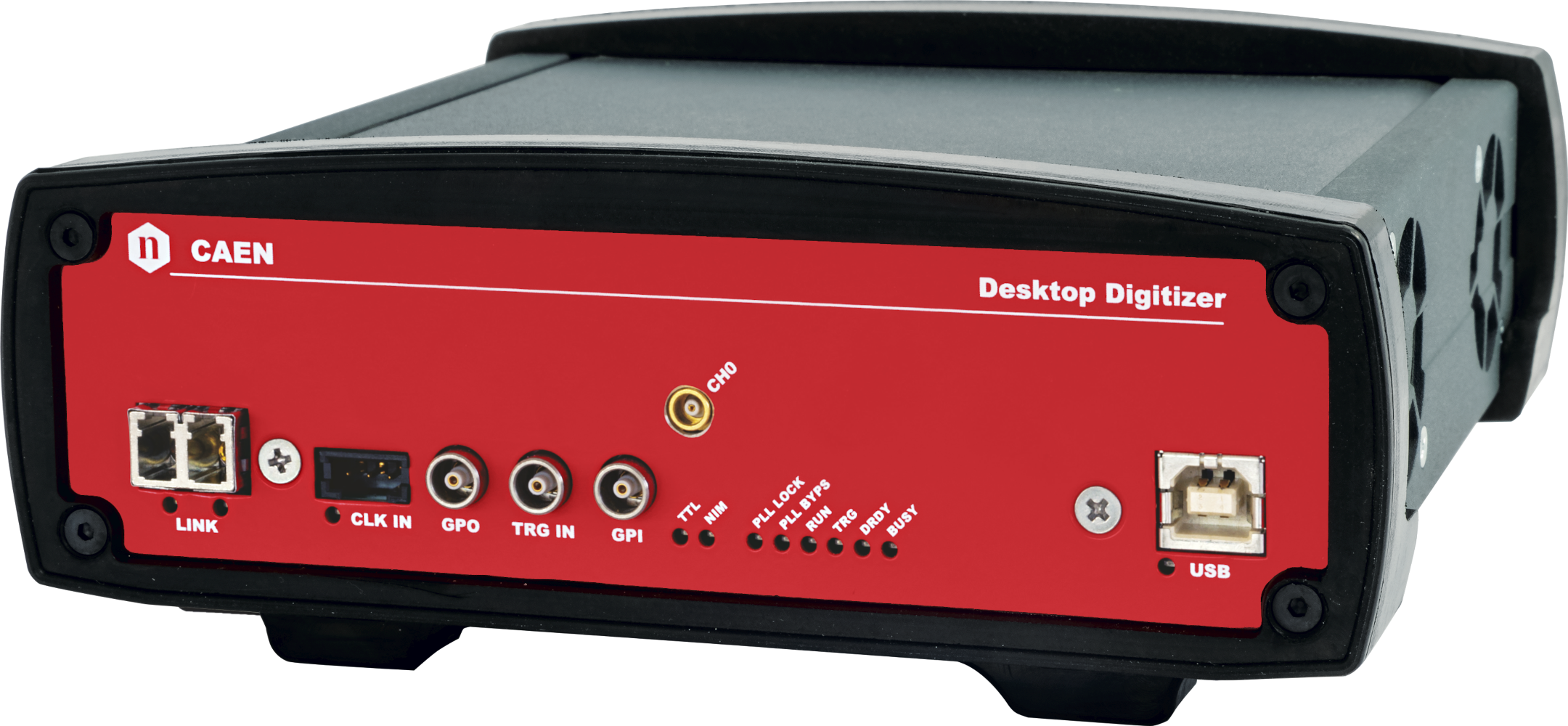

DT5761

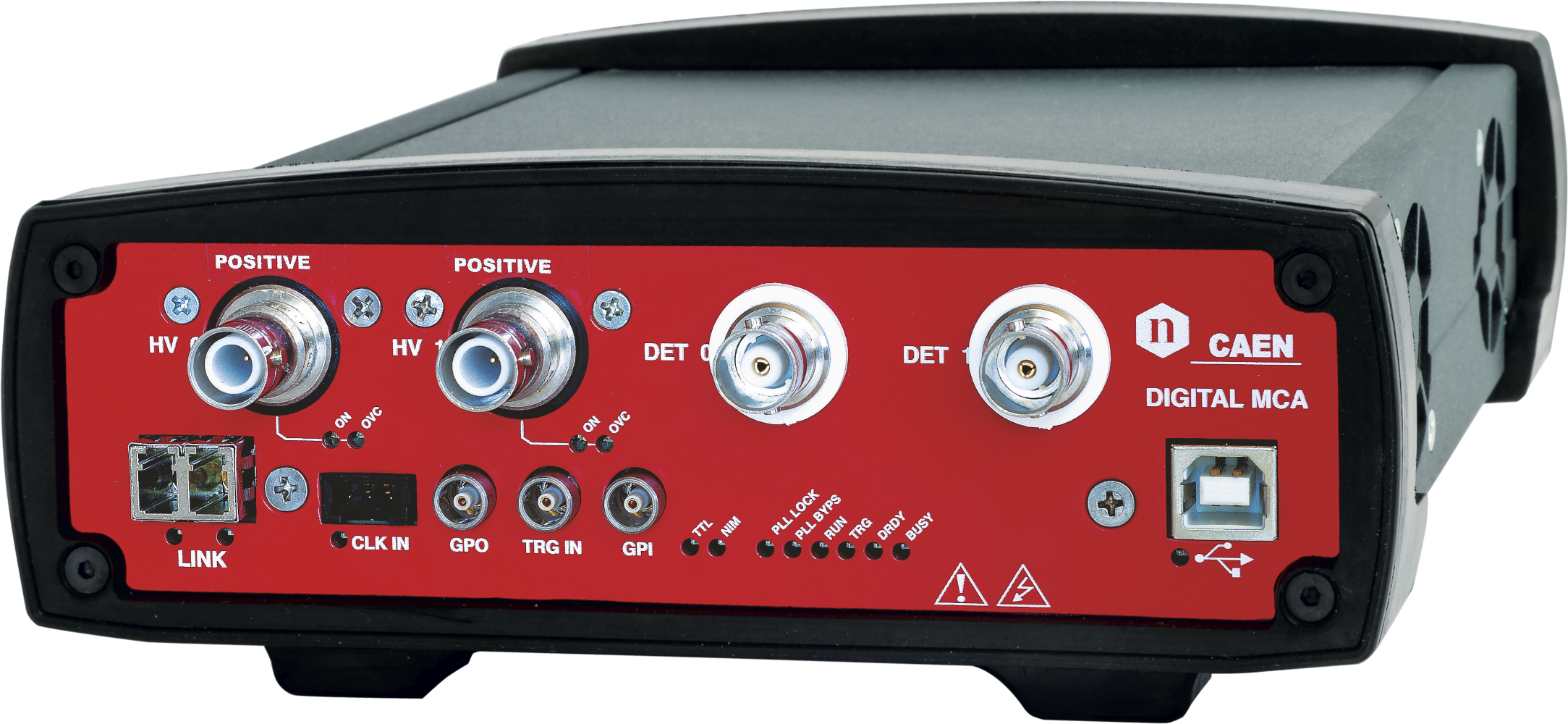

DT5780
DT5781
V1720
V1724

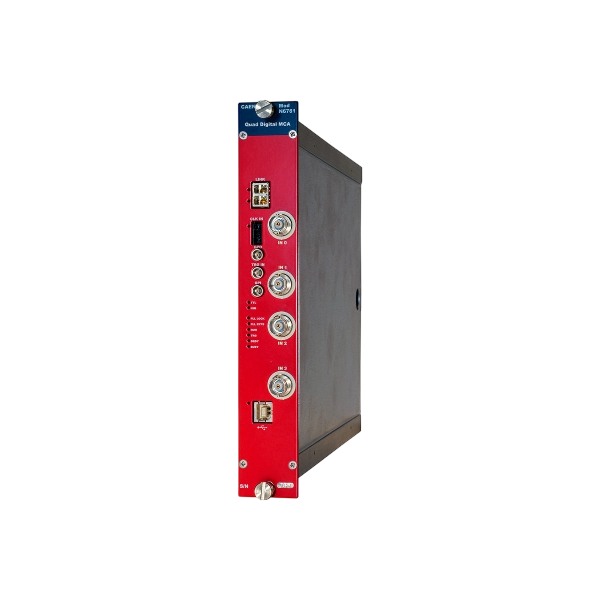

N6781
N6730 / N6730S

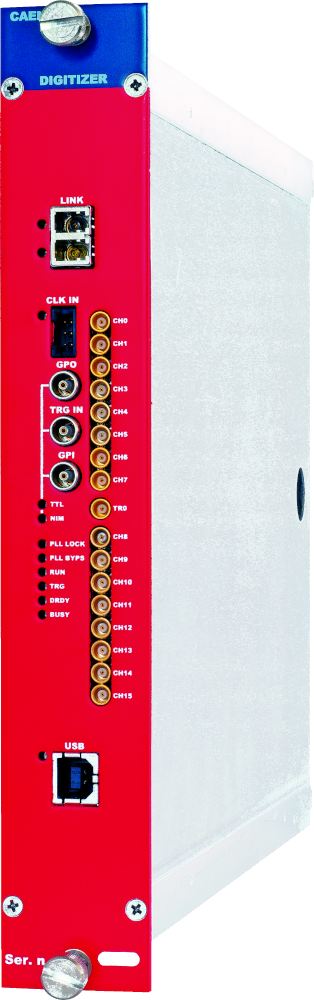

N6742
