CAENDPP Library

High level library for CAEN Digitizers running DPP firmware

Datasheet
Photo of CAENDPP Library
Photo of CAENDPP Library

  • High-level library to control CAEN digitizers running DPP-PHA firmware and Digital MCAs:

  • Single-board and multi-board support

  • Enhanced configuration, acquisition and spectra management

  • Configuration of synchronized start/stop acquisition (with different stop criteria)

  • Single-board coincidences/anticoincidences setting

  • Parameters preset algorithm

  • List (raw energy and time data) automatic saving

  • HV management (if supported by the board)

  • Available for C environment (Windows, Linux)

CAENDPP is a high level library designed to completely control exclusively CAEN digitizers running DPP-PHA firmware and Digital MCAs.

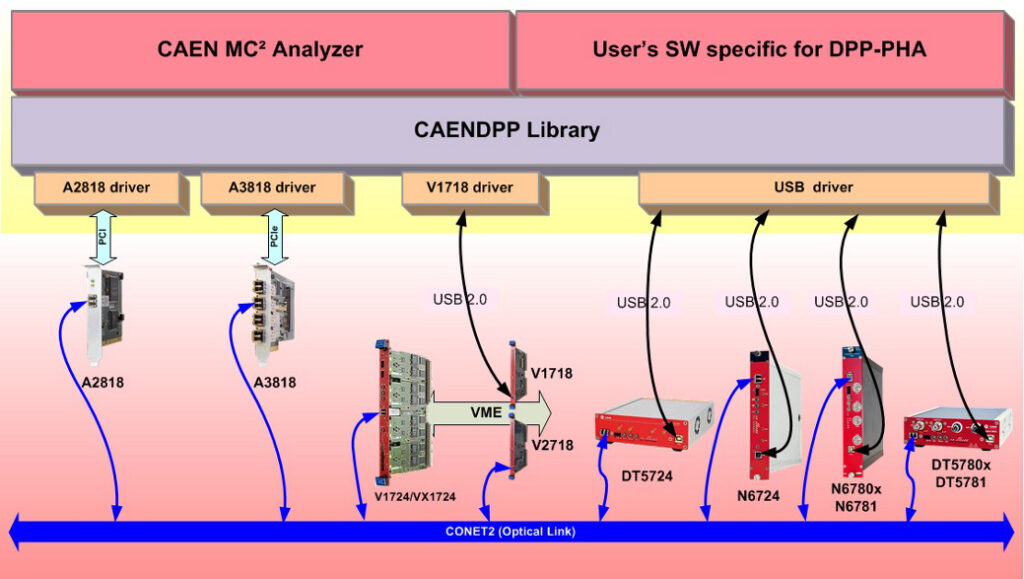

The library allows the user to manage all the relevant board settings, DPP parameters configuration, data acquisition storage. Configuration of synchronized start/stop acquisition is supported in multi-board hardware setup, as well as the single board can be configured for coincidences or anticoincidences among channels. Histograms are built at the library level and managed through specific library functions; other advanced histogram functionalities are provided (e.g. histogram recovery). Lists of data can be automatically saved to output files. HV management is also handled by the library, if supported by the board.
CAENDPP is provided with examples and Demo applications as reference for user development.

Supported Operating Systems:

Windows (32-64 bit), Linux (32-64 bit)

Language:

C

Supported Products:

VME, NIM and Desktop digitizers running DPP-PHA firmware, Digital MCAs, Hexagon, Gammastream, DT5770

Supported Comm. Interface:

USB, Optical Link, VME

Additional Software Required:

None (CAENDPP library is standalone; only the drivers for the communication link need to be installed apart by the user)
