Desktop form factor
-
Single slot for 1-unit VME 6U x 160mm modules
-
VME64 and VME64X power compliance (VME protocols not supported)
-
Low-noise air cooling system
-
Hardware selectable high and low fan speed
-
Mains powered 100 – 240 V AC (130 W) @ 50 / 60 Hz
-
19” rack mount kit included
The μ-Crate is a mains-powered (100 – 240 V AC (130 W) @ 50 / 60 Hz) desktop device with low-noise cooling vents system. The single-slot backplane is mechanically and electrically compliant to 1-unit VME 6U x 160mm modules in the VME64 and VME64X standards that meet the provided voltage and current specifications. Optional mounting into 19” racks is possible by metal brackets that are provided with the device.
According to the operating conditions, the User can manually set high and low fan speed level by hardware button.
You also may be interested in…
V1720
V1724
V1730 / V1730S
V1742

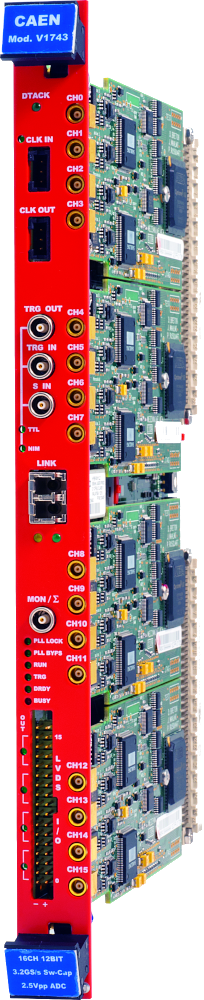

V1743
V1751
V1761
V2740
V2745
VX1720
VX1724
VX1725 / VX1725S
VX1730 / VX1730S
V1740
VX1742
VX1743
VX1751
VX1761
VX2740
VX2745
V1740D
V2495
VX1740
VX1740D
Request a Quote
Compare
|
|
Name
|
Package
|
No. of Slots
|
Width
|
Height
|
Backplane connectors
|
Pluggable power supply
|
Pluggable fan unit
|
Remote control
|
Output power
|
|
|
VME8008X |
VME64X |
8 (6U) |
19” |
4U |
VME64X J1/J0/J2 |
No |
No |
No |
450 W / 655 W |
|
|
VME8004B |
VME64 |
4 (6U) |
19" |
2U |
VME64 J1/J2 |
No |
No |
No |
365 W |
|
|
VME8001 |
VME64 |
2 (6U) |
19” |
1U |
VME64 J1/J2 |
No |
No |
No |
170 W |
|
|
VME8008B |
VME64 |
8 (6U) |
19” |
2U |
VME64 J1/J2 |
No |
No |
No |
490 W |
|
|
VME8004X |
VME64X |
4 (6U) |
19” |
4U |
VME64X J1/J0/J2 |
No |
No |
No |
450 W |
|
|
µ-crate |
VME64X |
1 (6U) |
34 cm |
96 mm |
VME64X J1/J2 |
No |
No |
No |
130 W |
Technical Specifications
|
Mechanical |
Desktop: 337 W x 96 H x 278 L mm³ (with no board in) |
|
Enviromental |
|
|
Max. output current |
|
|
Mains Input |
100 – 240 V AC (130 W) @ 50 / 60 Hz |
|
Cooling Airflow |
|
|
Regulatory |
|
|
Power Supply |
100/240V ~ 50 / 60Hz (130W max.) |
