DT2745

64 Channel 16 bit 125 MS/s Digitizer with Programmable Input Gain

Request a Quote Add to Wishlist

Home Modular Pulse Processing ElectronicsAnalogDigitizers DT2745

Datasheet Download Compare Tech. Spec.

Highlights

16-bit @ 125 MS/s ADC
64 analog inputs, differential or single-ended, on four 2mm 40-pin header connectors
Software selectable Analog Gain up to x100
Open FPGA programming through graphical tool SCI-Compiler
Wide range of applications (from Neutrino Physics & Dark Matter to Nuclear and Particle Physics to Spectroscopic Imaging)
Suited for signals from Semiconductor Detectors coupled with CSPs (Si, HPGe) or scintillators coupled with PMTs (NaI, CsI)
On-board firmware selection for different acquisition modes:
- Scope mode (simultaneous raw waveform acquisition on common trigger)
- DPP-PHA mode (pulse height and time acquisition on independent channel self-triggers)
- DPP-PSD mode (pulse shape discrimination and time acquisition on independent channel self-triggers)
- Predisposition for other algorithms like zero suppression and data reduction
Multi-board synchronization and system building capabilities

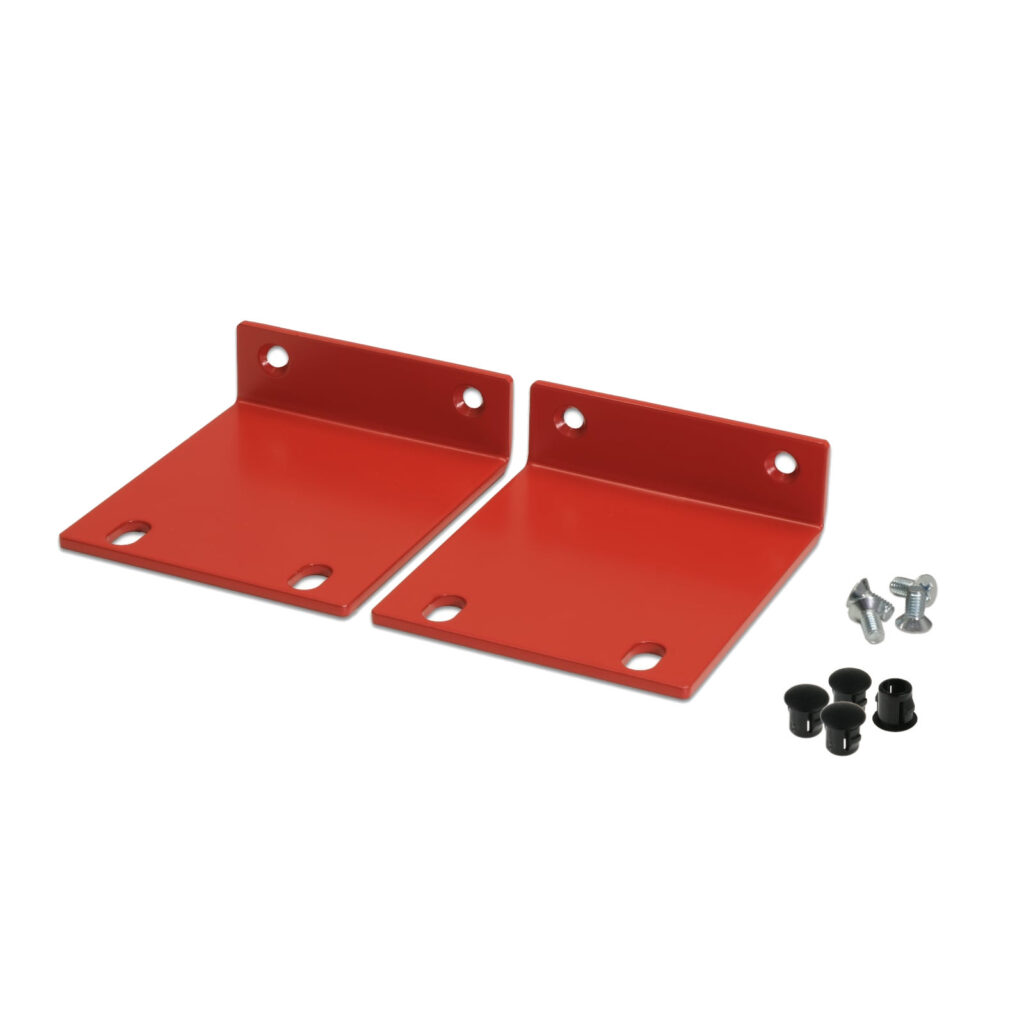

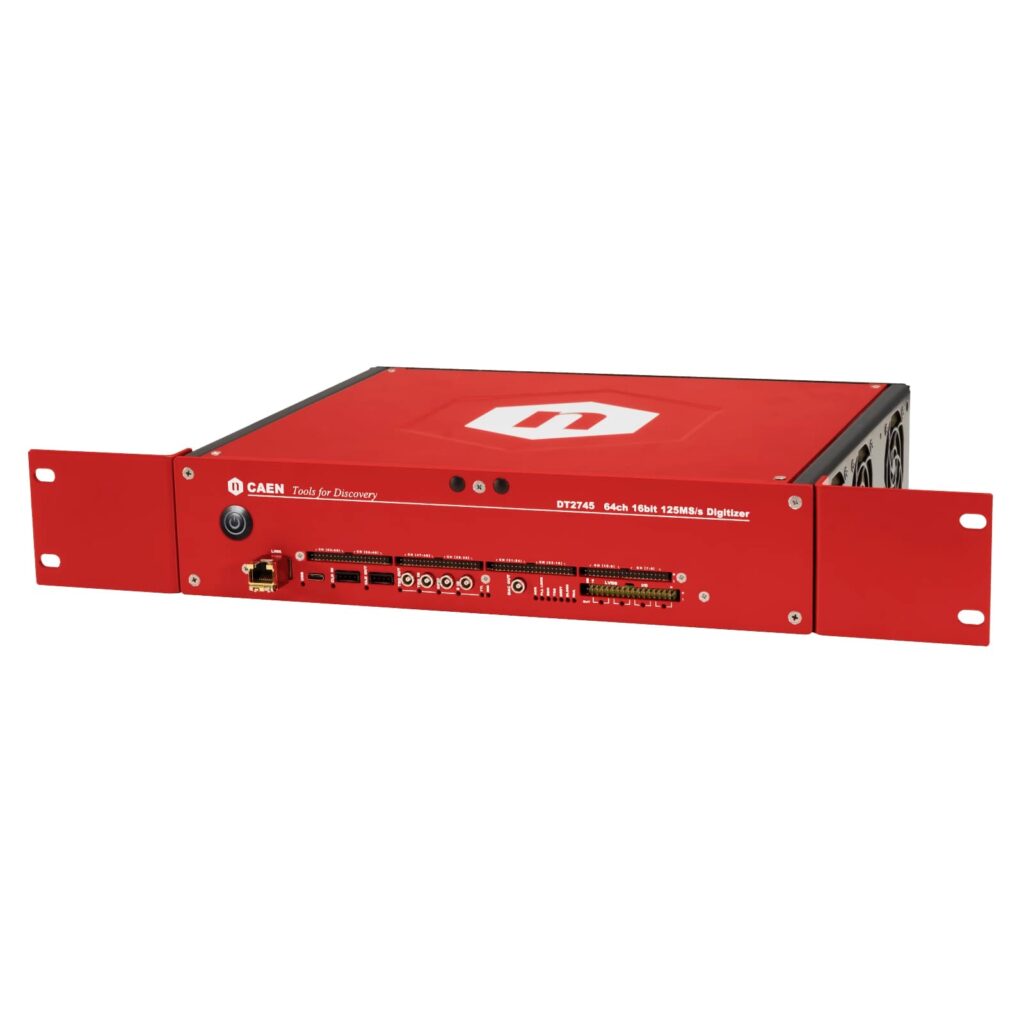

Rack mount brackets included

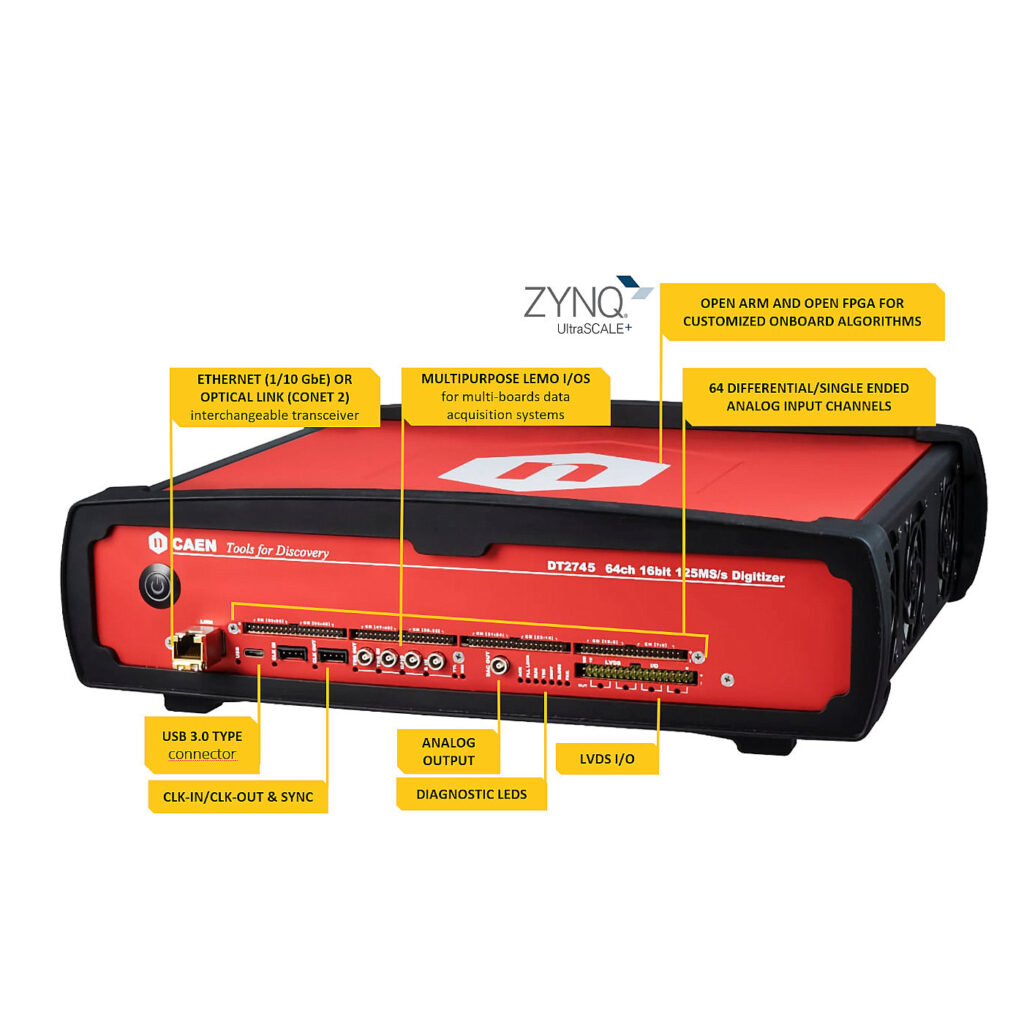

Front panel fully programmable I/Os (4 LEMO TTL/NIM and 16 LVDS)
Special 125MS/s 14bit DAC output (LEMO) for signal inspection, pulse generation, majority level
2.5GB of Total Acquisition memory (DDR4)
On-board Zynq® UltraScale +™ MPSoC integrating an Arm®-based CPU running Linux®

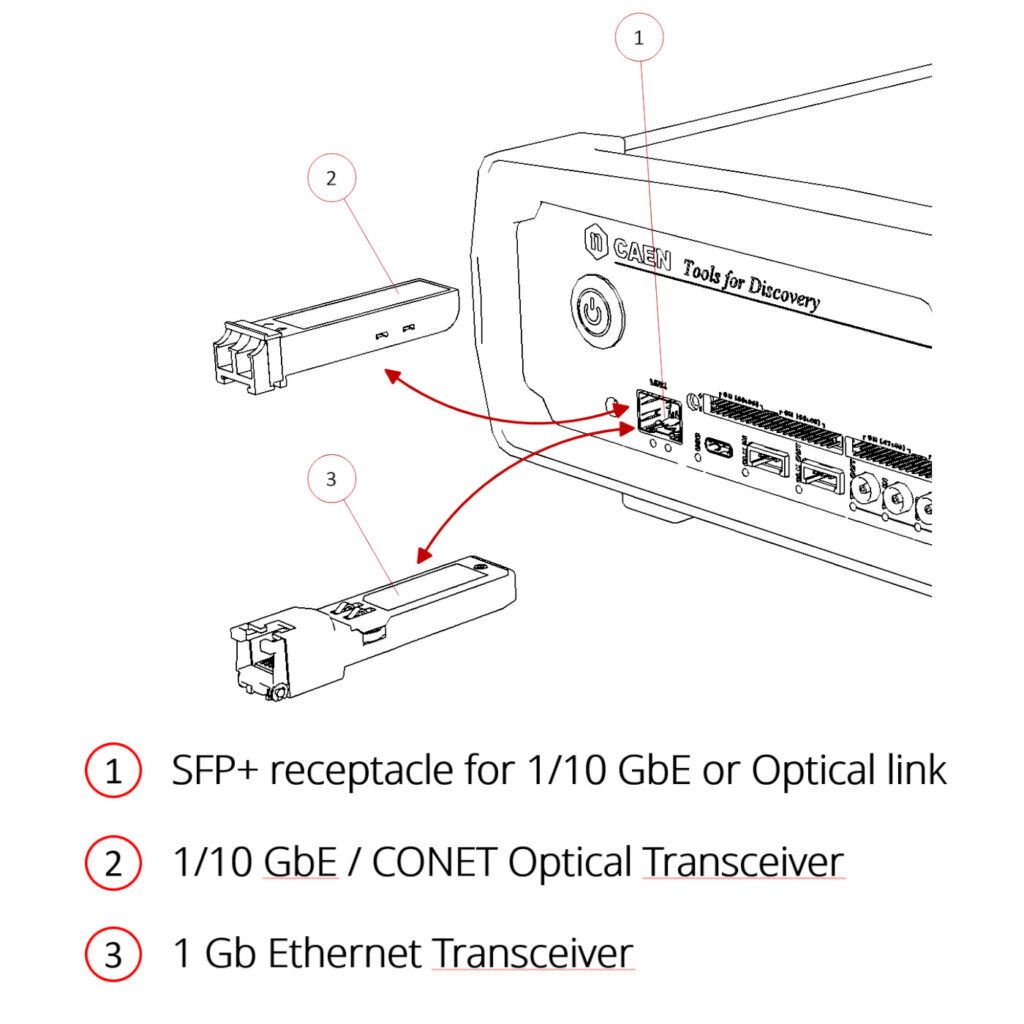

Multi Interface: USB-3.0 and 1/10 GbE or CONET optical link (switchable on the same socket)
Fully supported by CoMPASS and WaveDump2 readout software (CoMPASS support is ^{Available on request})
SDK for embedded Arm and host PC
Open FPGA architecture for pulse analysis algorithm customization

Overview

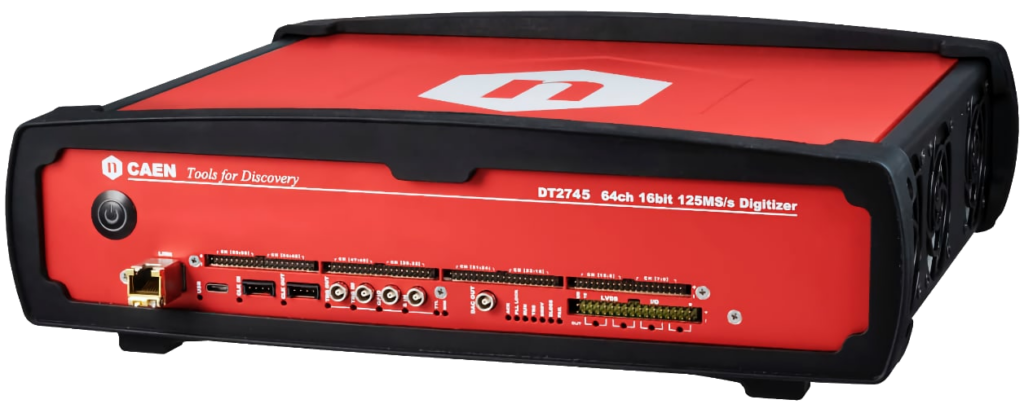

The DT2745 Digitizer is a 64-channel digital signal processor for radiation detectors in a Desktop form factor. It offers not only waveform digitization and recording but also Multi-Channel Analysis for nuclear spectroscopy using Silicon strip, segmented HPGe, Scintillation detector with PMTs, Wire Chambers, and others.

The DT2745 can perform pulse height measurements (PHA), and other algorithms that will be gradually developed, such as constant fraction timing (CFD), charge integration (QDC) and pulse shape discrimination (PSD). Algorithm settings can be set independently channel by channel.

The input channels with software selectable analog gain up to x100 are provided as differential (on 2745 versions) or single-ended (on 2745B versions).

Each channel of the module digitizes the analog input, that can be the signal coming from a physics detector, with a 16 bit, 125 MS/s ADC. The sampled data are used to initiate the digital pulse processing sequence, managed in the FPGA at the firmware level. Different firmware types can be selected via software, according to the specific setup and acquisition mode.

Common trigger: all channels acquire simultaneously with a common trigger. The trigger can be fed externally or generated by a combination of individual channel discriminators. This mode is mainly intended for the acquisition of waveforms, like a digital oscilloscope. Options for zero suppression are available to remove not significant data.
Independent trigger: suited for trigger-less applications, where no global trigger is needed but each channel acquires waveforms upon its self-trigger which fires through a digital discriminator, independently of the others.
DPP: real-time processing in the FPGA allows for the extraction of physical parameters from the waveform (e.g. pulse height, charge, timestamp, PSD), well suited for high counting rate applications. It is yet possible to save both raw waves and parameters.

A template of the firmware is available for customers who want to personalize the acquisition to implement custom algorithms for pulse processing in the open FPGA. The user can have control of the data output information and customize the trigger logic to get several combinations of self-triggers and I/O signals to validate or discard the events.
Custom software can run on the onboard CPU for data reduction and analysis. Multi-board synchronization can be implemented via backplane or front panel easy-cabling options.
The communication interface selection offers fast readout options: USB 3.0 type-C and 1/10 Gigabit Ethernet or optional Optical (CONET – CAEN Daisy Chainable Optical Link Protocol ^{Available on request}) Links.

Supported third-party software:

PKUCAENDAQ

Ordering Options

Code	Description
WDT2745BXAAA	DT2745B – 64 Ch. 16 bit 125 MS/s Digitizer with Programmable Input Gain, SE	RoHS
WDT2745XAAAA	DT2745 – 64 Ch. 16 bit 125 MS/s Digitizer with Programmable Input Gain, Diff	RoHS

Add to Wishlist

Request a Quote

Image	Name	Resolution (bits)	Max Sampling Rate (MS/s)	No. of Channels	Package	Bandwidth (MHz)	Full Scale Range (V)	Board Memory (Samples/ch)	Analog Input Connectors	CAEN firmware	Open FPGA
	VX2730	14	500	32	VME64X	250	[0.2 ÷ 4]	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE (cs)	YES
	V1725 / V1725S	14	250	8 / 16	VME	125	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	DT2745	16	125	64	Desktop	20	[0.04 + 4]	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	New R5560	14	125	128+6	rack mount 19 -2U	60	2	max. 8k	RJ45	n. a.	YES
	New DTL2730	14	500	8	Desktop	TBD	TBD	TBD	MCX	DPP-PHA(cs), DPP-PSD(cs), D-SCOPE(cs)	YES
	V1761	10	4000	2	VME	1000	1	7.2 M / 57.6 M	MCX	D-WAVE	NO
	DT5751	10	2000(DES mode) - 1000	2(DES mode) - 4	Desktop	500	0.2 / 1	3.6 M(DES mode) - 1.8 M	MCX	DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	VX1740D	12	62.5	64	VME64X	30	2 / 10	192 k	SMC 68P	DPP-QDC, D-WAVE	NO
	DT5725 / DT5725S	14	250	8	Desktop	125	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	VX1724	14	100	8	VME64X	40	0.5 / 2.25 / 10	512 k / 4 M	MCX	DPP-PHA, DPP-DAW	NO
	DT5761	10	4000	1	Desktop	1000	1	7.2 M	MCX	D-WAVE	NO
	VX2745	16	125	64	VME64X	20	[0.4 ÷ 4]	21 M	2mm 40-pin header male	D-SCOPE, DPP-PHA, DPP-PSD, DPP-ZLEplus<sup>(cs)</sup>	YES
	DT5724	14	100	4 / 2	Desktop	40	0.5 / 2.25 / 10	512 k / 4 M	MCX	DPP-PHA, DPP-DAW, D-WAVE	NO
	DT5730 / DT5730S	14	500	8	Desktop	250	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	VX2740	16	125	64	VME64X	50	2	21 M	2mm 40-pin header male	DPP-PHA, D-SCOPE, DPP-PSD, DPP-ZLEplus<sup>(cs)</sup>	YES
	V1724	14	100	8	VME	40	0.5 / 2.25 / 10	512 k / 4 M	MCX	DPP-PHA, DPP-DAW, D-WAVE	NO
	VX1761	10	4000	2	VME64X	1000	1	7.2 M / 57.6 M	MCX	D-SCOPE	NO
	DT2740	16	125	64	Desktop	50	2	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	V2740	16	125	64	VME	50	2	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	New DT2751	14	1000	16	Desktop	500	[0.2 ÷ 2]	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE<sup>(cs)</sup>	YES
	V1730 / V1730S	14	500	8 / 16	VME	250	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	N6725 / N6725S	14	250	8	NIM	125	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	New VX2751	14	1000	16	VME64X	500	[0.2 ÷ 2]	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE<sup>(cs)</sup>	YES
	VX1740	12	62.5	64	VME64X	30	2 / 10	192 k / 1.5 M	SMC 68P	D-WAVE	NO
	DT5740D	12	62.5	32(SMC conn.) - 16(MCX conn)	Desktop	30	2 / 10	192 k	SMC 68P - MCX	DPP-QDC,D-WAVE	NO
	V2745	16	125	64	VME	20	[0.04 + 4]	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	DT5742	12	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	16 + 1	Desktop	500	1	0.128 / 1	MCX	D-WAVE	NO
	VX1725 / VX1725S	14	250	8 / 16	VME64X	125	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	VX1730 / VX1730S	14	500	8 / 16	VME64X	250	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	V2730B	14	500	16	VME64	250	[0.2 ÷ 4]	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE(cs)	YES
	N6730 / N6730S	14	500	8	NIM	250	0.5 - 2	640 k / 5.12 M	MCX	DPP-PHA, DPP-PSD, DPP-ZLEplus, DPP-DAW, D-WAVE	NO
	V1743	12	3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array)	16	VME	500	2.5	0.007 M	MCX	D-WAVE	NO
	VX1751	10	2000(DES mode) - 1000	2(DES mode) - 4	VME64X	500	0.2 / 1	3.6 M(DES mode) - 1.8 M / 28.8 M(DES mode) - 14.4 M	MCX	DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	DT5740	12	62.5	32(SMC conn.) - 16(MCX conn)	Desktop	30	2 / 10	192 k	SMC 68P - MCX	D-WAVE	NO
	V1720	12	250	8	VME	125	2	1.25 M / 10 M	MCX	DPP-PSD, D-WAVE	NO
	V1751	10	2000(DES mode) - 1000	2(DES mode) - 4	VME	500	0.2 / 1	3.6 M(DES mode) - 1.8 M / 28.8 M(DES mode) - 14.4 M	MCX	DPP-PSD, DPP-ZLEplus, D-WAVE	NO
	VX1742	12	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	32 + 2	VME64X	500	1	0.128 / 1	MCX	D-WAVE	NO
	DT5743	12	3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array)	8	Desktop	500	2.5	0.007 M	MCX	D-WAVE	NO
	DT5720	12	250	4 / 2	Desktop	125	2	1.25 M / 10 M	MCX	DPP-PSD, D-WAVE	NO
	V1742	12	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	32 + 2	VME	500	1	0.128 / 1	MCX	D-WAVE	NO
	DT2730	14	500	32 / 16	Desktop	250	[0.2 ÷ 4]	84 M	MCX	DPP-PHA, DPP-PSD, D-SCOPE	YES
	VX1743	12	3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array)	16	VME64X	500	2.5	0.007 M	MCX	D-WAVE	NO
	V1740D	12	62.5	64	VME	30	2 / 10	192 k	SMC 68P	DPP-QDC, D-WAVE	NO
	New DTL2751	14	1000	4	Desktop	TBD	TBD	TBD	MCX	DPP-PSD(cs), D-SCOPE(cs)	YES
	VX1720	12	250	8	VME64X	125	2	1.25 M / 10 M	MCX	DPP-PSD, D-WAVE	NO
	N6742	12	5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array)	16 + 1	NIM	500	1	0.128 / 1	MCX	D-WAVE	NO

Image	Name	Resolution (bits)	Max Sampling Rate (MS/s)	No. of Channels	Package	Bandwidth (MHz)	Full Scale Range (V)	Board Memory (Samples/ch)	Analog Input Connectors	CAEN firmware	Open FPGA
	DT2745	16	125	64	Desktop	20	[0.04 + 4]	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES
	VX2745	16	125	64	VME64X	20	[0.4 ÷ 4]	21 M	2mm 40-pin header male	D-SCOPE, DPP-PHA, DPP-PSD, DPP-ZLEplus<sup>(cs)</sup>	YES
	V2745	16	125	64	VME	20	[0.04 + 4]	21 M	2mm 40-pin header male	DPP-PHA, DPP-PSD, D-SCOPE, DPP-ZLEplus<sup>(cs)</sup>	YES

GENERAL

Weight: 3120 g
Form Factor: Desktop | Desktop Rack
Dimension: Desktop: 338 W x 100 H x 283 L mm³ (without connectors) | 338 W x 100 H x 295 L mm³ (including connectors). Desktop-Rack: 19″ rack mount

ANALOG INPUT

Channels: 64 channels, differential on 2745, single-ended on 2745B versions
Bandwidth (-3dB): 20 MHz guaranteed for all Gain settings
Impedance: differential: 100 Ω, single-ended: 50 Ω (10 kΩ personalization available)
ICMR (Input Common-Mode Range): ± 12 Vdc referred to Gnd (Differential mode only)
Full Scale Range: 4 Vpp ÷ 0.04 Vpp
Gain: x1 ÷ x100, software programmable in steps of 0.5dB independently on each 16-channel group

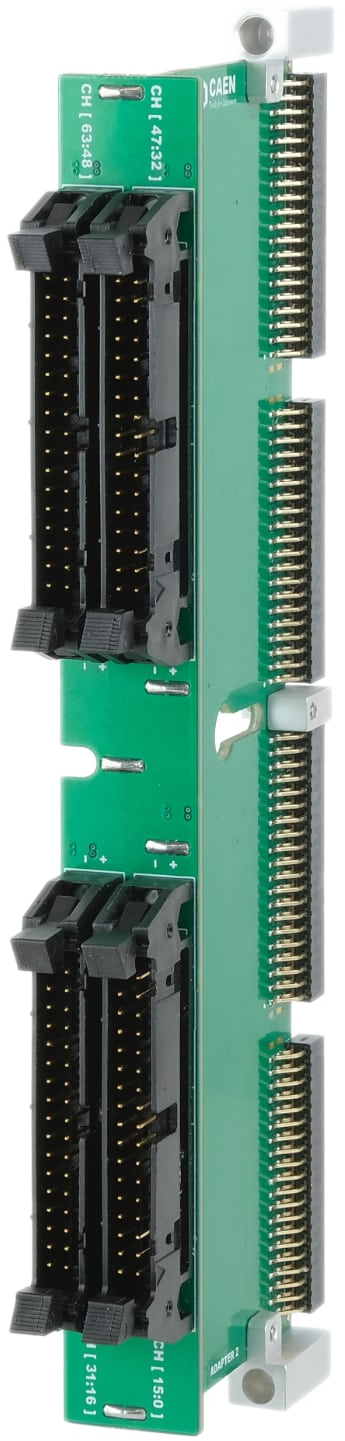

Connector Type: Four 2mm 40-pin header male; input adapters available
DC Offset: Adjustable in the ± 2.5V range independently on each channel

DIGITAL CONVERSION

Resolution: 16 bits
Sampling Rate: 125 MS/s simultaneously on each channel. Scalable by 2ⁿ decimation factor, n = 1 to 10 (Scope firmware only)

SYSTEM PERFORMANCE

ENOB: 12 @ 5MHz, -3dB, Gain = 1 (Typ.)
RMS: 3.6 LSB (≃ 110 µV) typical RMS @ Gain = 1

DIGITAL I/O

CLK-IN, CLK-OUT

Two differential pairs:
o CLK, reference clock signal
o SYNC, synchronization signal (start/stop, T0, etc.)
2.54mm, 4-pin AMPMODU Mod II male connector
CLK-IN: AC-coupled LVDS, ECL, PECL, LVPECL, CML (Zdiff = 100 Ω)
CLK-OUT: LVDS
Daisy chainable for multiboard synchronization with sw programmable CLK-OUT delay shift

LVDS I/O

16 differential pairs
Software programmable I/O (individual self-trigger outputs, trigger validations, Veto, Busy, Start, Stop, Pattern Input, etc.)
– LVDS
– Zdiff = 100 Ω (when set as inputs)
– 2.54mm 34-pin AMPMODU Mod II male connector

TRG-IN/TRG-OUT/GPIO/S-IN

– General purpose I/Os
– Software programmable (trigger, gate, veto, busy, etc.)
– Sigle-ended TTL/NIM

TRG-IN/S-IN internally terminated with 50 Ω (Zin = 50 Ω)
TRG-OUT requires Rt = 50 Ω
GPIO as Input must be terminated with 50 Ω
GPIO as TTL Output requires Rt = 50 Ω
GPIO as NIM Output requires Rt = 50 Ω or 25 Ω

– LEMO 00 male connector

DAC OUT

DAC output for signal inspection, pulse generation, majority level
14-bit Digital-to-Analog Converter (DAC)
125 MS/s Update Rate
±1 V @ 50 Ω load; ±2 V @ hi-Z load Output Range
LEMO-00 male connector

ACQUISITION MEMORY

2.5 GB total DDR4 memory size (20.971 MS/ch) divisible in multiple buffers
Maximum record length: ≃ 84 ms @ 125 MS/s (total memory size divided by 2)¹

¹Value referred to the Scope firmware (minimum of two buffers admitted)

TRIGGER

Trigger Modes

Common: all channels acquire simultaneously with the trigger (software, external or logic combination of self-triggers)
Individual: each channel acquires independently with its self-trigger
Correlated: the individual self-trigger of each channel is validated by the coincidence/anticoincidence logic between other self-triggers and/or external I/Os

Trigger Time Stamp

Resolution: 8 ns coarse time stamp, 8ps fine time stamp (DPP firmware only)
Counter range: 48 bits
Full-scale range: ~625 h

SYNCHRONIZATION

Clock Propagation

Typical 62.5MHz frequency optionally distributed:
• By fan-out to CLK-IN
• By CLK-IN/CLK-OUT daisy chain with sw programmable CLK-OUT delay shift
Custom frequencies can be supported on request

Acquisition Start/Stop

Daisy chain or fan-out propagation through CLK-IN/CLK-OUT or NIM/TTL, LVDS I/Os

Data Sync

Busy/Veto logic on LVDS I/Os or NIM/TTL I/Os for event building synchronization

Trigger Distribution

TRG-IN/TRG-OUT NIM/TTL LEMO I/Os (common trigger) or LVDS I/Os (common or individual trigger)

Trigger Time Stamp Reset

Software from START run command or Hardware from S-IN/GPIO input (Scope Firmware only)

FIRMWARE

Firmware stored in the on-board Flash Memory and live rebootable by Web Interface

DPP Firmware

Implements the digital pulse processing algorithm:

DPP-PHA: Pulse Height Analysis
DPP-QDC: Charge Integration
DPP-PSD: Pulse Shape Discrimination
DPP-ZLE: Zero Length Encoding
DPP-DAW: Dynamic Acquisition Window

Scope Firmware

Firmware for the waveform recording

Upgrades

Any supported firmware can be uploaded via Web Interface (both different firmware types and upgraded versions of the same firmware)

FPGA

Xilinx Zynq UltraScale+ Multiprocessor System-on-Chip mod. XCZU19EG
Processing System based on Quad-core Arm with 2GB DDR4 memory @2400 MT/s (Linux OS onboard)
Programmable logic with more than 1100K system logic cells and 80Mbit memory

OPEN FPGA

User-Scope Template

Common trigger, simultaneous waveform recording on 64 channels management. Trigger logic and wave processing customization

User-DPP Template

Individual trigger and channel acquisition management. Customization of DPP algorithm, trigger logic, and event data information

COMMUNICATION INTERFACE

1 GbE

Copper RJ45 or optical LC connector on SFP+ transceiver
TCP/IP protocol
Transfer rate: 110 MB/s

10 GbE ⁽^Contact^{CAEN Support)}

Copper RJ45 or LC optical connector on SFP+ transceiver
UDP protocol
Transfer rate: 850 MB/s

USB 3.0

USB-C type connector
USB 3.1 GEN1 protocol
Transfer rate: 280 MB/s

SOFTWARE

Readout SW

CoMPASS spectroscopy software (for DPP firmware only)
WaveDump2 (for Scope firmware only)

SDK and Tools
General purpose C libraries with demo samples for host Windows® and Linux® PC, and embedded Arm processor

SCI-Compiler (Open FPGA)
Automatic generation of drivers (USB, ethernet), libraries, and demo software for Windows®, Linux®Web Interface
Firmware management (e,g. upgrades and on-the-fly selection of the firmware to run), board information, PLL and Ethernet configuration, board status monitoring

POWER REQUIREMENTS

Mains-powered (130 Watt @110V/220V).

DT2745

64 Channel 16 bit 125 MS/s Digitizer with Programmable Input Gain

Highlights

Overview

Software

CAEN Toolbox

COMPASS

Sci-Compiler

CAEN FELib Library

WAVEDUMP2

Firmware

D-SCOPE

D-WAVE

DPP-PSD

DPP-PHA

DPP-ZLEPLUS

DPP-SUP

Accessories

A954

A316

D-WAVE

A319A

A319B

A372F

A372M

A952

A953

Ordering Options

You also may be interested in…

DTL2745

A4818

V2745

A5818

VX2745

Request a Quote

Compare

Technical Specifications

Footer

About Us

Resources

Applications

Support

News

Contact Us
